Fuel Filter: Service and Repair

REMOVAL

CAUTION: When repair to the fuel system has been completed, start engine and check the fuel system for loose connection or leakage. For the fuel system diagnosis, see Computers And Control Systems / System Diagnosis.
1. Disconnect battery ground cable.




2. Remove Fuel filler cap (1).

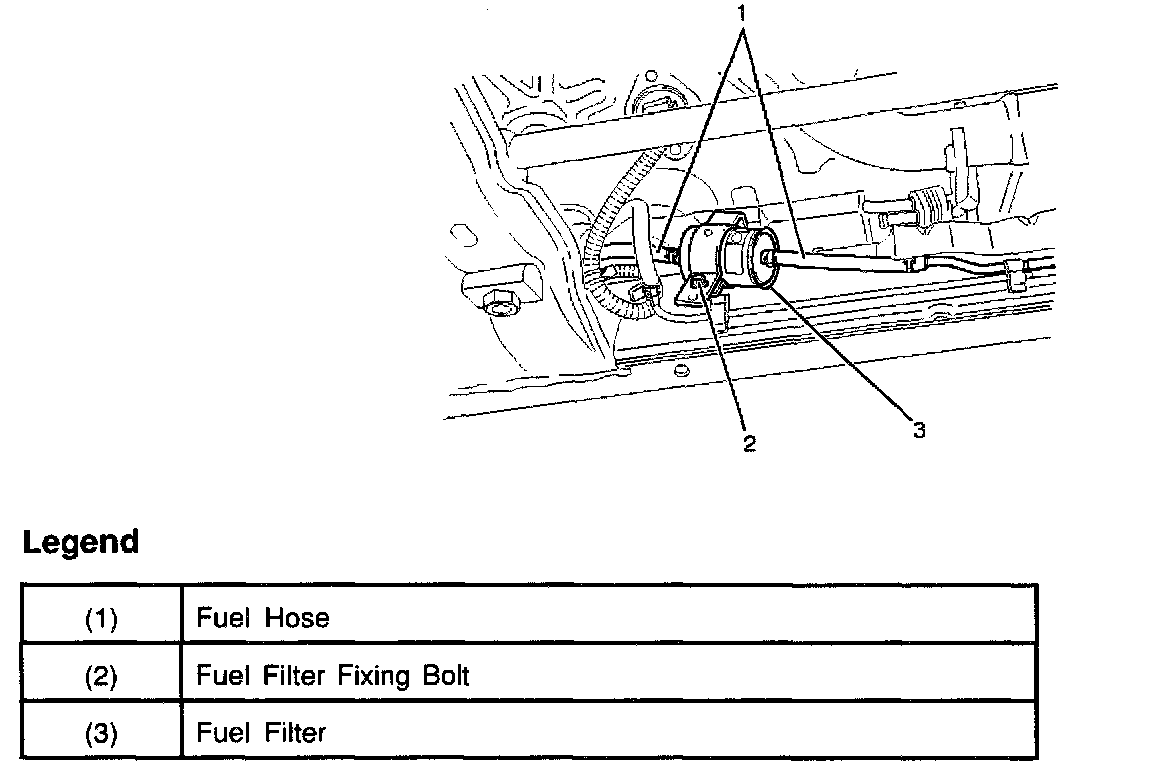

3. Disconnect fuel hoses (1) from fuel filter on both engine side and fuel tank side.
4. Fuel filter fixing bolt (2).
- Remove the fuel filter fixing bolt (2) on fuel filter holder.
5. Remove fuel filter (3).




INSTALLATION
1. Install the fuel filter in the proper direction.
2. Install fuel filter holder fixing bolt.
3. Connect fuel hoses on engine side (1) and fuel tank side (2).
4. Install fuel filler cap.
5. Connect the battery ground cable.
