Home >> Isuzu >> 1999 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Relay Box: Locations

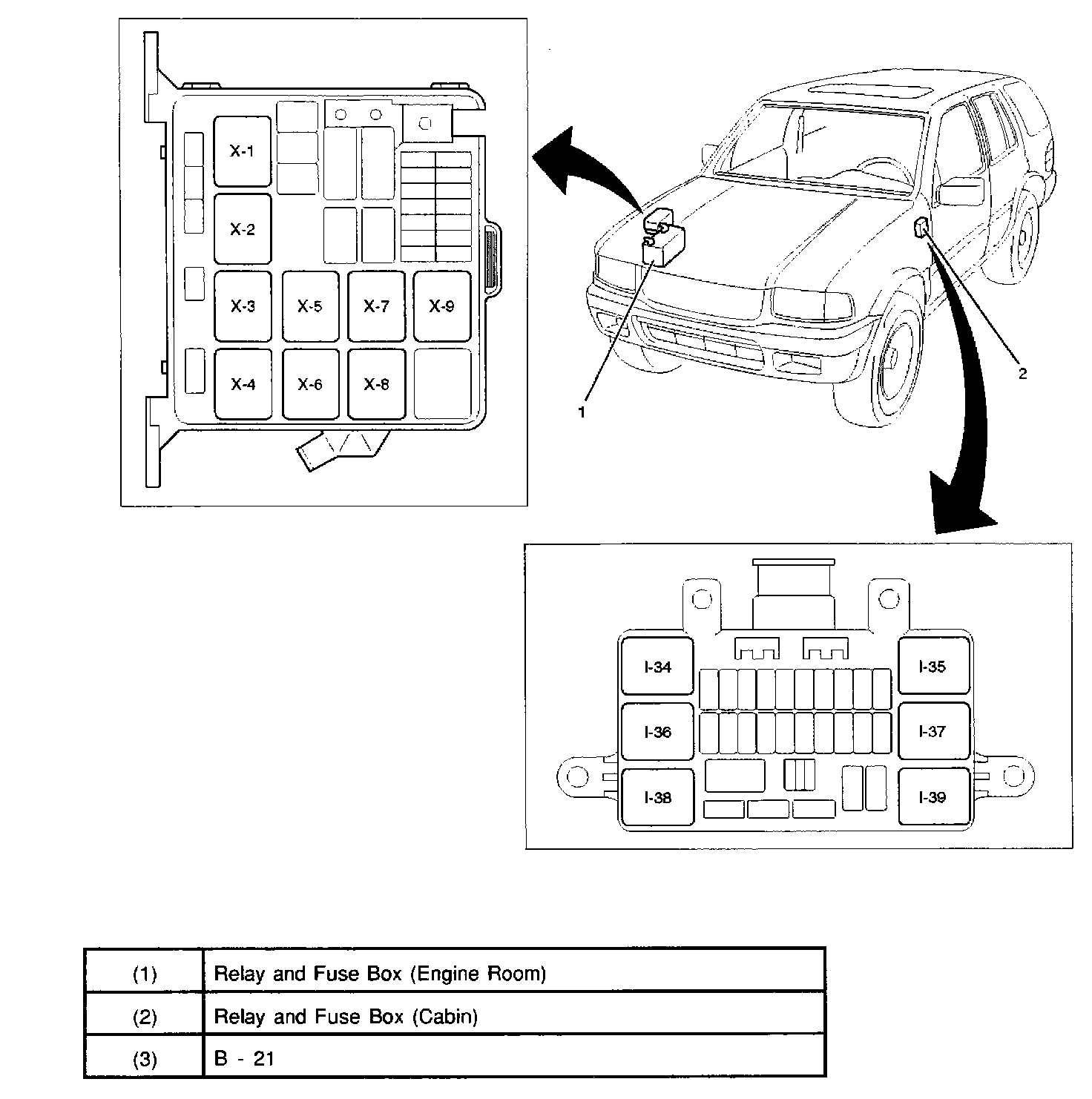

Relay Location

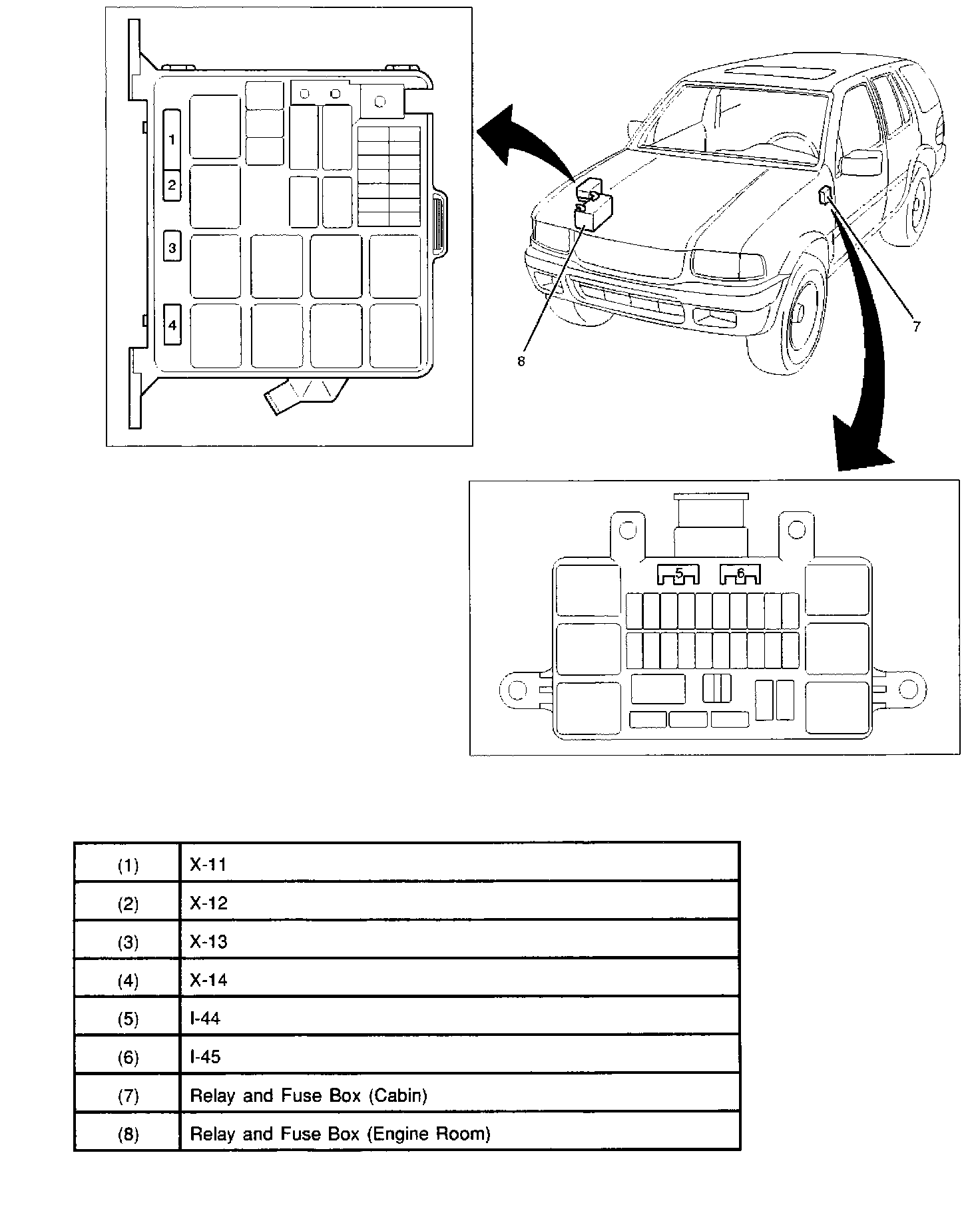

Relay List
