Front Seat Assembly

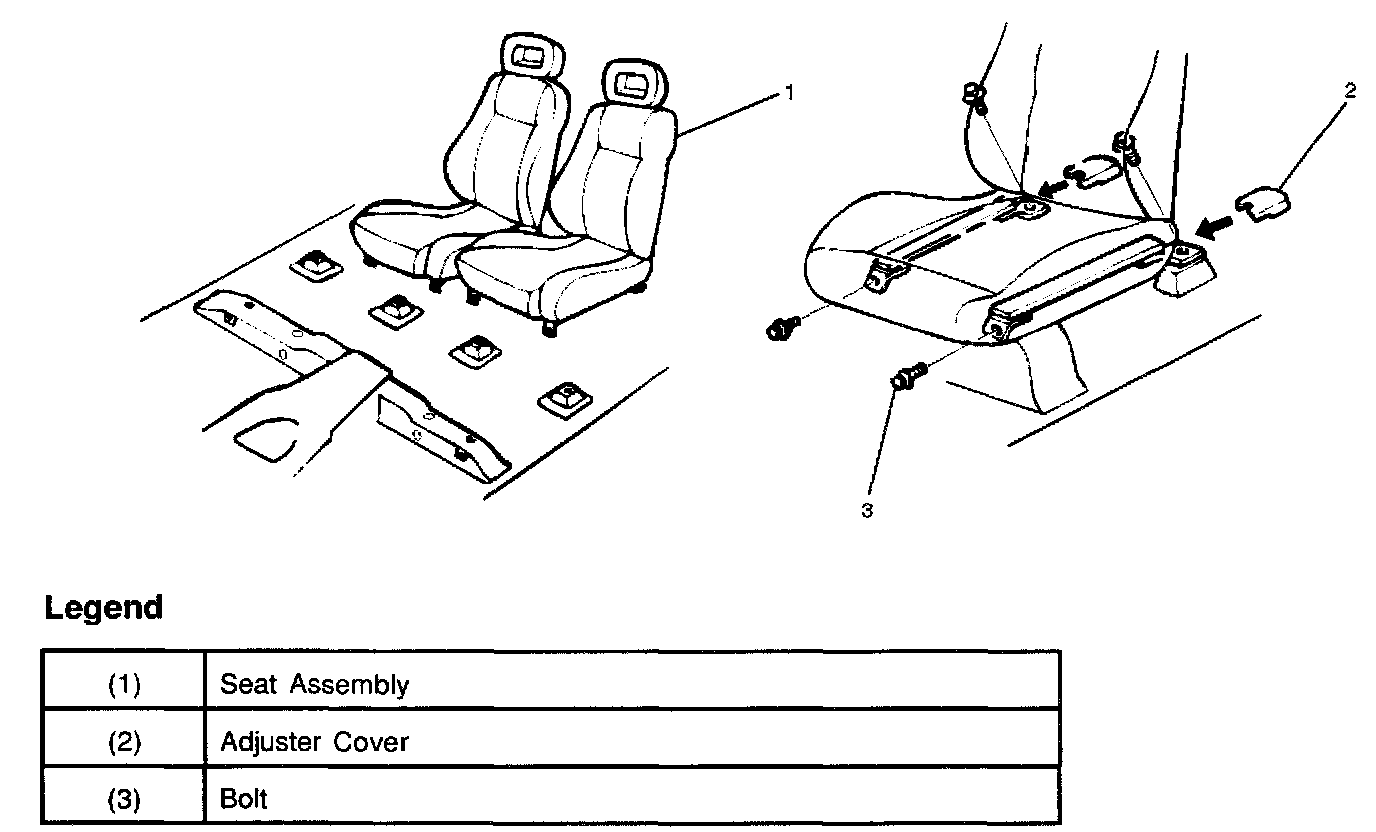

Front Seat Assembly and Associated Parts

Removal
1. Disconnect the battery ground cable.
2. Remove the adjuster cover.
3. Remove the bolt.
4. Remove the front seat assembly.

Installation
To install, follow the removal steps in the reverse order, noting the following points:
1. Tighten the front seat assembly fixing bolts to the specified torque.
Torque: 39 Nm (29 lb.ft)
