Home >> Isuzu >> 1999 >> Trooper V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft) >> Keyless Entry and Security Control Unit

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

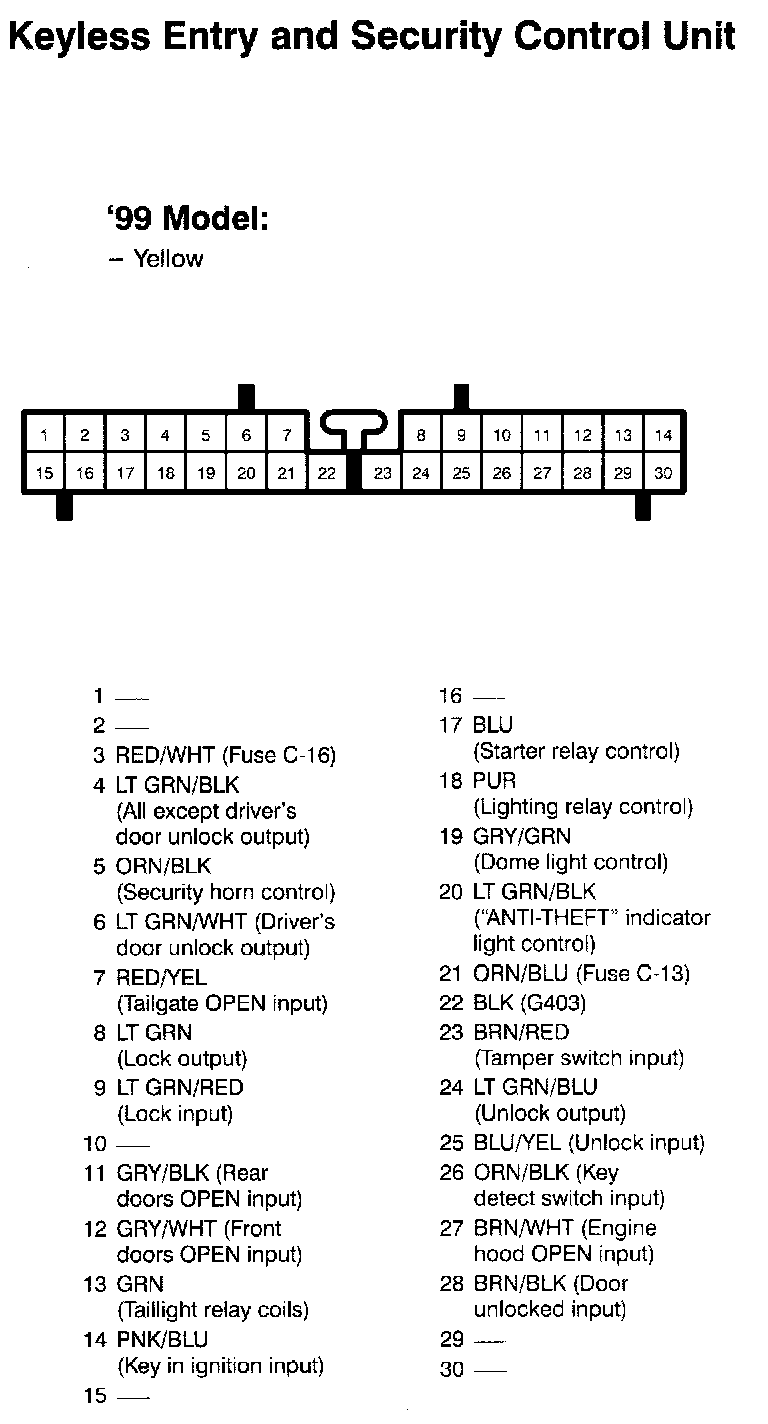

Keyless Entry and Security Control Unit
