Manual Transmission/Transaxle

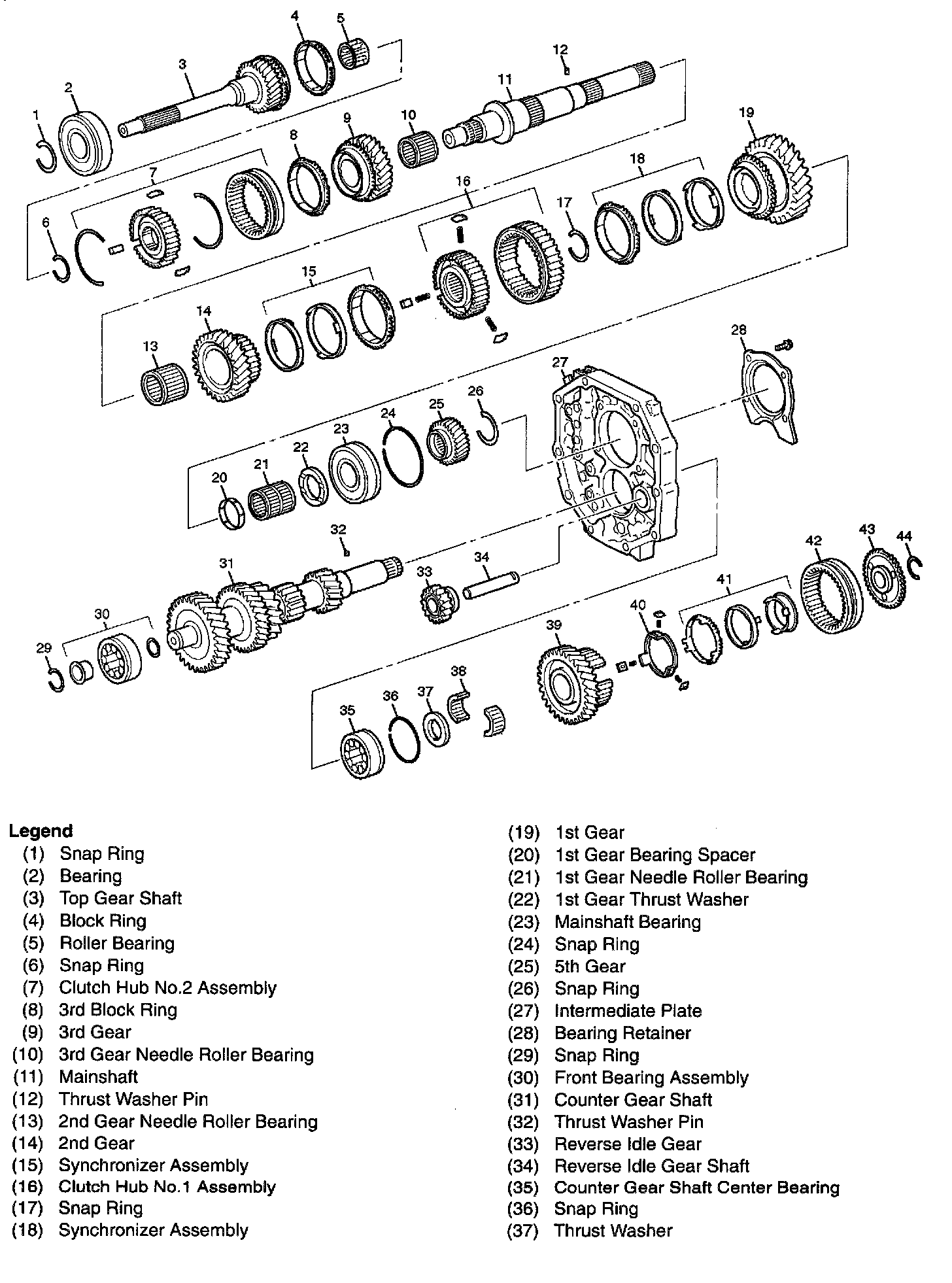

Part 1 Of 2:




Part 2 Of 2:

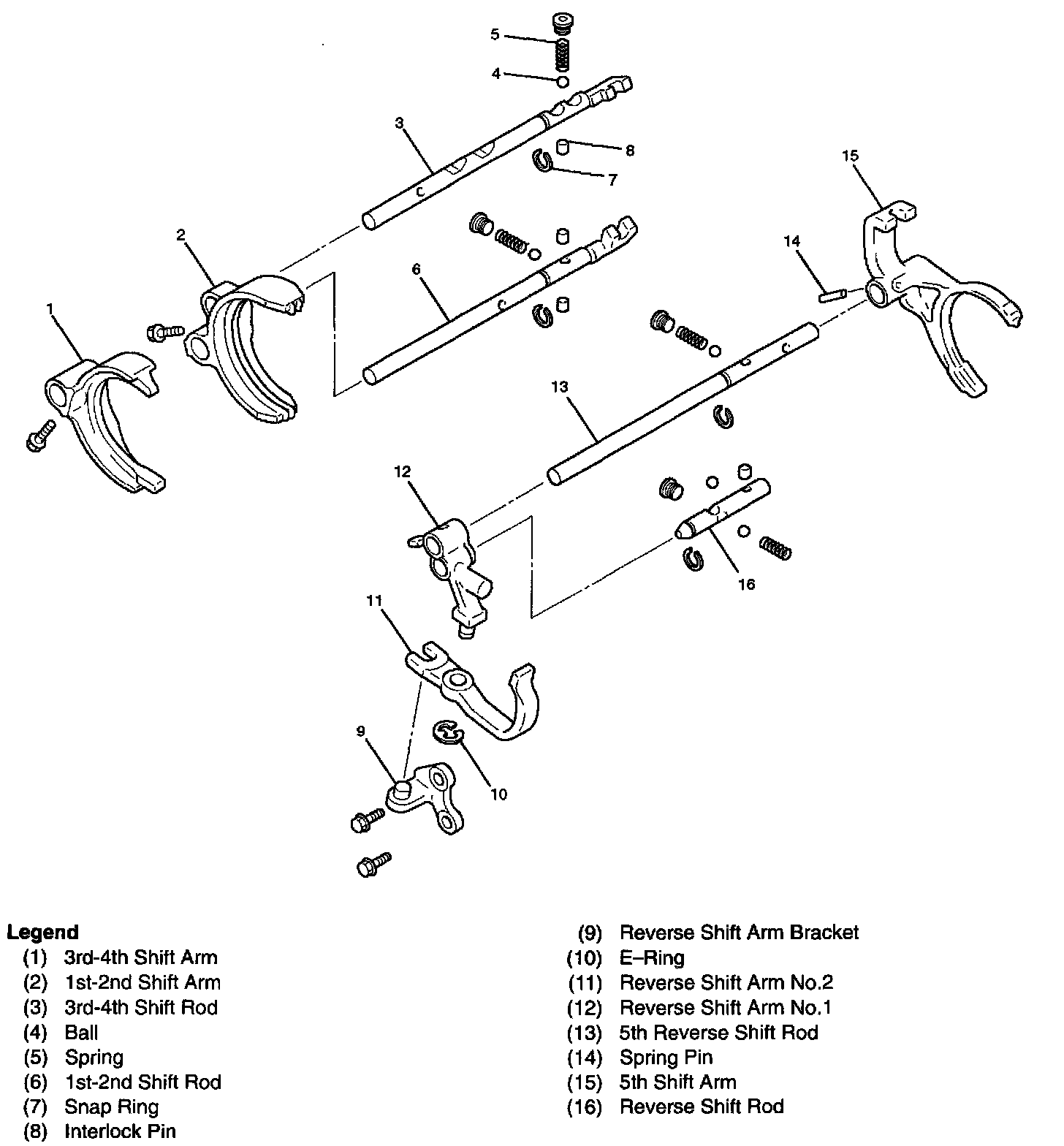

Shift Forks:

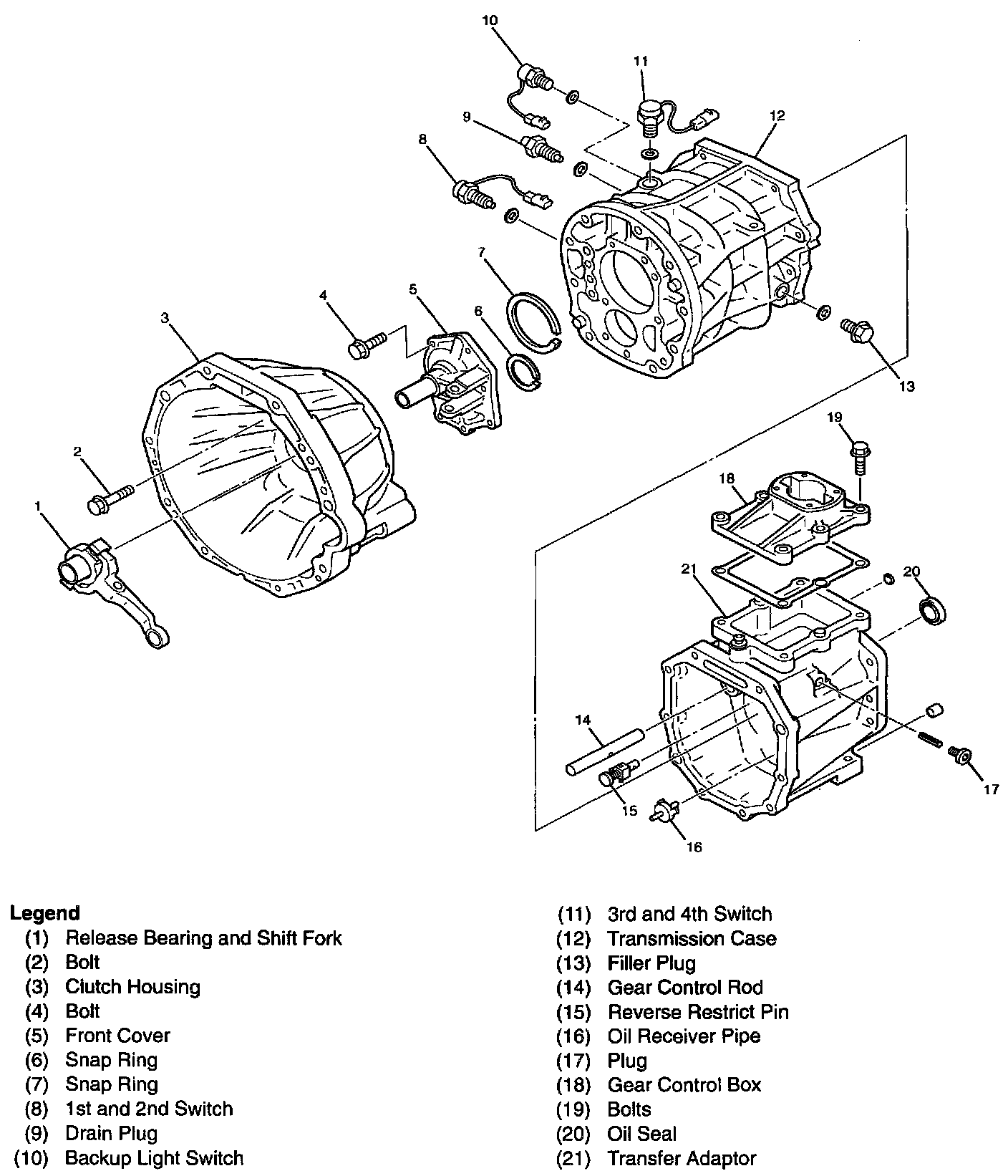

Housing:





DISASSEMBLED VIEWS
