Lamp Reset Procedure

Maintainence Reminder Light Reset:

At 90,000 mile intervals, the O2 sensor lamp will illuminate.
After replacing the sensor, perform the following procedure to reset the lamp.

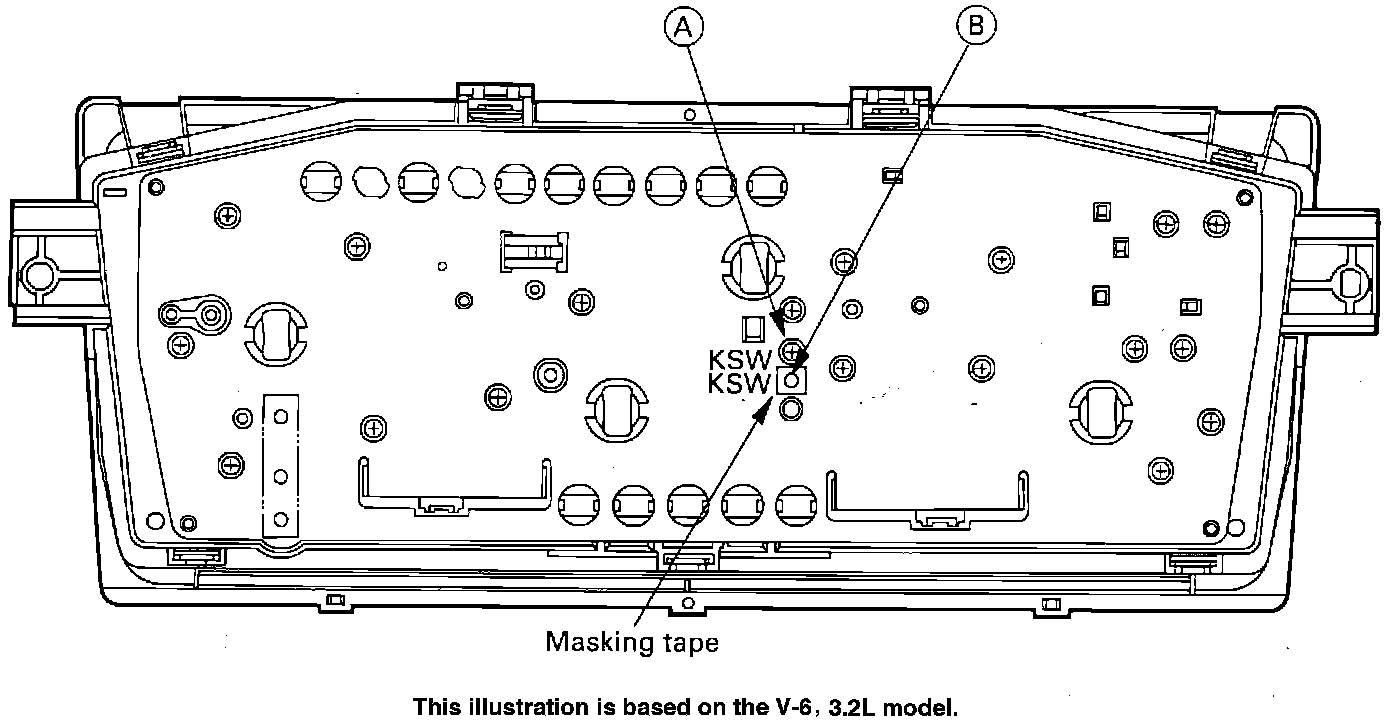

- Remove instrument cluster.
- Remove masking tape from hole B.
- Remove screw from hole A and install into hole B.
- Apply new masking tape to hole B.
- Install instrument cluster.

NOTE: This procedure assumes that the sensor is being replaced for the first time (at 90,000 miles). For subsequent procedures (every 90,000 miles) the procedure will be reversed.
