Connector Locations
Connector & Harness Routing 2.2L:

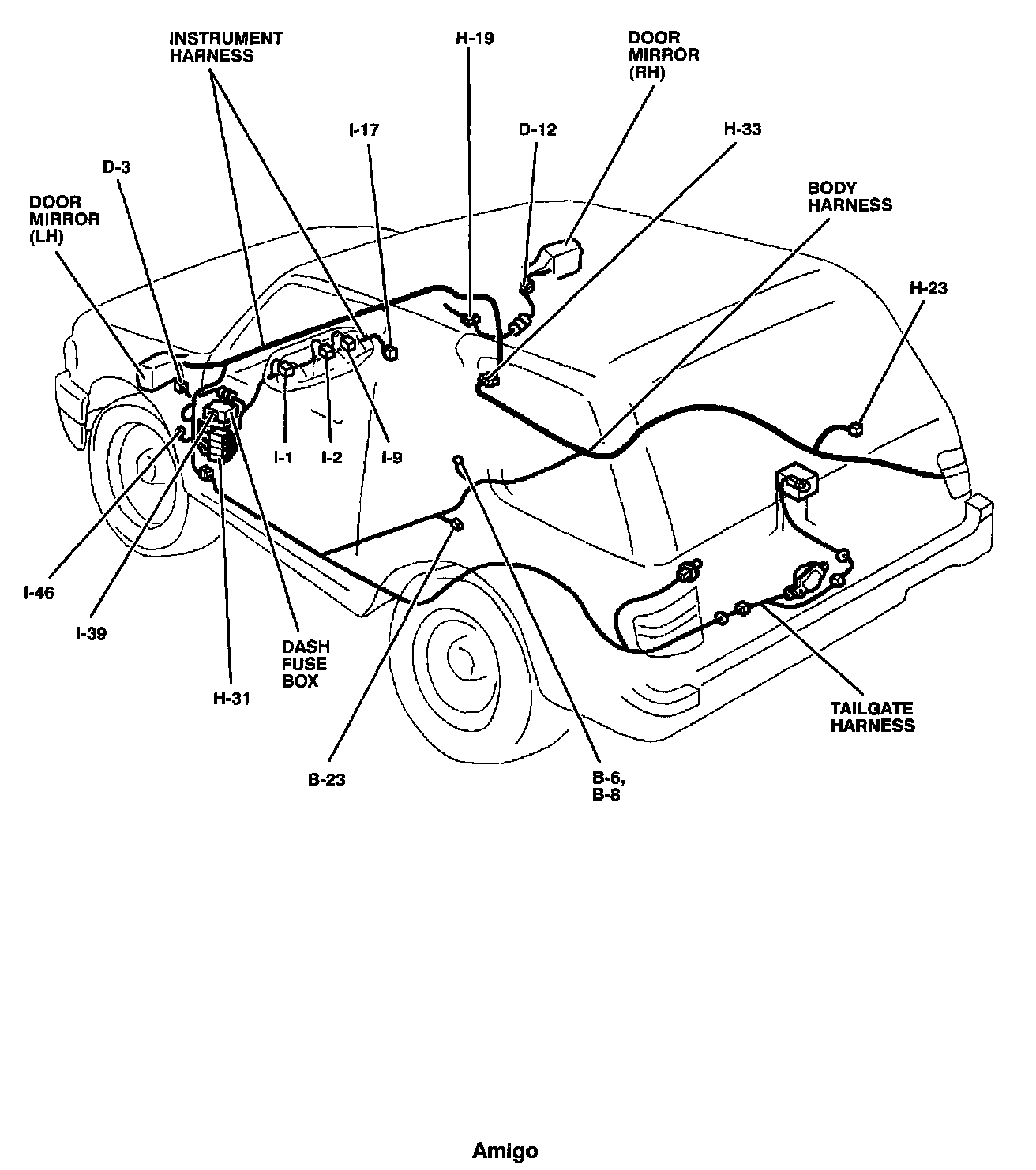

Amigo:
Connector & Harness Routing:
Connector & Harness Routing:
