Oxygen Sensor: Locations

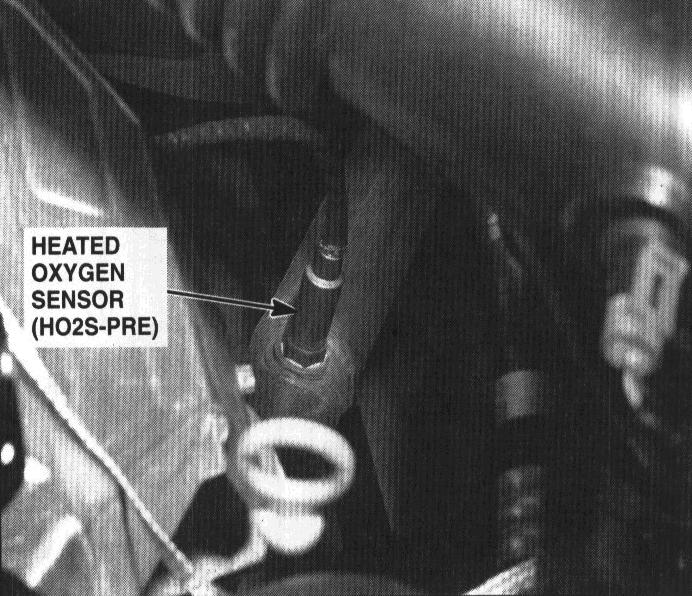

Pre-Catalytic Converter Heater Oxygen Sensor Location:

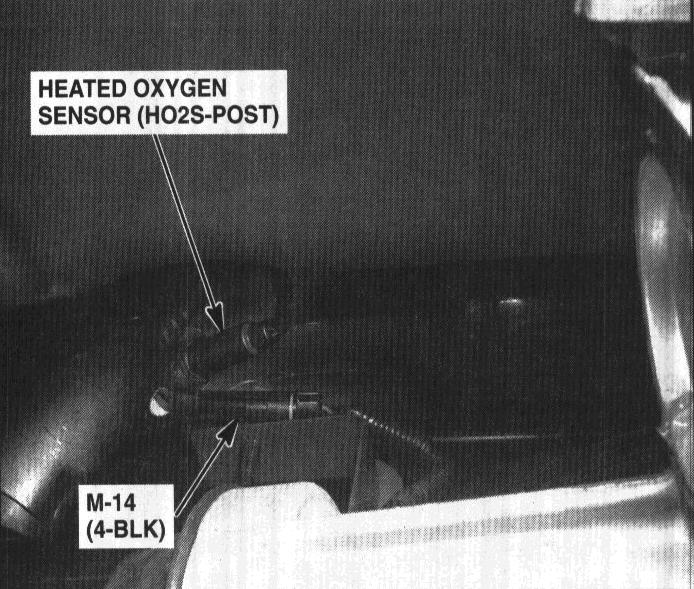

Post-Catalytic Converter Heater Oxygen Sensor Location:



32 - Lower Left Rear Of 2.2L Engine:



33 - Rear Of 2.2L Catalytic Converter:
