Body / Frame Mount Bushing: Service and Repair

Body Mounting

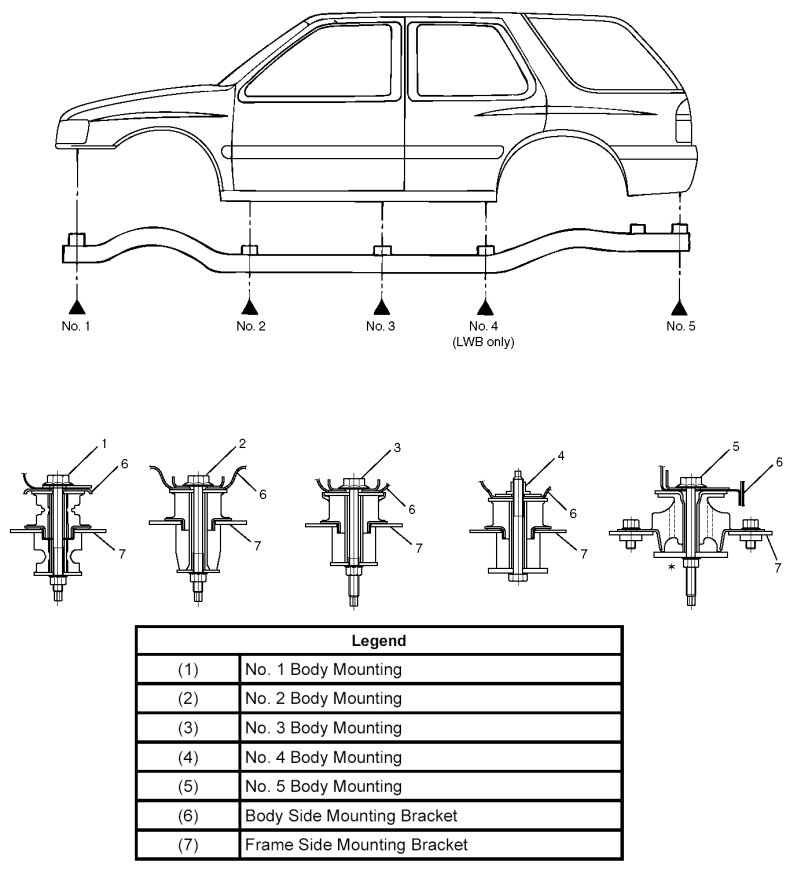

Parts Location:

Tightening Torque

1. Tighten the body mounting bolts to specified torque.

Torque: 50 N.m (41 lb ft)

- mark position
(LWB) Torque: 50 N.m (41 lb ft)
(SWB) Torque: 103 N.m (76 lb ft)
