Power Mirror Switch: Service and Repair

Power Door Mirror System

Door Mirror Switch

Removal

1. Disconnect the battery ground cable.

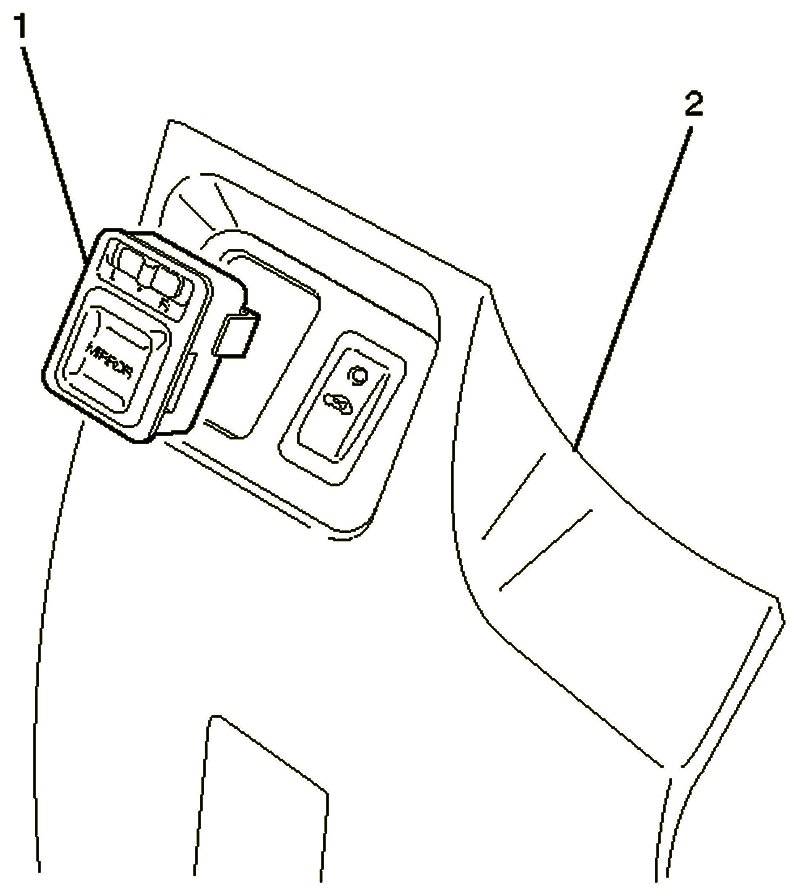

2. Remove the instrument panel lower cover (2).
3. Remove the door mirror switch (1).
