Sunroof / Moonroof Module: Service and Repair

Removal
1. Disconnect the battery ground cable.





2. Remove the headlining (2).

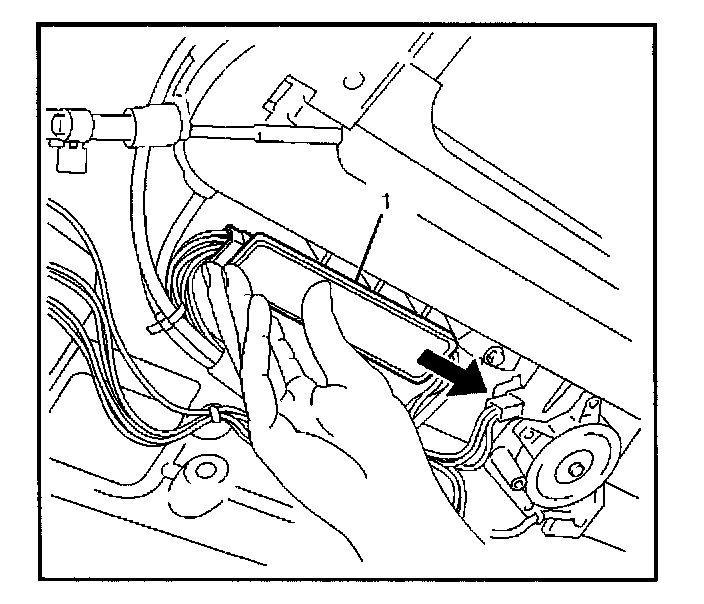

3. Remove the sun roof control unit (1).
- Disconnect two connectors.
- Remove two screws.

Installation
To install, follow the removal steps in the reverse order.
