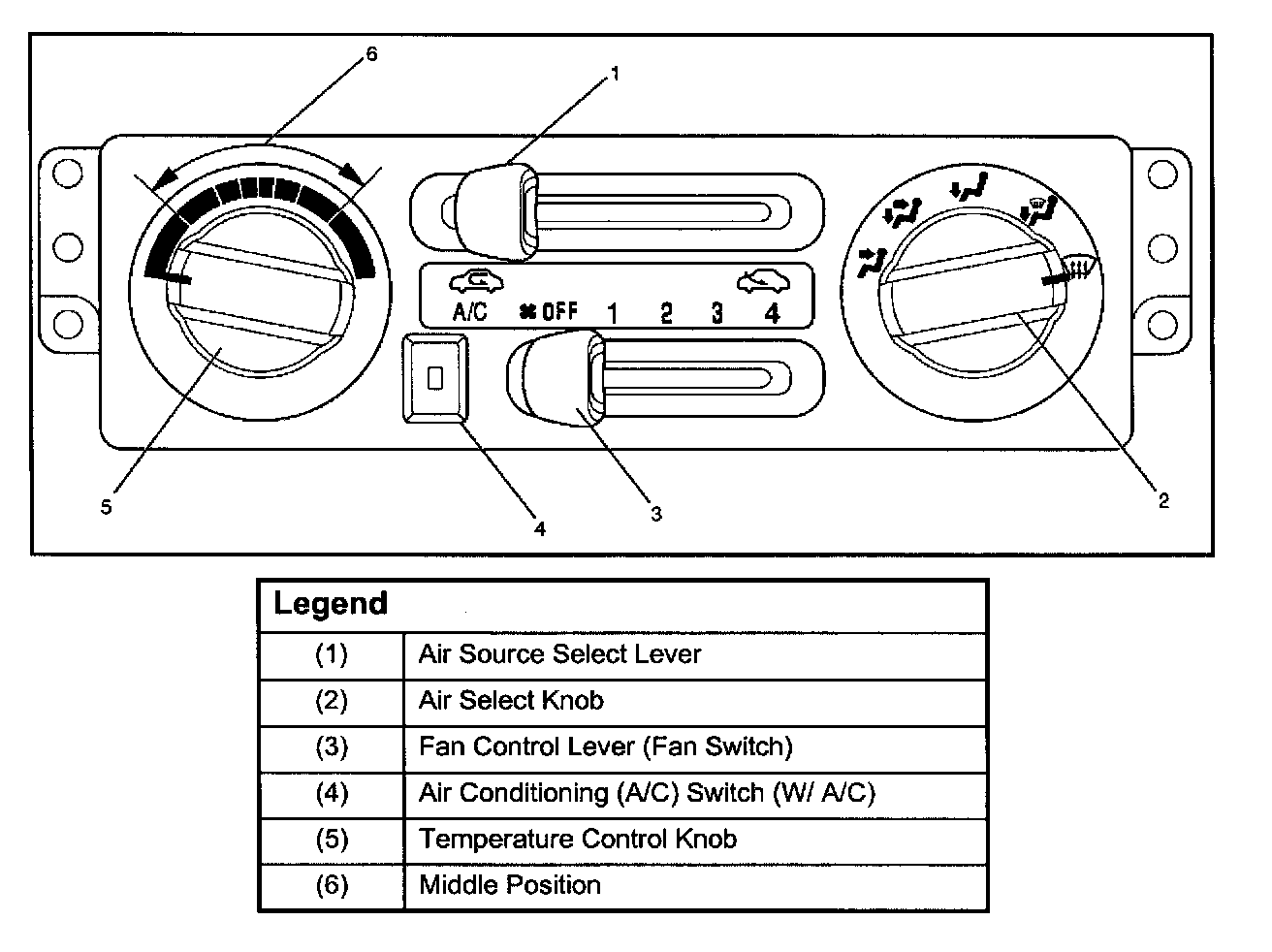

Control Lever Assembly




The control lever assembly has some cables to control the mode and temperature of the heater unit and the mode door for the air source of the blower assembly.
The fan control is used to control the amount of air sent out by the resistor at four levels from "LOW" to "HIGH".
