Electrical Diagrams

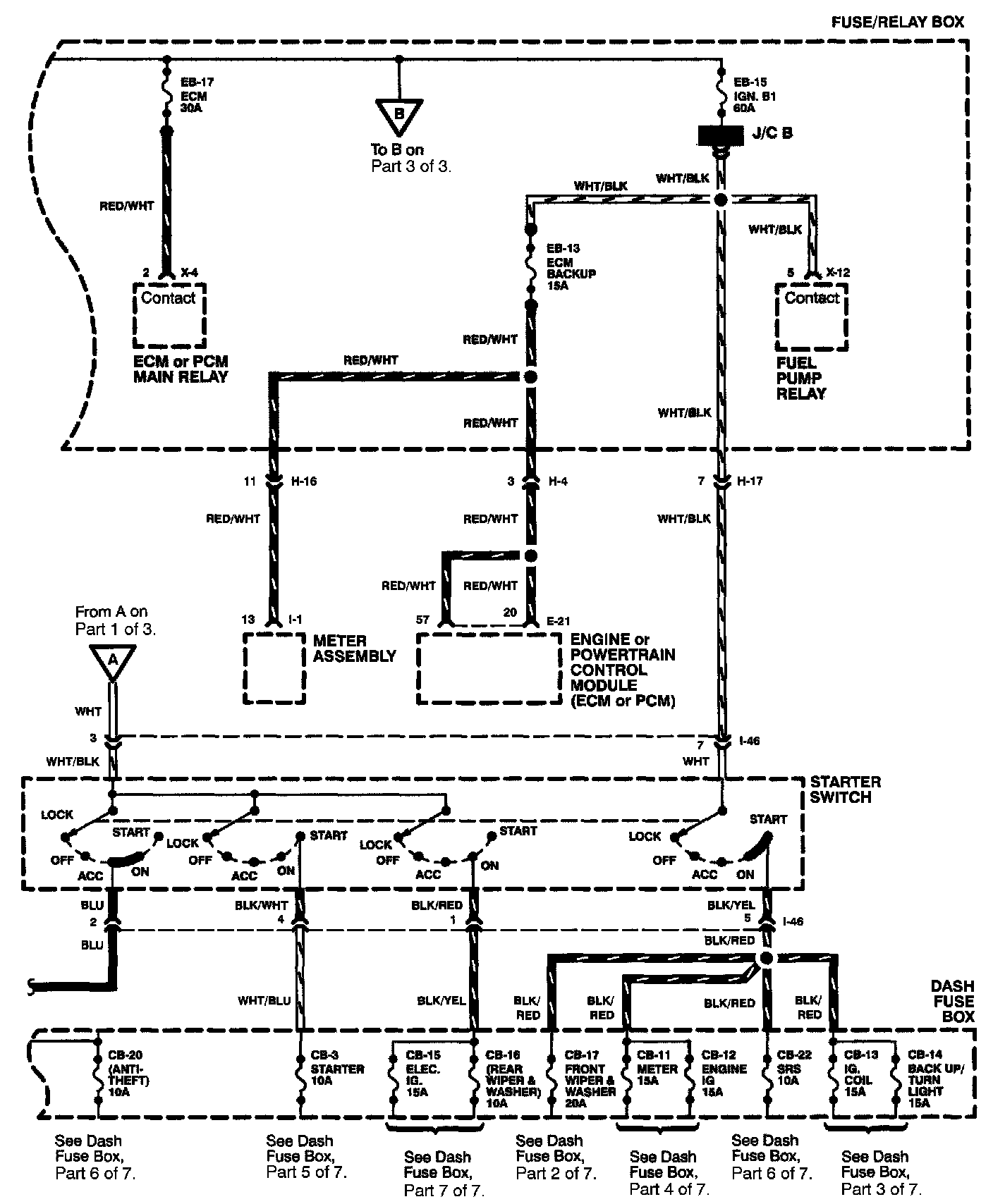

Power Distribution (1 Of 2):

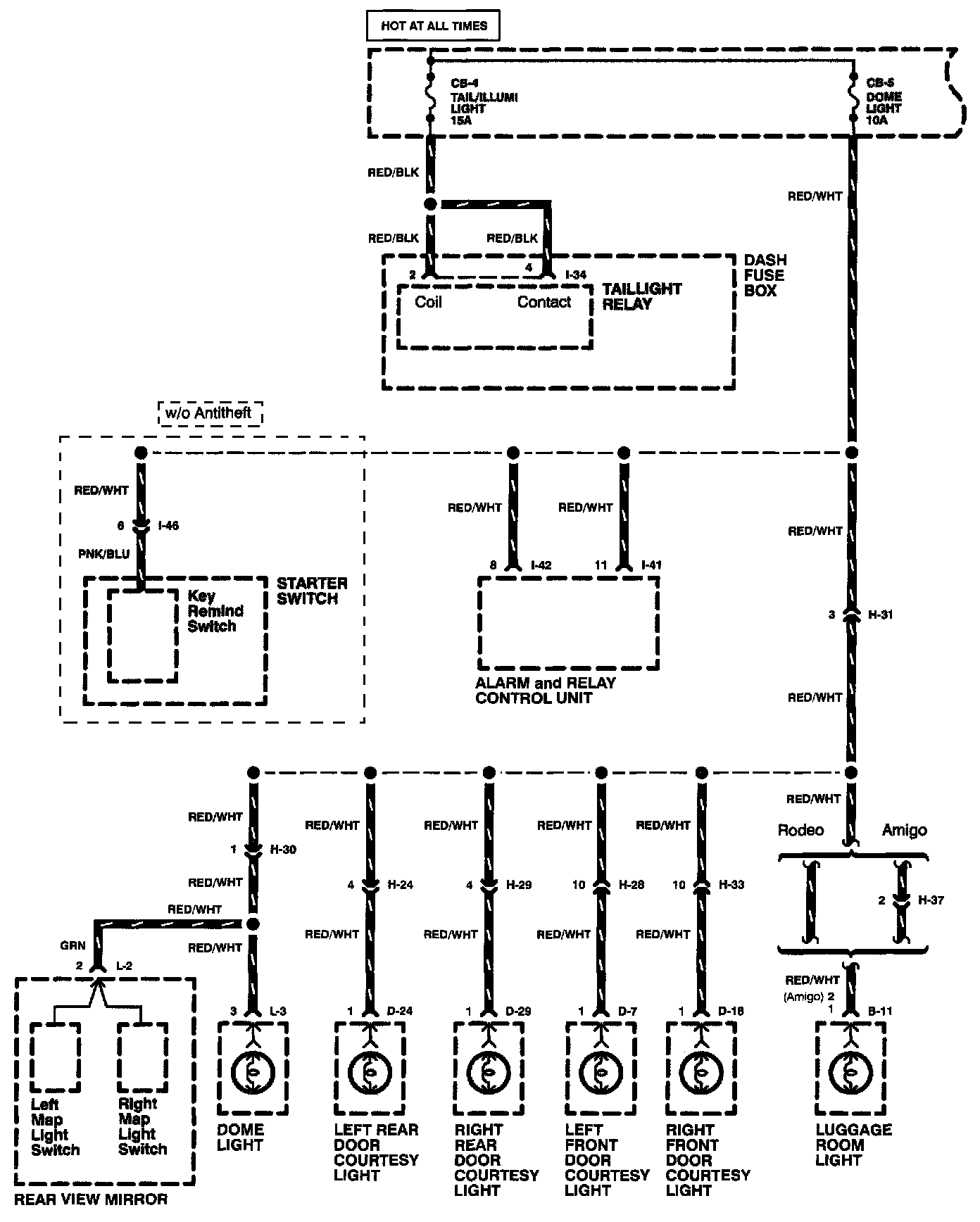

Power Distribution (2 Of 2):

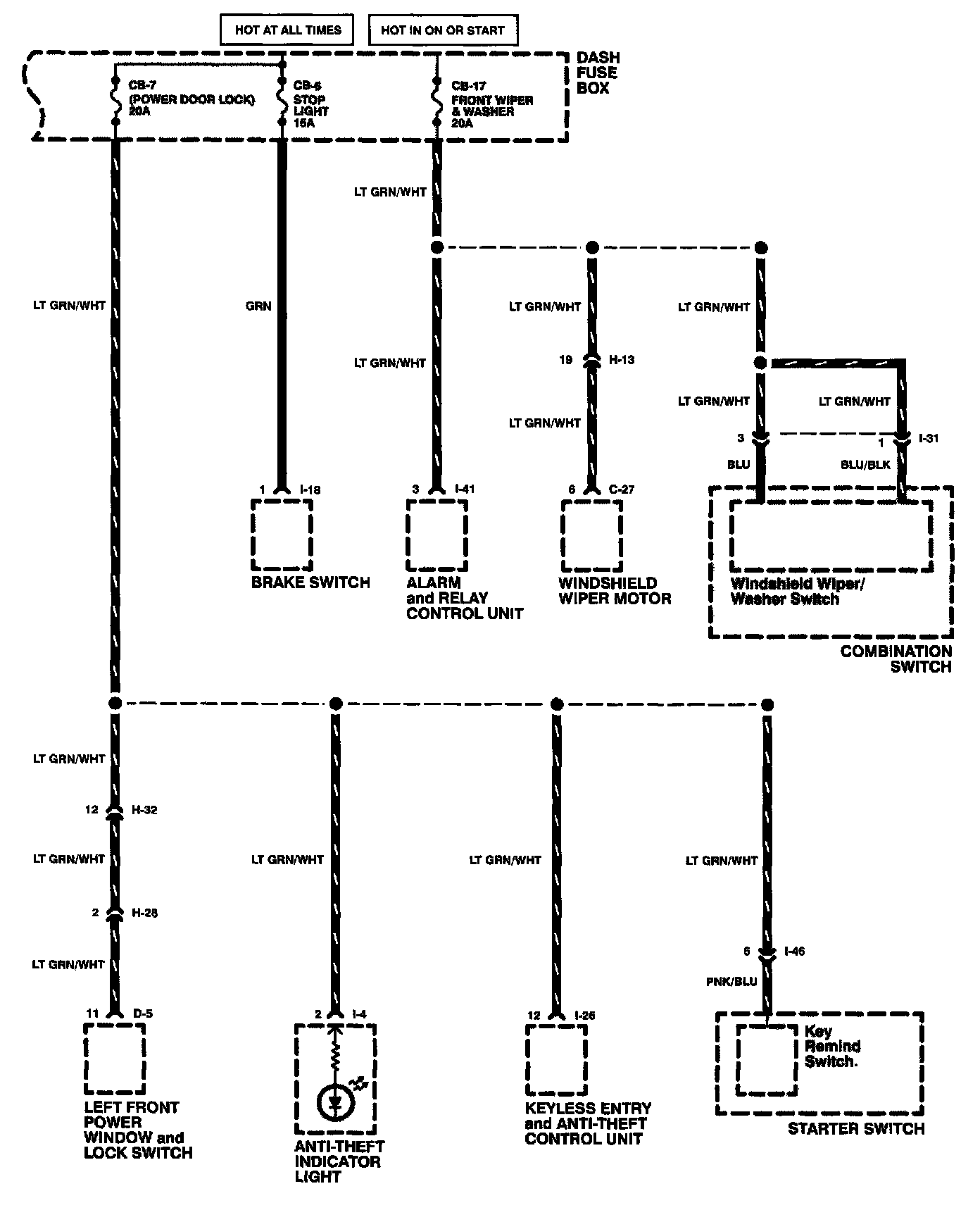

Power Distribution (2 Of 3):

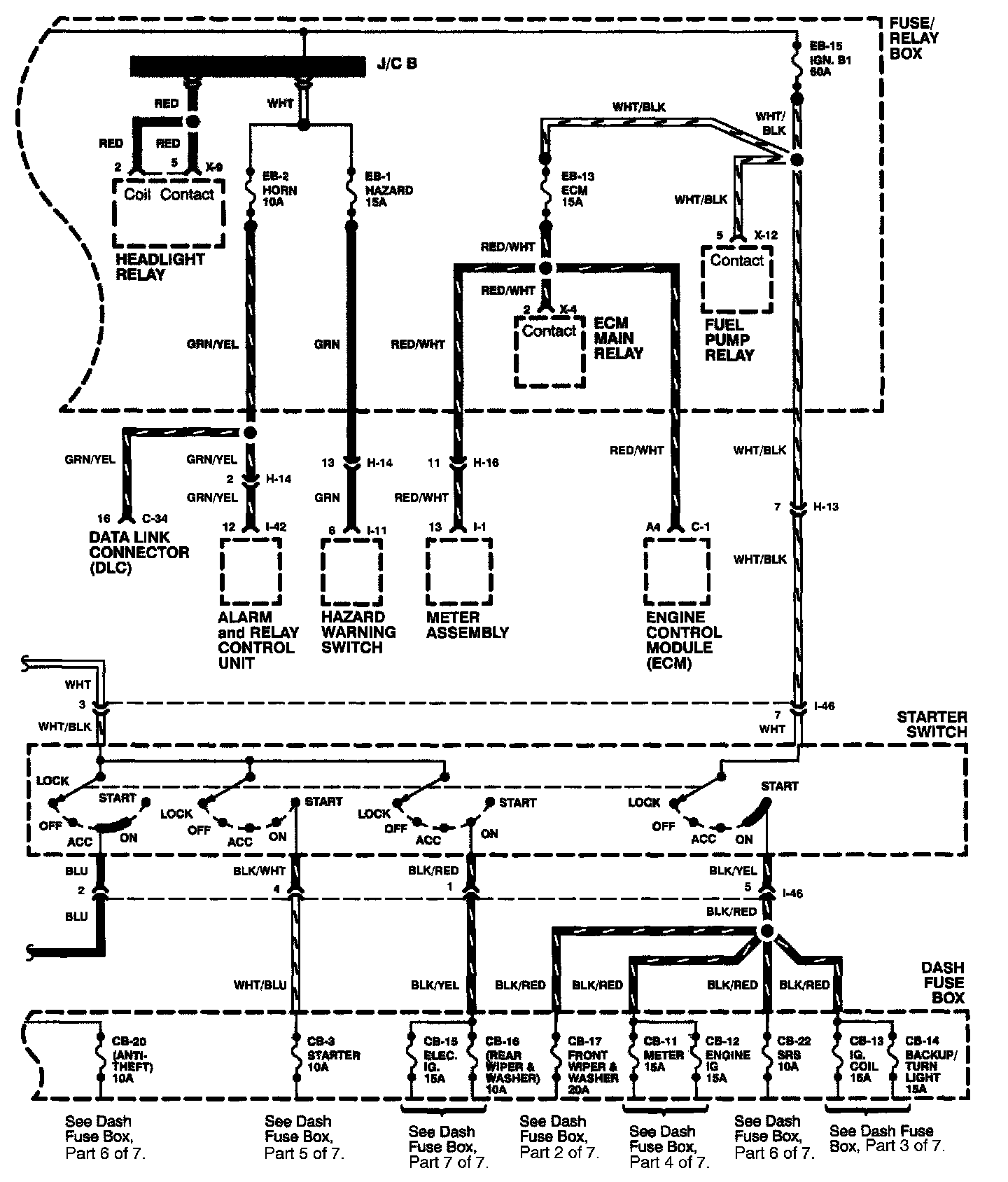

Dash Fuse Box (1 Of 7):

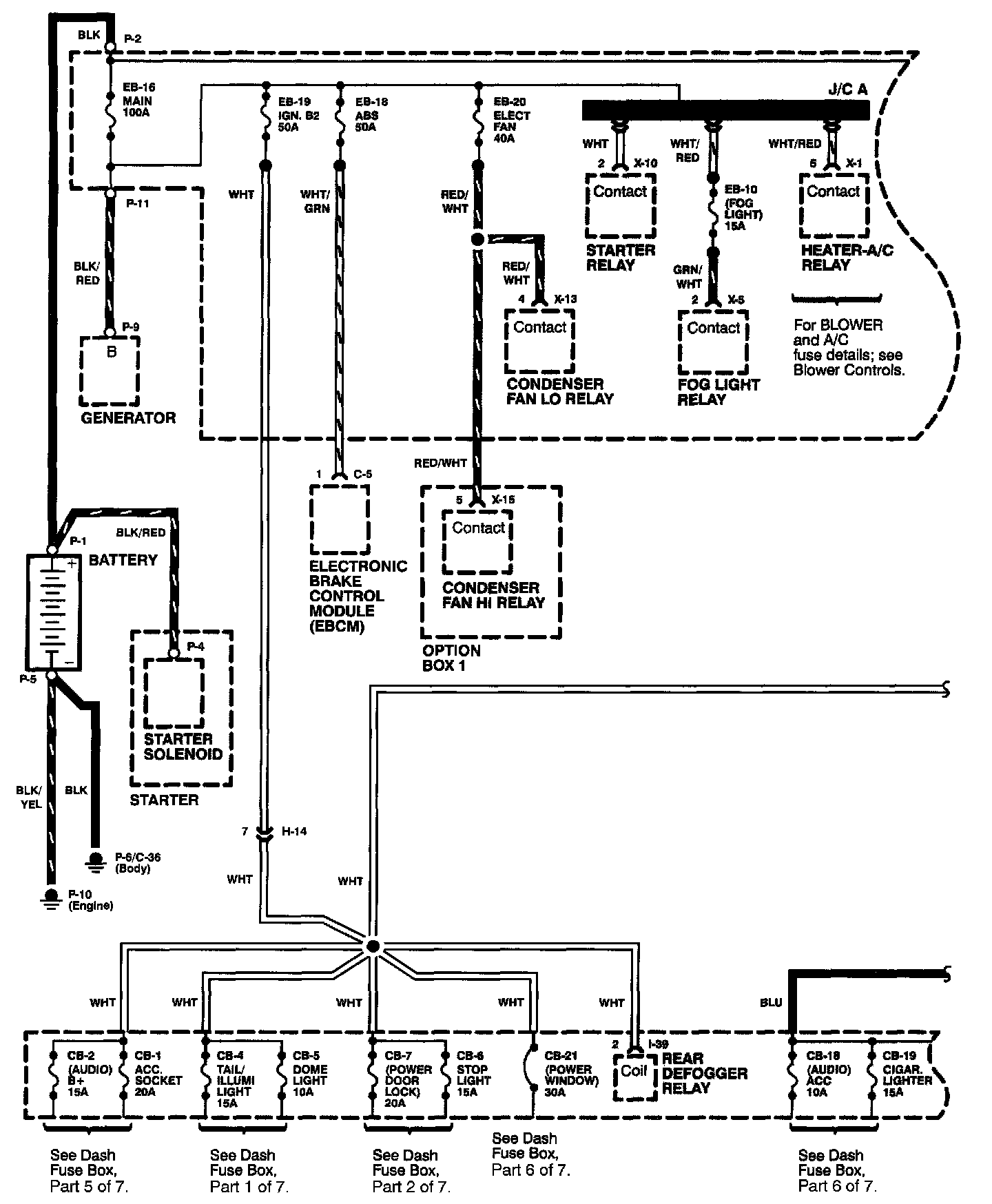

Dash Fuse Box (2 Of 7):

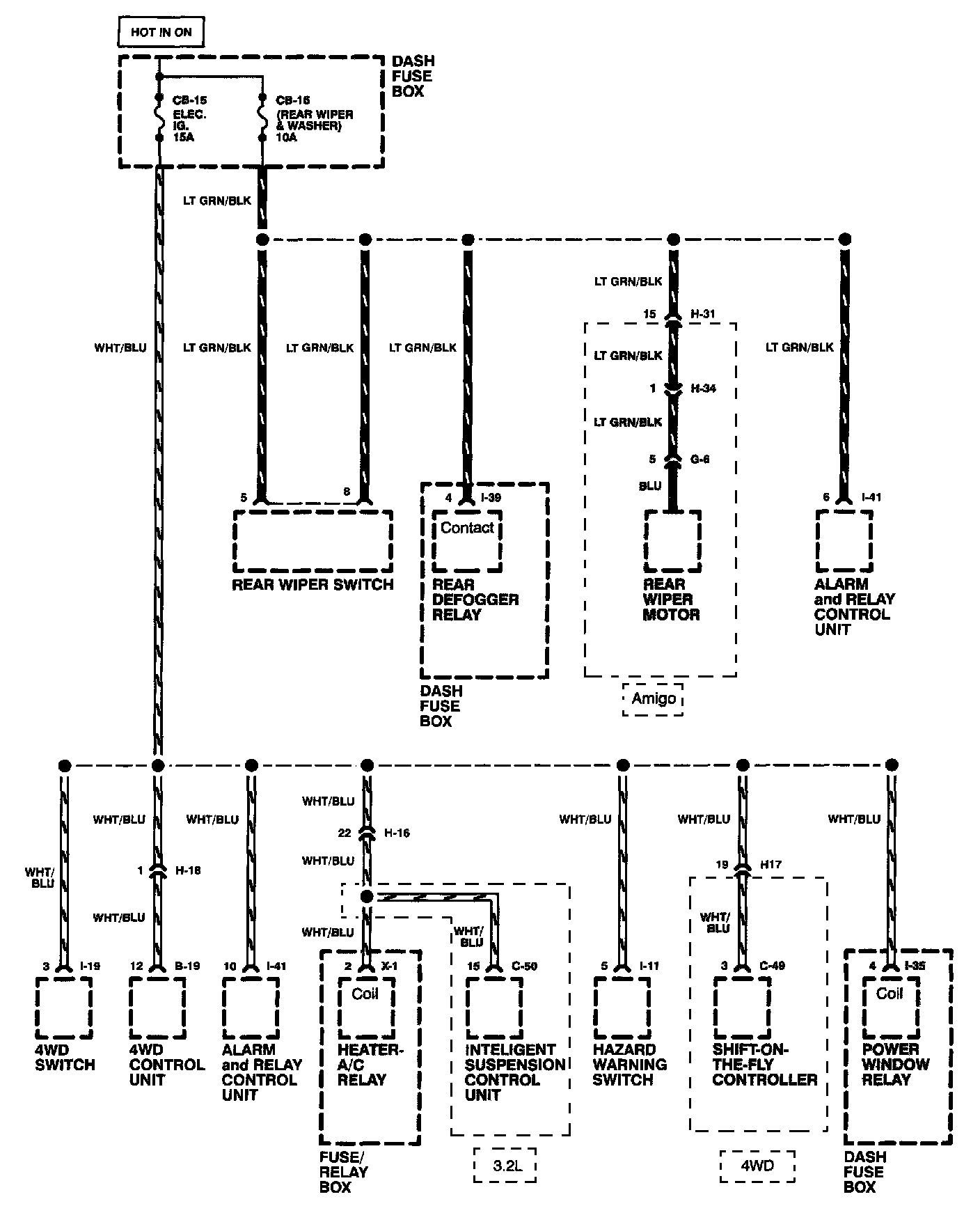

Dash Fuse Box (3 Of 7):

Dash Fuse Box (4 Of 7):

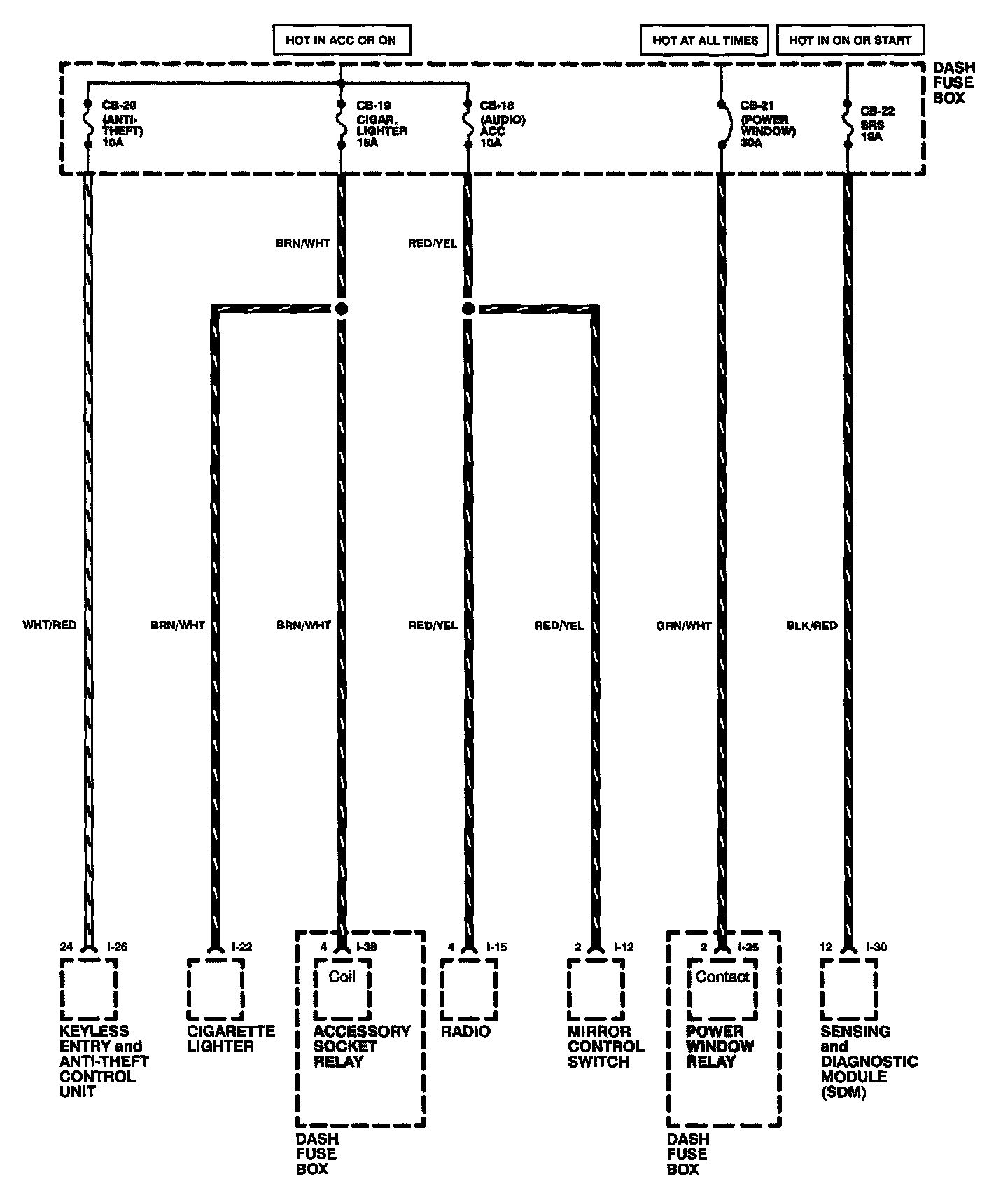

Dash Fuse Box (5 Of 7):

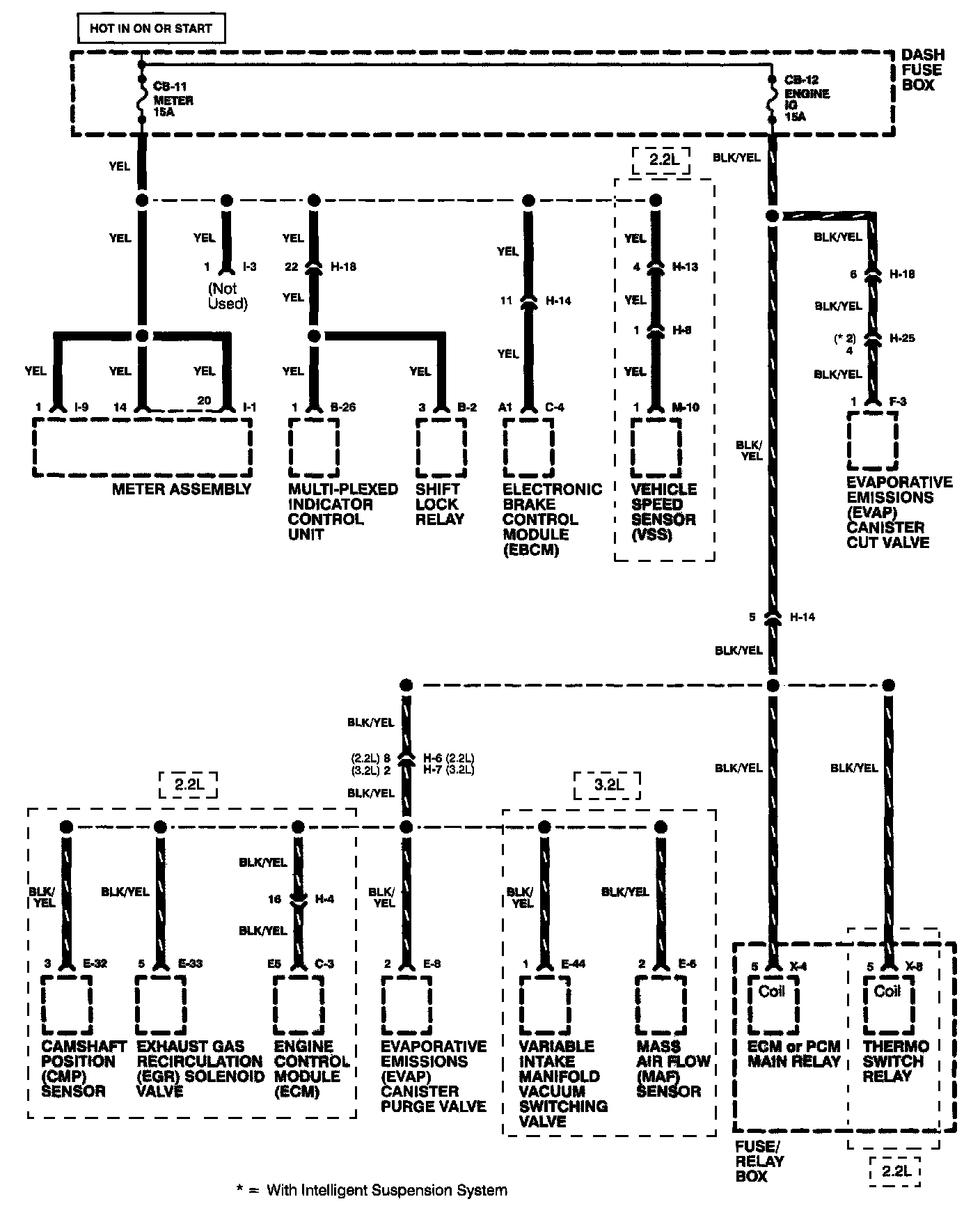

Dash Fuse Box (6 Of 7):

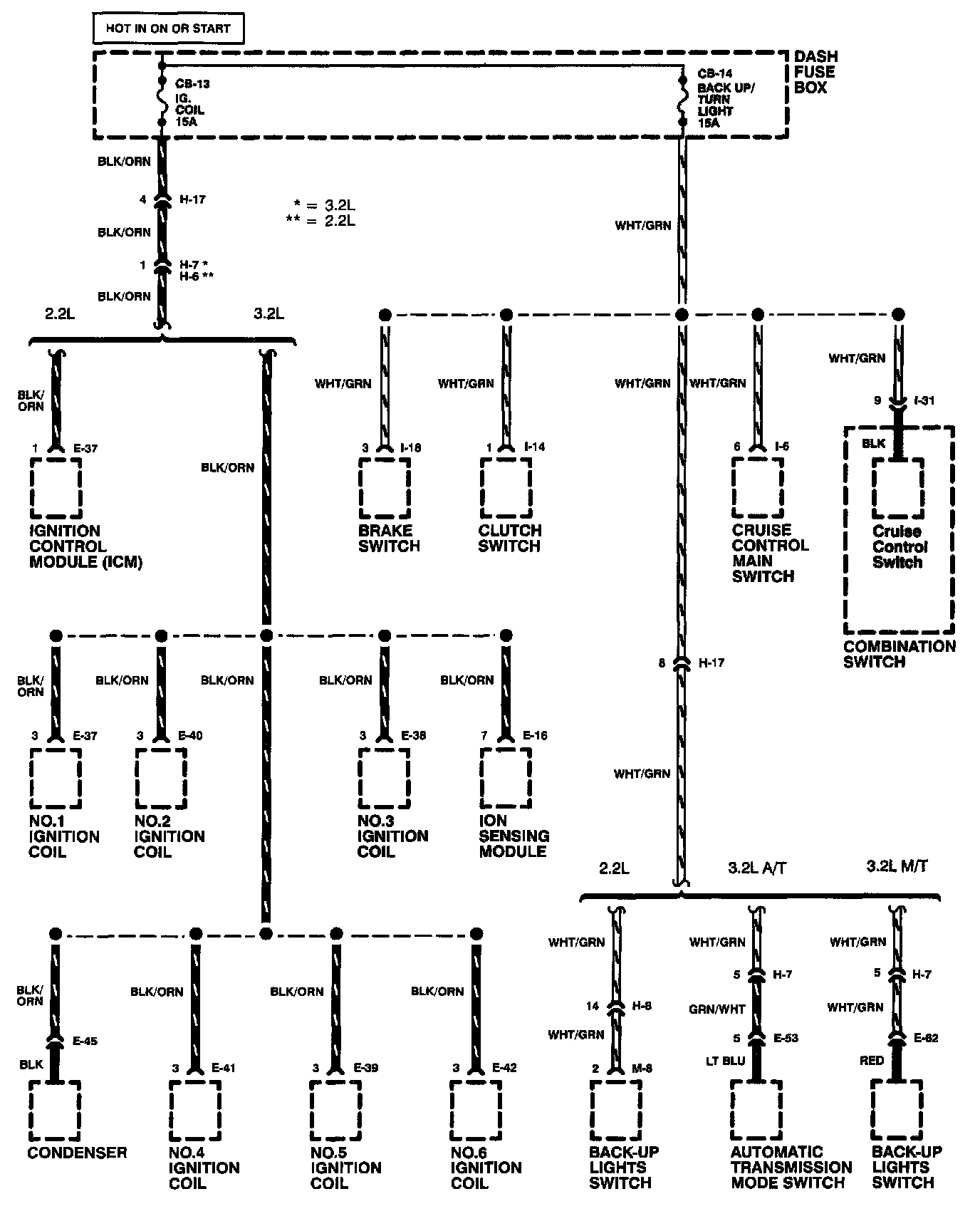

Dash Fuse Box (7 Of 7):
