Rear-Left and Right Sides

Power Window System

Rear-Left and Right Sides

Removal

1. Disconnect the battery ground cable.

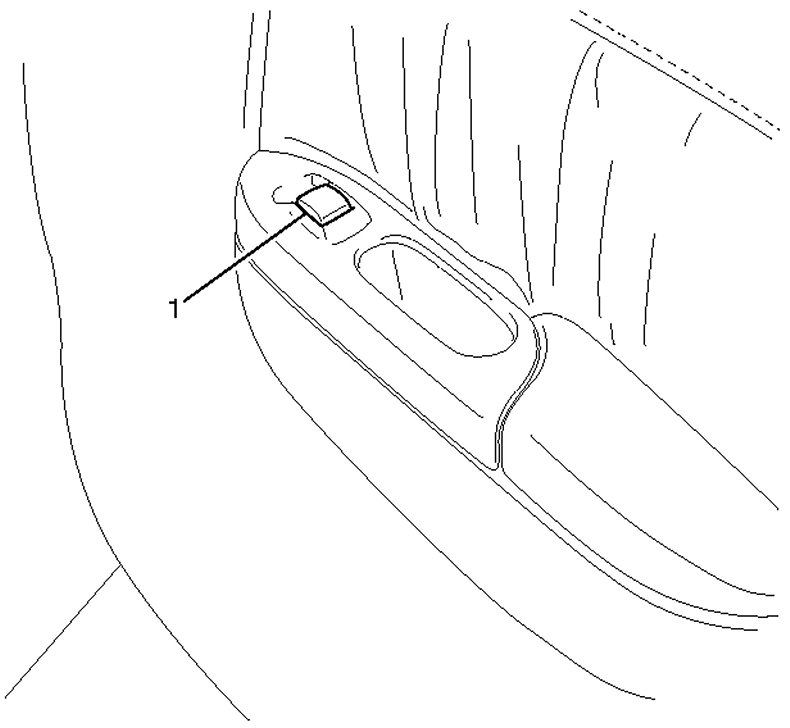

2. Remove the rear door trim pad (2).
- Disconnect the rear power window switch (1) connector.

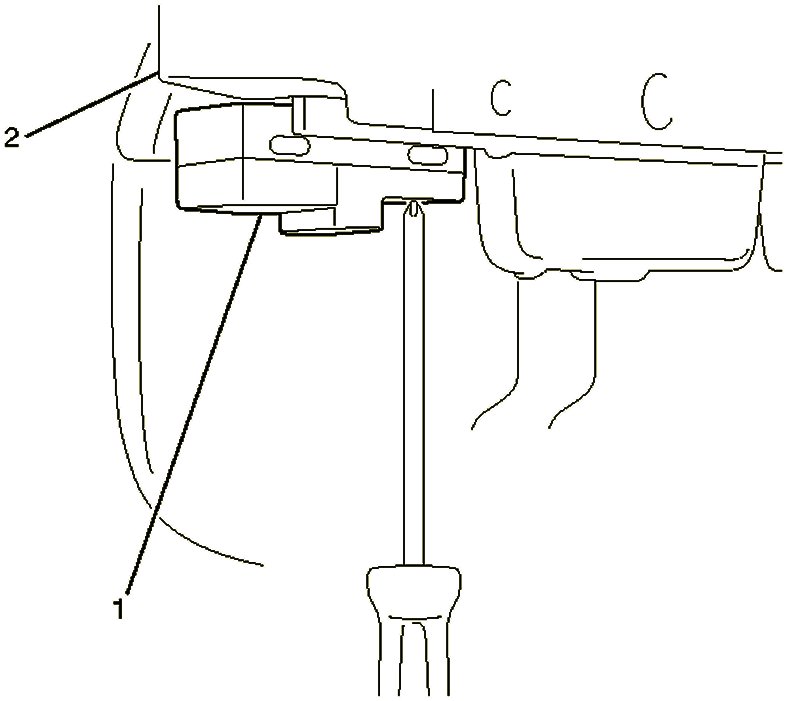

3. Remove the rear power window switch (1).
- Remove the switch fixing screw from the back side of the rear door trim (2).










Installation

To install, follow the removal steps in the reverse order.
