Power Mirror Switch: Service and Repair

Door Mirror Switch Assembly (Control Switch, Folding Switch and Defogger Switch)

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(2).
- Remove four screws.
- Remove the transmission shift lever knob.
- Remove the transfer shift lever knob.
- Disconnect the seat heater switch connectors (if so equipped).
- Disconnect the door mirror switch connectors.
- Disconnect the power & winter switch connectors. (A/T only)

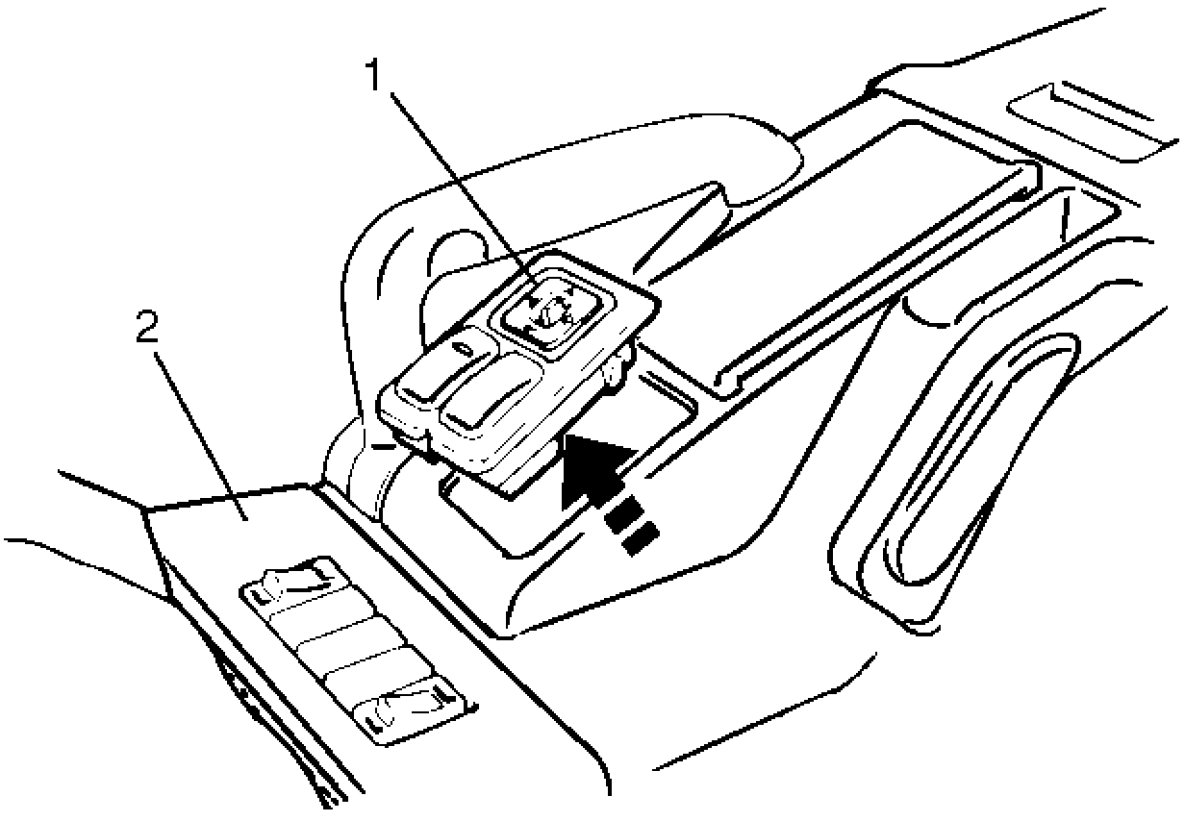

3. Remove the door mirror switch assembly(1).
- Push the lock from the back side of the front console.







Installation

To install, follow the removal steps in the reverse order, noting the following point.
1. Depress the switch with your fingers until it locks securely.
