Power Seat Switch: Service and Repair

Power Seat Switch

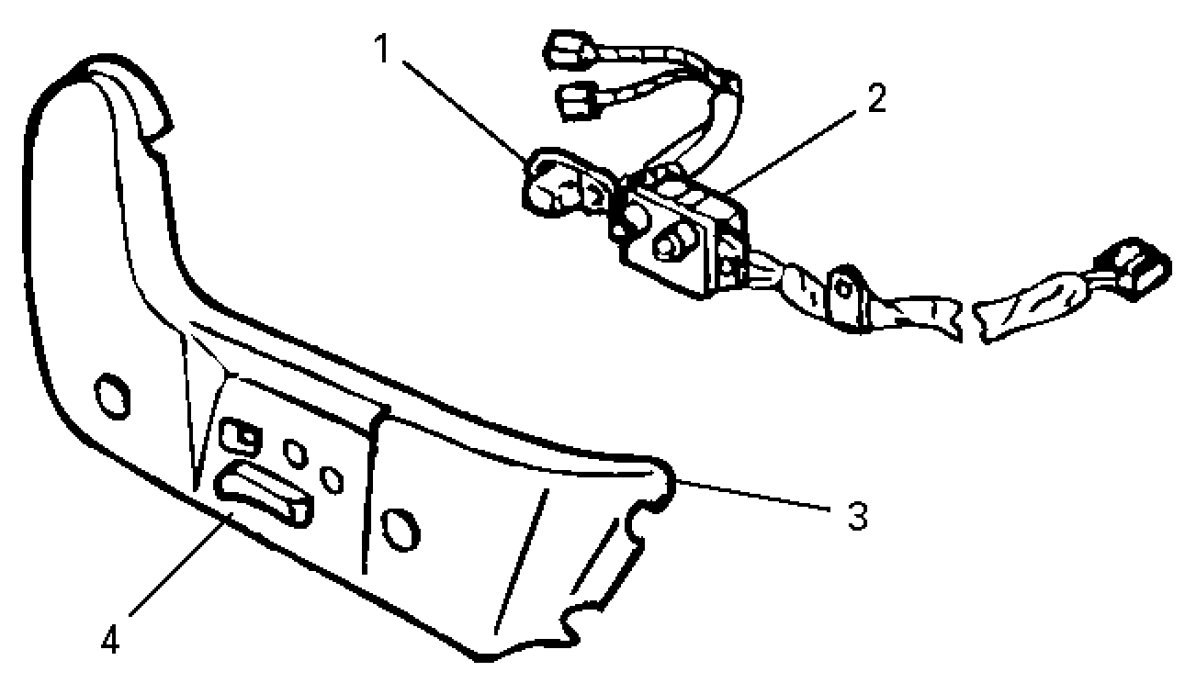

Removal

1. Remove the side cover(3).
2. Remove the tilt & slide switch lever(4).
- Hold the switch lever with your fingers and pull it toward you.

3. Remove the tilt & slide switch(2).
- Remove two screws.

4. Remove the recliner switch(1).
- Remove two screws.







Installation
To install, follow the removal steps in the reverse order.
