Console

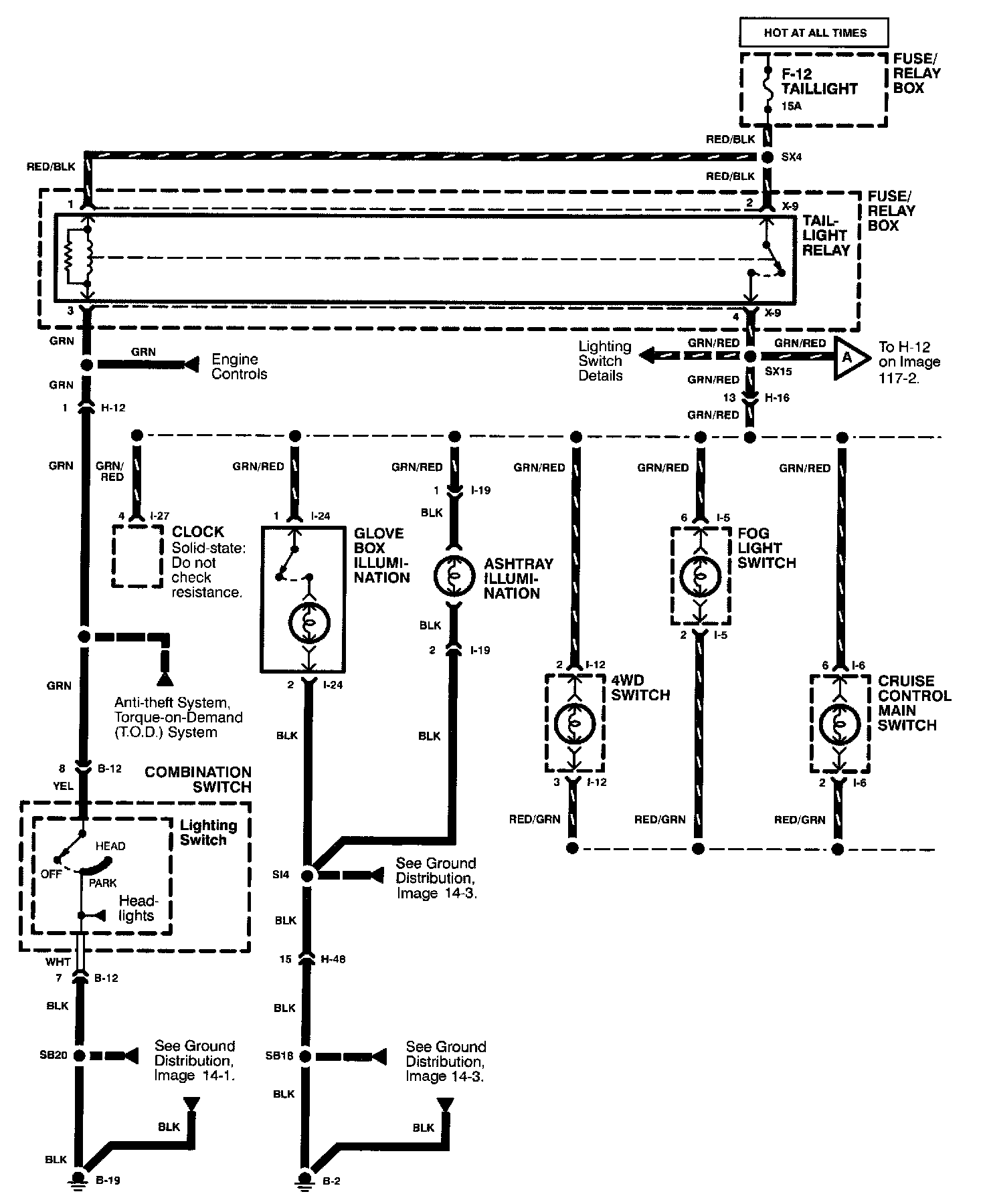

Dash & Console Lights (1 0f 3) Image 117:

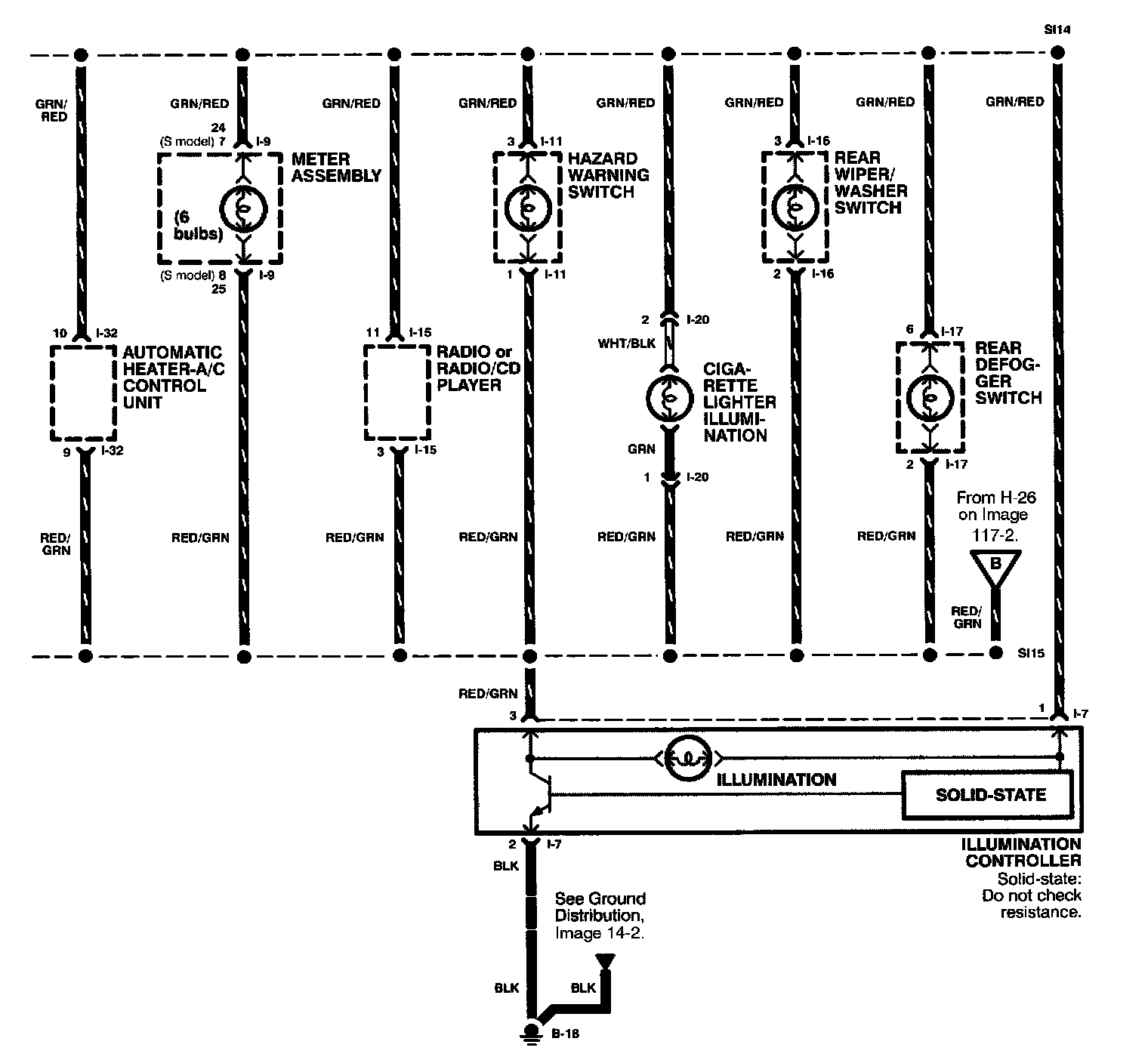

Dash & Console Lights (2 0f 3) Image 117-1:

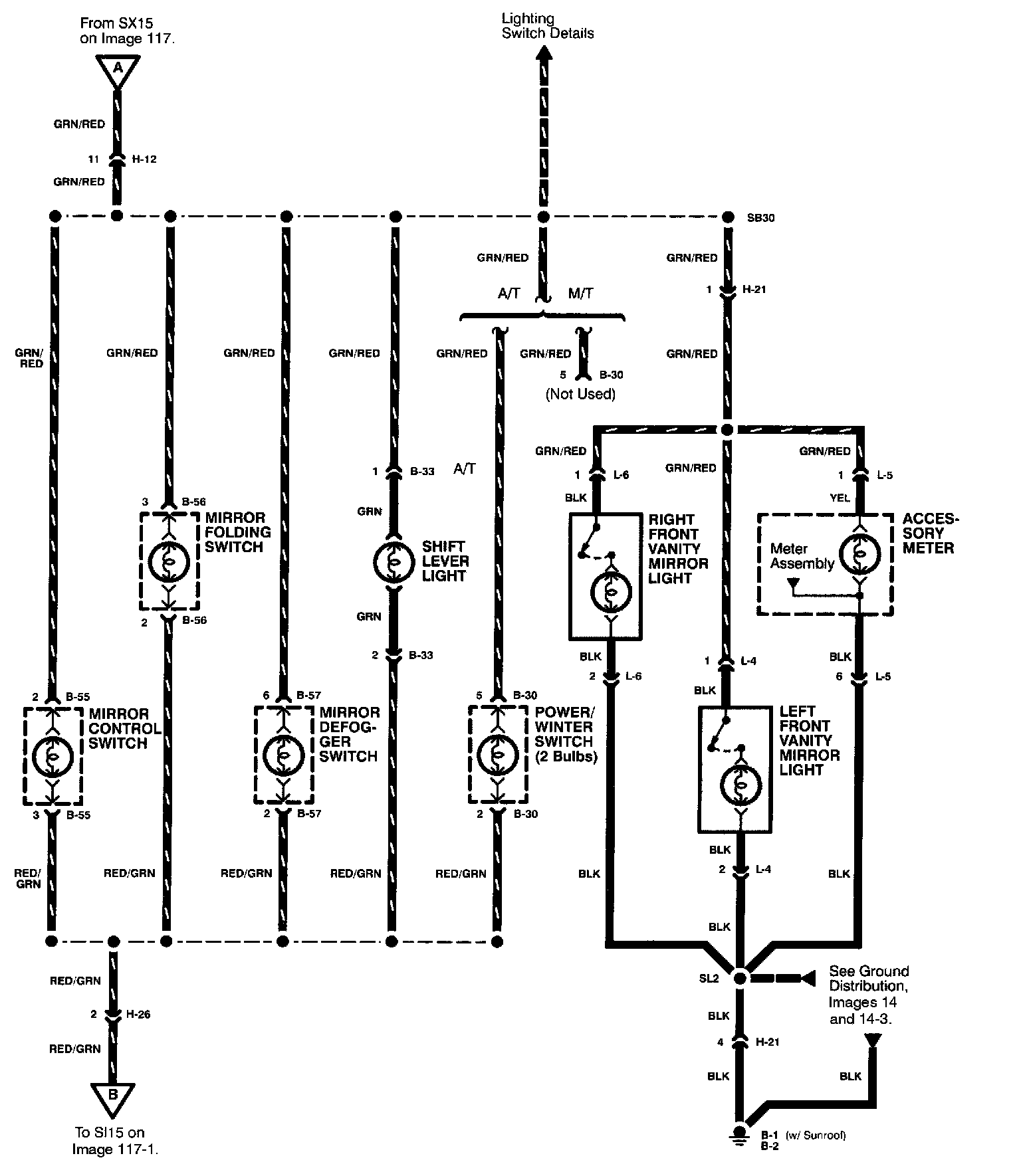

Dash & Console Lights (3 0f 3)Image 117-2:
