Blower Assembly

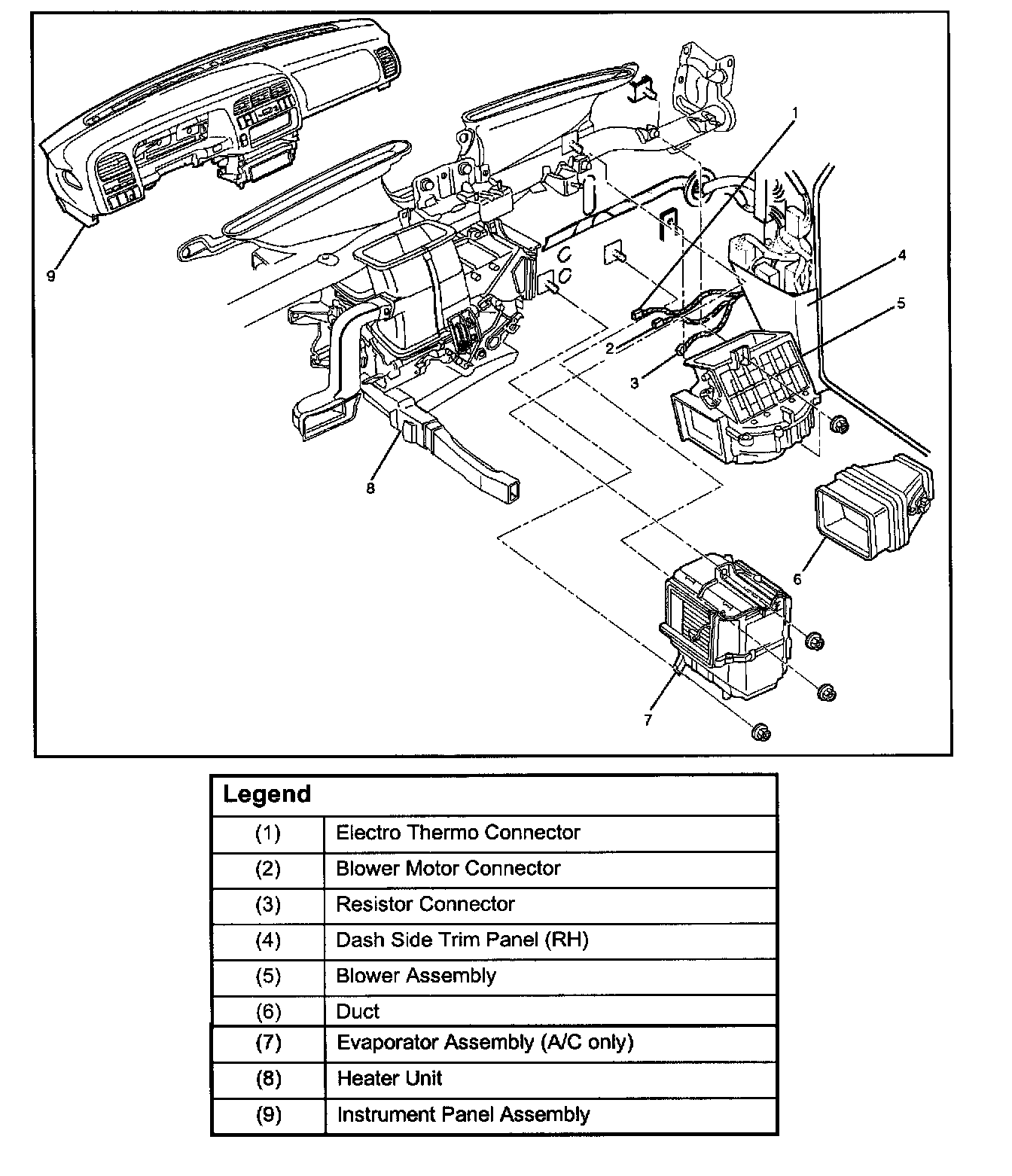

Blower Assembly And Associated Parts:

REMOVAL
1. Disconnect the battery ground cable.
2. Discharge and recover refrigerant (with air conditioning).
- Refer to Refrigerant Recovery.
3. Remove Instrument Panel, Gauges and Warning Indicators.
- Refer to Instrument Panel, Gauges and Warning Indicators.
4. Disconnect resistor connector.
5. Remove duct.
6. Remove evaporator assembly (A/C only).
- Refer to Evaporator Assembly.
7. Remove dash side trim panel (RH).
8. Disconnect blower motor connector.
9. Remove blower assembly.

INSTALLATION
To install, follow the removal steps in the reverse order, noting the following point:
1. Adjust the control lever assembly cables.
- Refer to Control Lever Assembly.
