General Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the glove box.
3. Remove the instrument panel passenger lower cover assembly.
4. Remove the passenger Knee bolster reinforcement assembly.

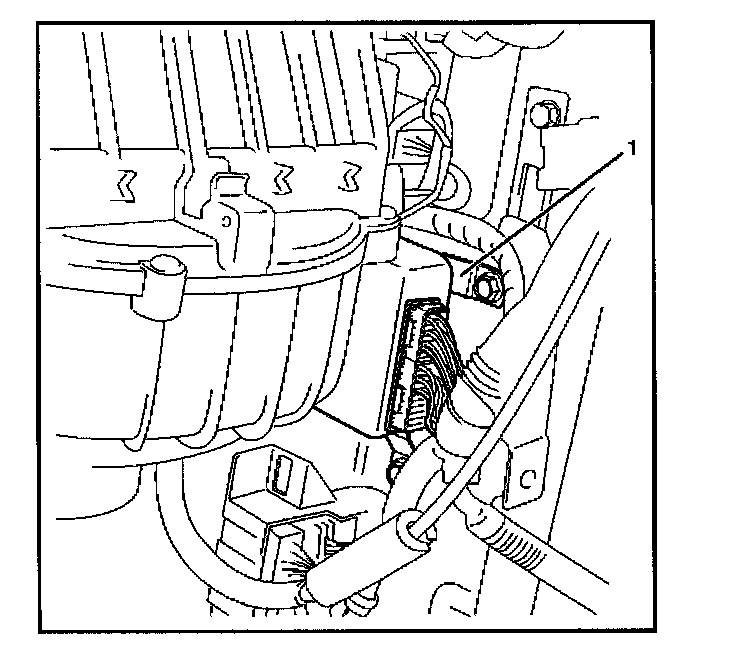

5. Remove the fixing bolts, disconnect the connectors and then remove the alarm & relay control unit (1).

INSTALLATION
To install, follow the removal steps in the reverse order.
