Automatic Transmission/Transaxle


4L30-E Parts List

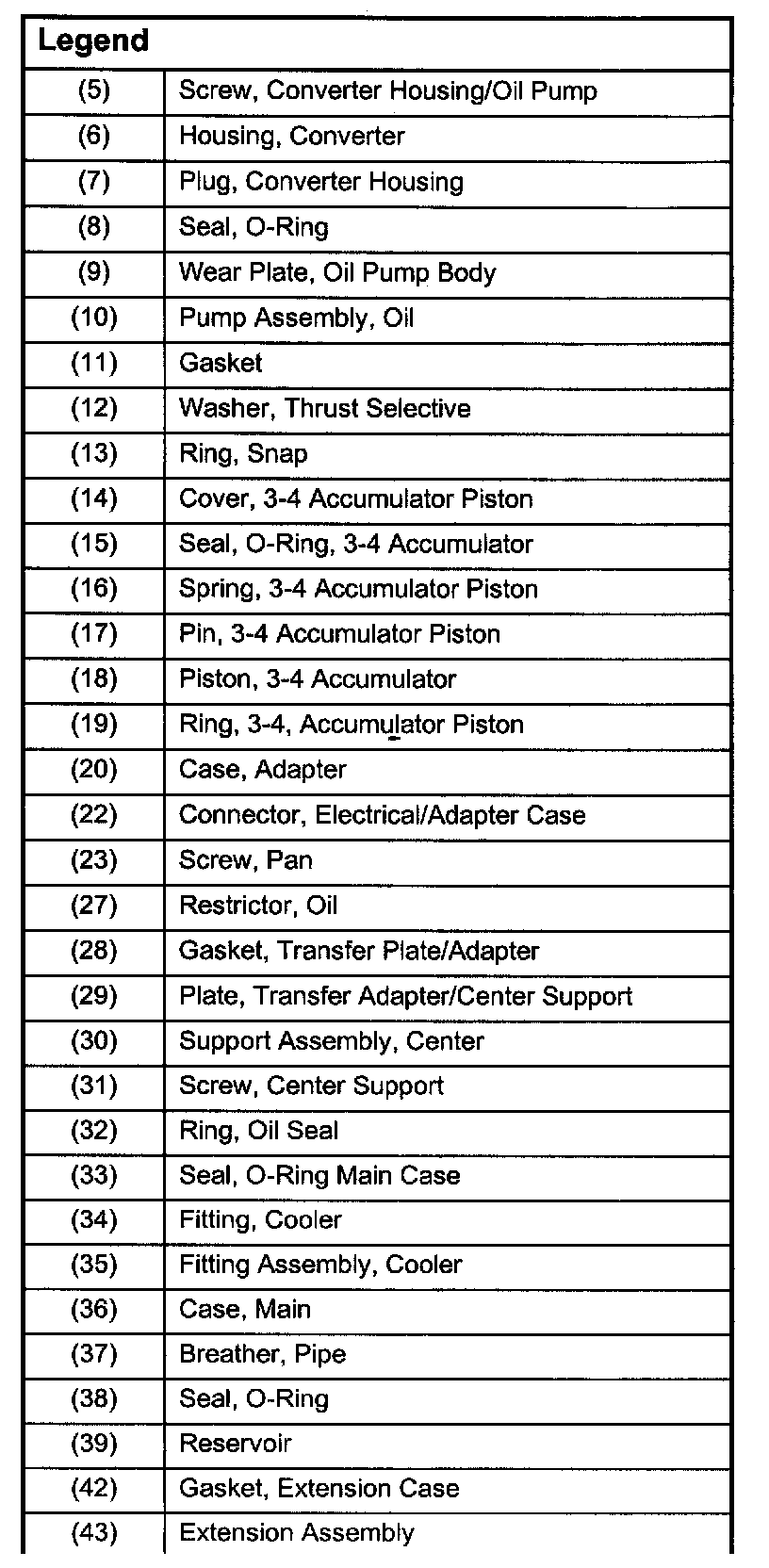

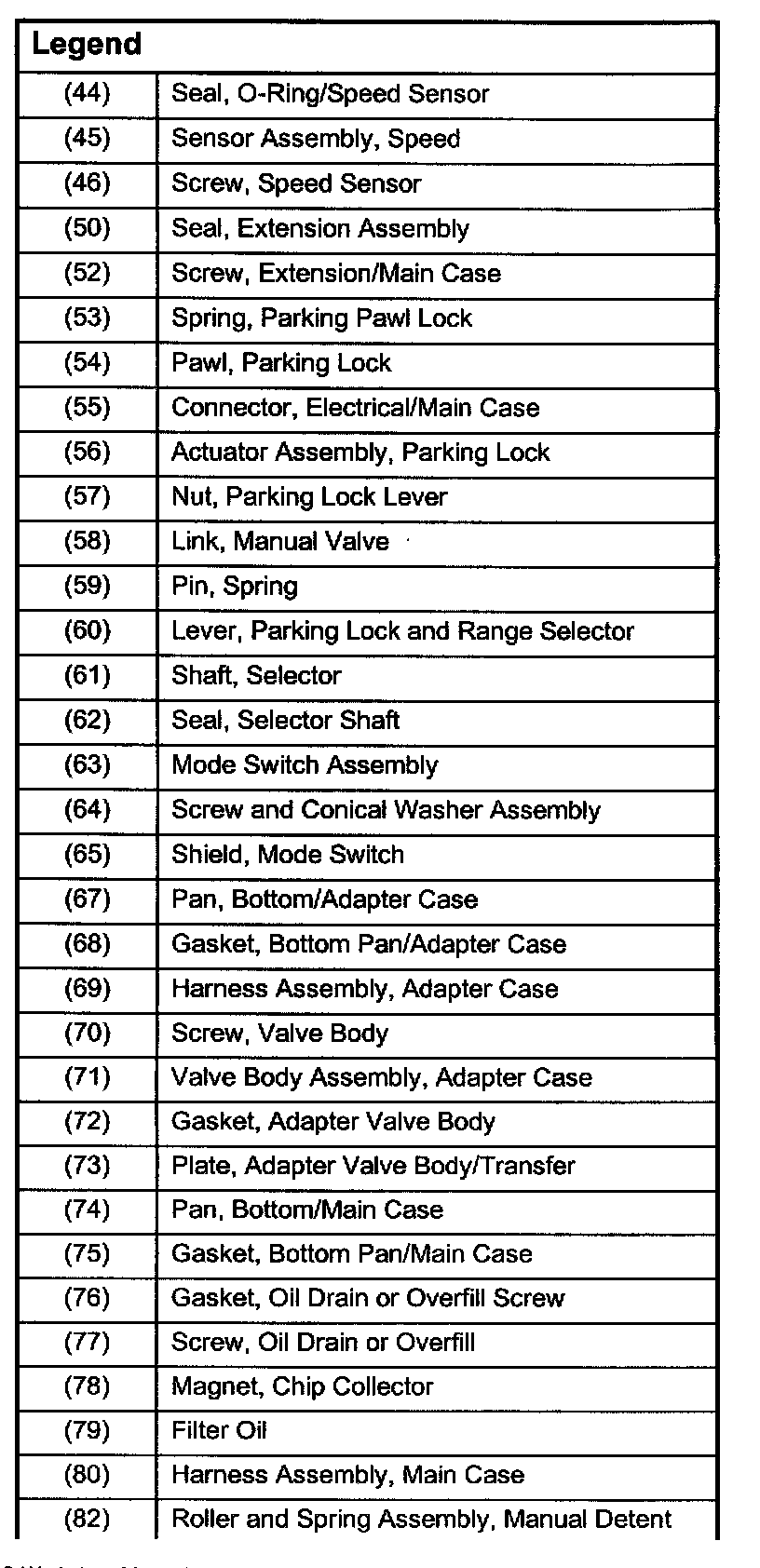

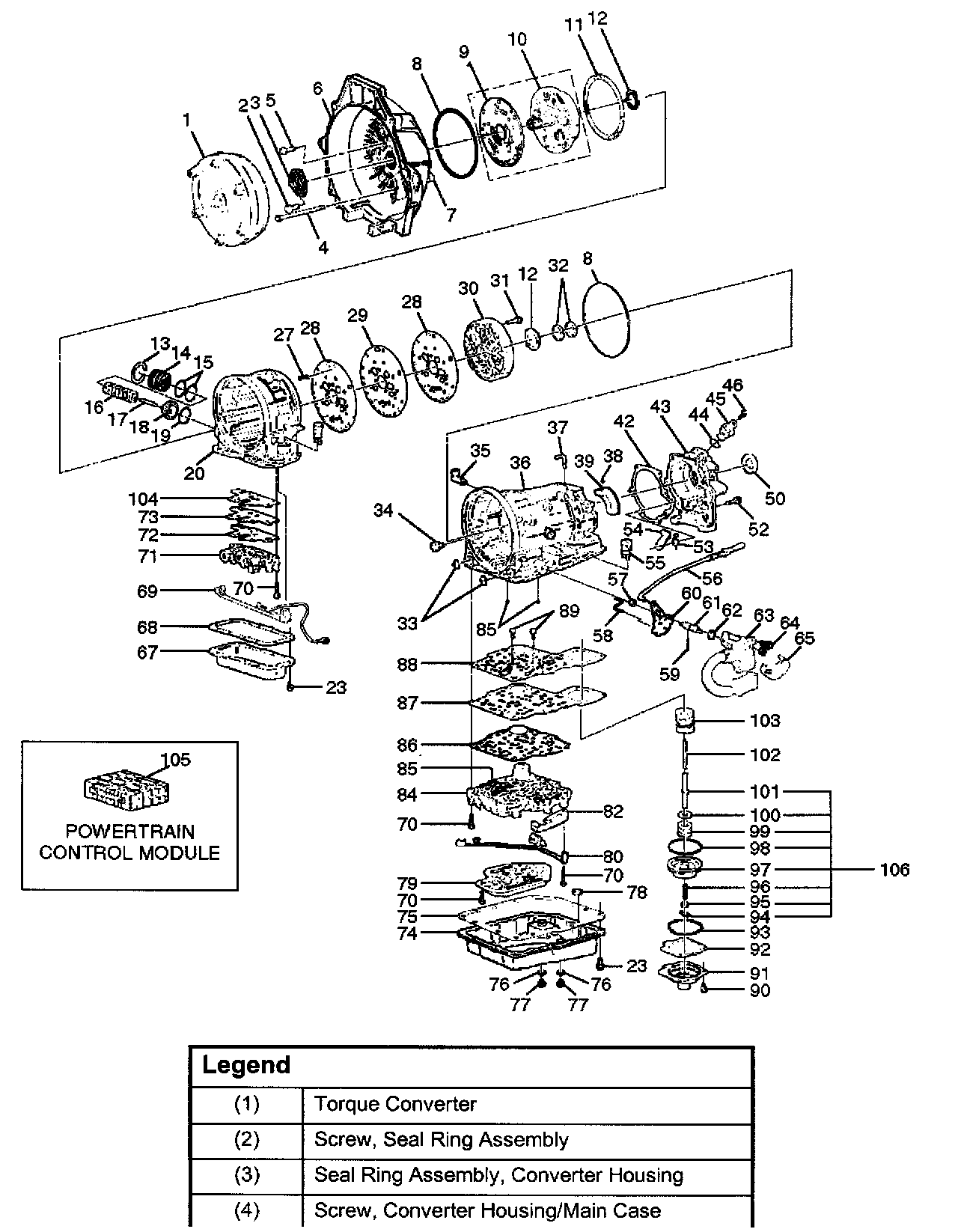

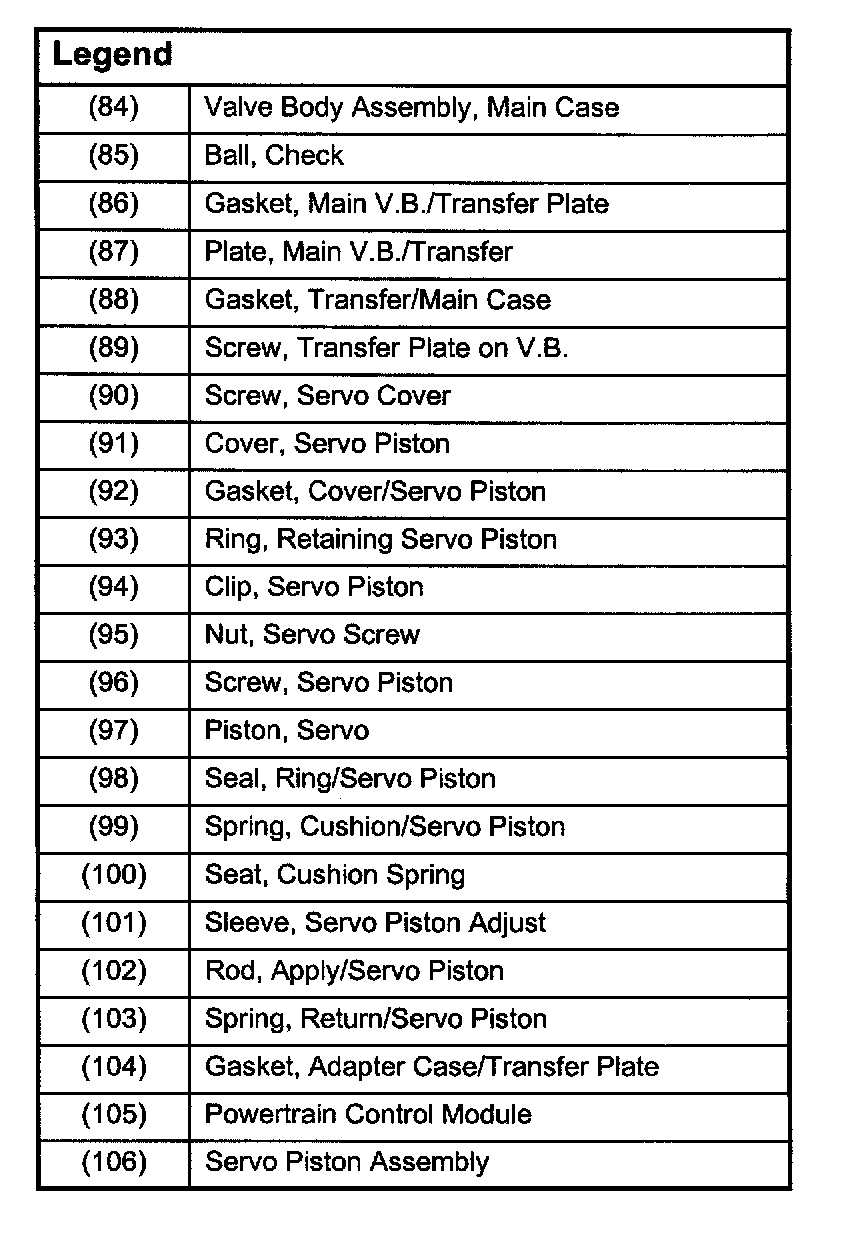

Case And Associated Parts

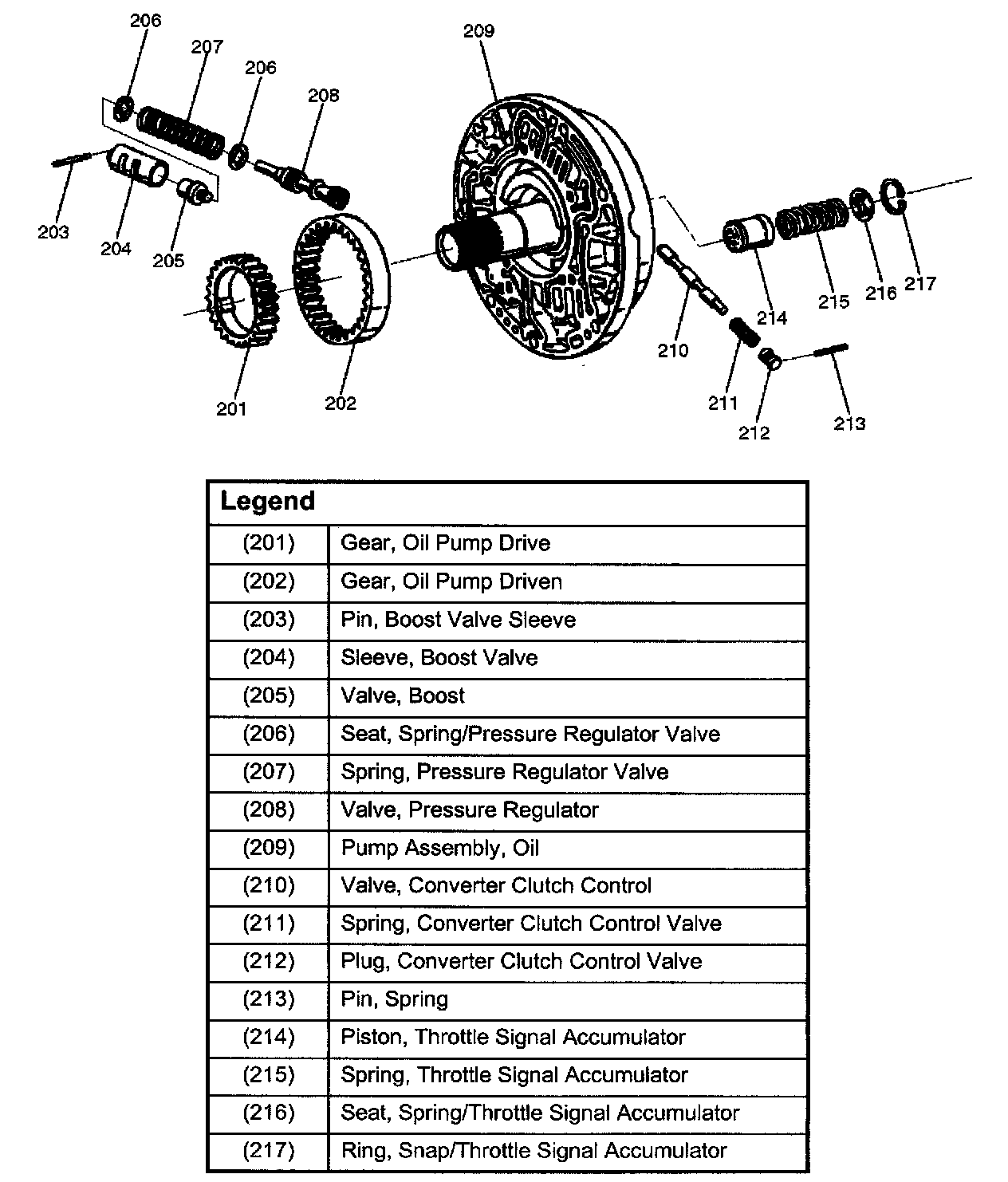

Pump Assembly

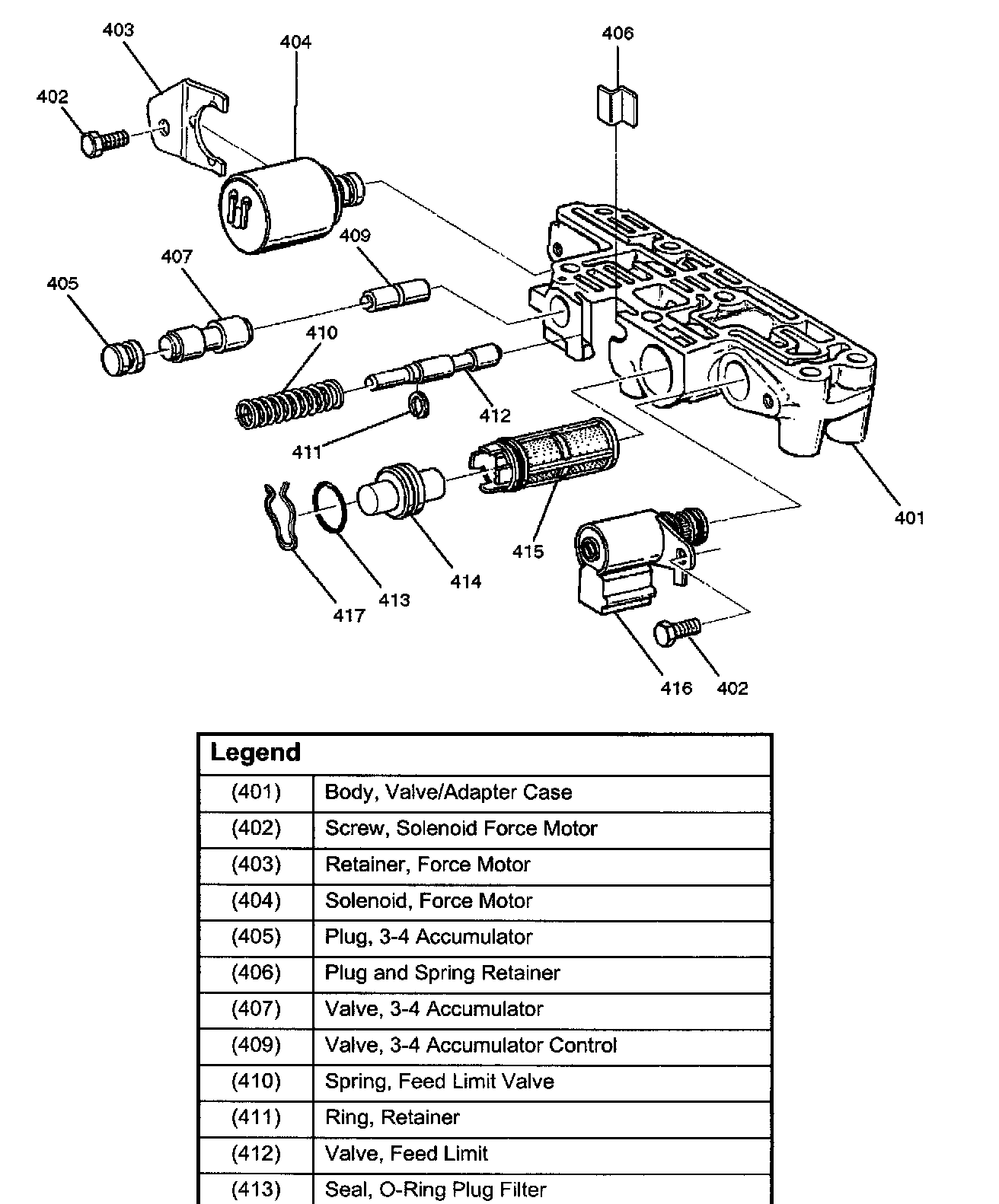

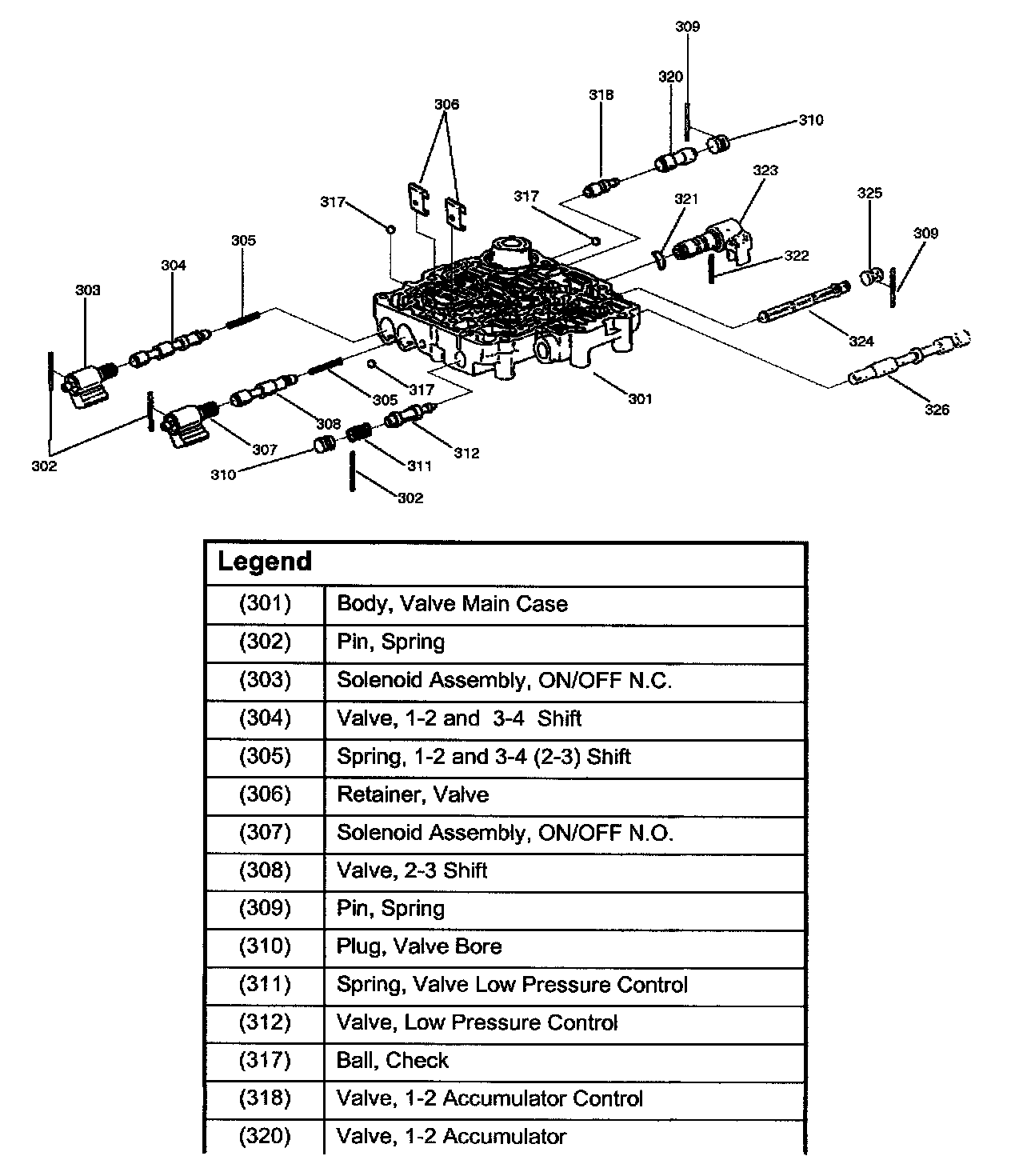

Valve Body Assemblies

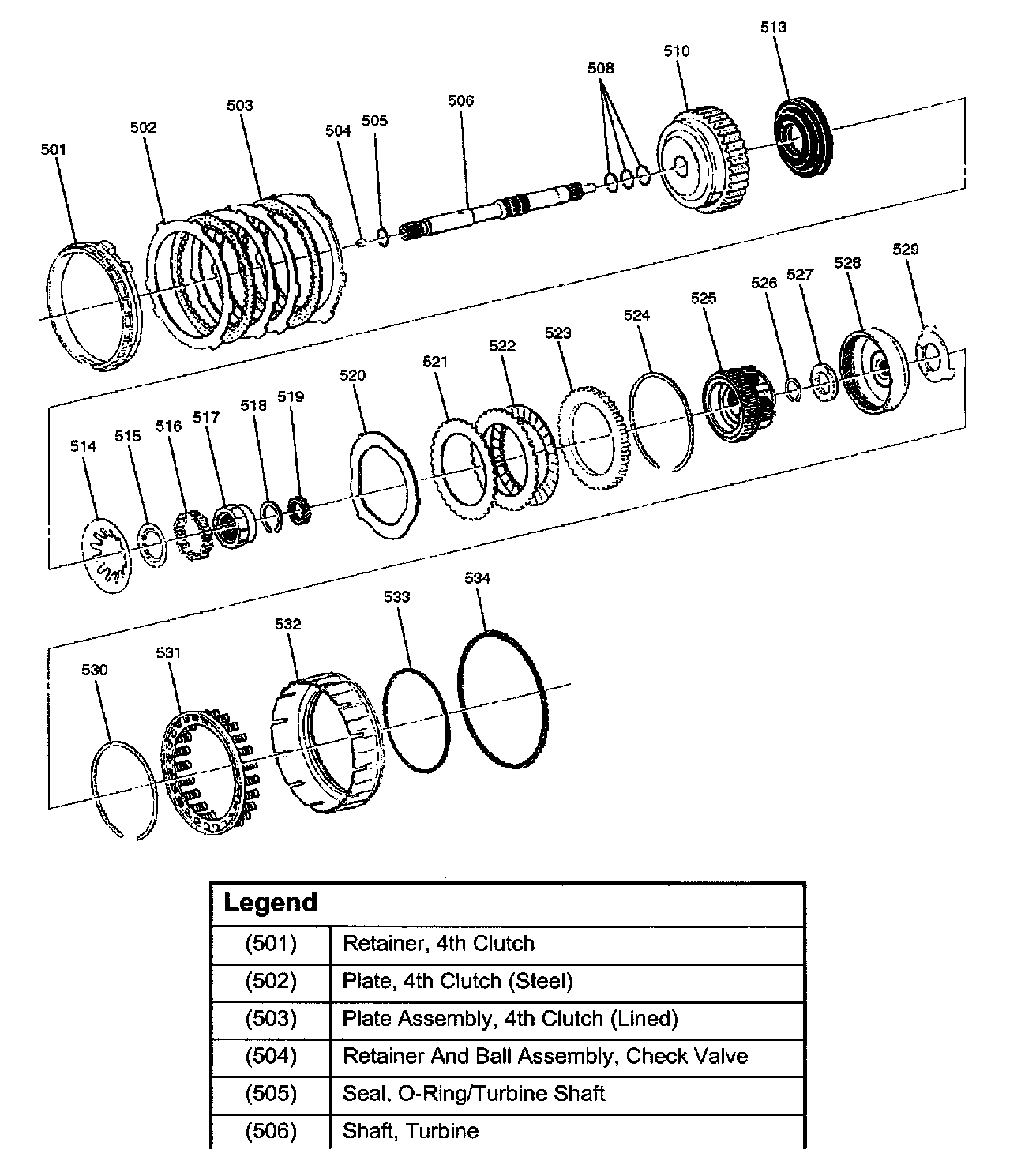

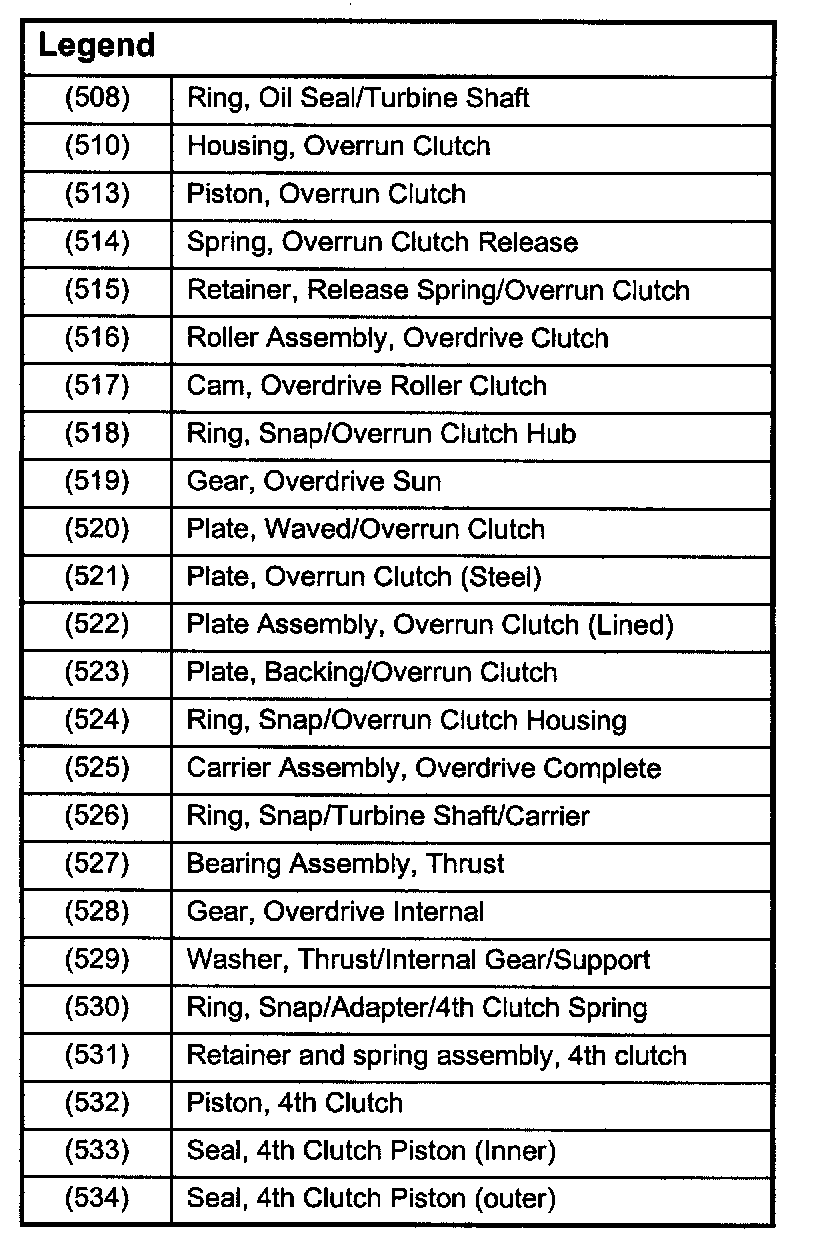

Overdrive Internal Components

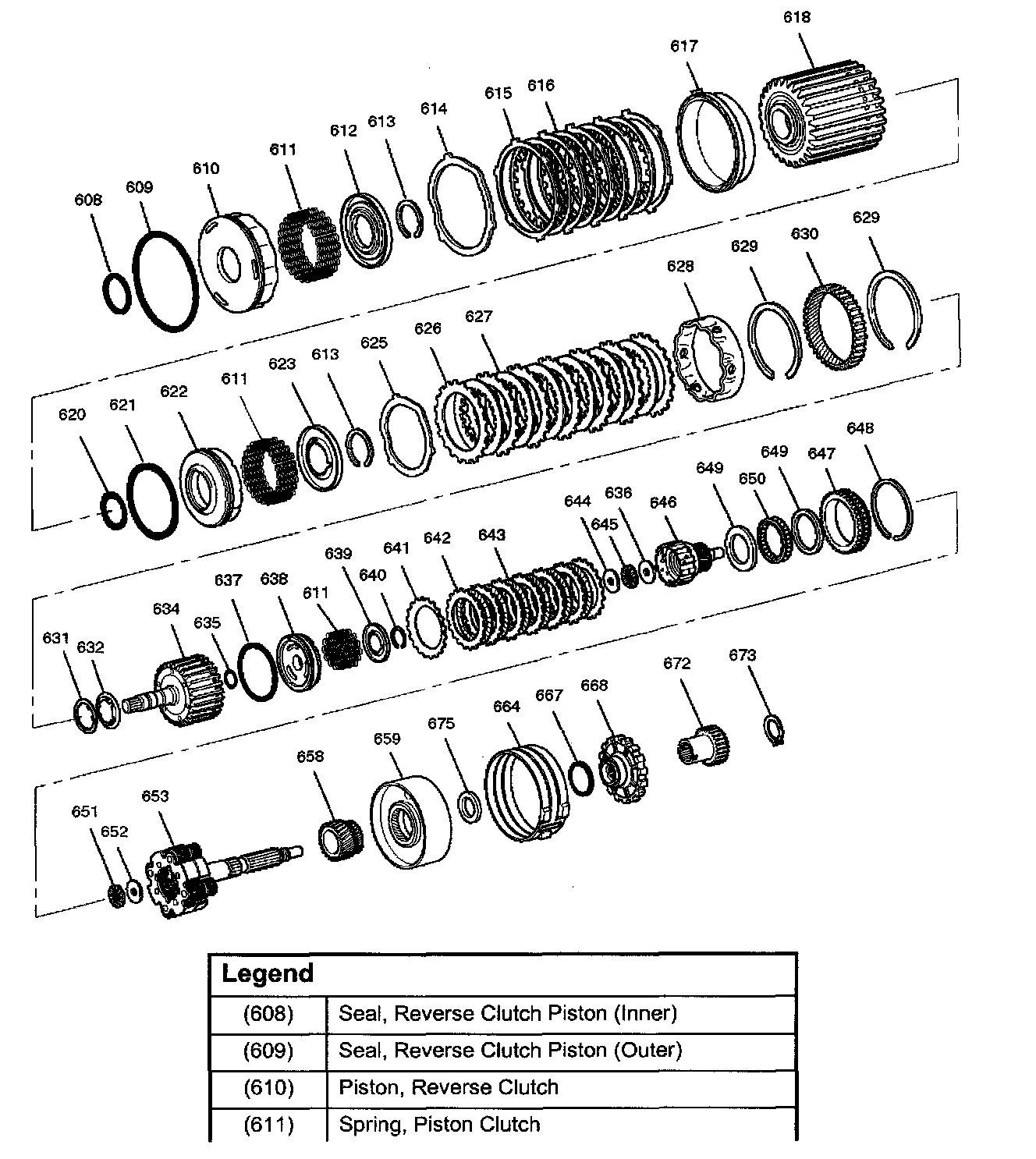

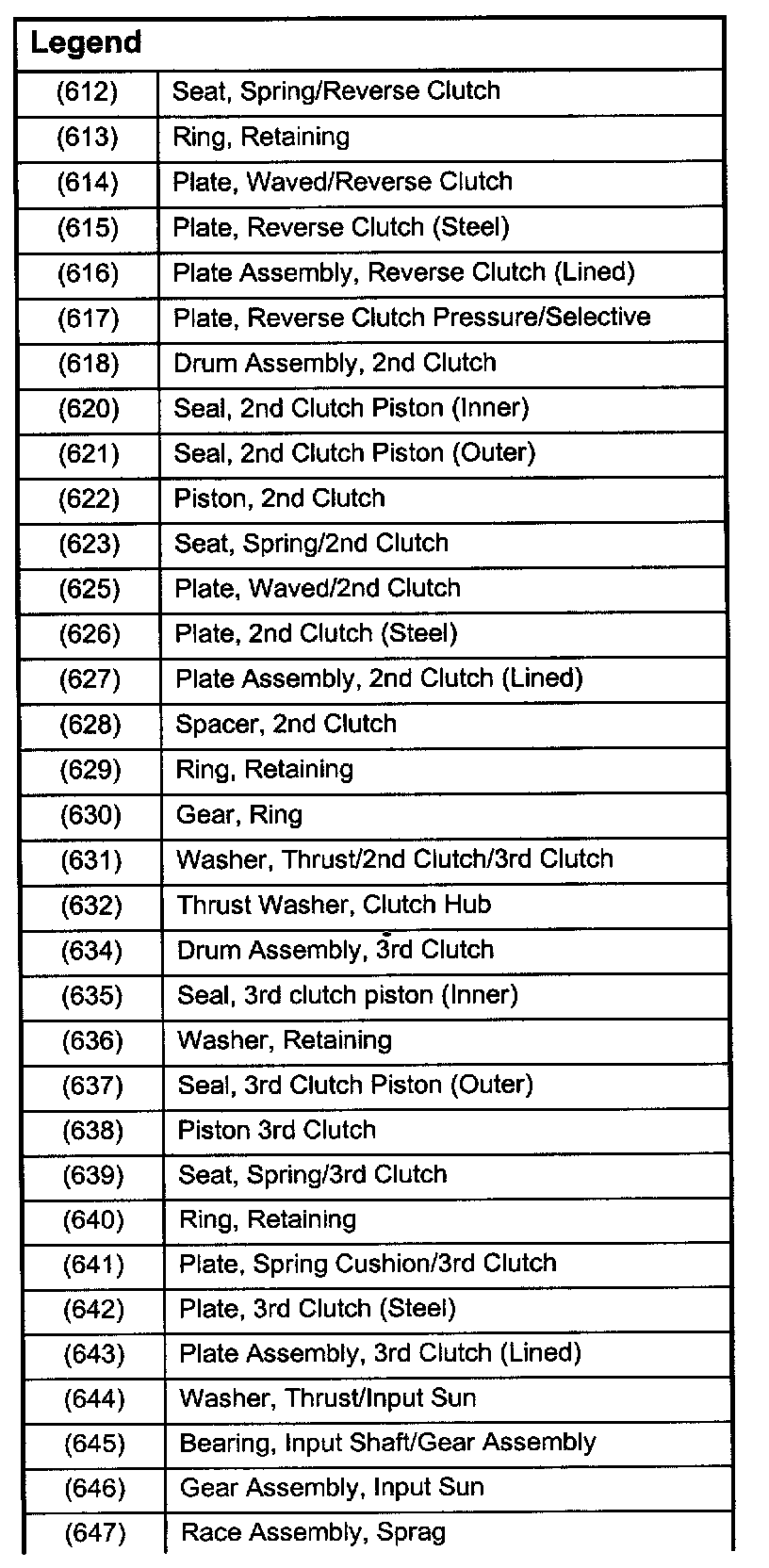

Internal Components

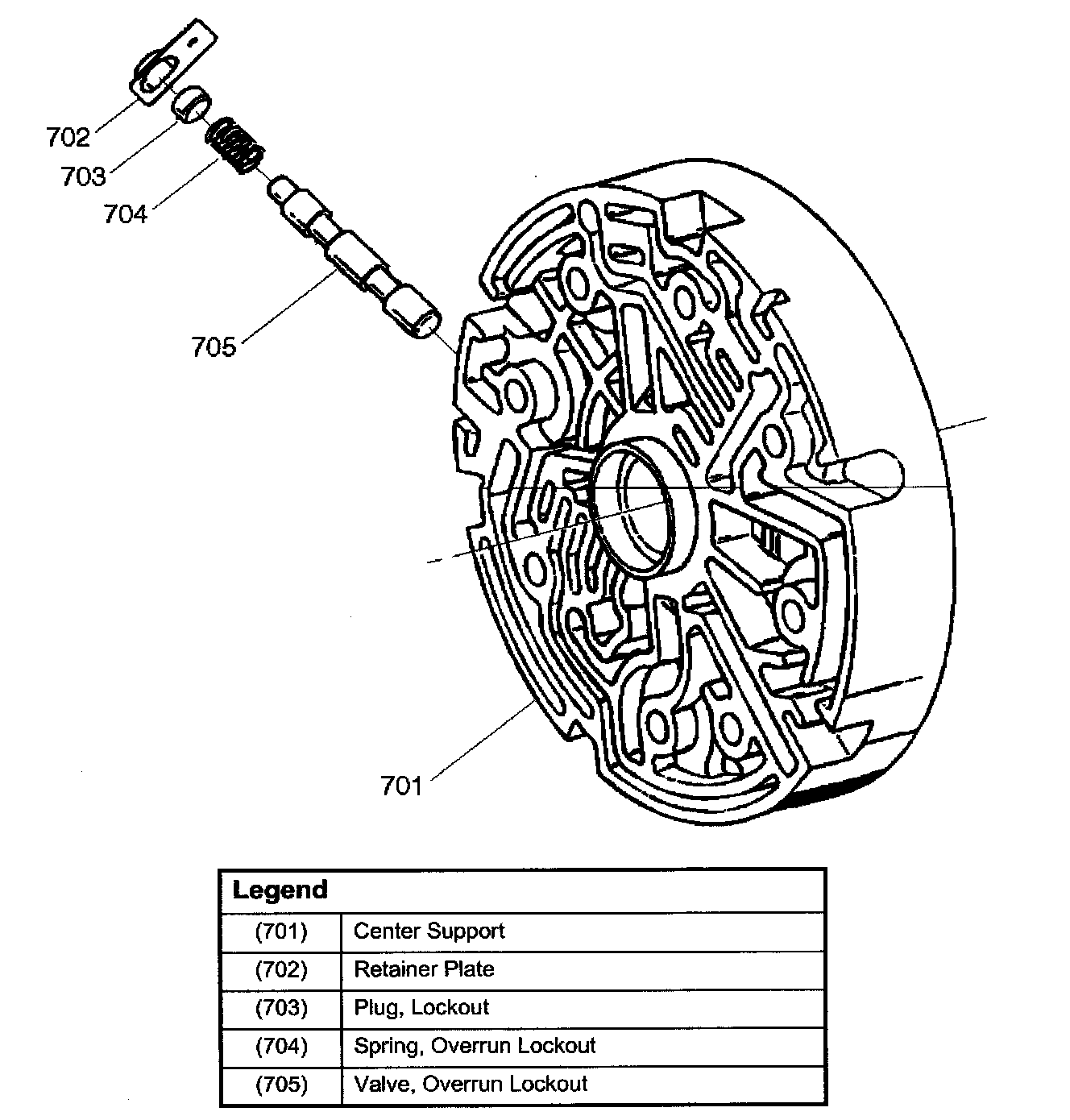

Center Support Assembly
