Cabin Temperature Sensor / Switch: Service and Repair

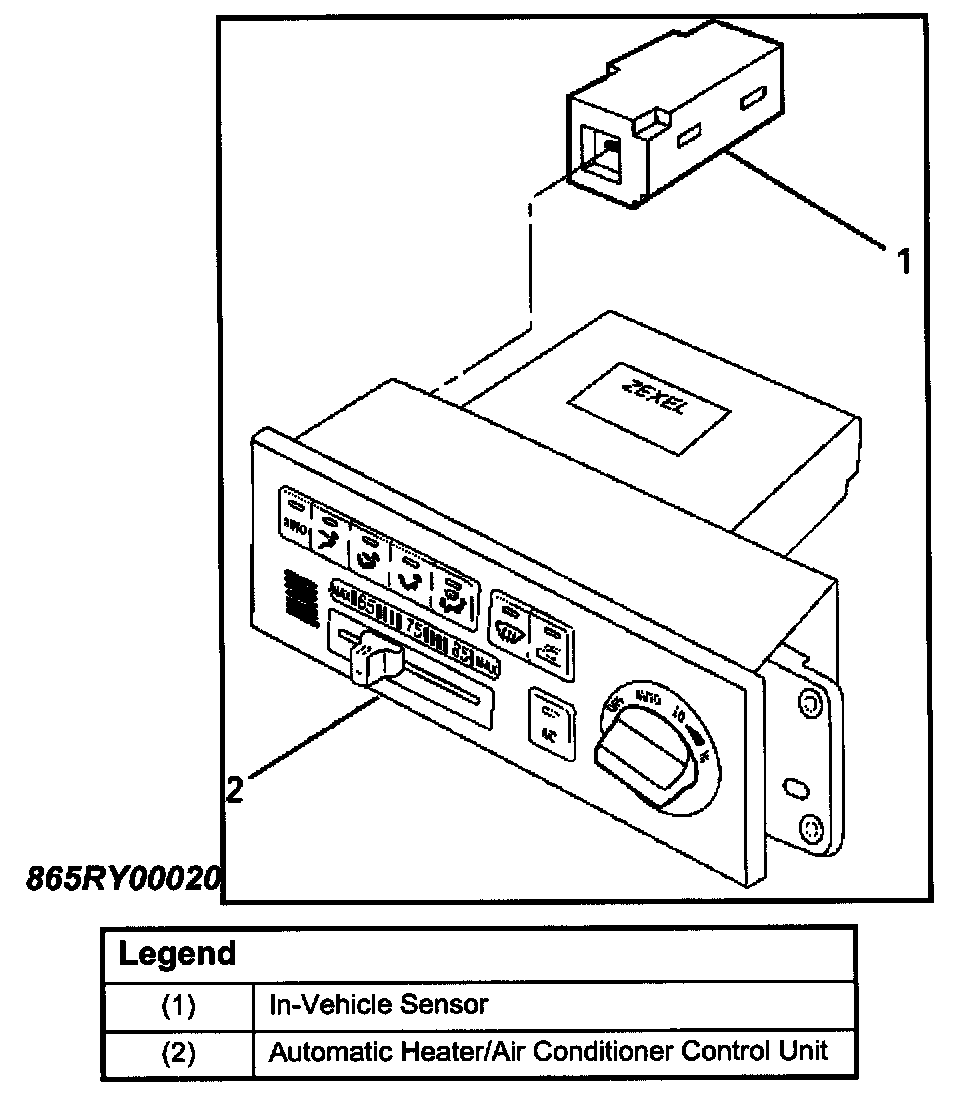

In-Vehicle Sensor:

Removal
1. Disconnect the battery ground cable.
2. Remove the automatic heater/Air Conditioner control unit.
3. Remove the in-vehicle sensor.

Installation
To install, follow the removal steps in reverse order.
