Oxygen Sensor: Locations

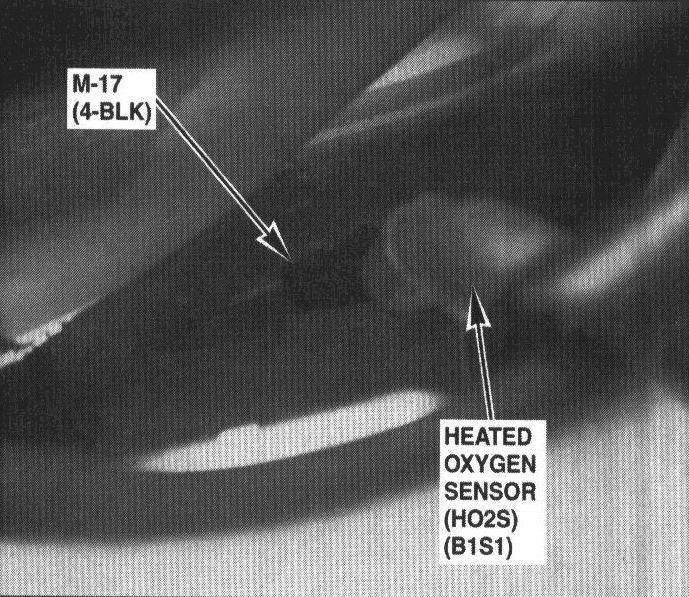

77 - Left Side Front Transmission:

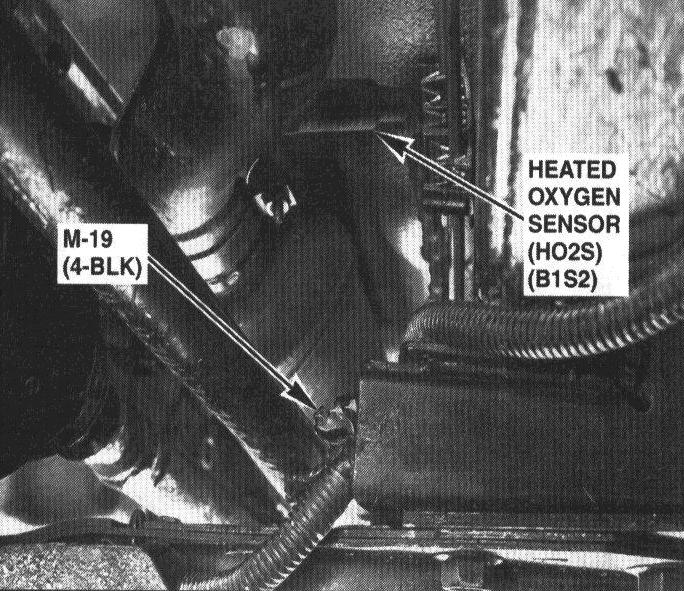

79 - Rear of Left Catalytic Converter:

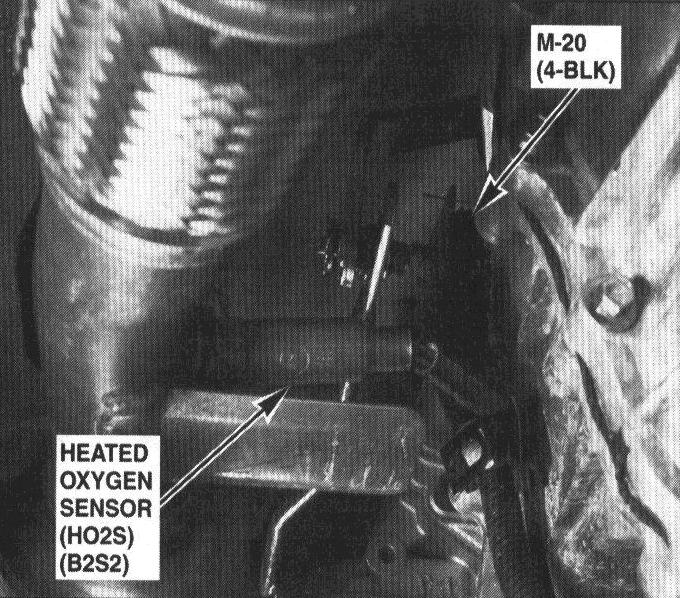

80 - Right Front of Transmission:

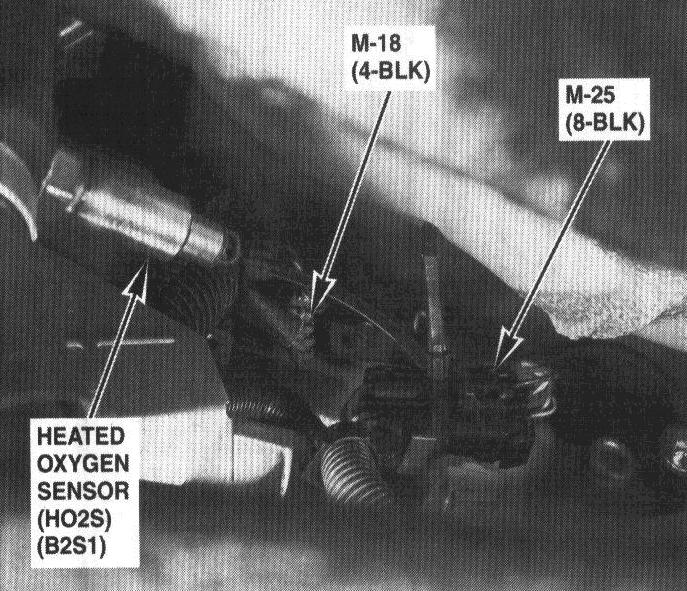

81 - Rear of Right Catalytic Converter:
