Relay Layout Identification

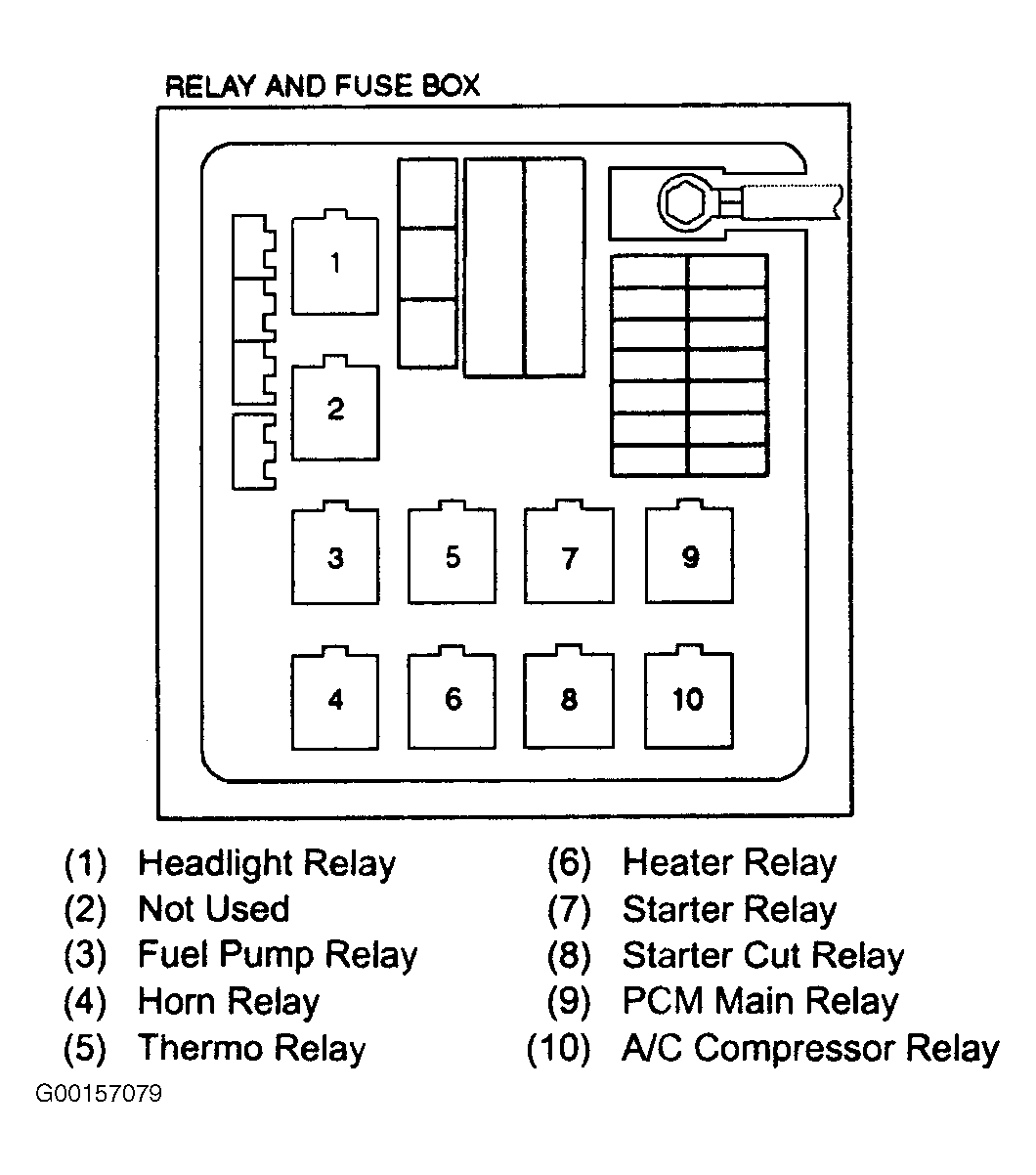

For relay layout, see Fig 1 .

Fig 1: Identifying Relay Layout

G00157079

Courtesy of ISUZU MOTOR CO.
