ISUZU POWERLINK Diagnostics Interface Module Connection (SB01-09-S001)

Publication date: 2001-11-01
Reference number: SB01-09-S001

ISUZU POWERLINK DIAGNOSTICS INTERFACE MODULE CONNECTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): IB01-14-S011, Date of Issue: NOVEMBER 01, 2001

ISUZU:	1996 and newer Rodeo (UC), Rodeo (UE), Amigo/Rodeo Sport, Trooper, VehiCROSS, Axiom
AFFECTED VEHICLES:	1996 and newer Rodeo (UC), Rodeo (UE), Amigo/Rodeo Sport (UA), Trooper (UX), VehiCROSS (VX), Axiom (UP)

Service Information

When connecting the Isuzu PowerLink Diagnostics Interface Module to a vehicle, it is important NOT to connect any power supply to the 12-volt port on the Interface Module (Fig 1 ). Doing so may irreparably damage the Interface Module, rendering it inoperative.

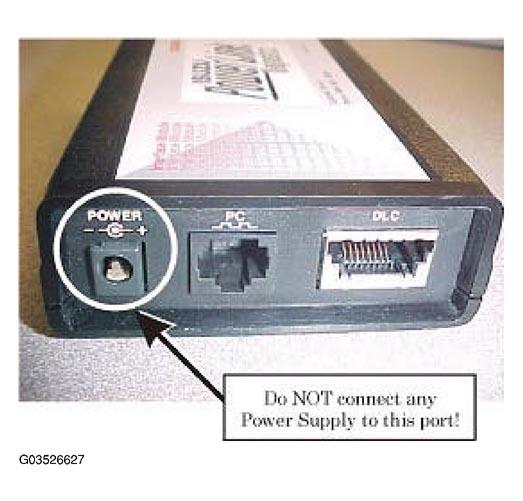

Fig 1: Identifying Isuzu Powerlink Power Port

Enclosed with this bulletin is an AC Adapter warning label. This label should be affixed to the Isuzu PowerLink Diagnostics Interface Module, on the front side, upper left corner (Fig 2 ).

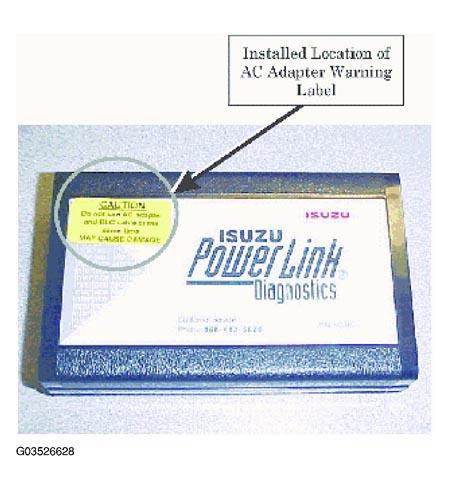

Fig 2: Identifying AC Adapter Warning Label

Should your Isuzu PowerLink Diagnostics Interface Module become damaged, please contact the ITCS Hotline at 888-482-5828.
