Fuse Block: Locations

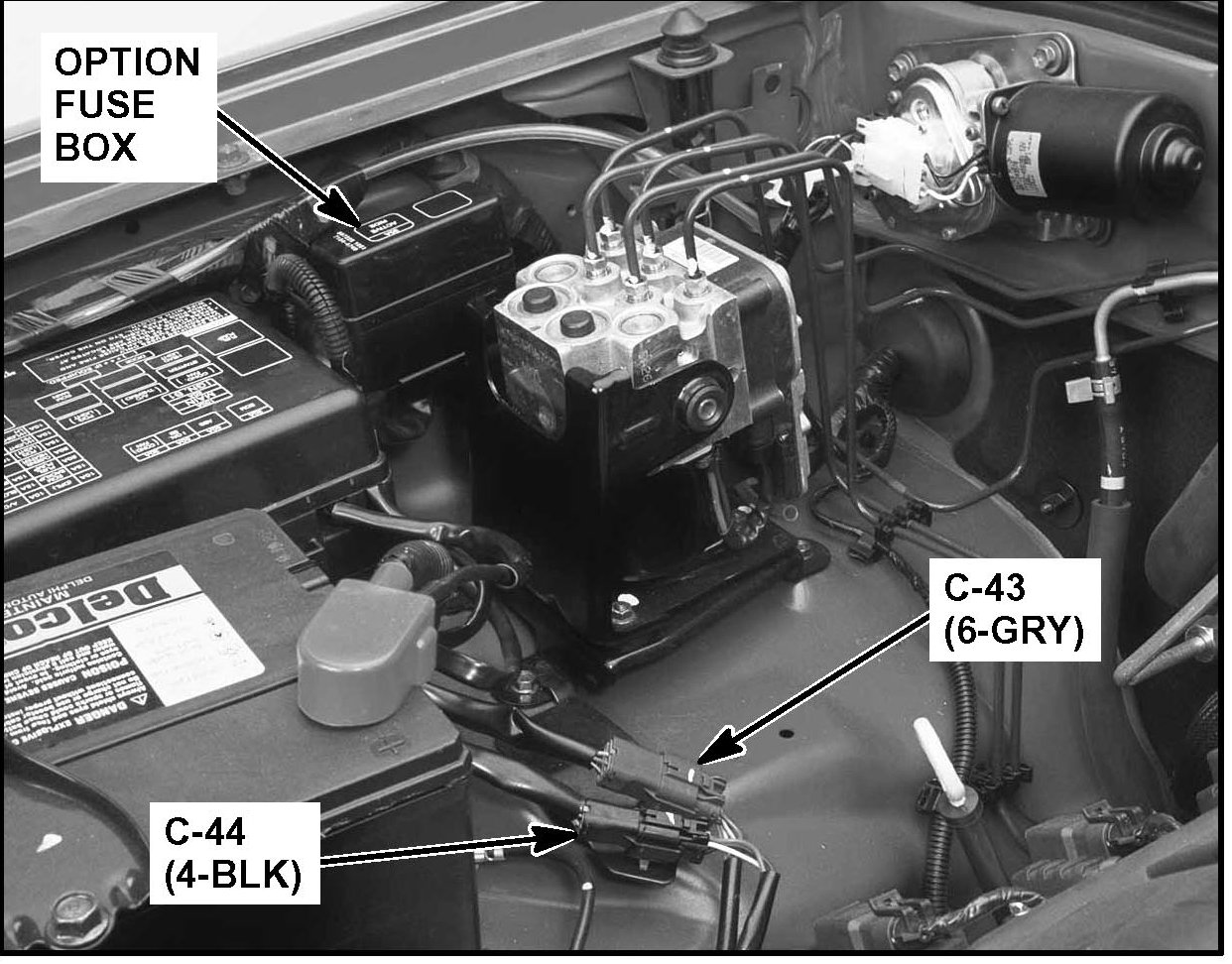

14. Right Side Of Engine 3.2L Compartment (2.2L Similar):

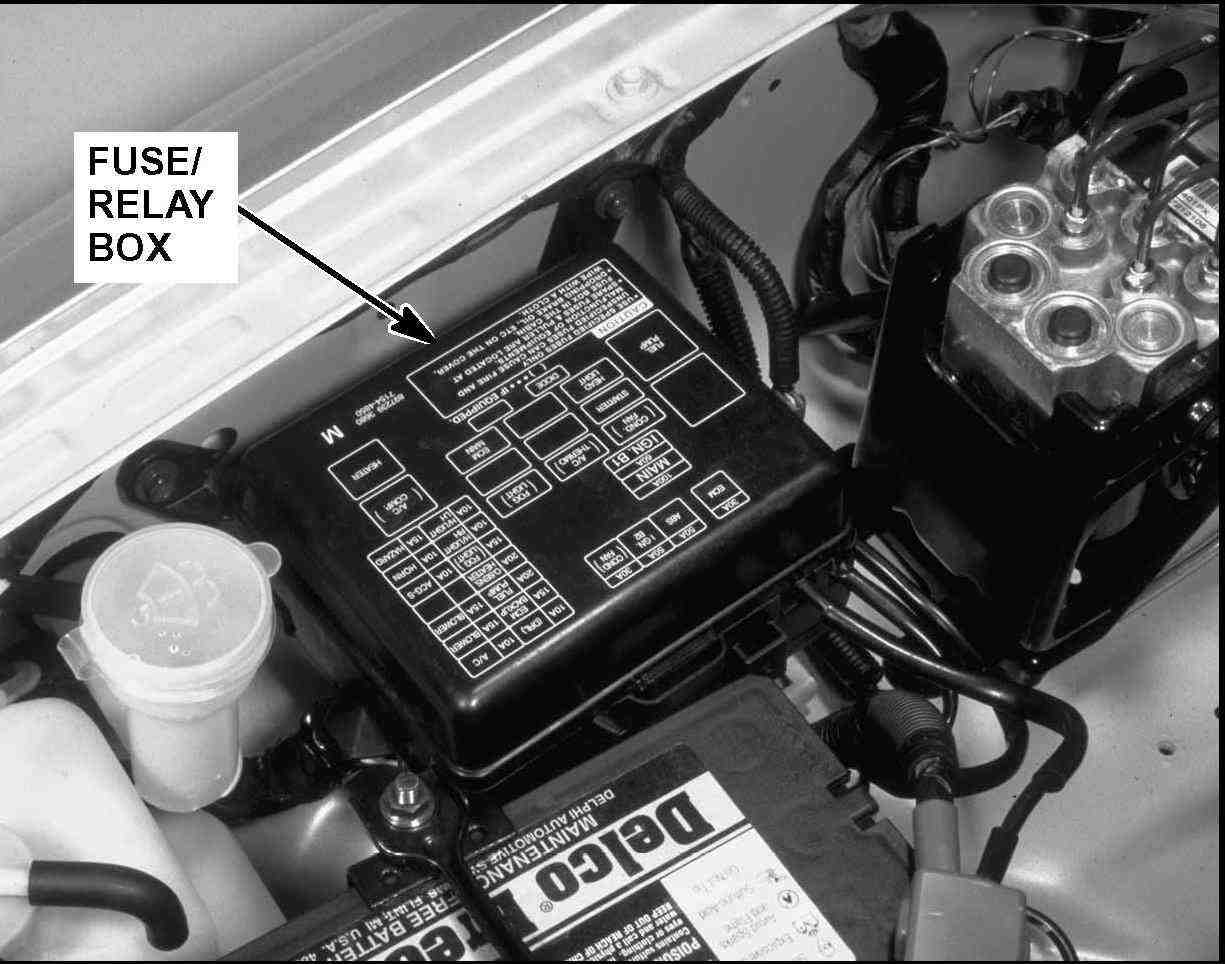

55. Right Side Of 3.2L Engine Compartment (2.2L Similar):

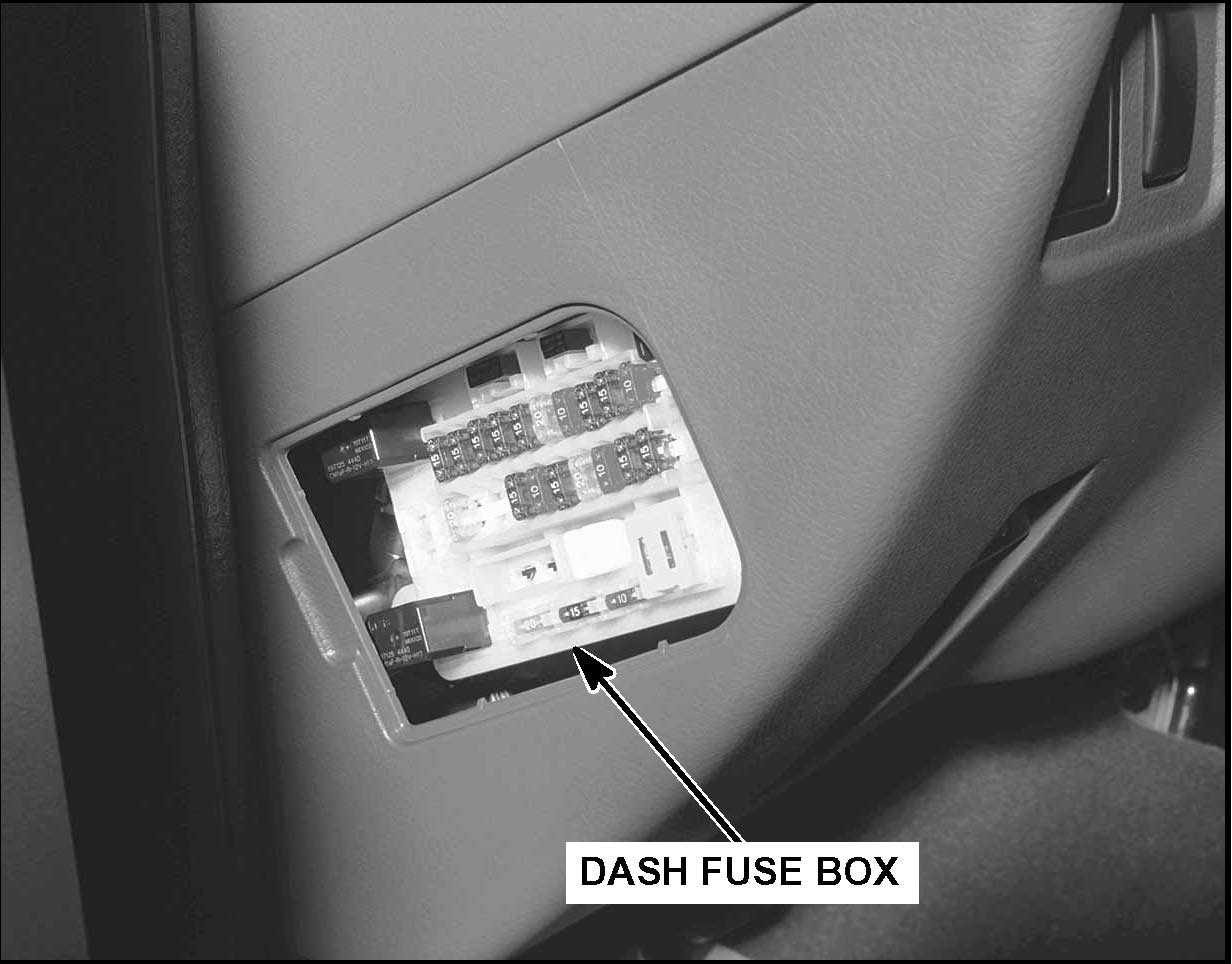

58. Left Side Of Dash:

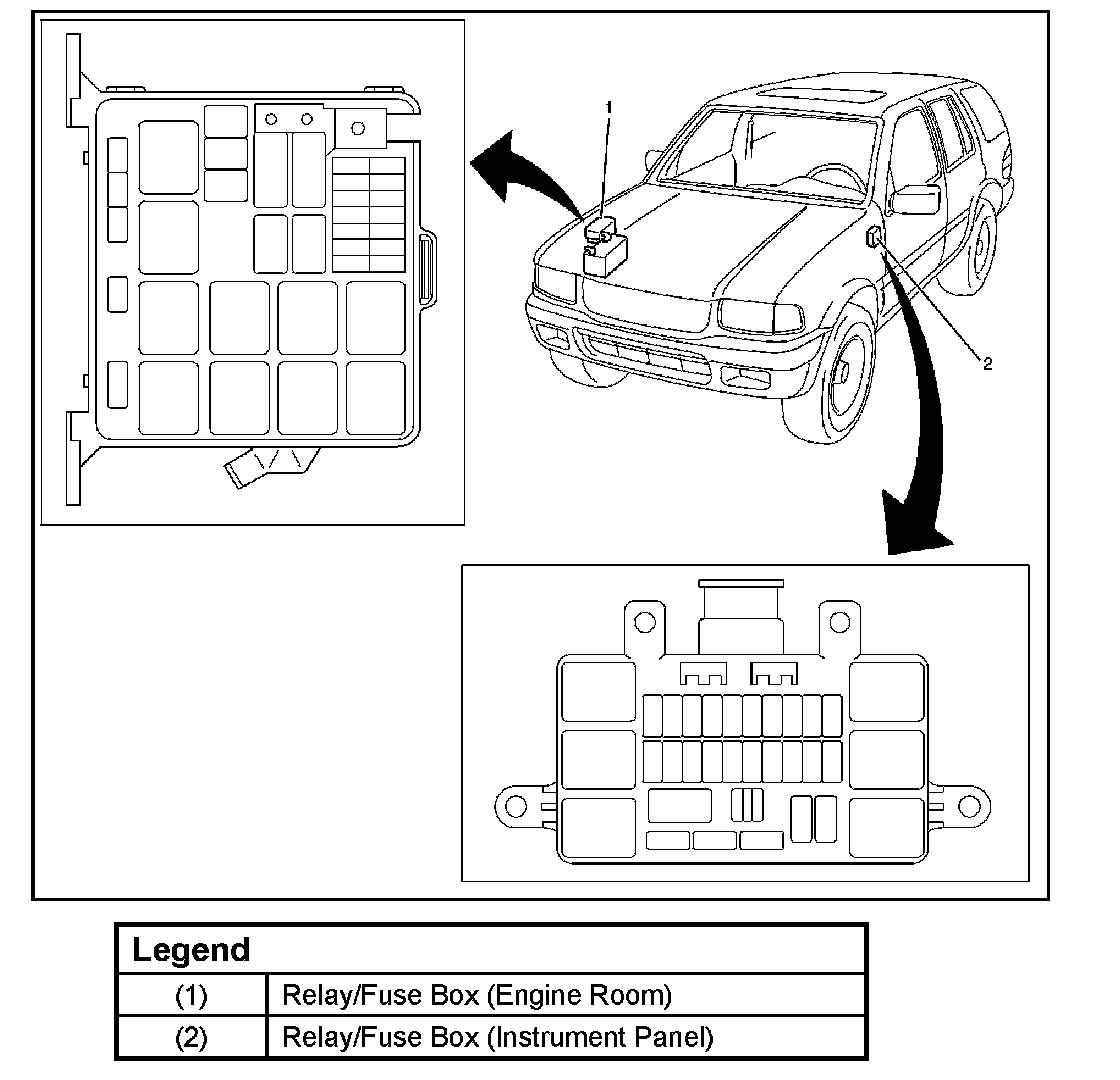

Relay/Fuse Box:

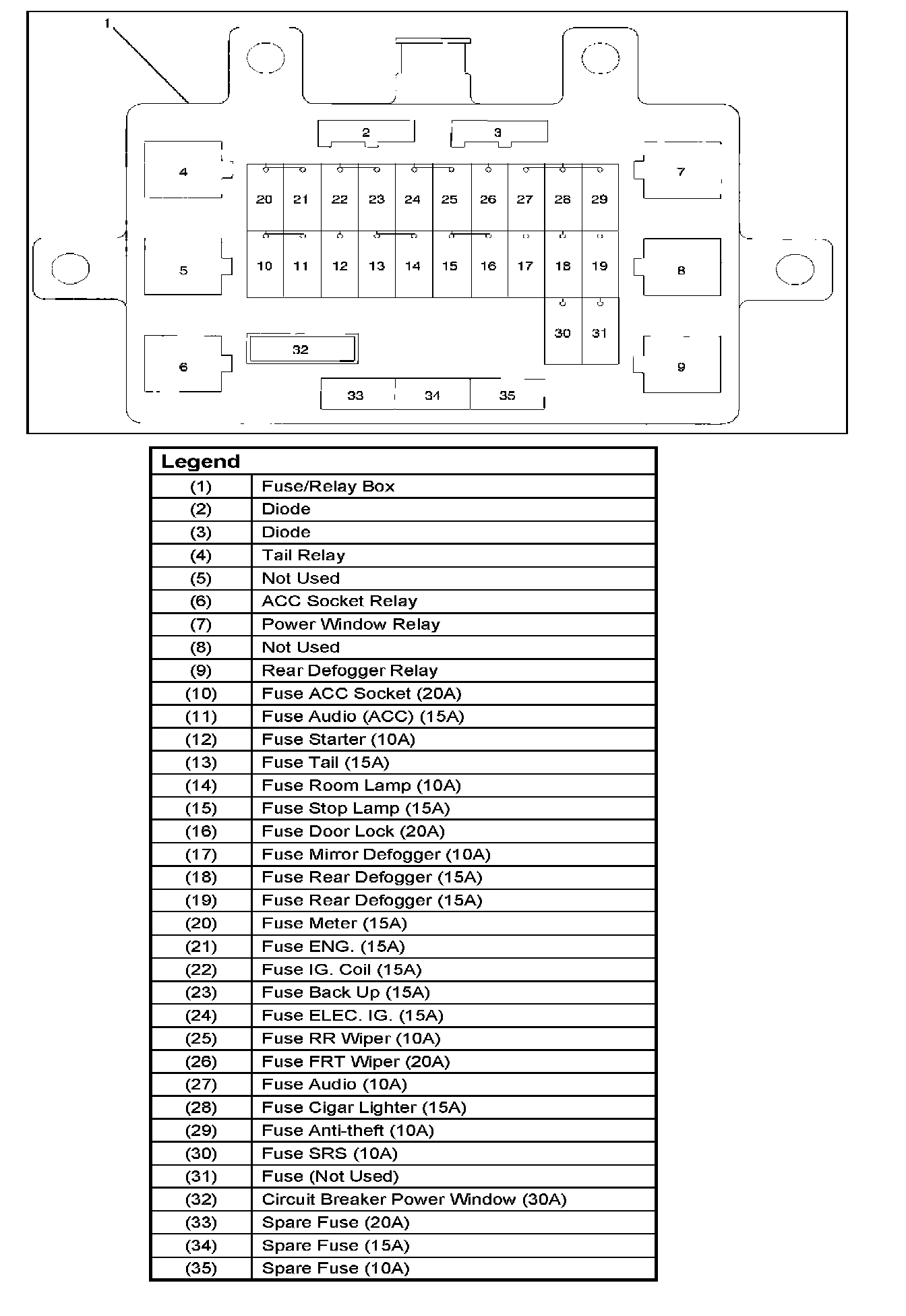

Relay/Fuse Box (Instrument Panel):

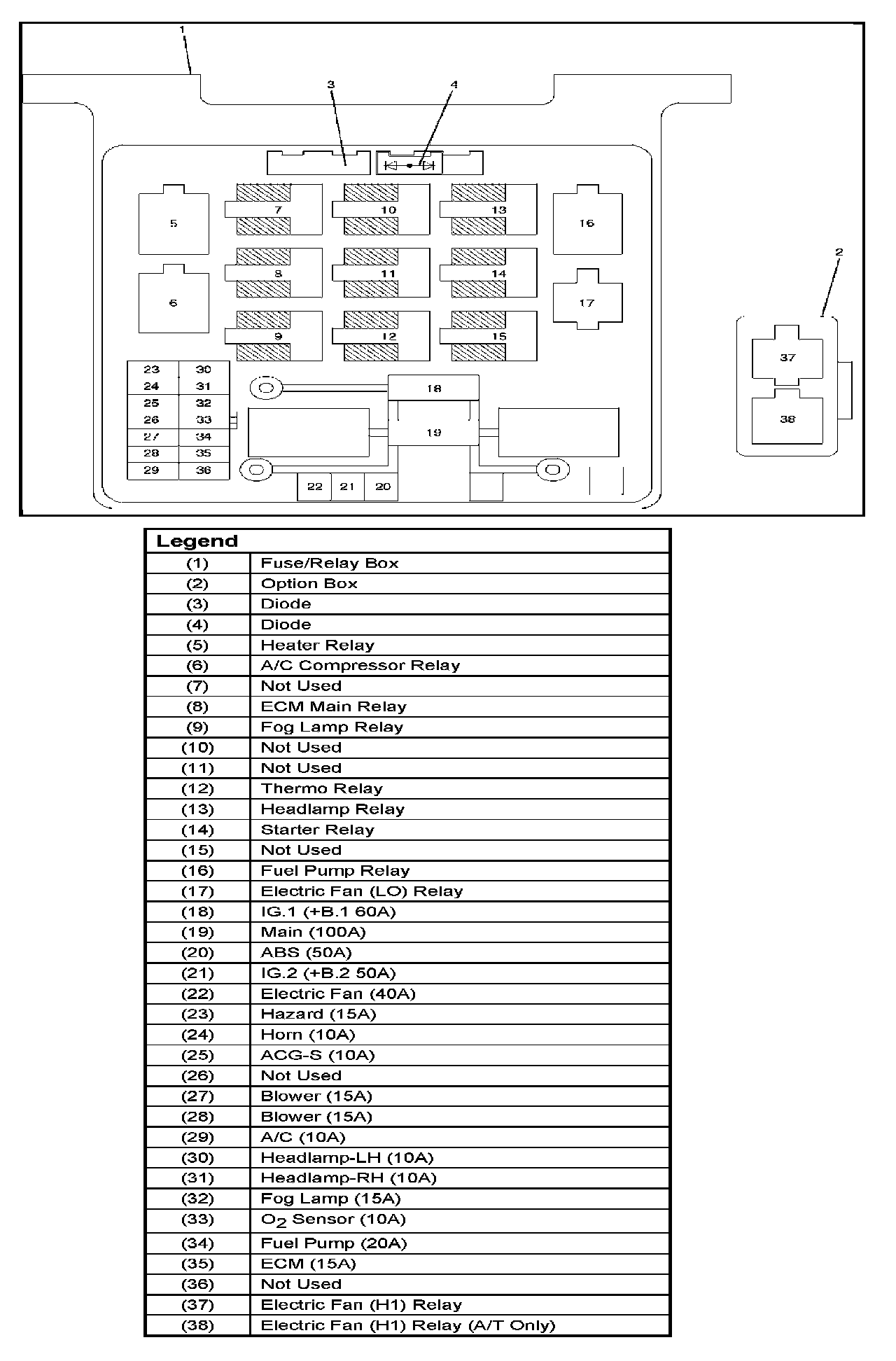

Relay/Fuse Box (L4 Engine Room):

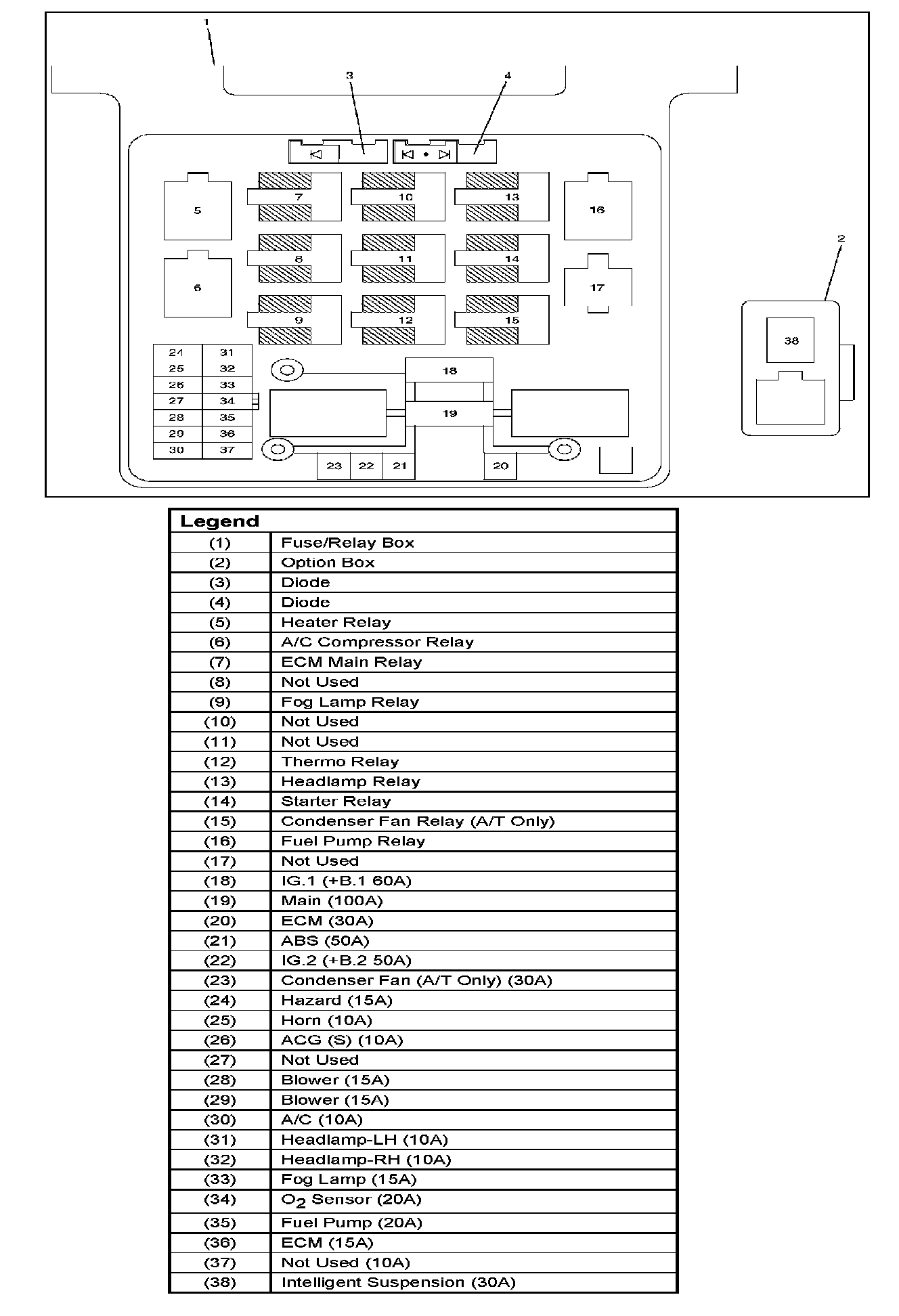

Relay/Fuse Box (V6 Engine Room):
