Blower Assembly

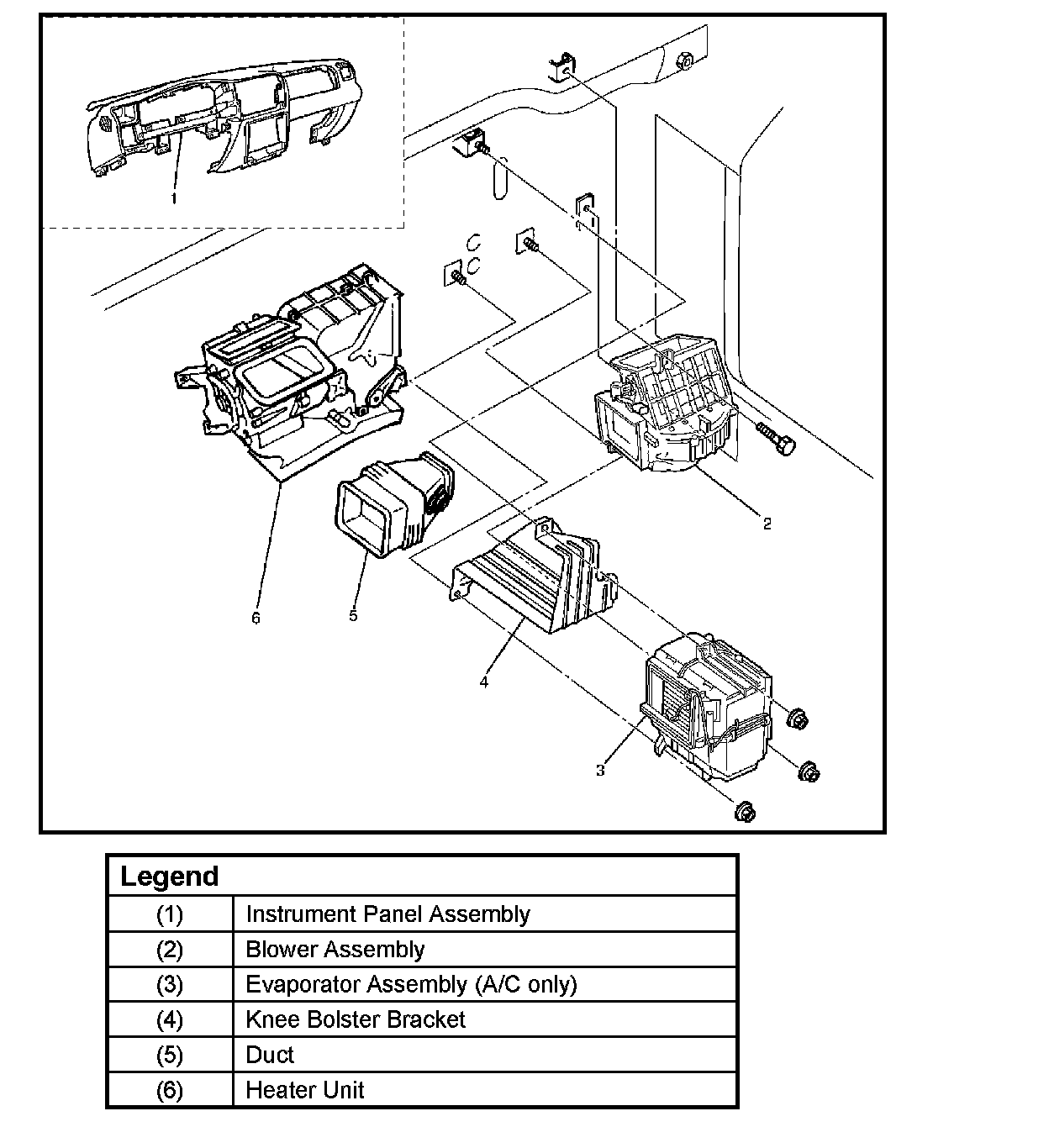

Blower Assembly And Associated Parts:

REMOVAL

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant (with air conditioning).
- Refer to Refrigerant Recovery.

3. Remove instrument panel assembly.
- Refer to Instrument Panel Assembly in Body and Accessories.

4. Disconnect resistor connector.
5. Remove knee bolster bracket.
6. Remove duct.

7. Remove evaporator assembly (A/C only).
- Refer to Evaporator Assembly.

8. Disconnect blower motor connector.
9. Remove blower assembly.

INSTALLATION
To install, follow the removal steps in the reverse order.
