Possible Causes of Low Line Pressure

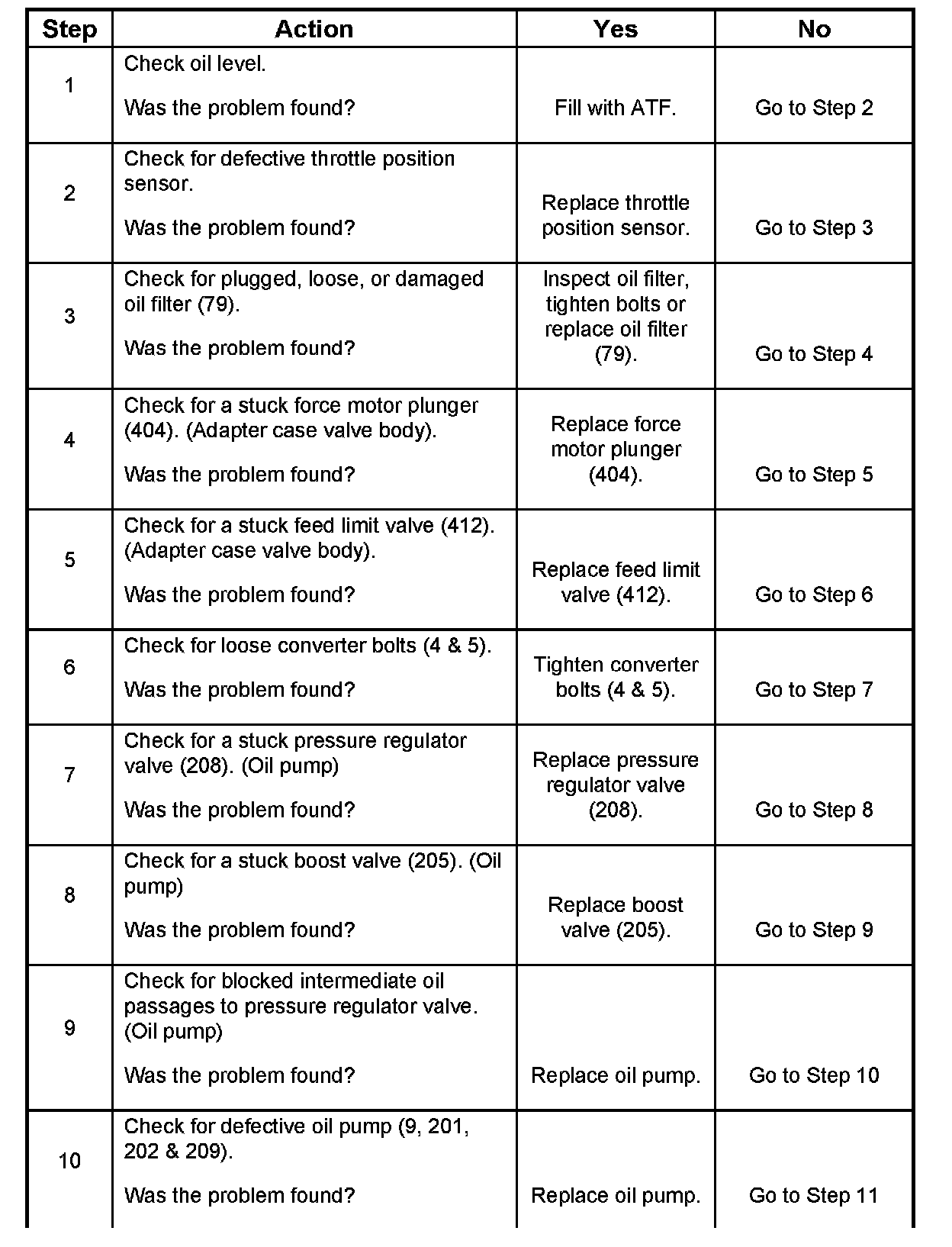

CHART 15a: POSSIBLE CAUSES OF LOW LINE PRESSURE





Steps 1-10





Step 11
