Parts List

4L30-E PARTS LIST

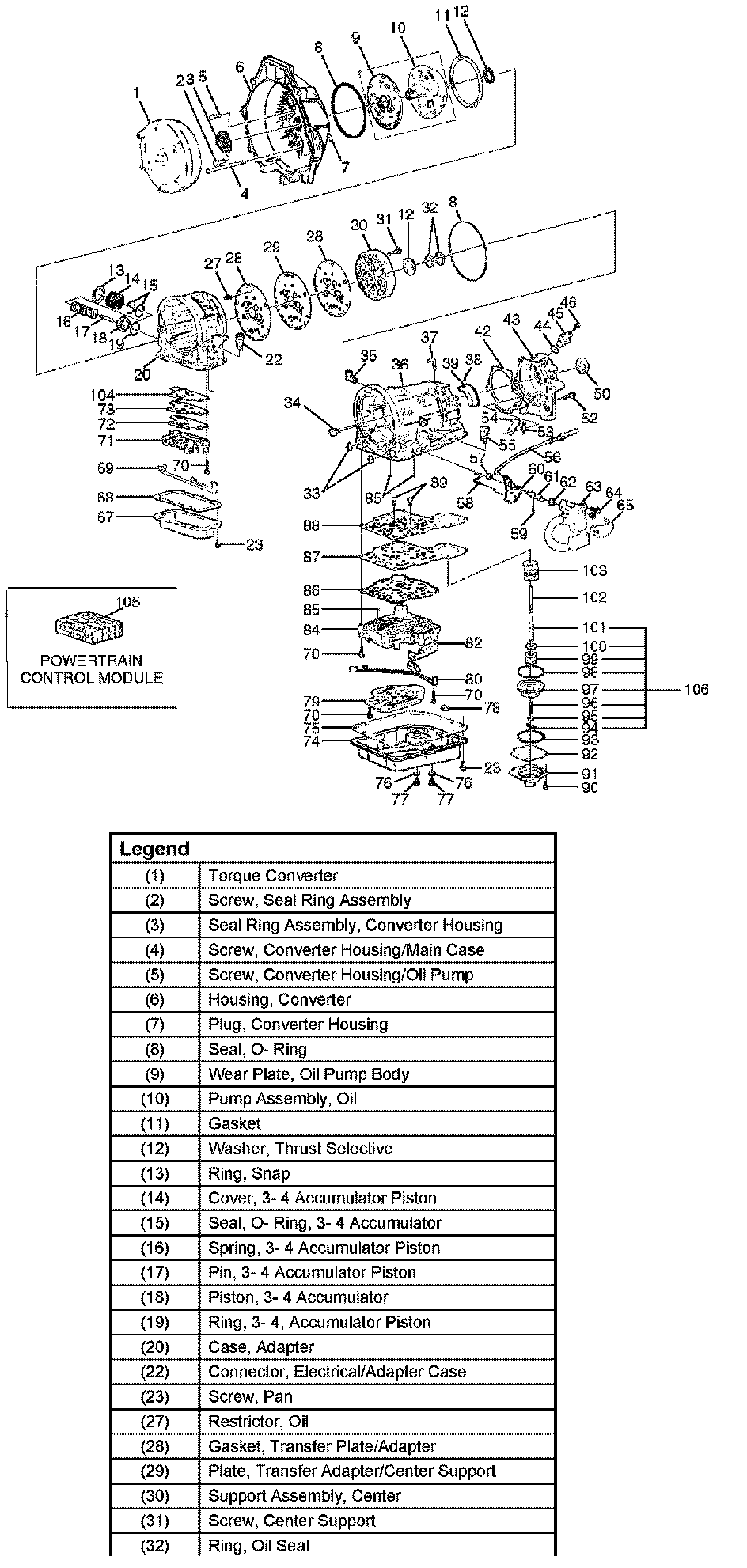

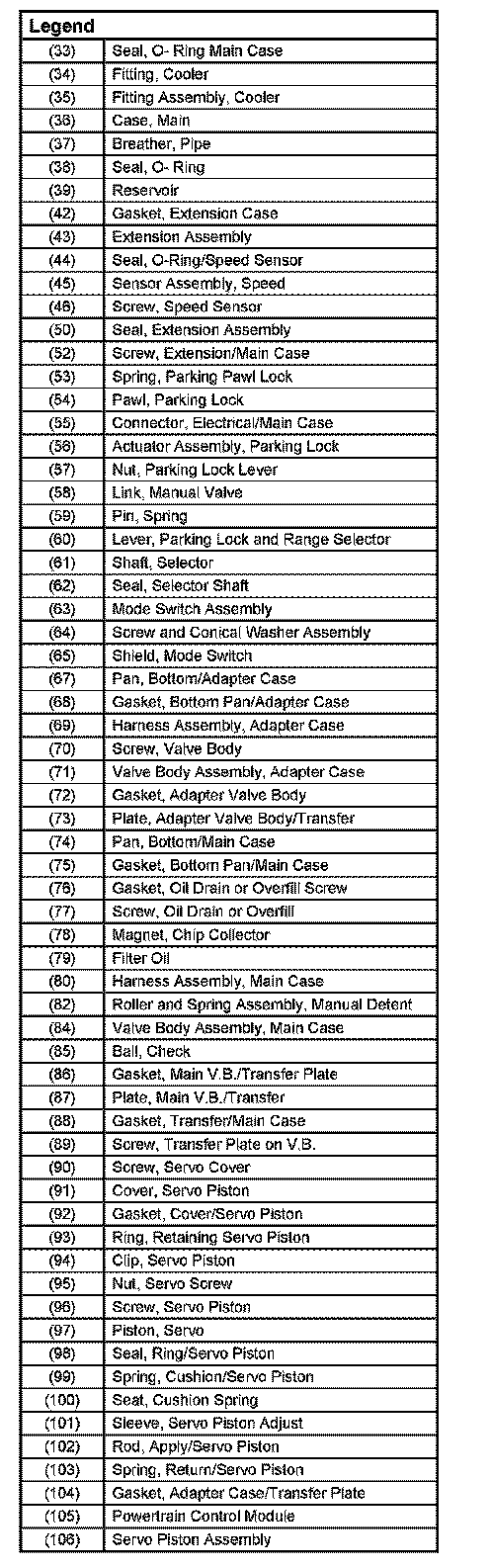

Case And Associated Parts

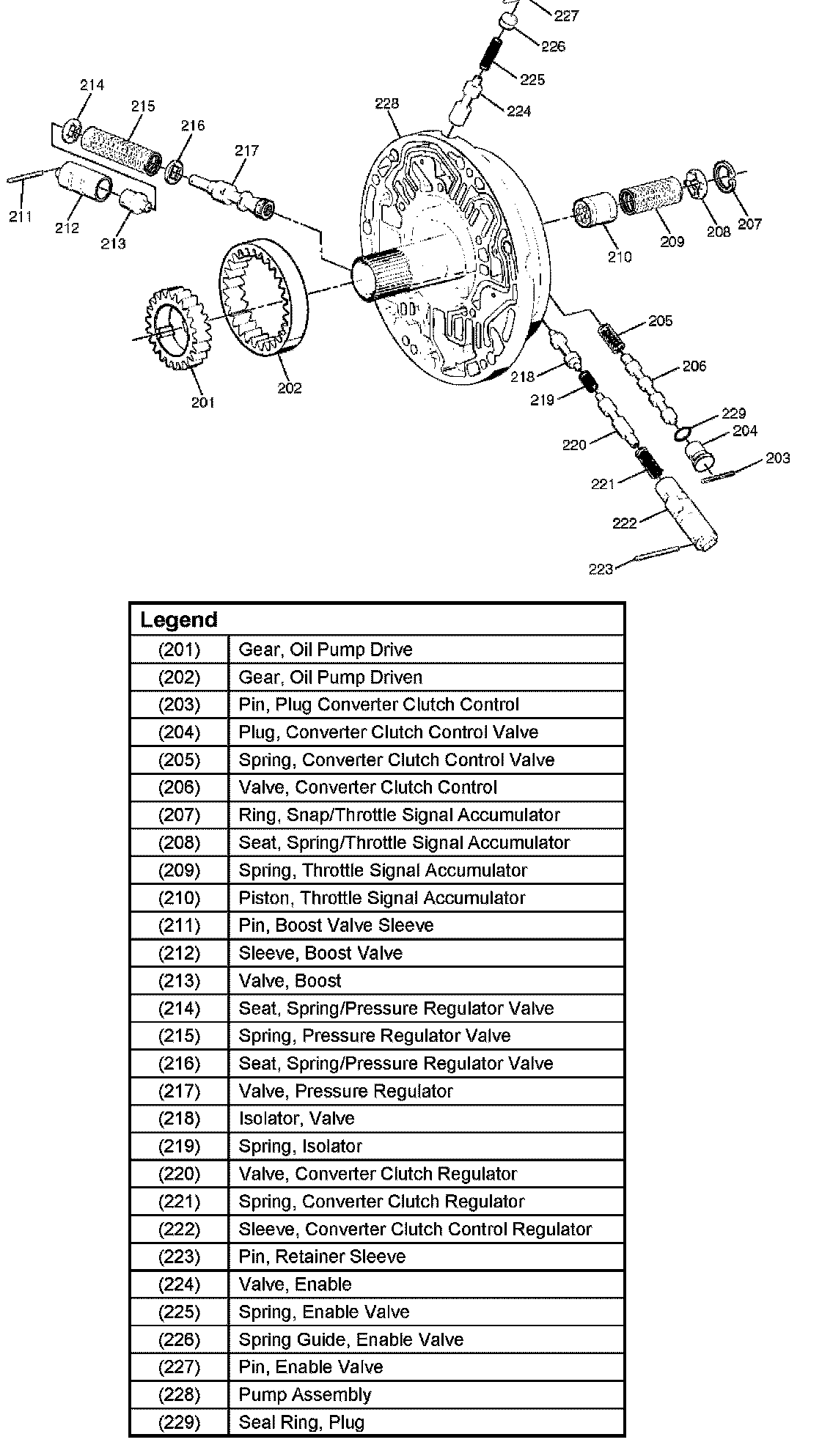

Pump Assembly

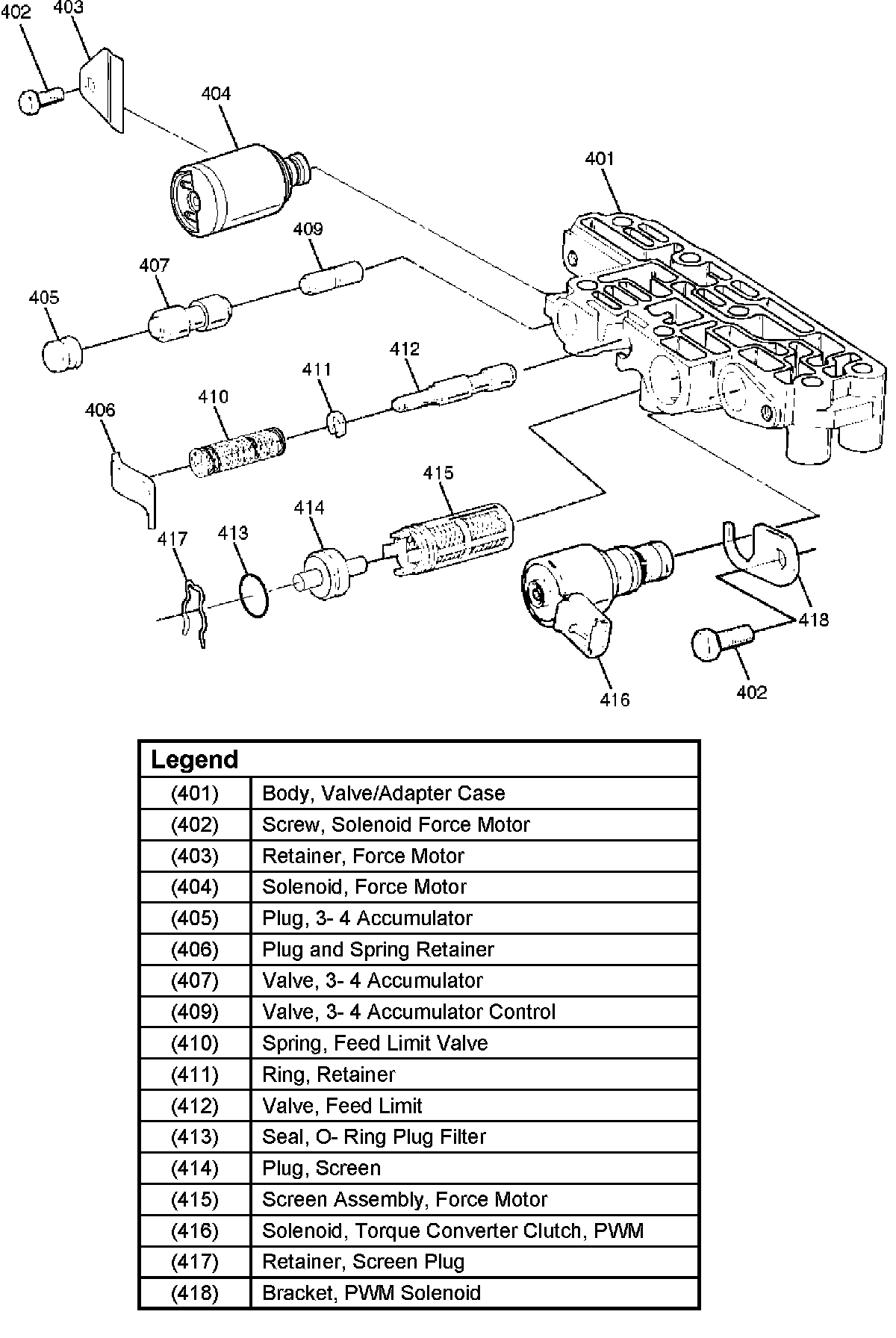

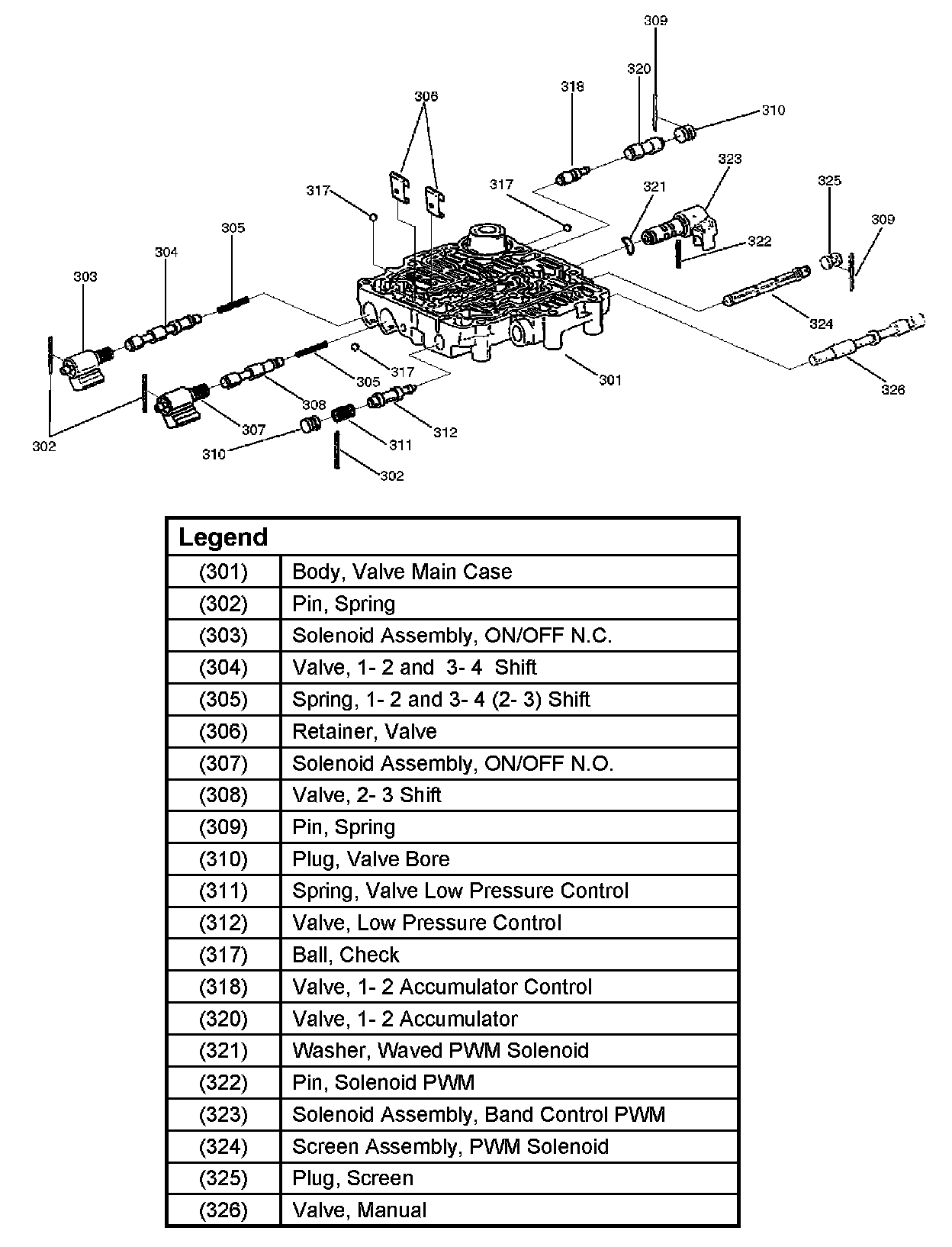

Valve Body Assemblies

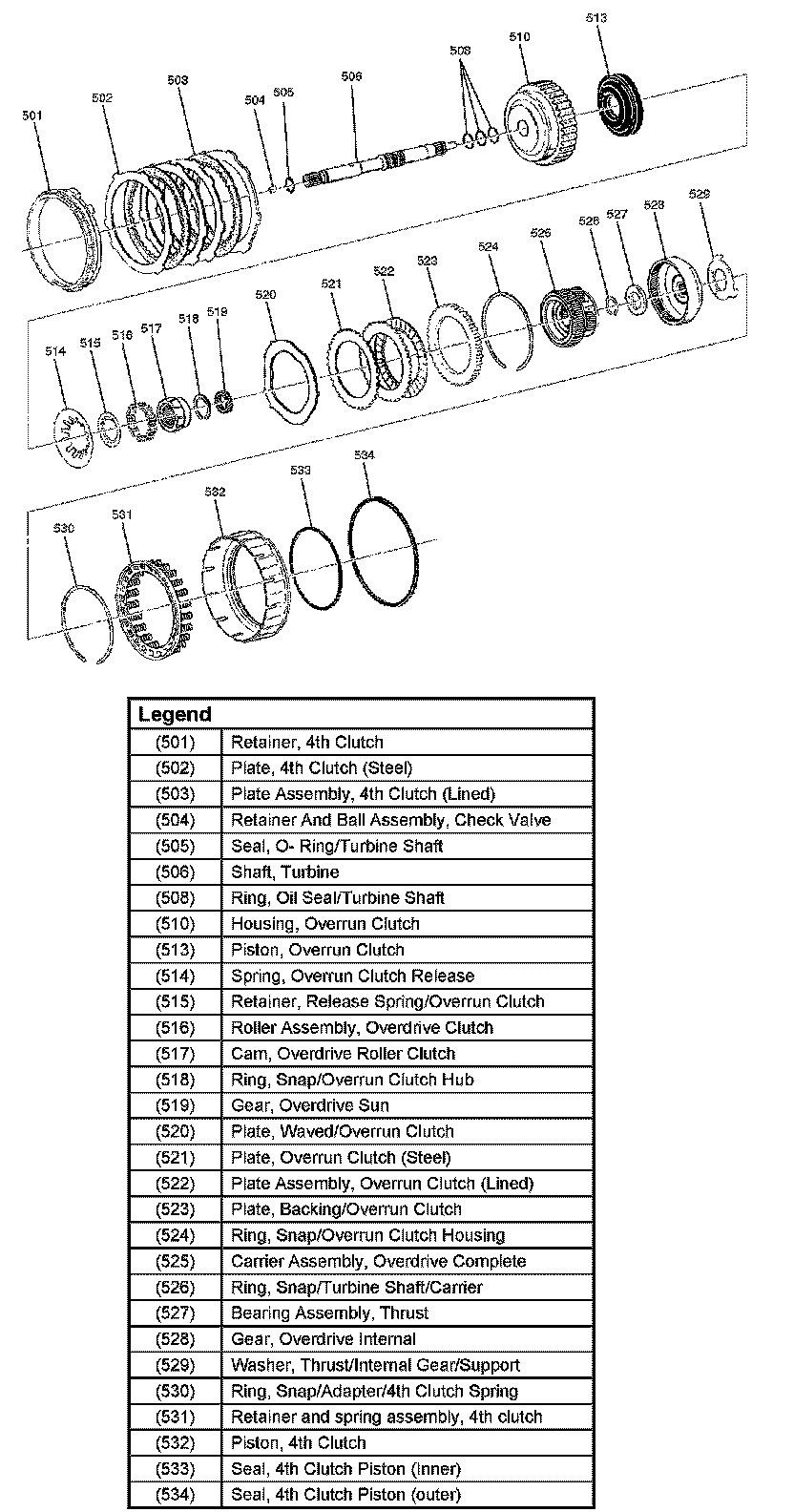

Overdrive Internal Components

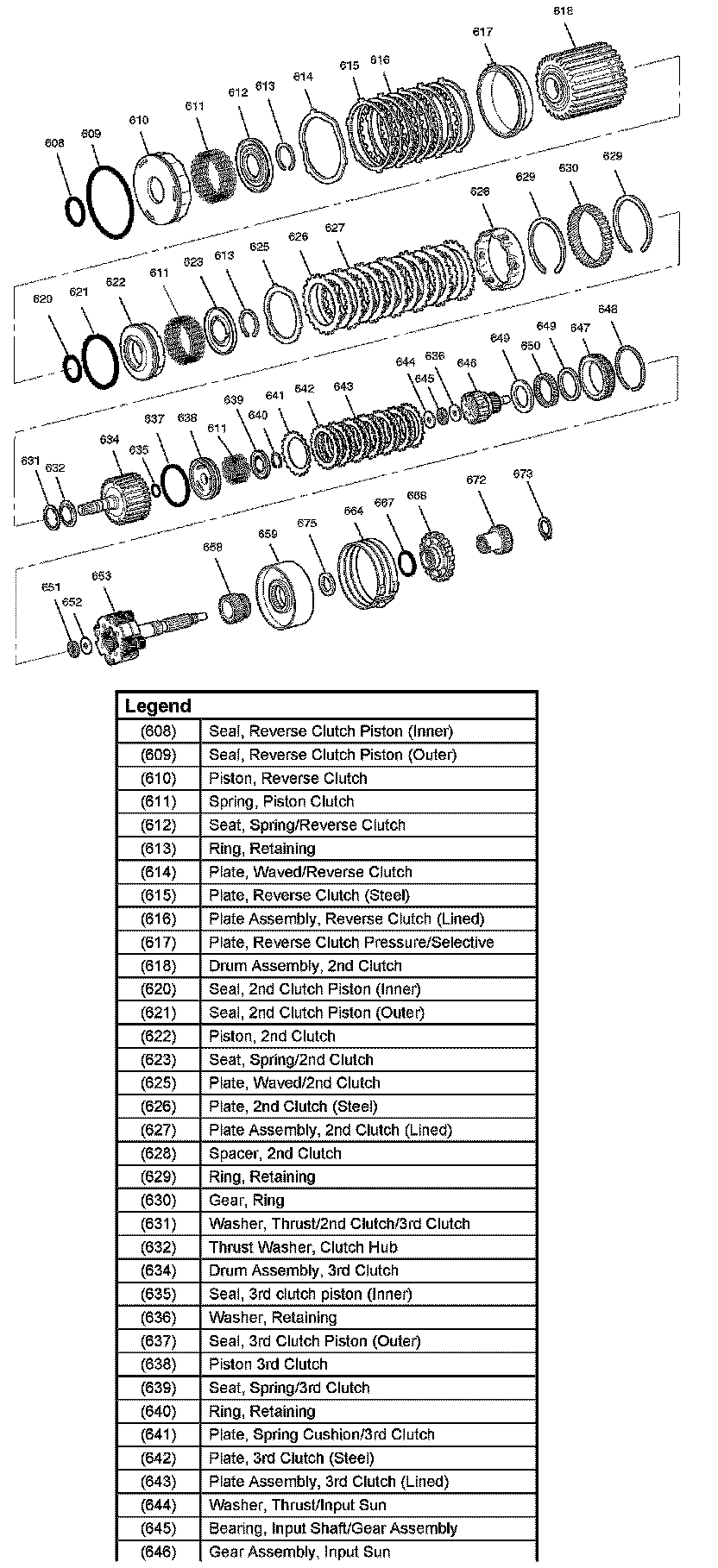

Internal Components

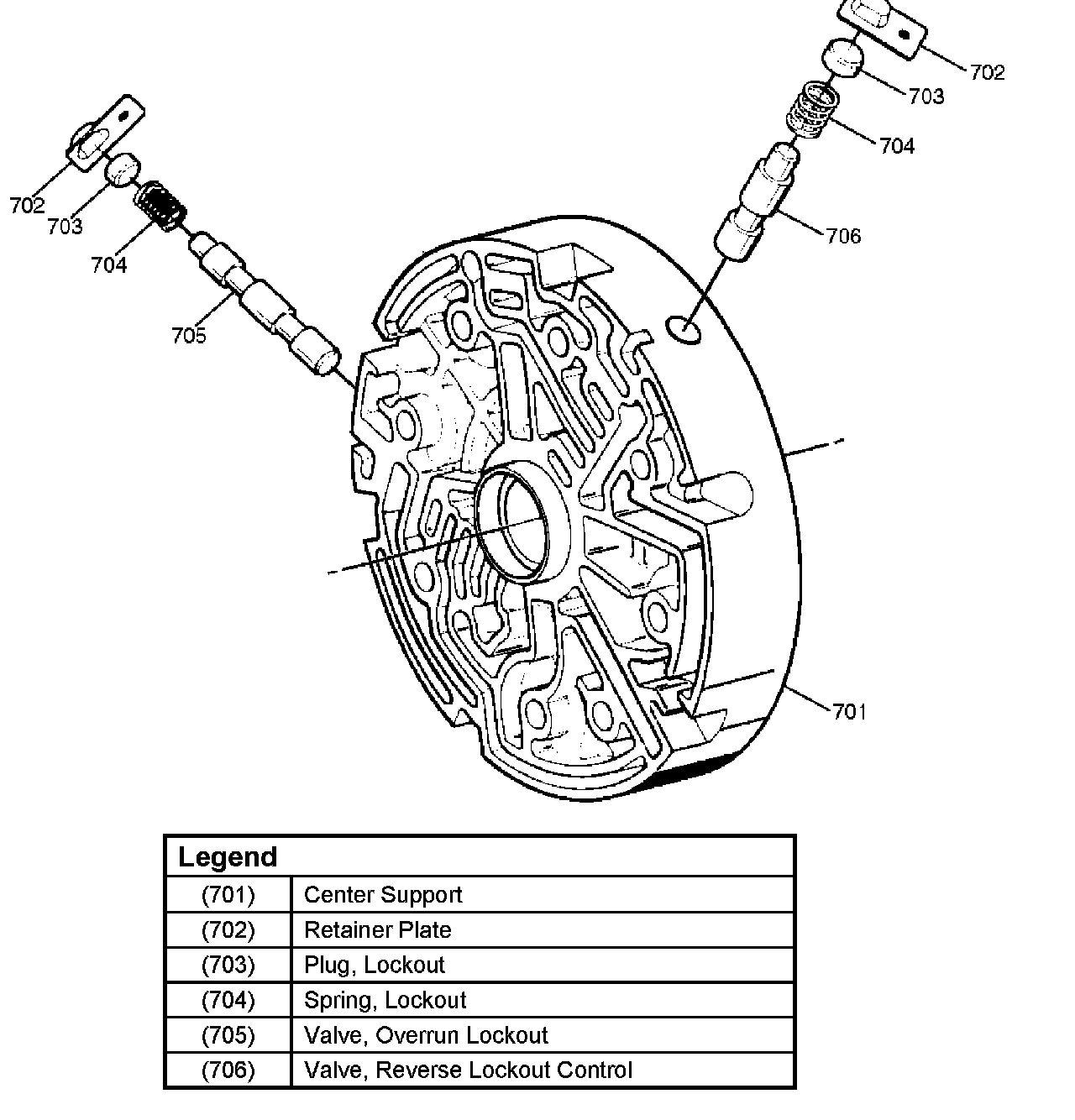

Center Support Assembly
