Grounds

Ground Distribution: Index (1 Of 4):

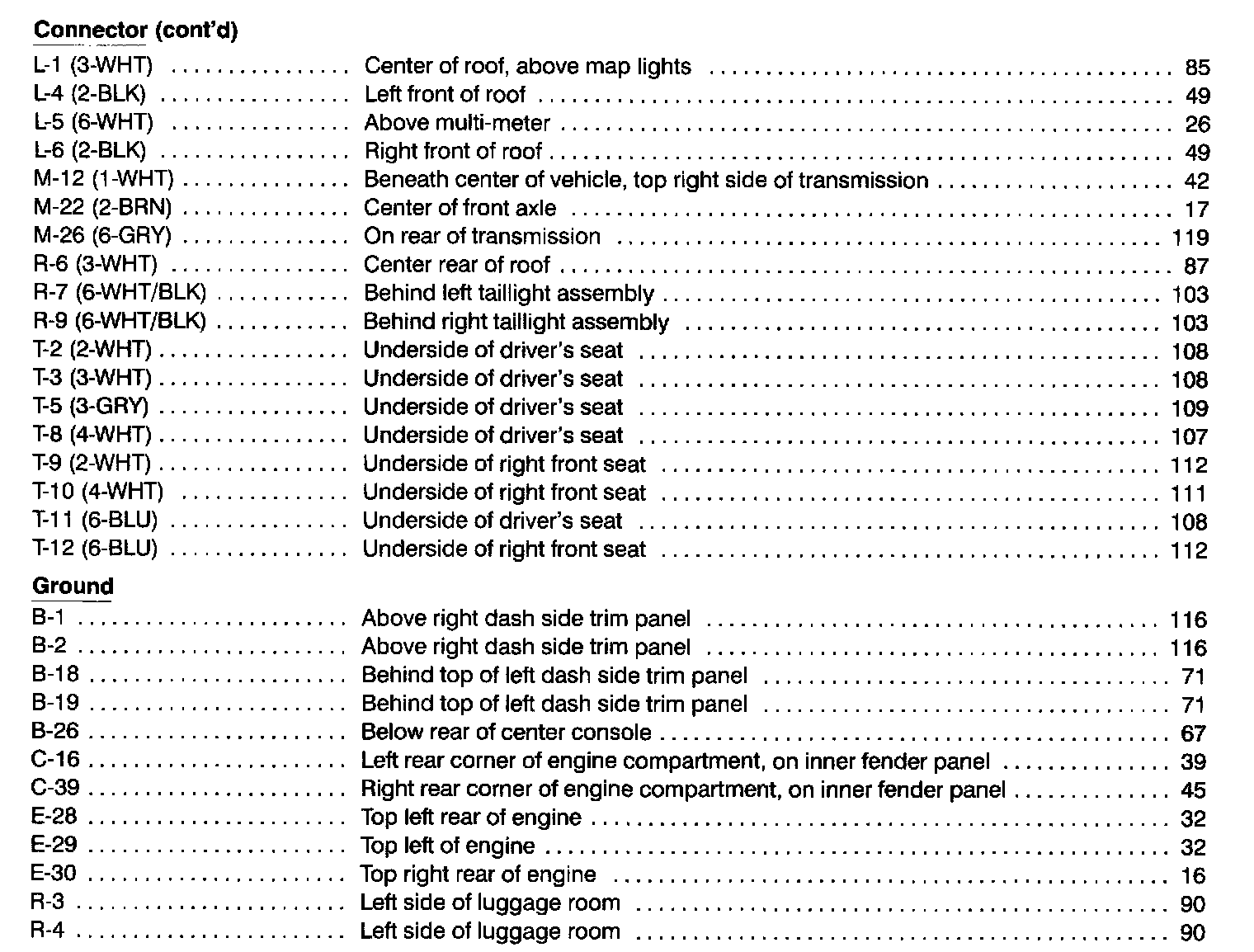

Ground Distribution: Index (2 Of 4):

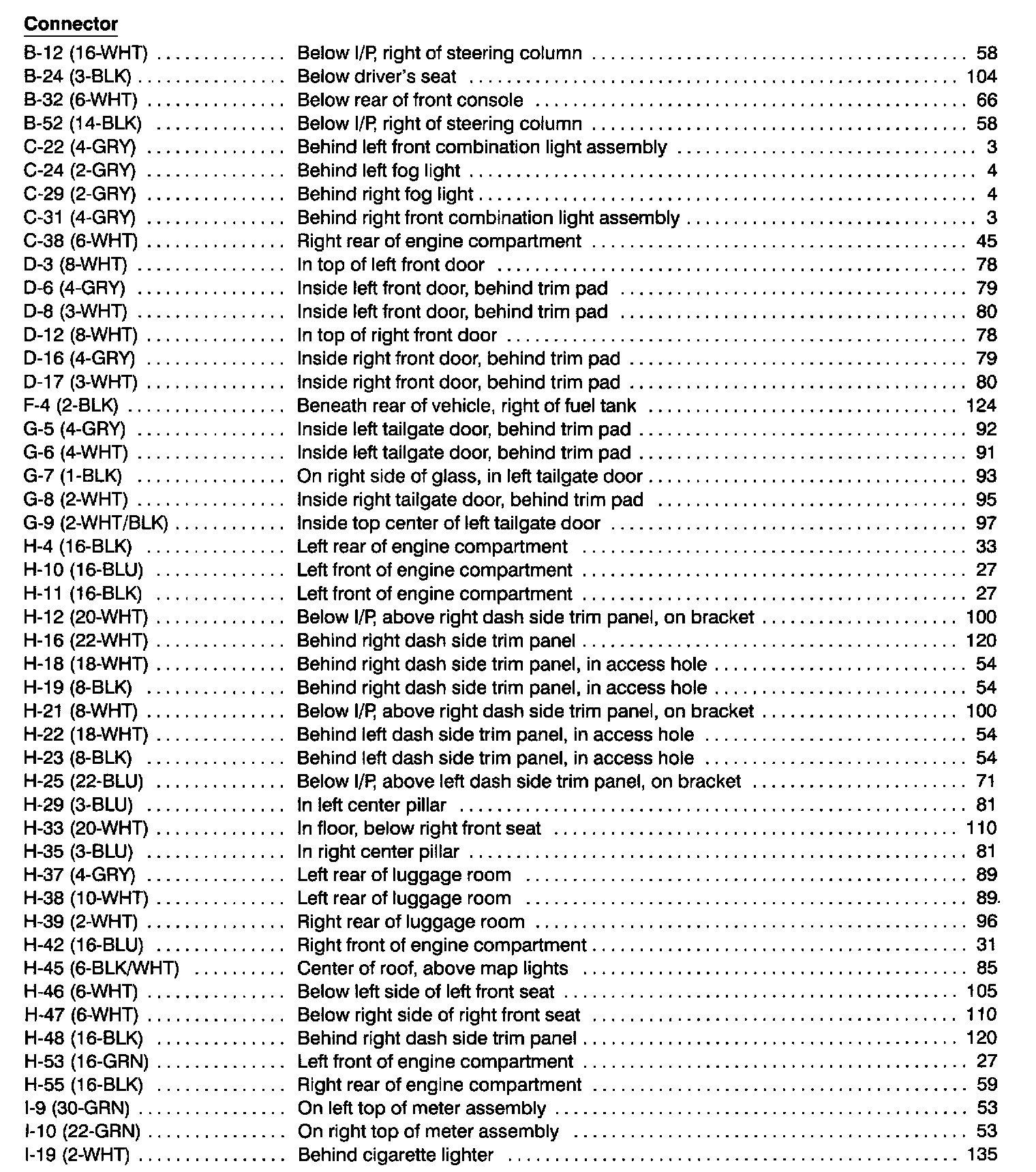

Ground Distribution: Index (3 Of 4):

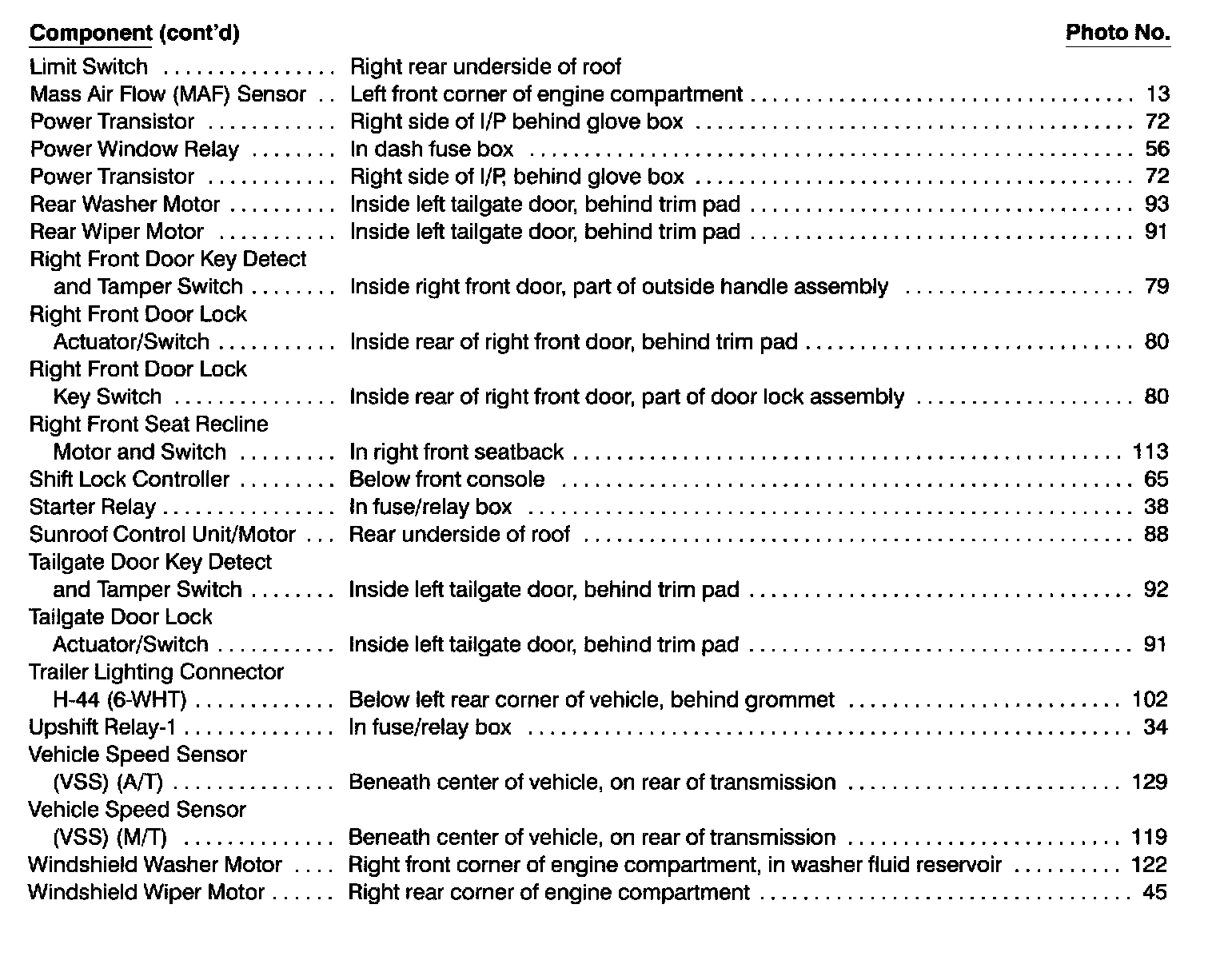

Ground Distribution: Index (4 Of 4):
