Powertrain Control Module (PCM): Removal

  1. Disconnect battery ground cable.
  2. Disconnect PCM wiring harness connectors from PCM.
  3. Remove PCM from bracket.

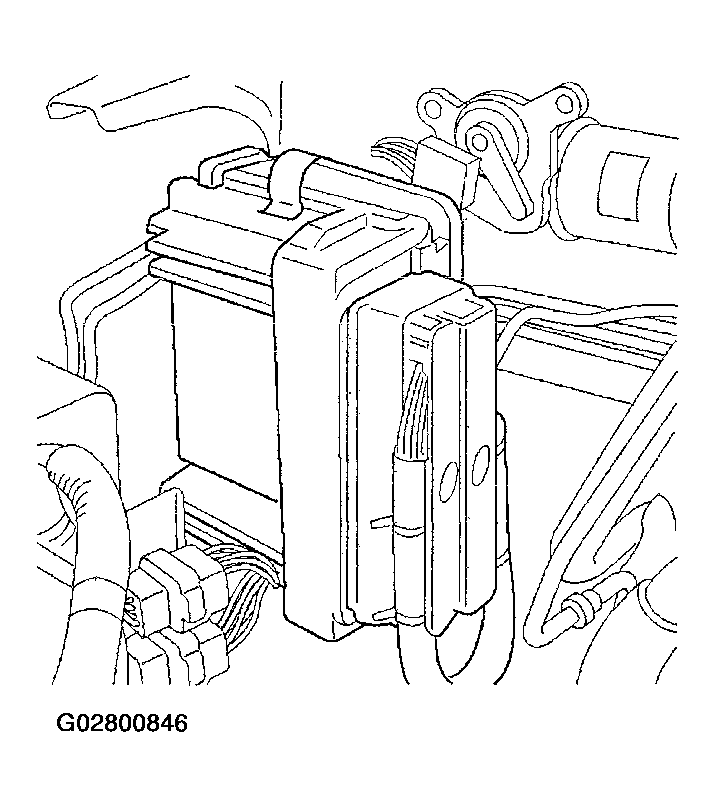

Fig 1: Locating Powertrain Control Module (PCM)
G02800846Courtesy of ISUZU MOTOR CO.
