Cylinder Block Assembly

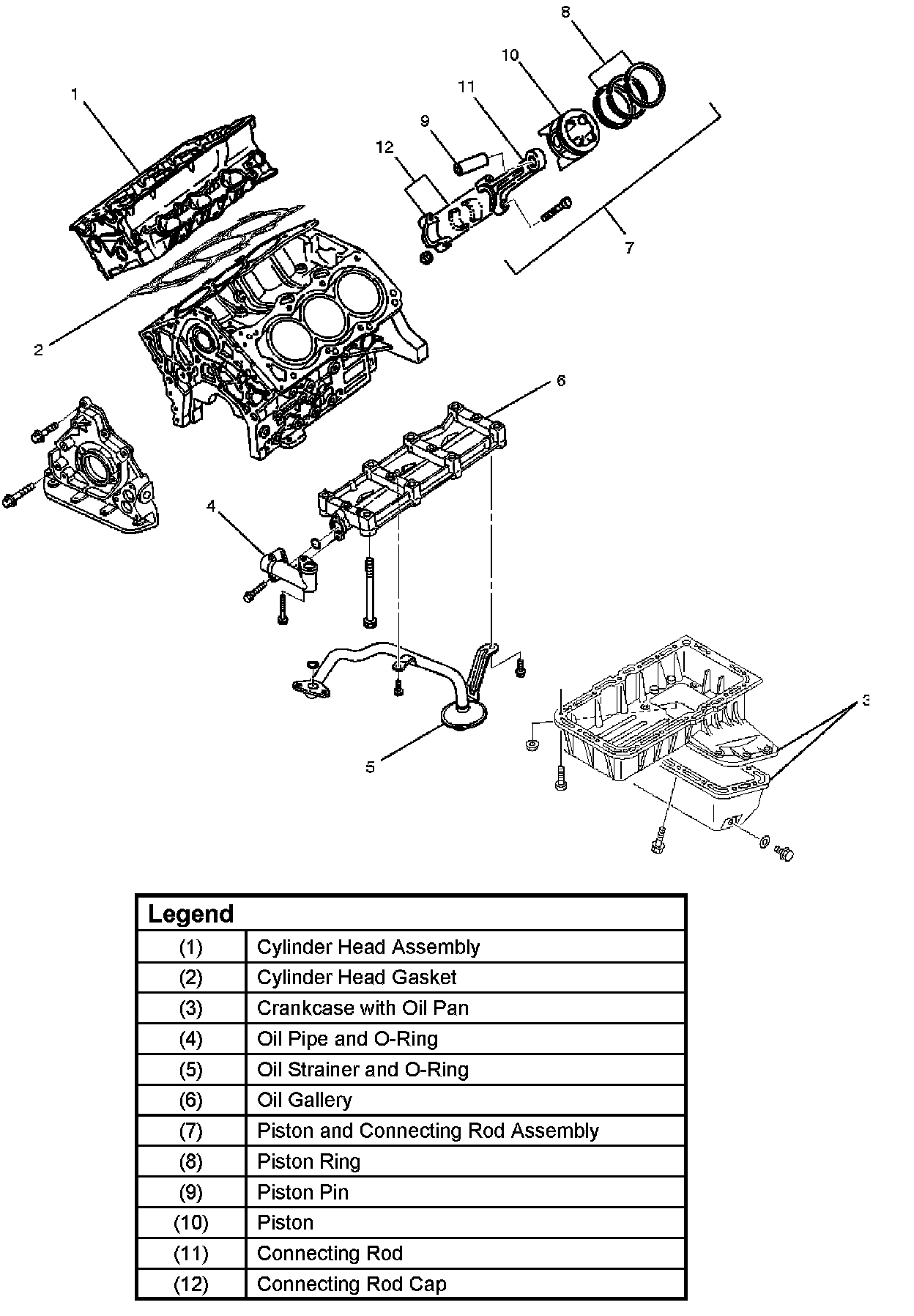

Piston, Piston Ring and Connecting Rod:

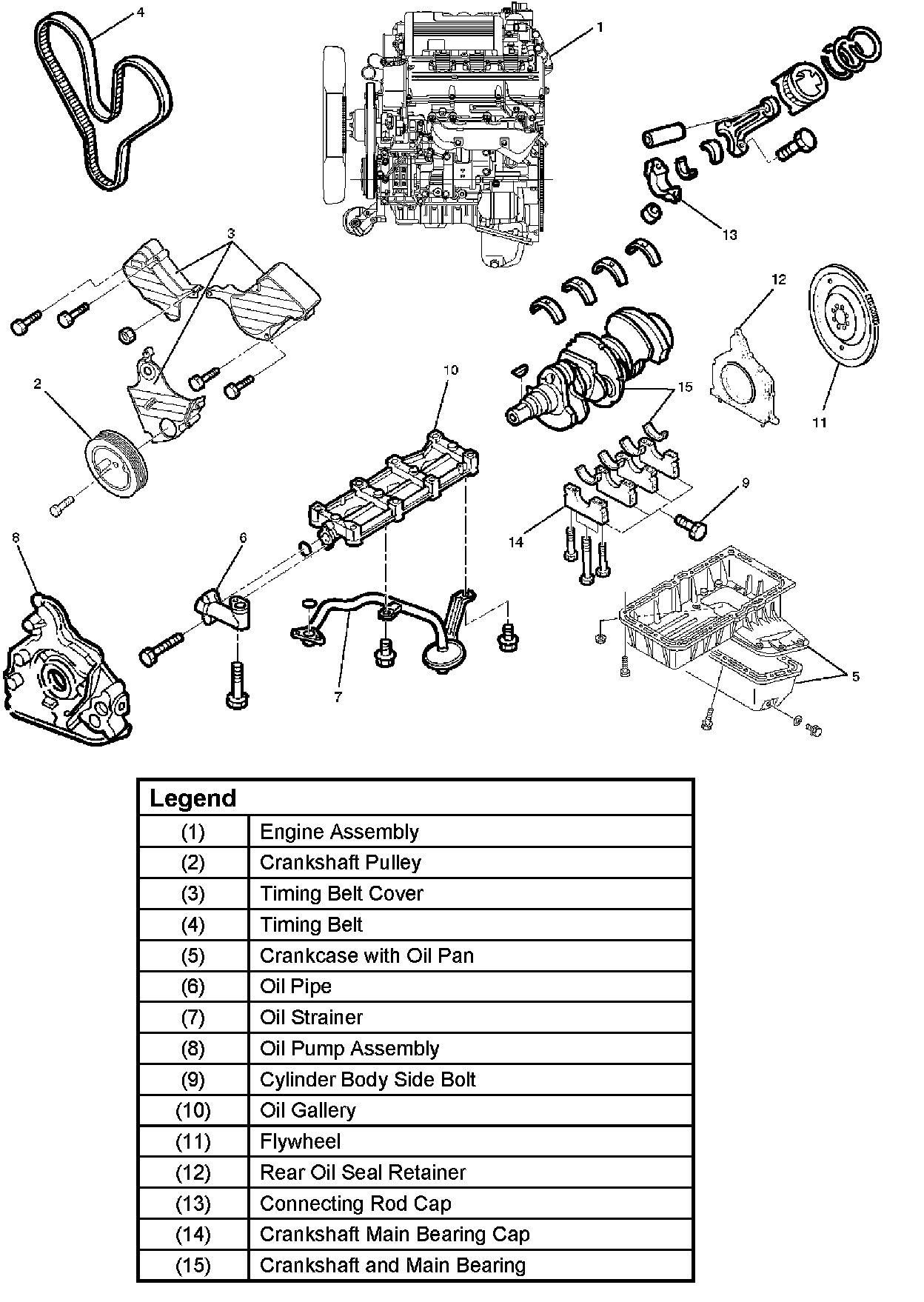

Cylinder Block and Associated Parts:

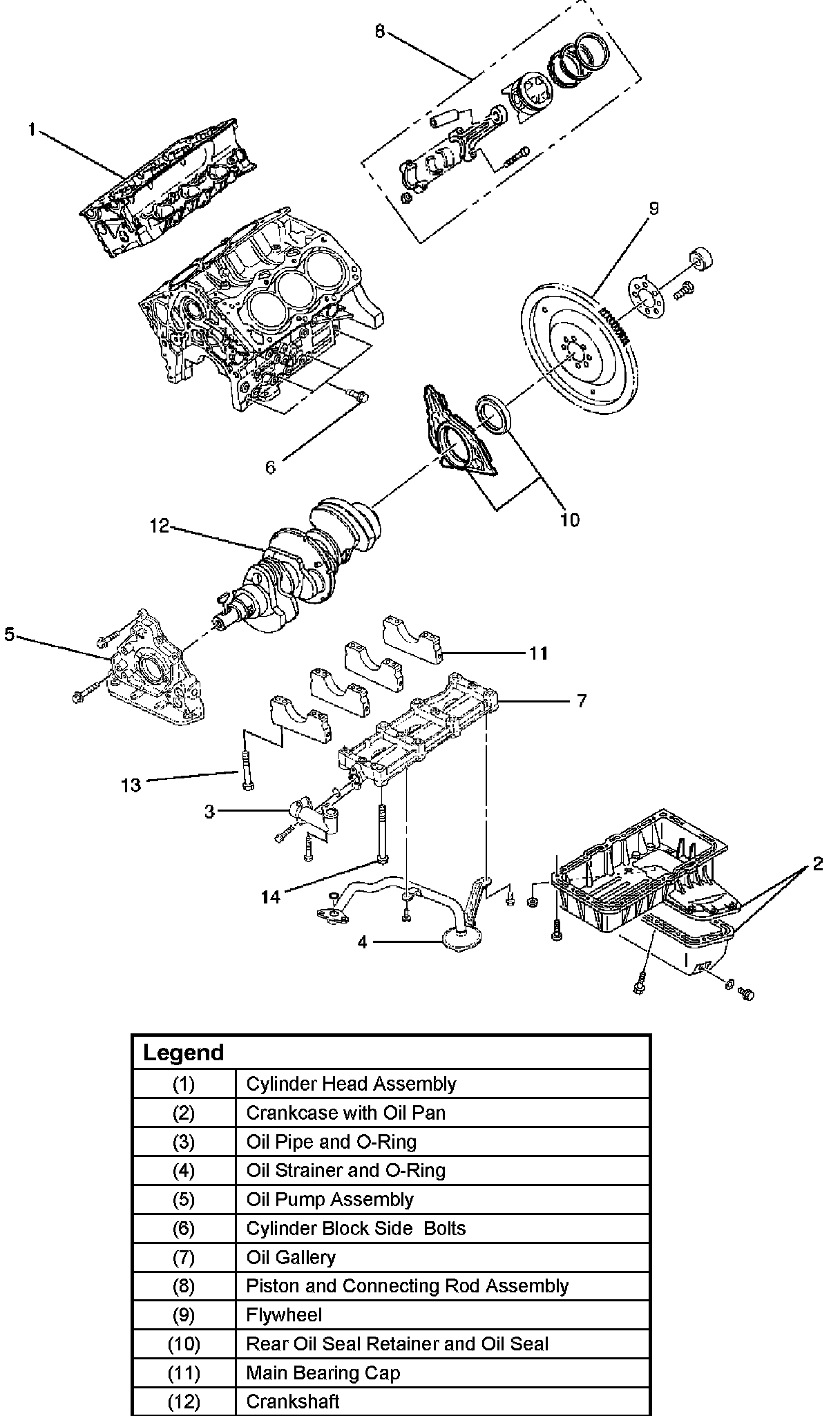

Crankshaft and Main Bearings:

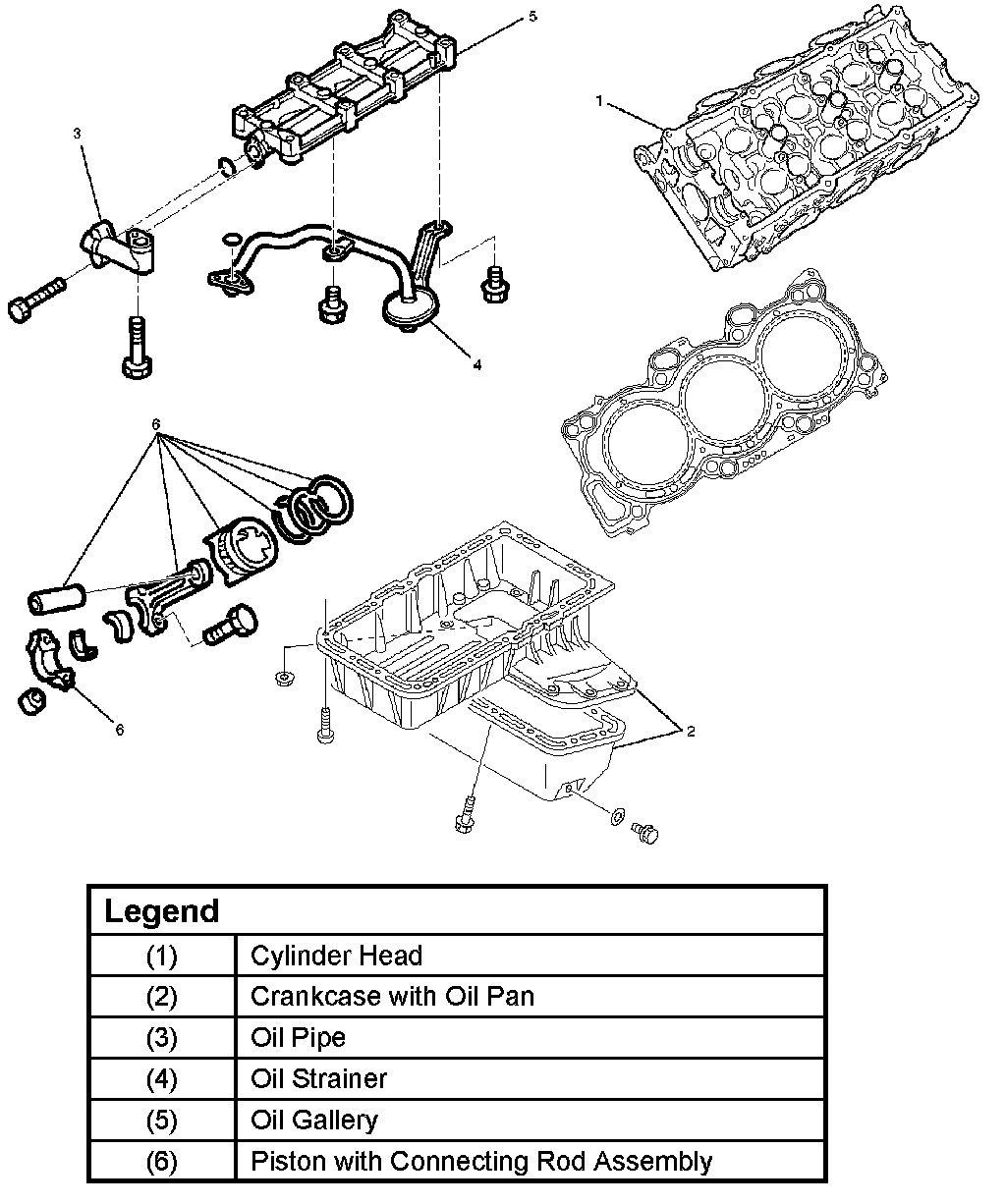

Piston, Piston Ring and Connecting Rod:

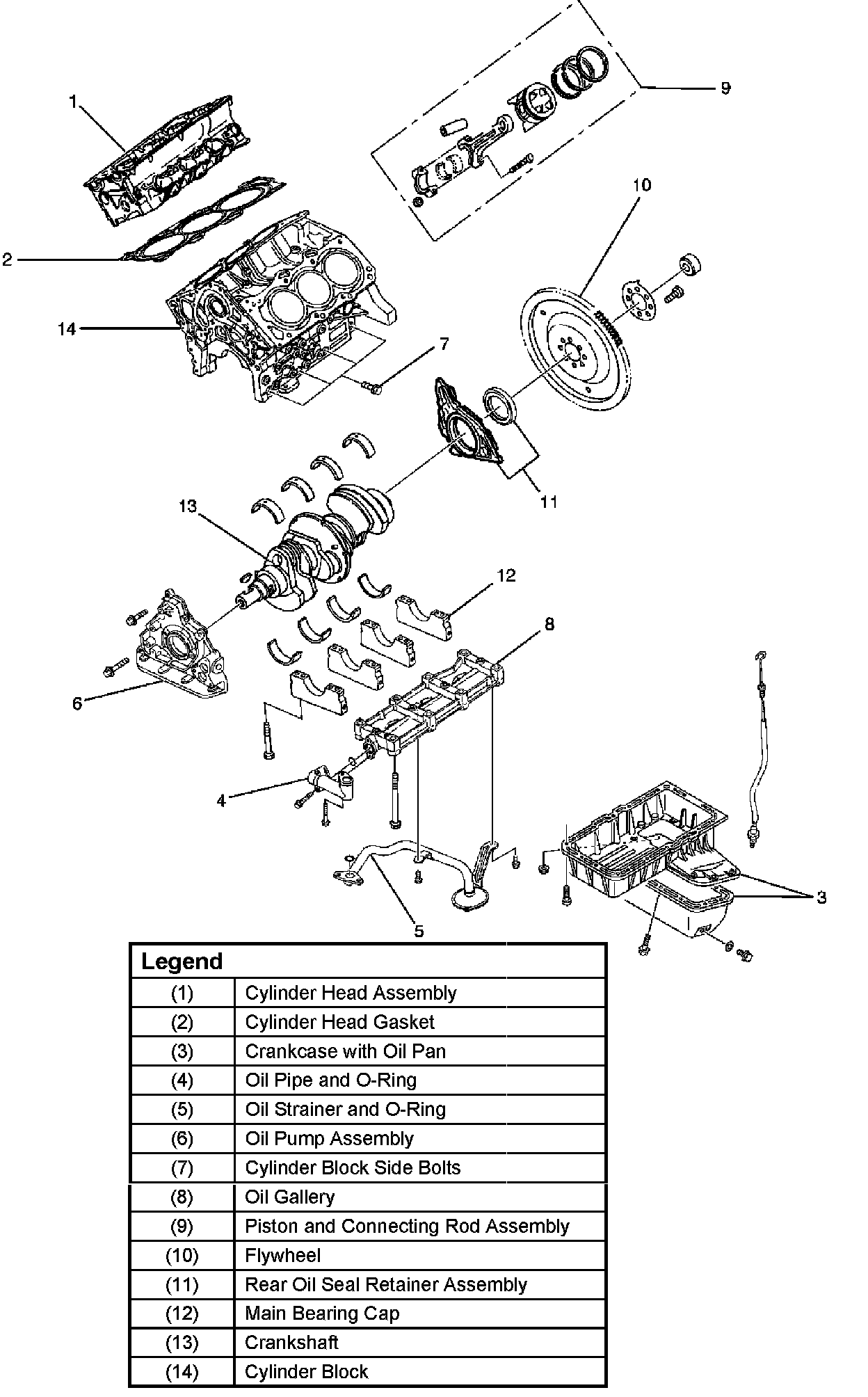

_°Crankshaft and Main Bearings:
