Control Assembly: Locations

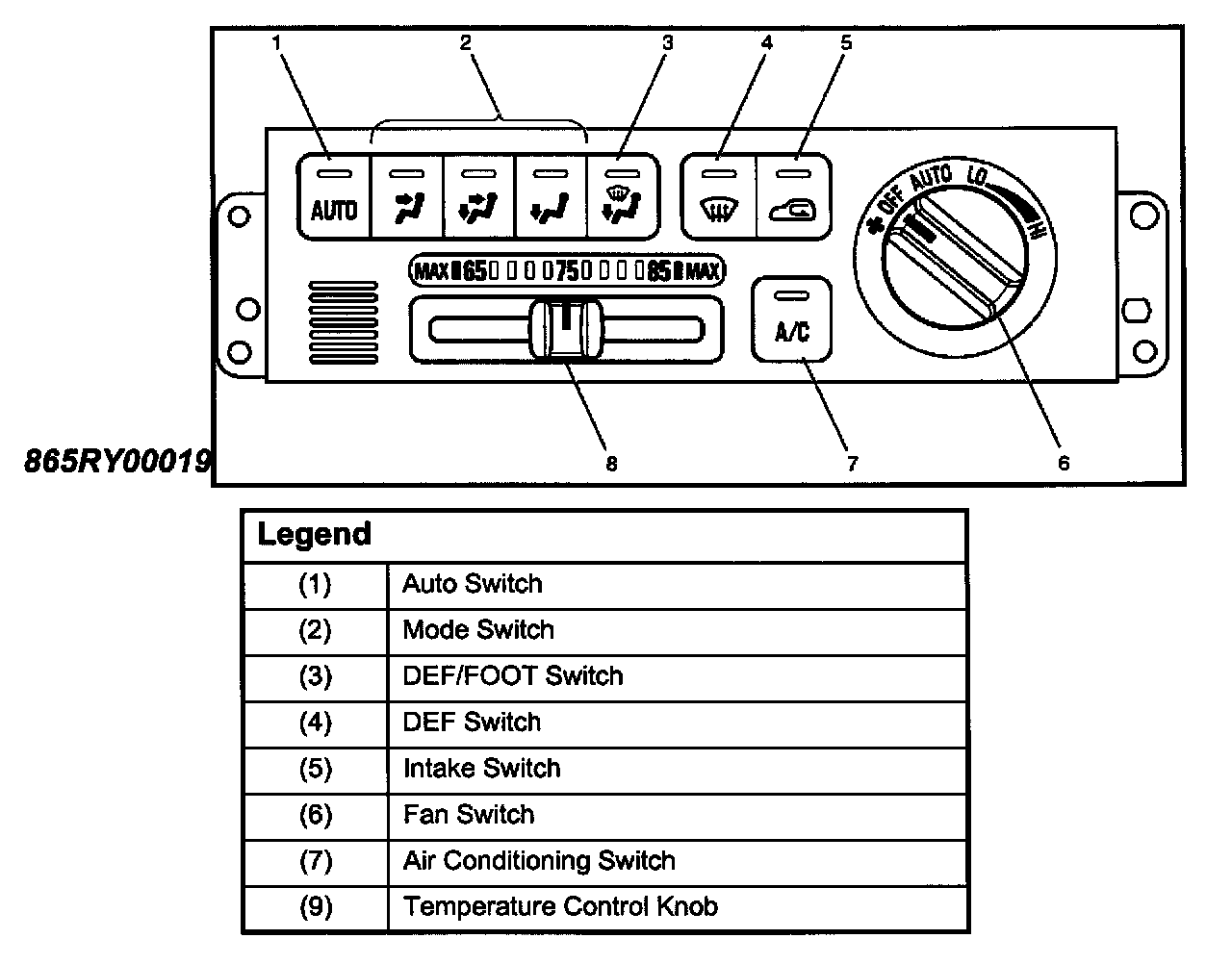

Control Lever Assembly, Control Cable And Associated Parts:

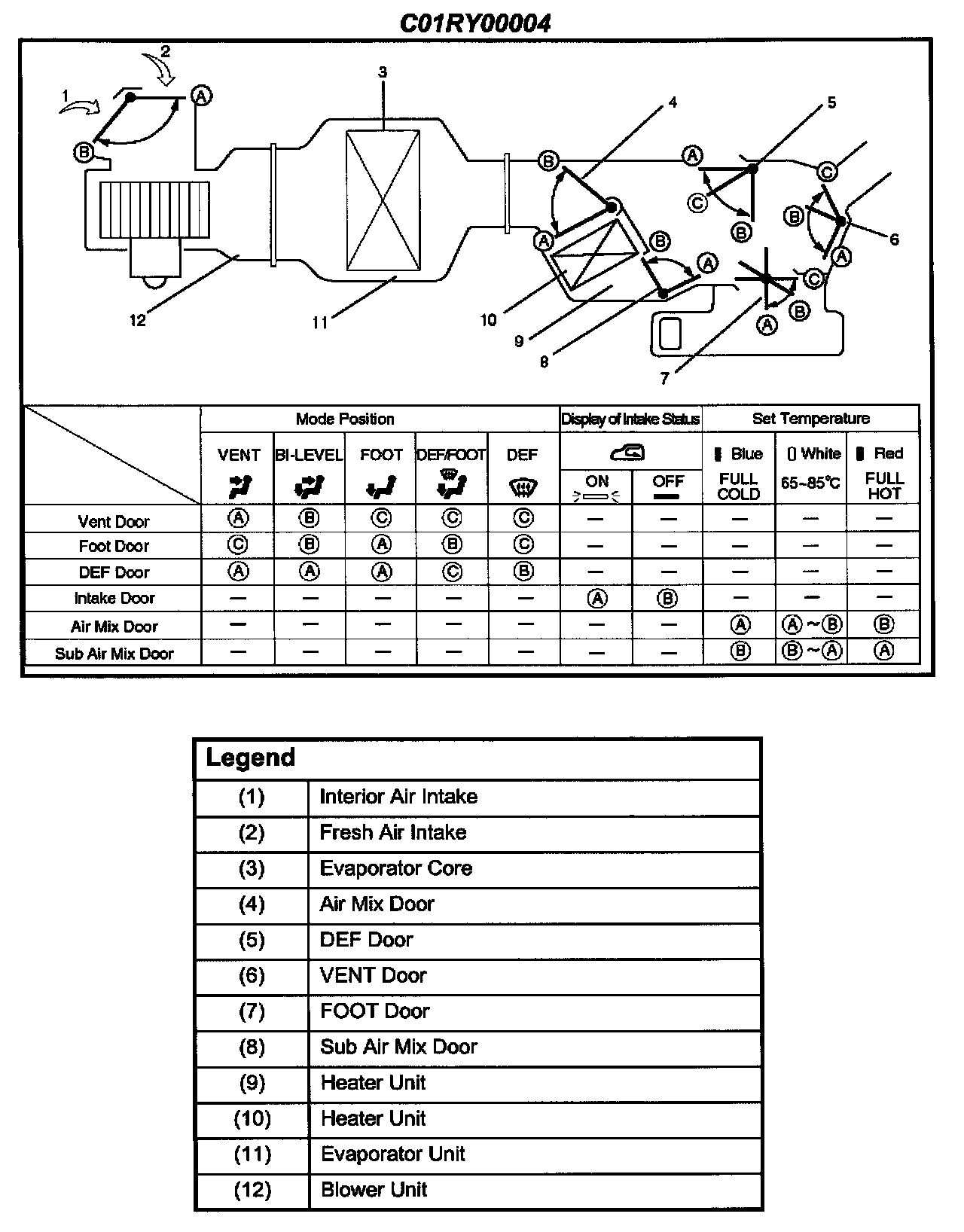

Part 1 Of 2:

Part 2 Of 2:
