Connector Locations

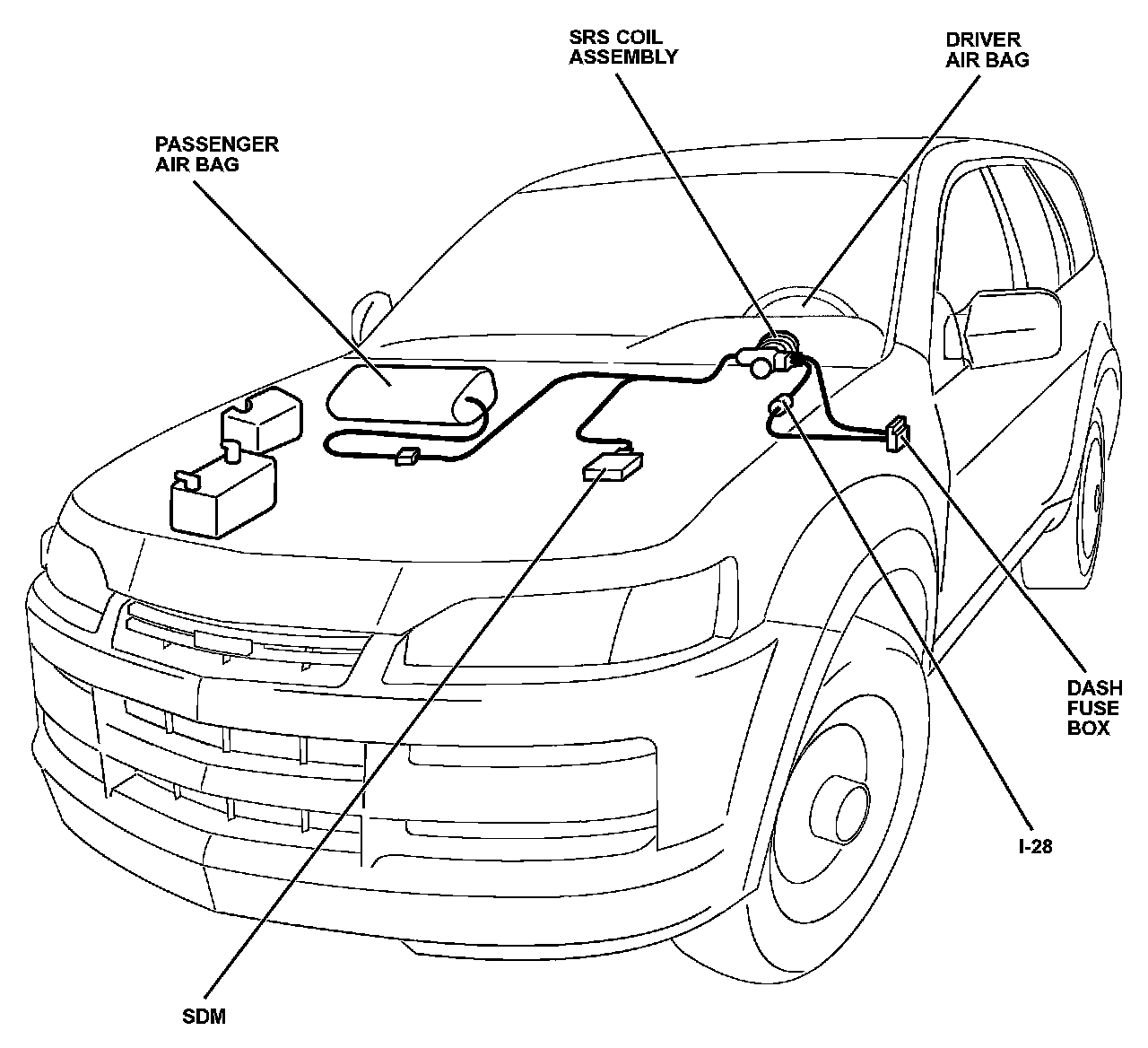

Connector And Harness Routing Image 203:

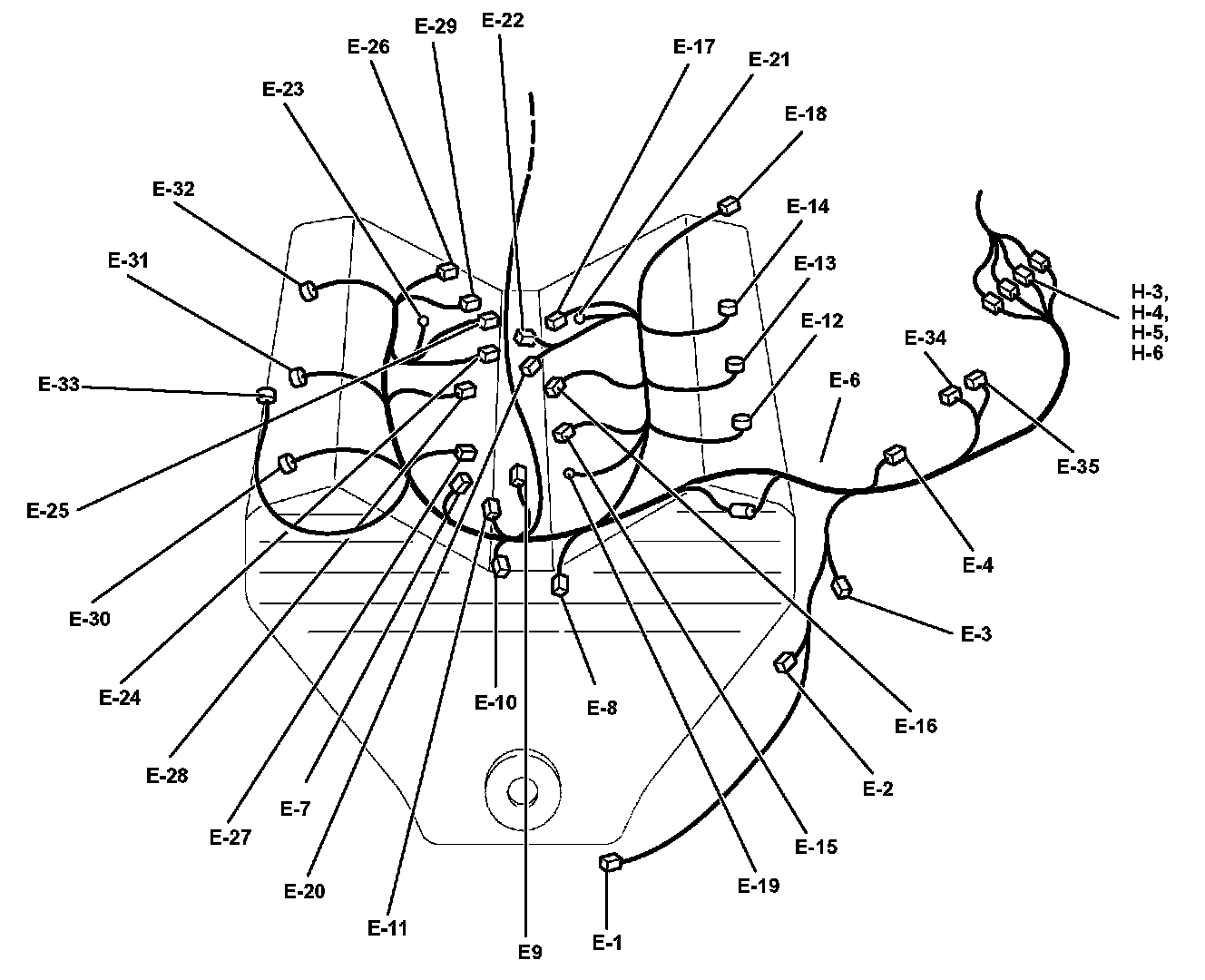

Connector And Harness Routing Image 203-1:

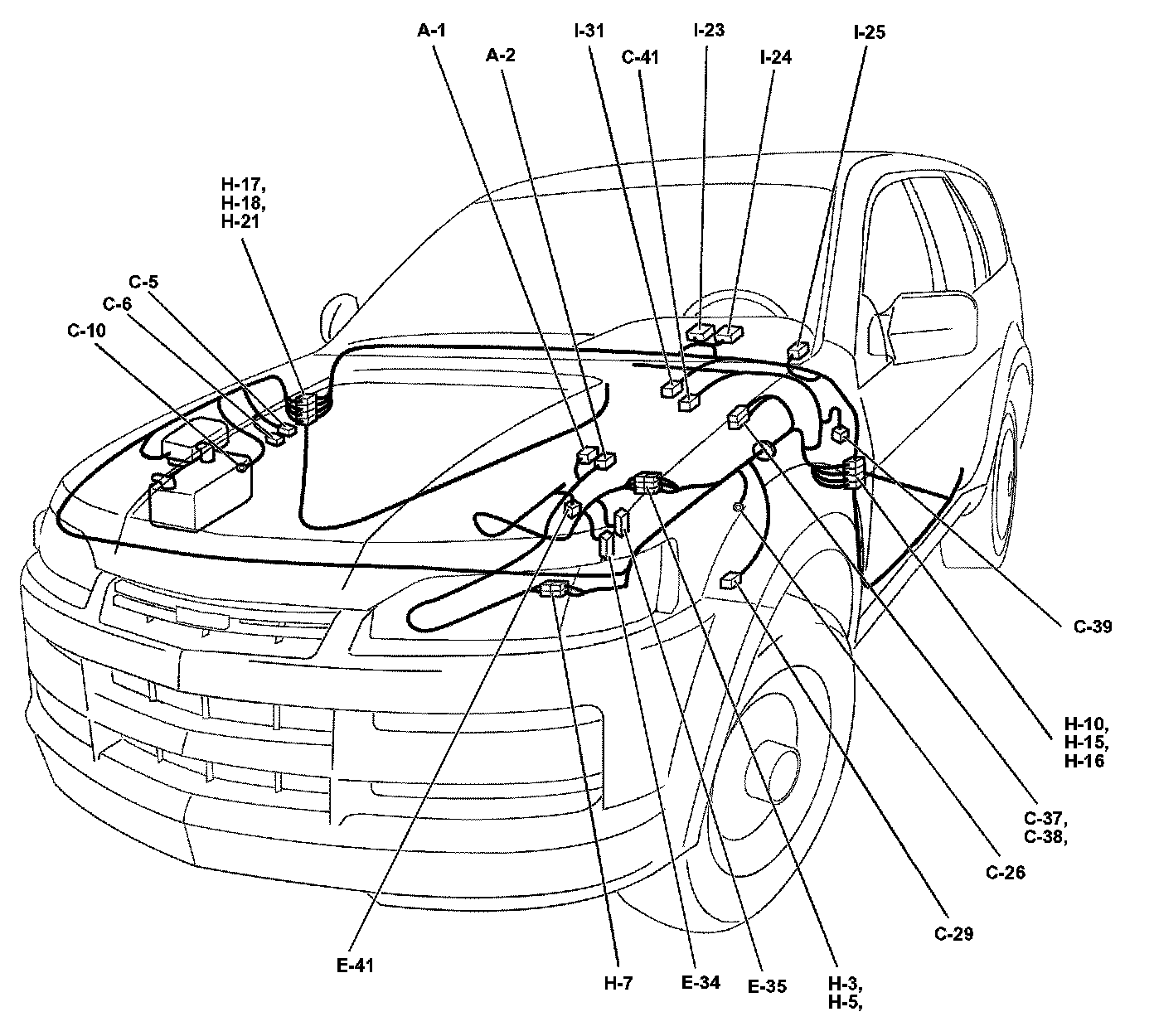

Connector And Harness Routing Image 203-2:

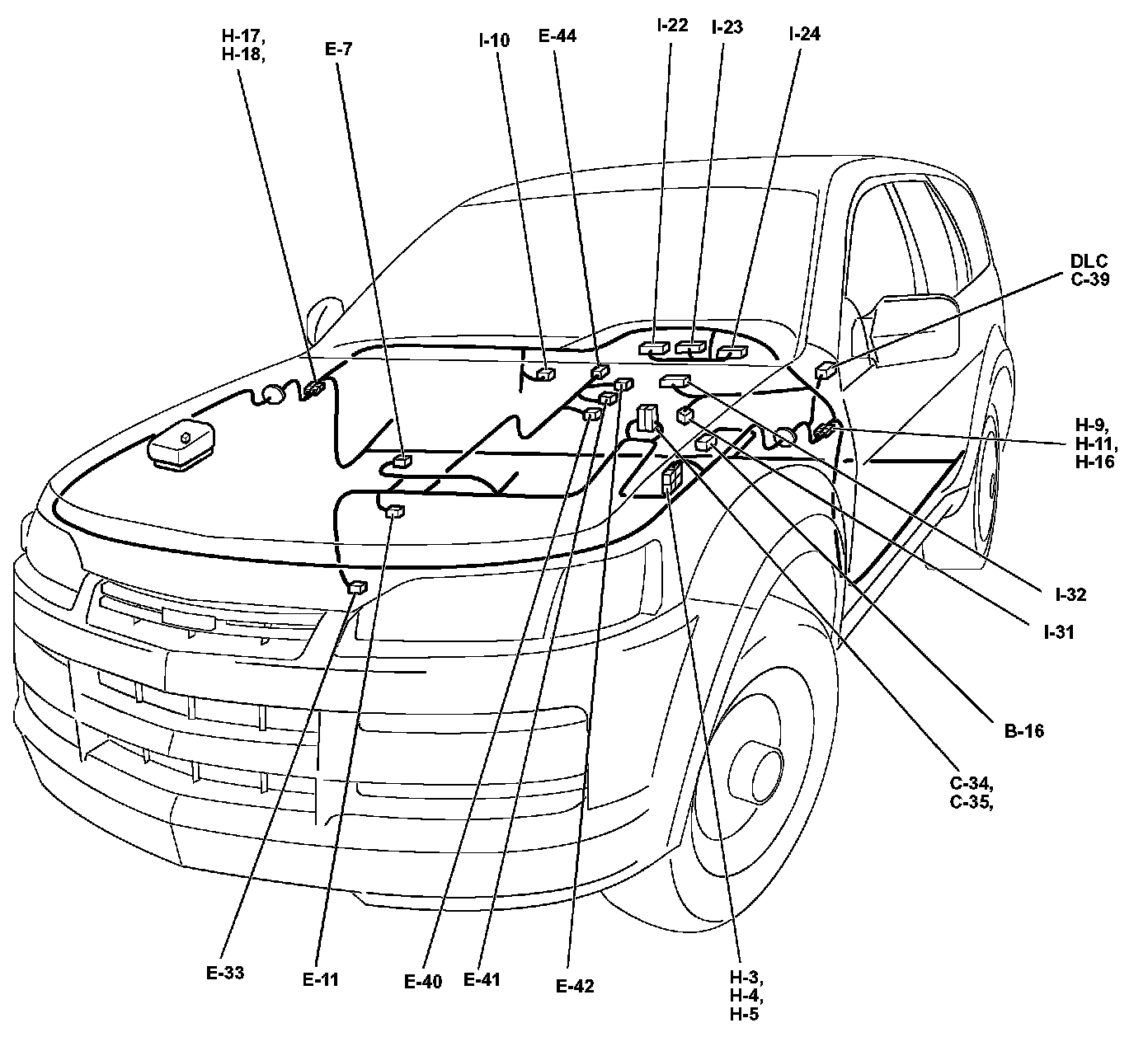

Connector And Harness Routing Image 203-3:



Connector And Harness Routing Image 203-4:

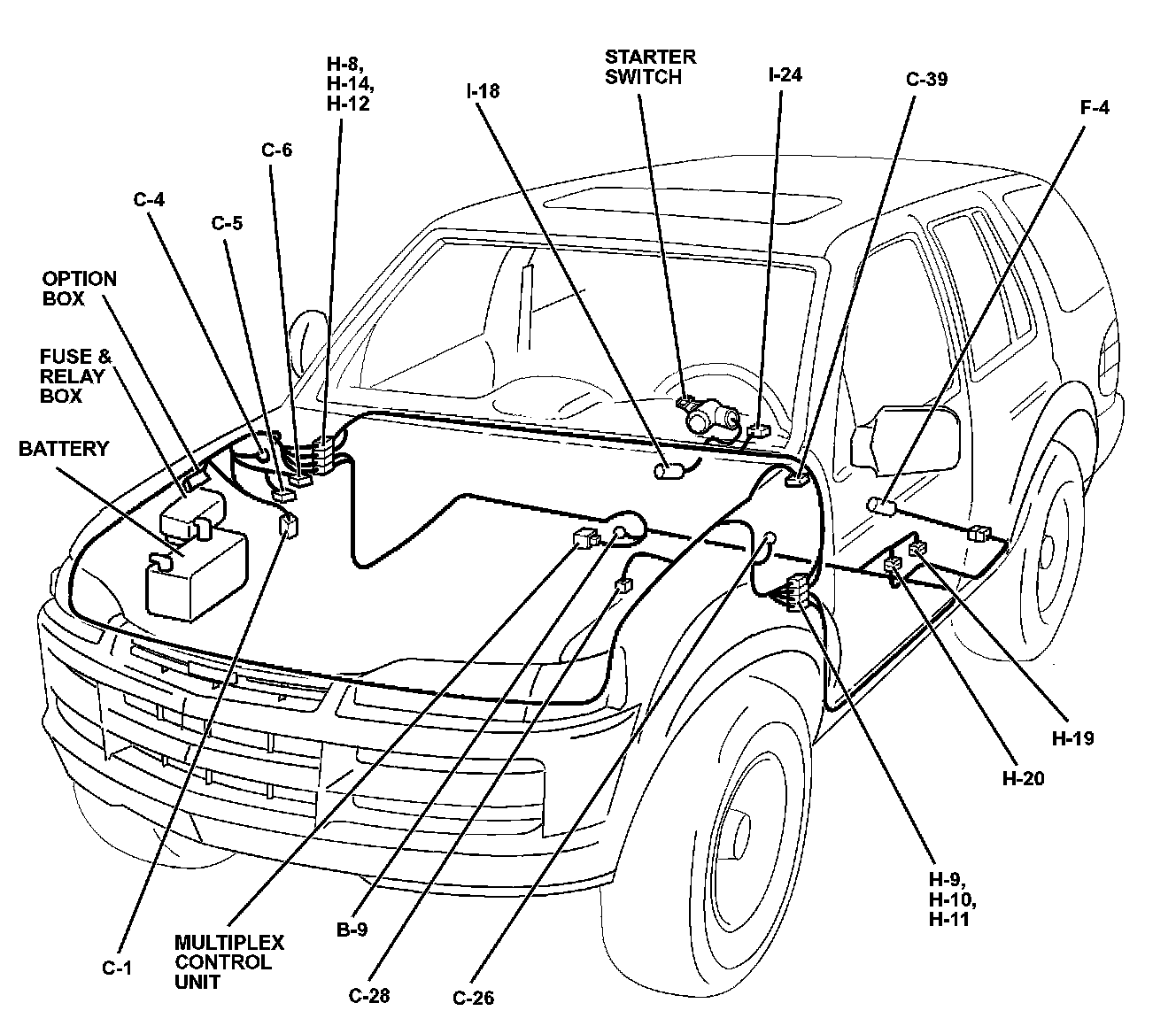

Connector And Harness Routing Image 203-5:

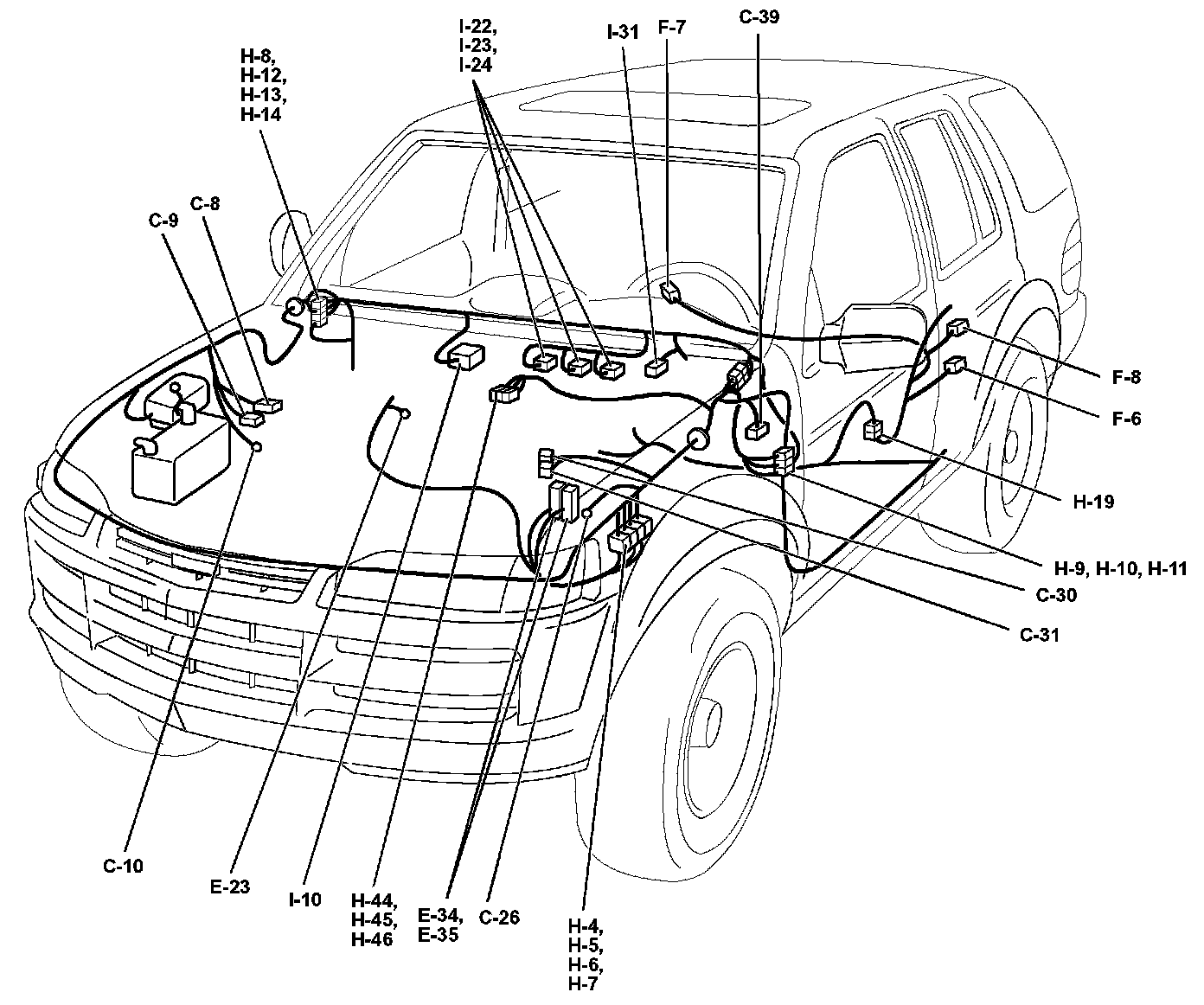

Connector And Harness Routing Image 203-6:
