Torque Specifications

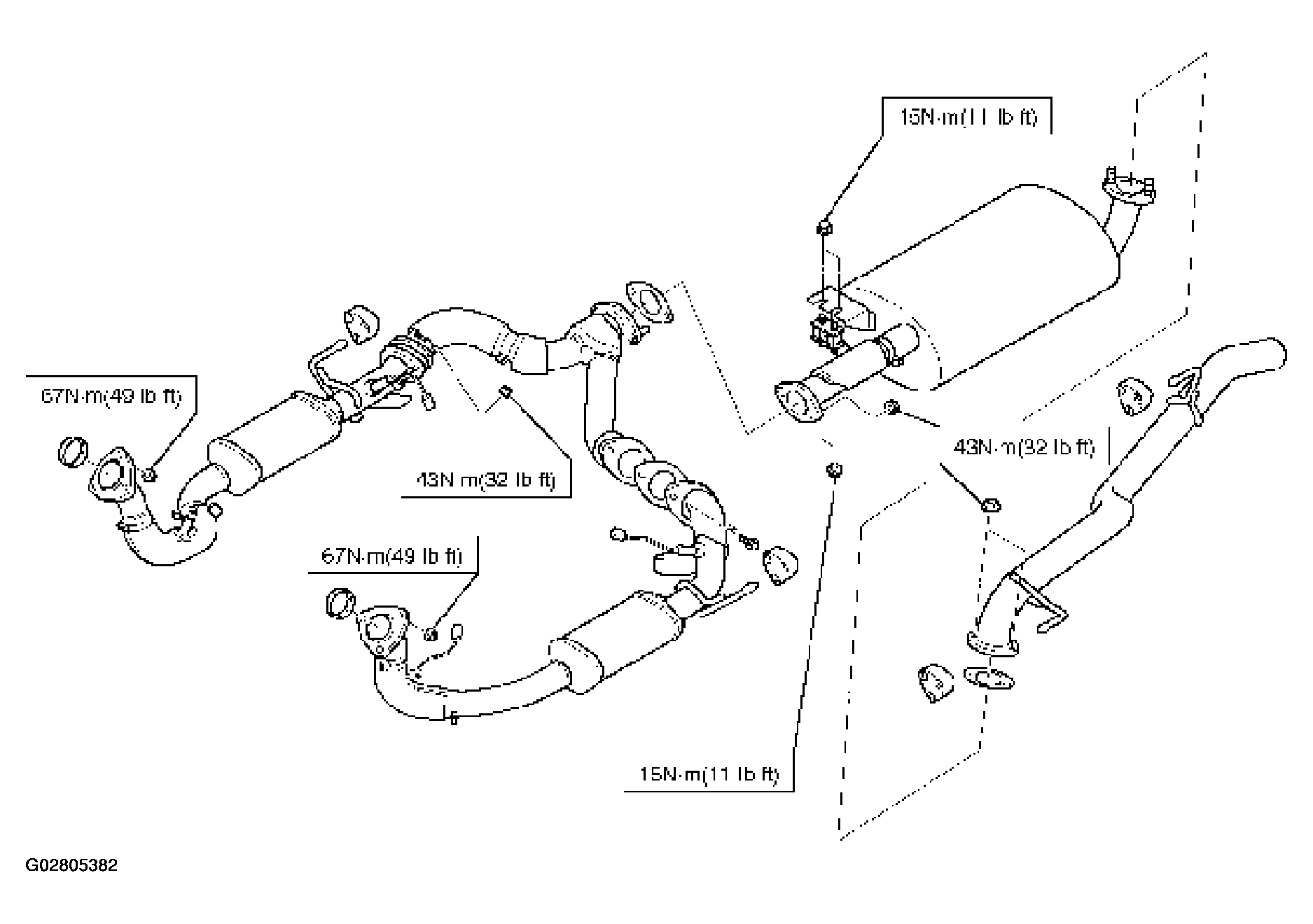

Fig 1: Exploded View Of Exhaust System Assembly With Torque Specifications
G02805382Courtesy of ISUZU MOTOR CO.
