Fuel Tank And Associated Parts: Notes

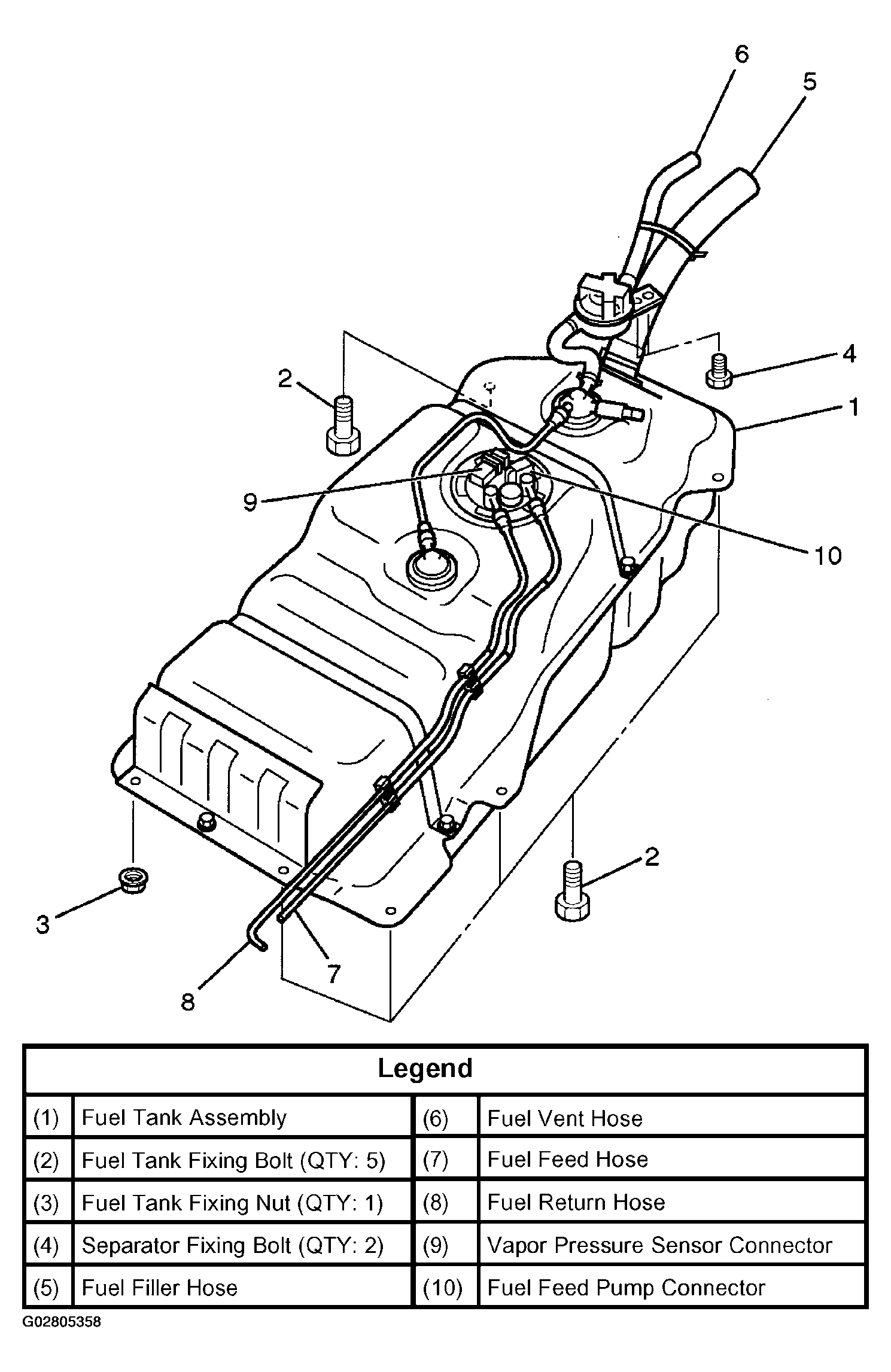

Fig 1: Identifying Fuel Tank
G02805358Courtesy of ISUZU MOTOR CO.
