Torque Specifications

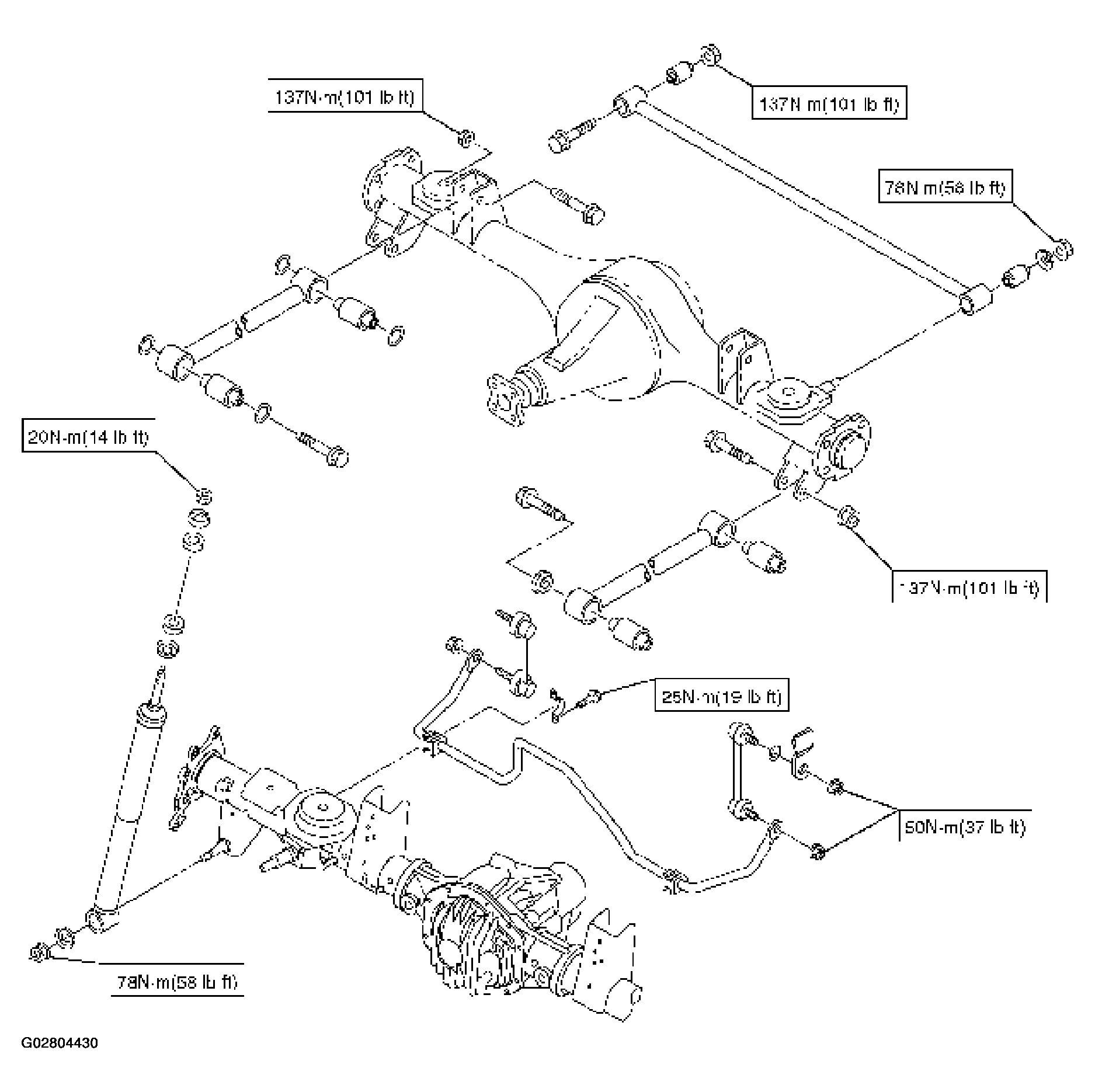

Fig 1: Rear Suspension Torque Specification chart

G02804430

Courtesy of ISUZU MOTOR CO.
