Checking Transmission Fluid Level And Condition
>>
Fluid Condition
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fluid Condition

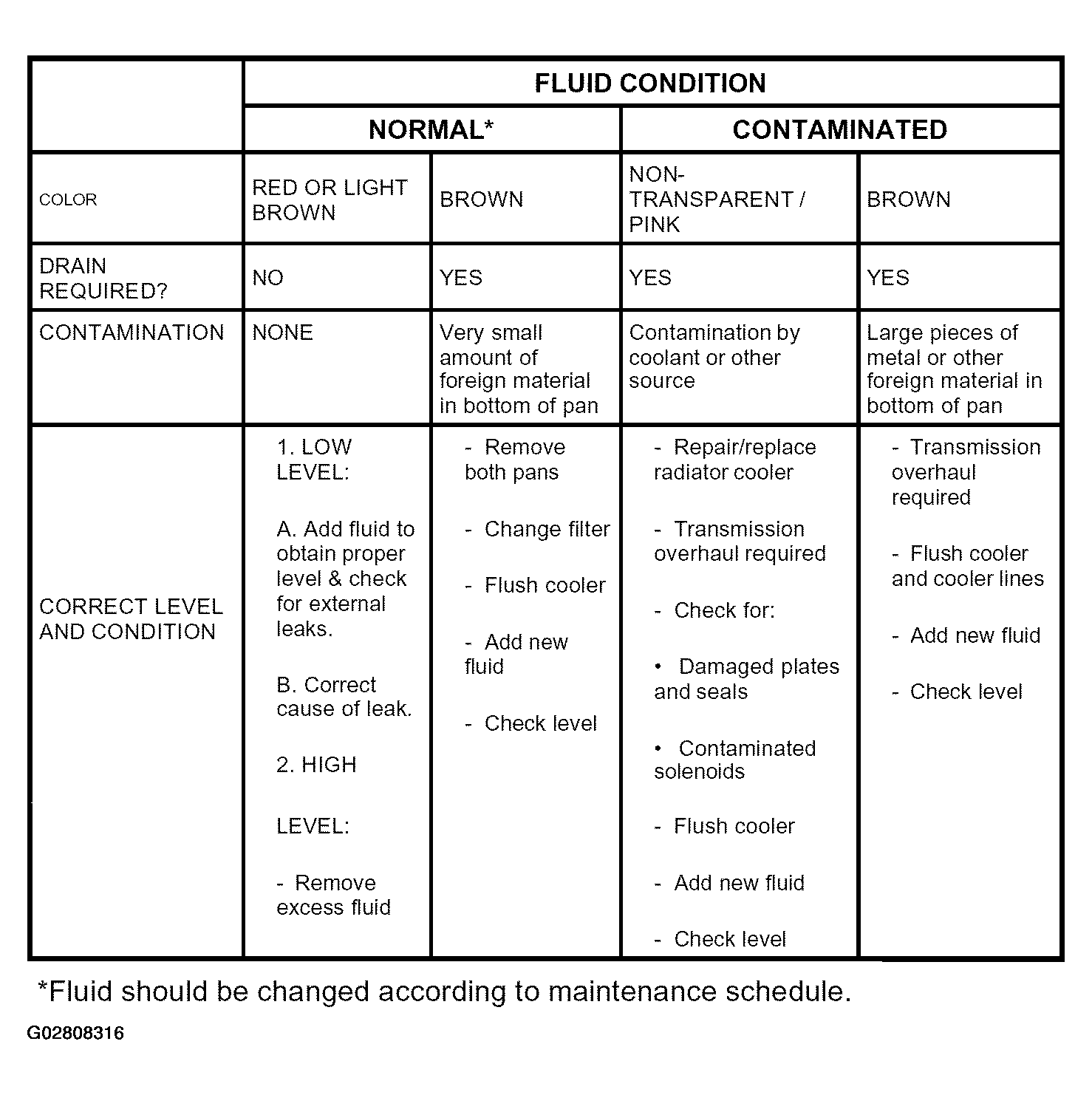

Fig 1: Fluid Condition Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
