Front Tweeter Assembly: Removal

  1. Disconnect the battery ground cable.
  2. Remove the front door trim pad (2).
  3. Remove the tweeter (1).
    • Disconnect the connector.

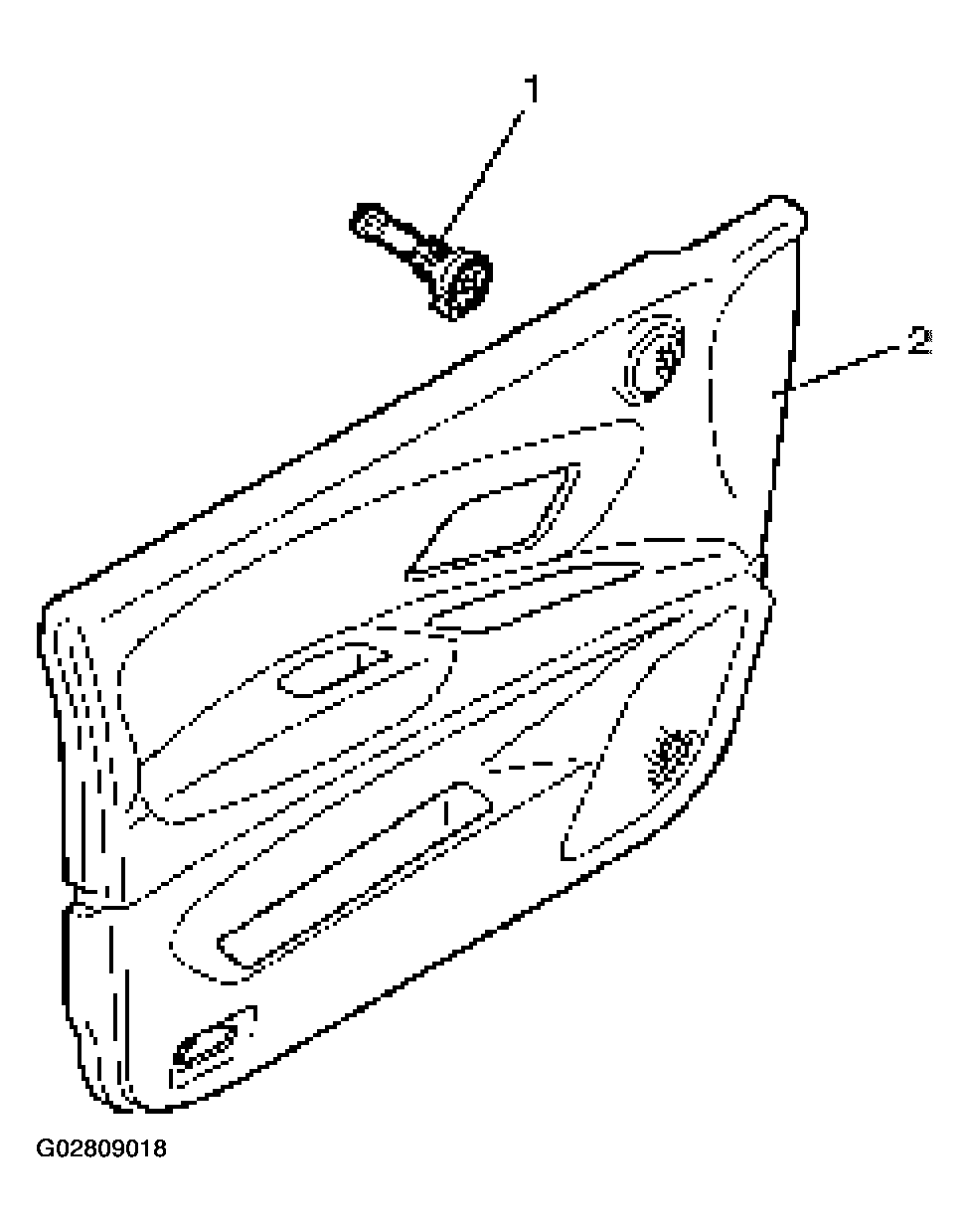

Fig 1: Identifying Tweeter
G02809018Courtesy of ISUZU MOTOR CO.
