Check Lamp Bulb Check

When the starter switch is turned on in the normal state, the control unit turns on the CHECK lamp to check the bulb.

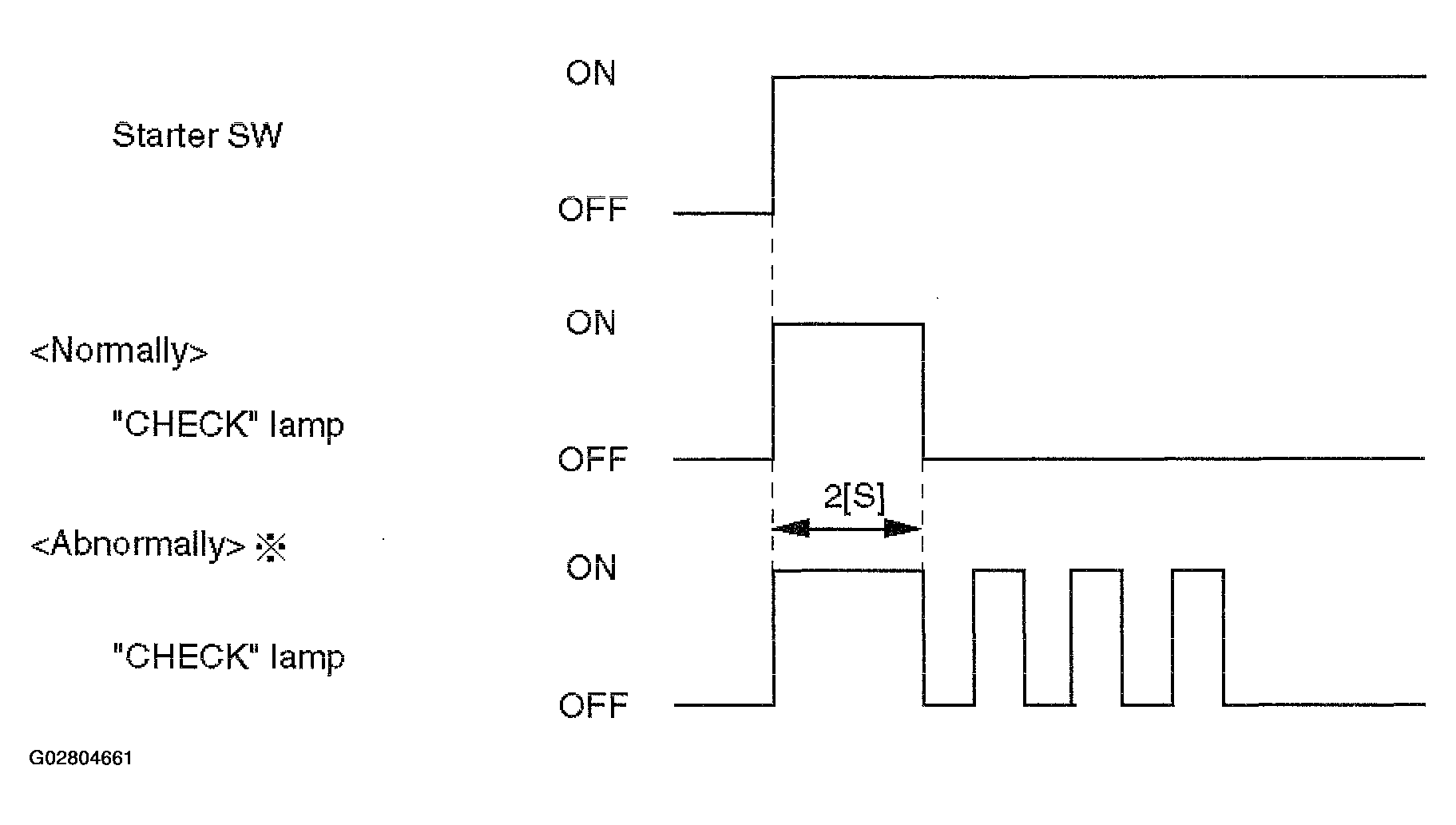

Fig 1: Identifying TOD Control Unit Check Lamp Position For Checking Bulb
G02804661Courtesy of ISUZU MOTOR CO.
