Fuse/Relay Box - Engine Room

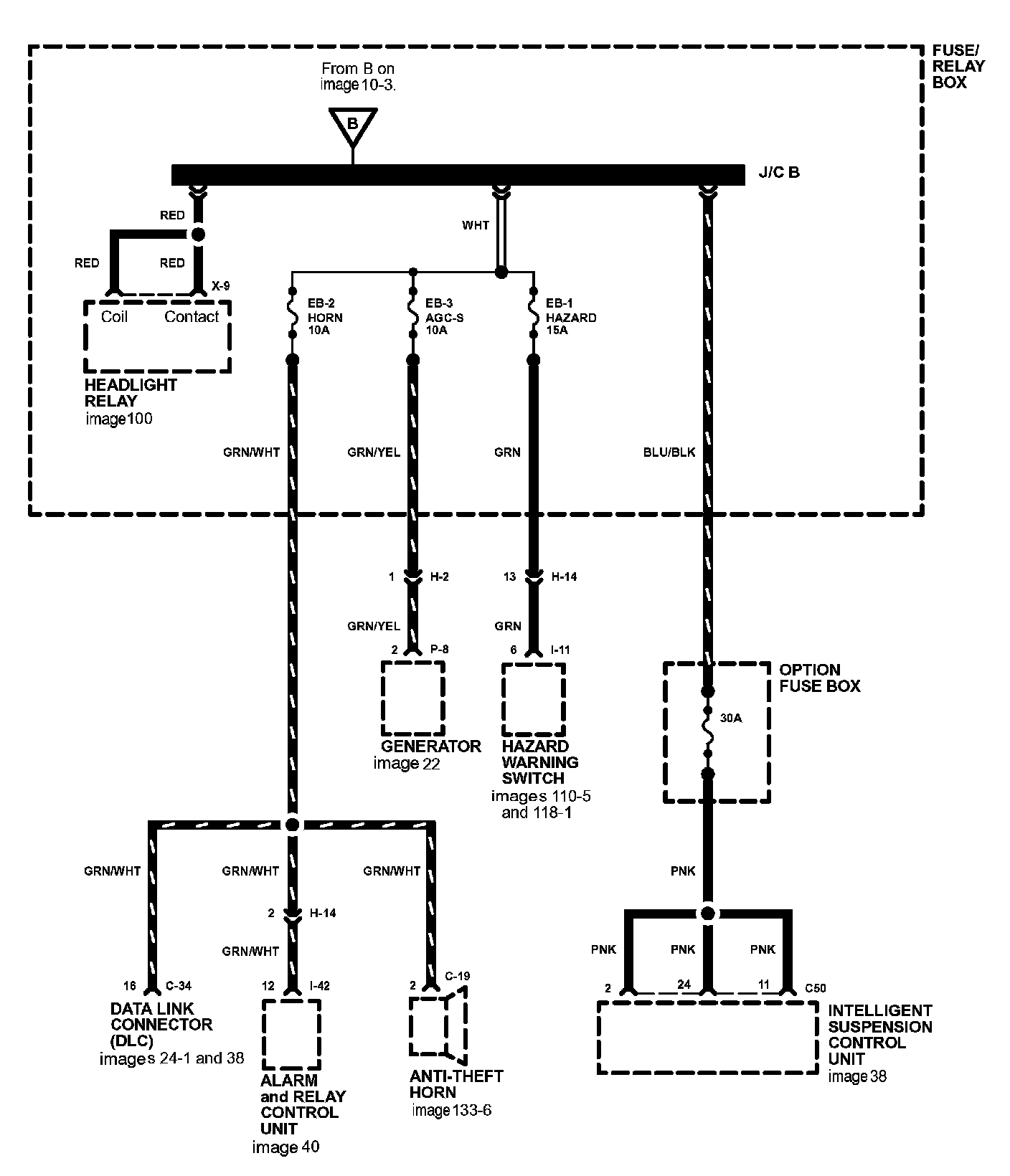

Power Distribution Image 10-1:

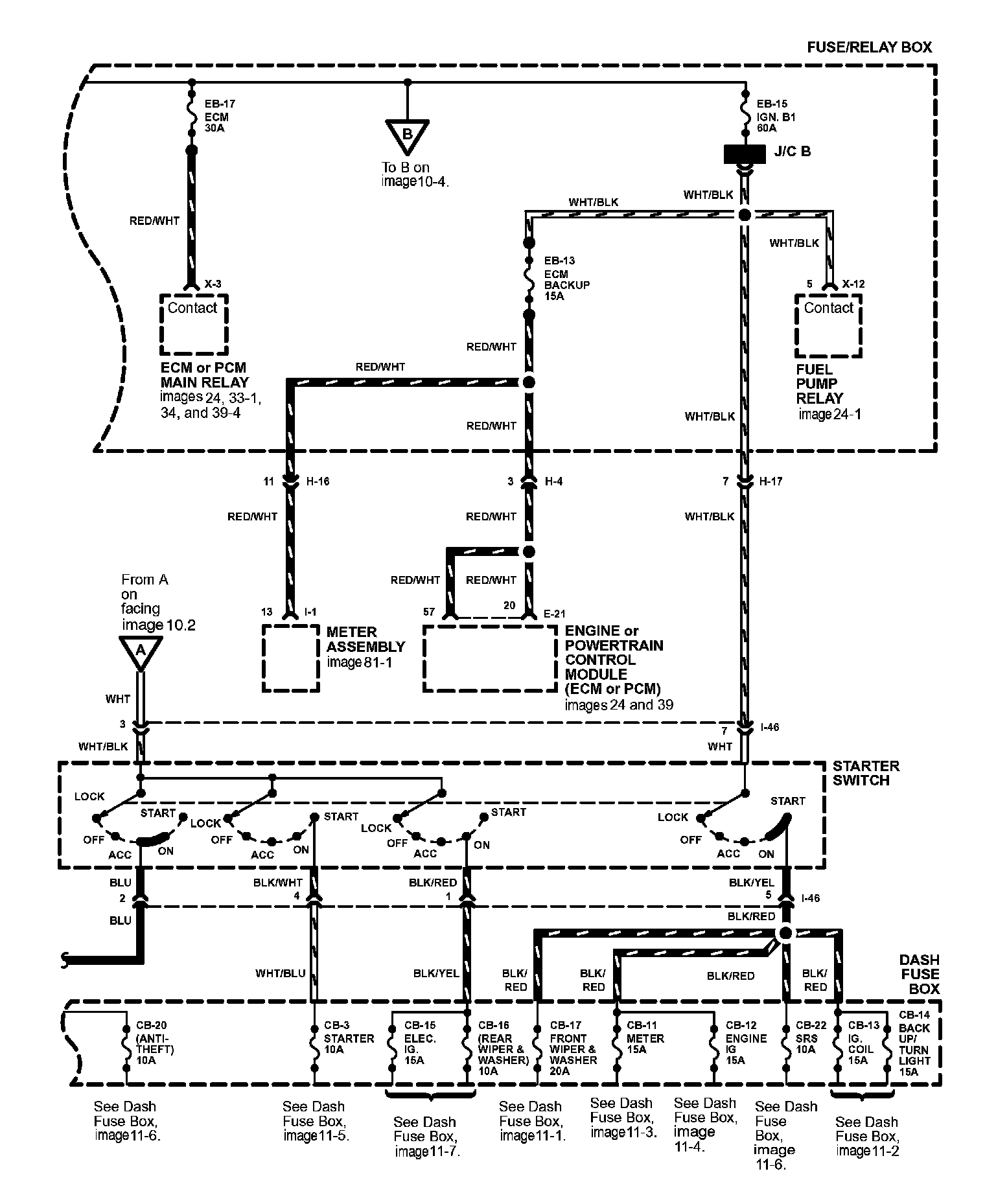

Power Distribution Image 10-2:

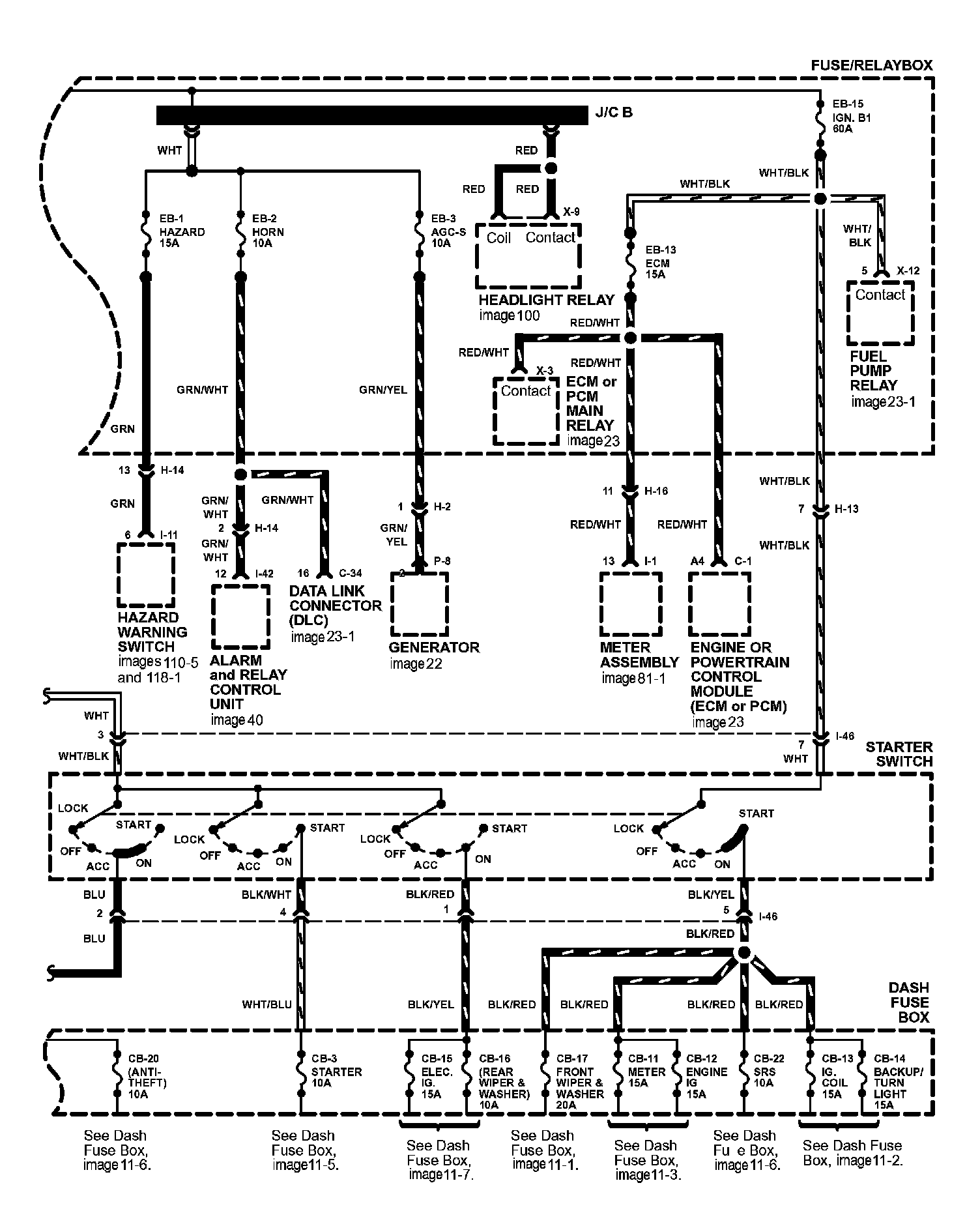

Power Distribution Image 10-3:

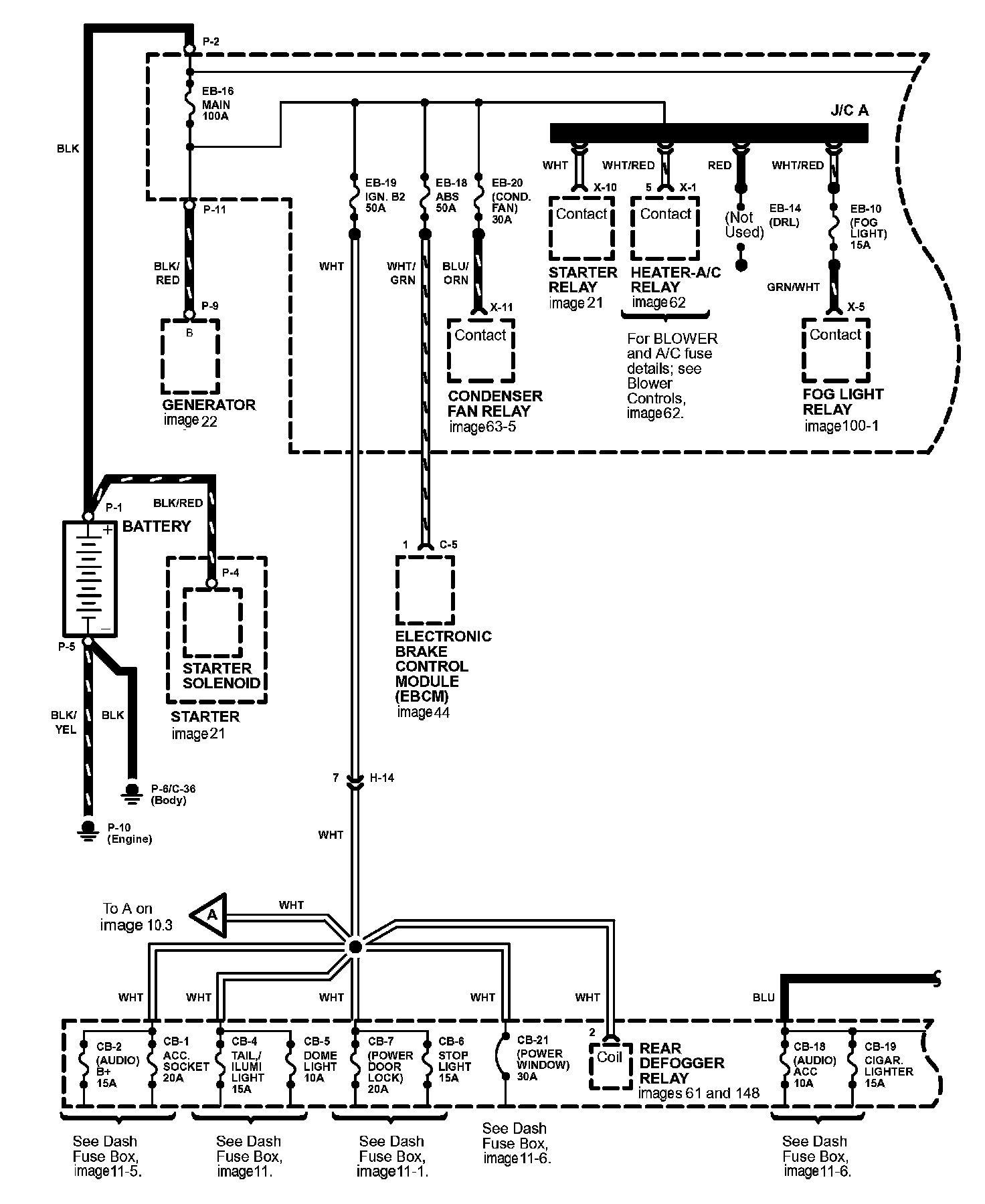

Power Distribution Image 10-4:
