Grounding Point: Diagrams

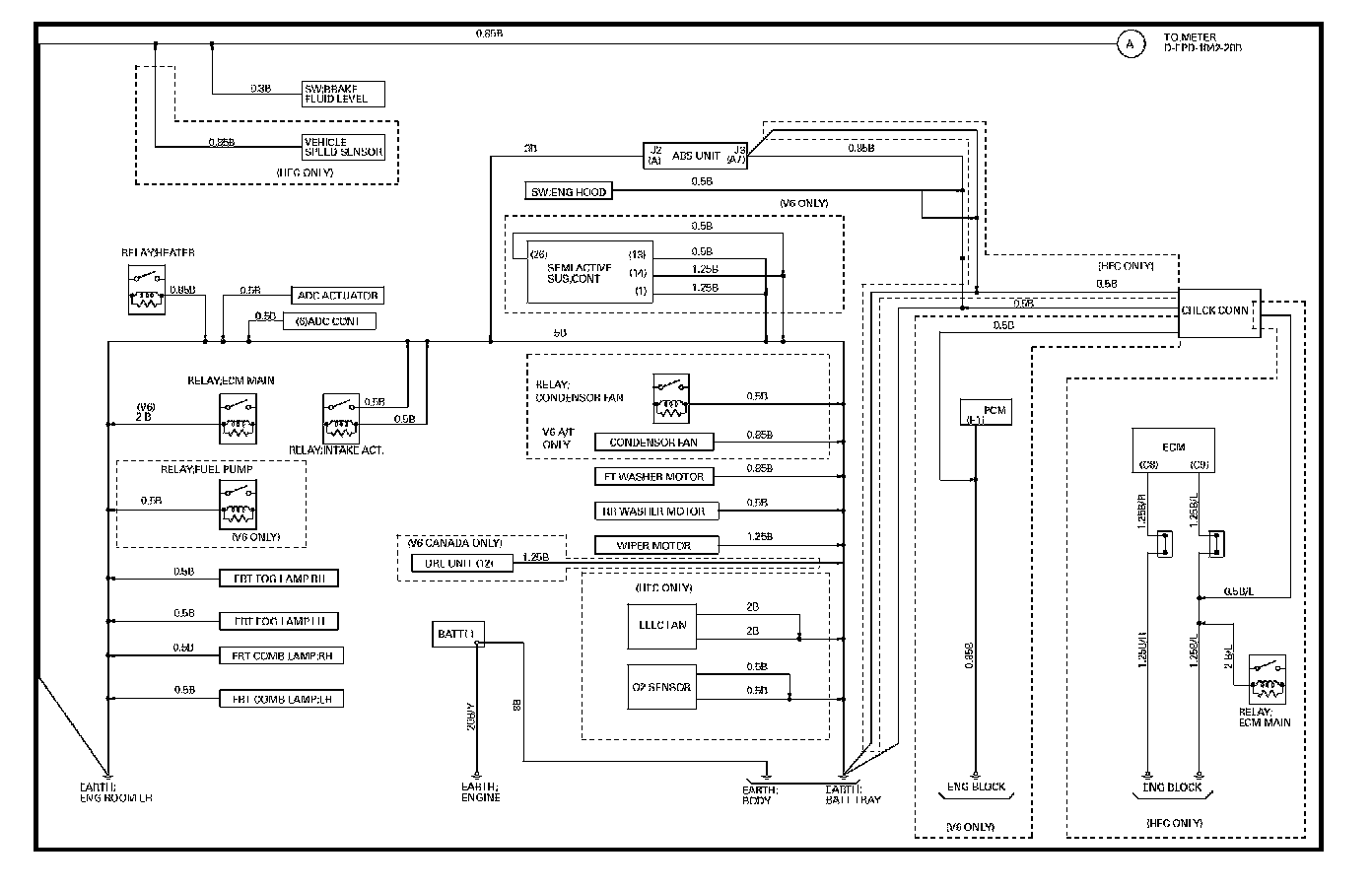

Earth Location (Engine Room):



Earth Location (Cabin):

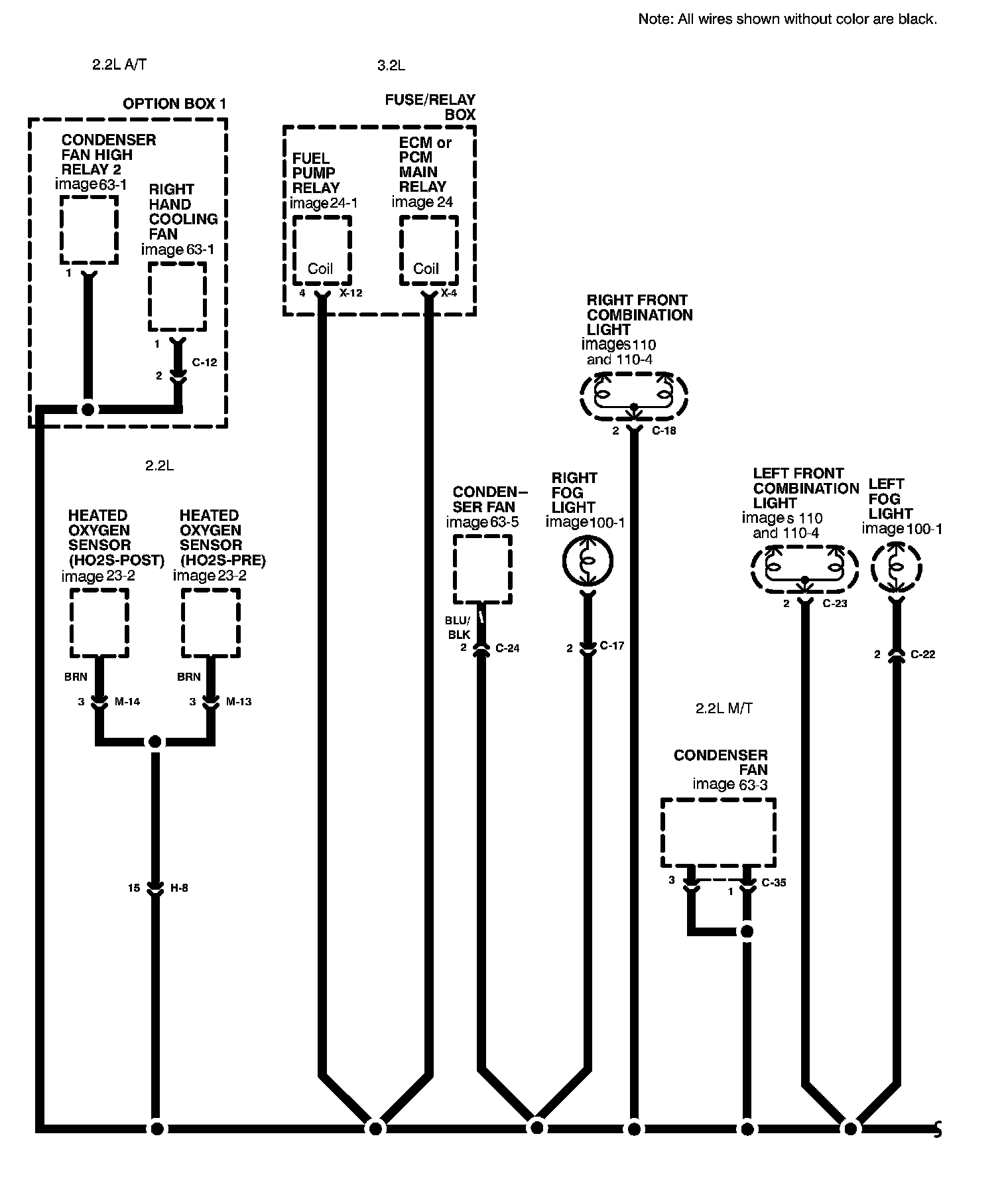

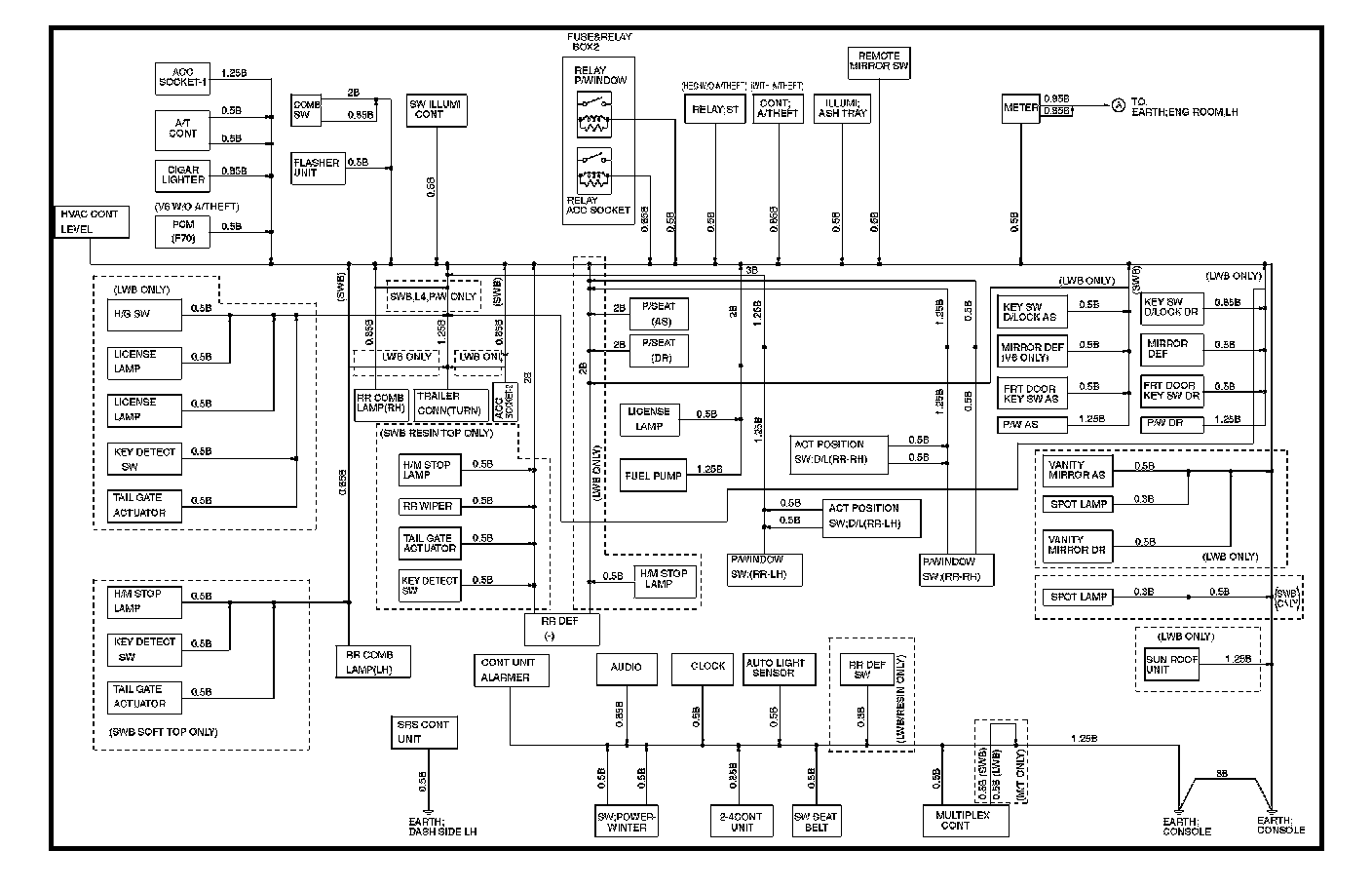

Ground Distribution Image 14:

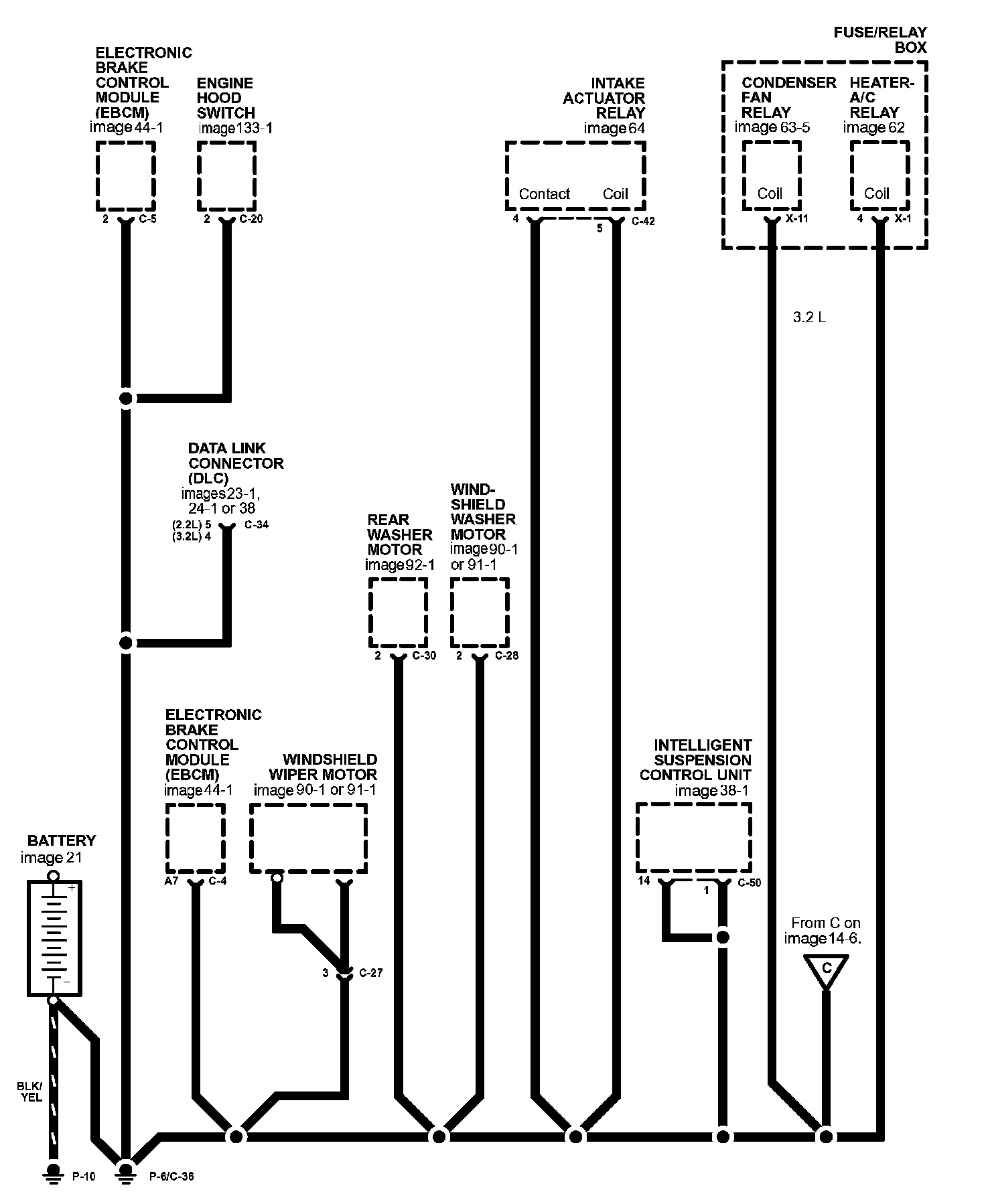

Ground Distribution Image 14-1:

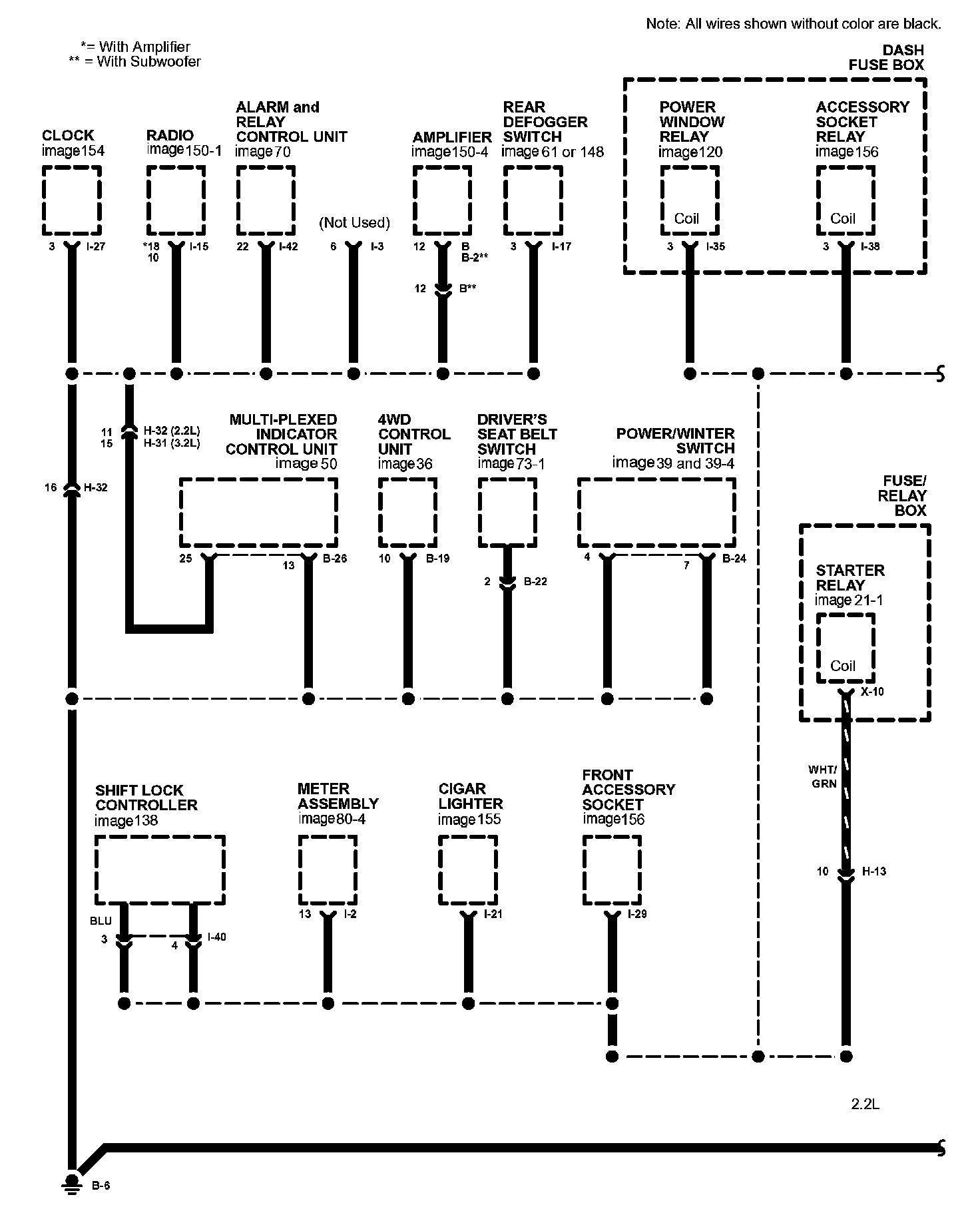

Ground Distribution Image 14-2:

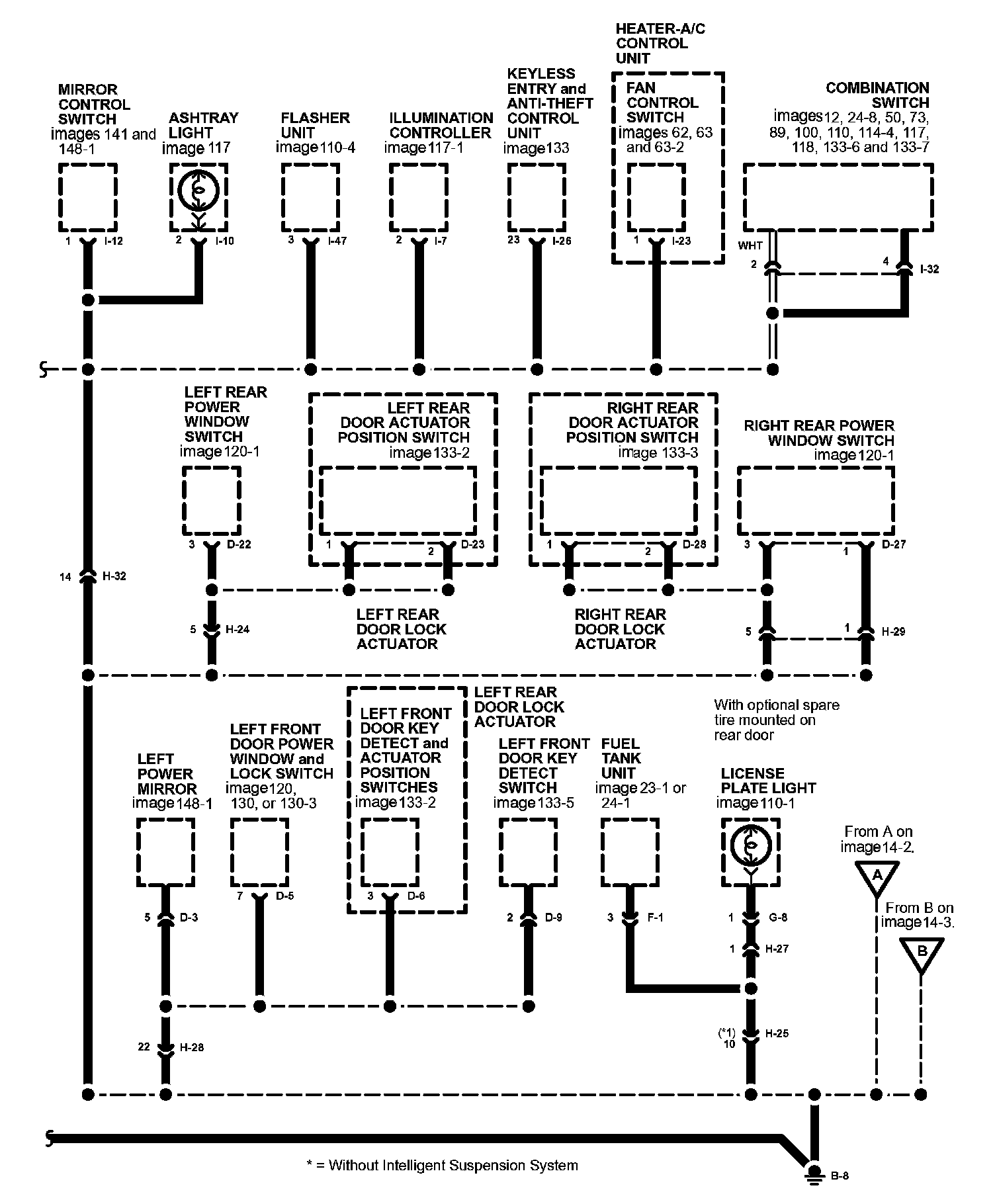

Ground Distribution Image 14-3:

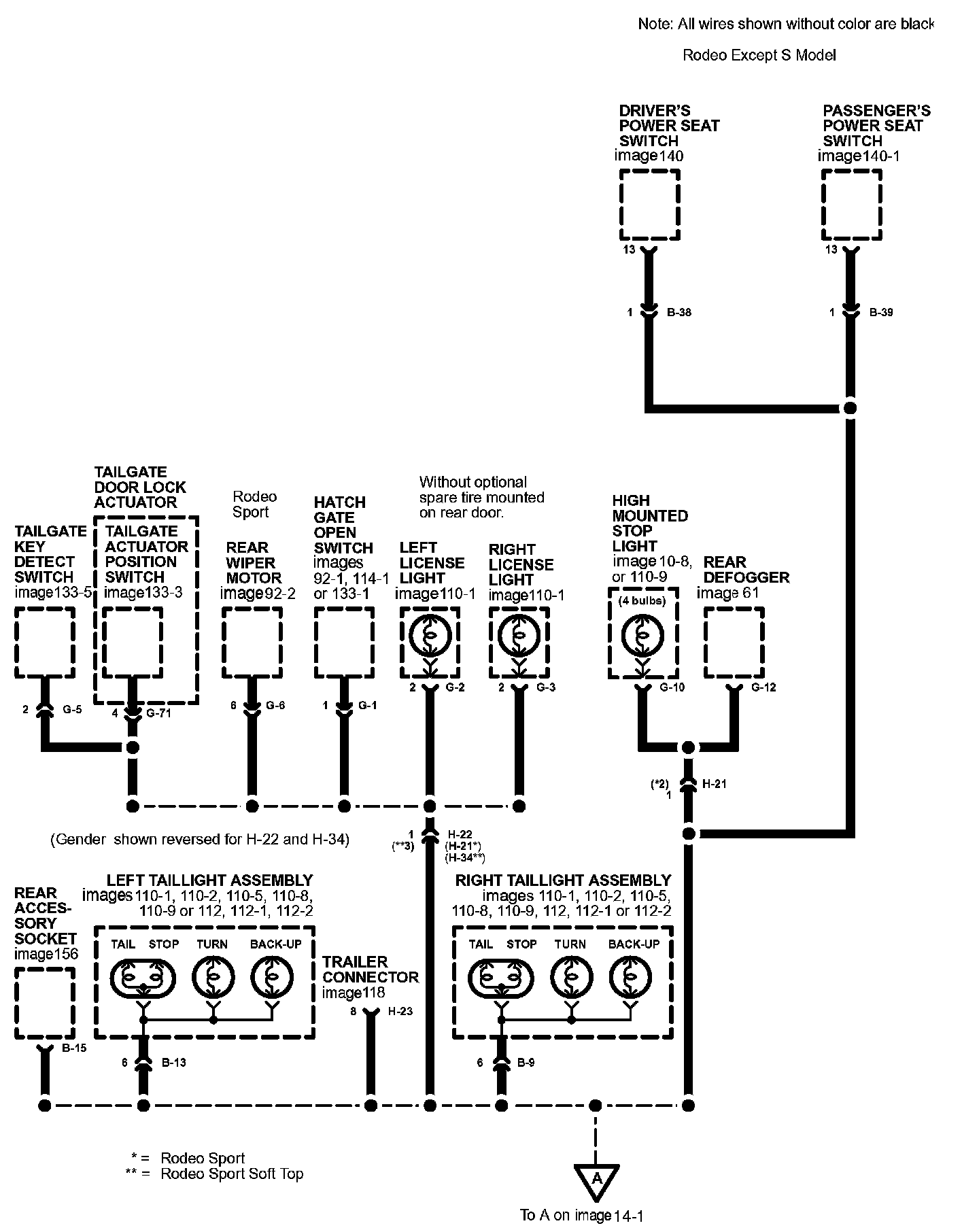

Ground Distribution Image 14-4:

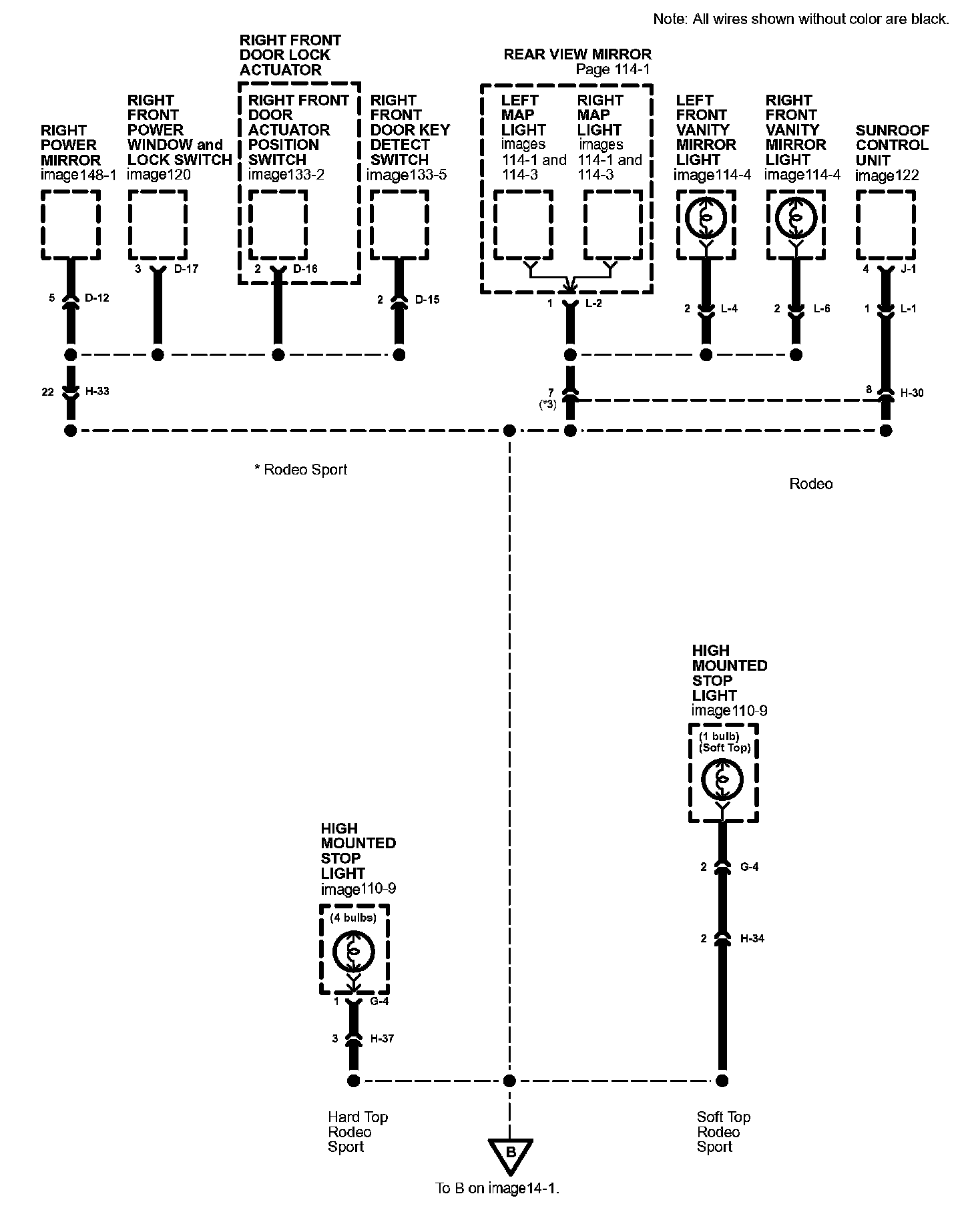

Ground Distribution Image 14-5:

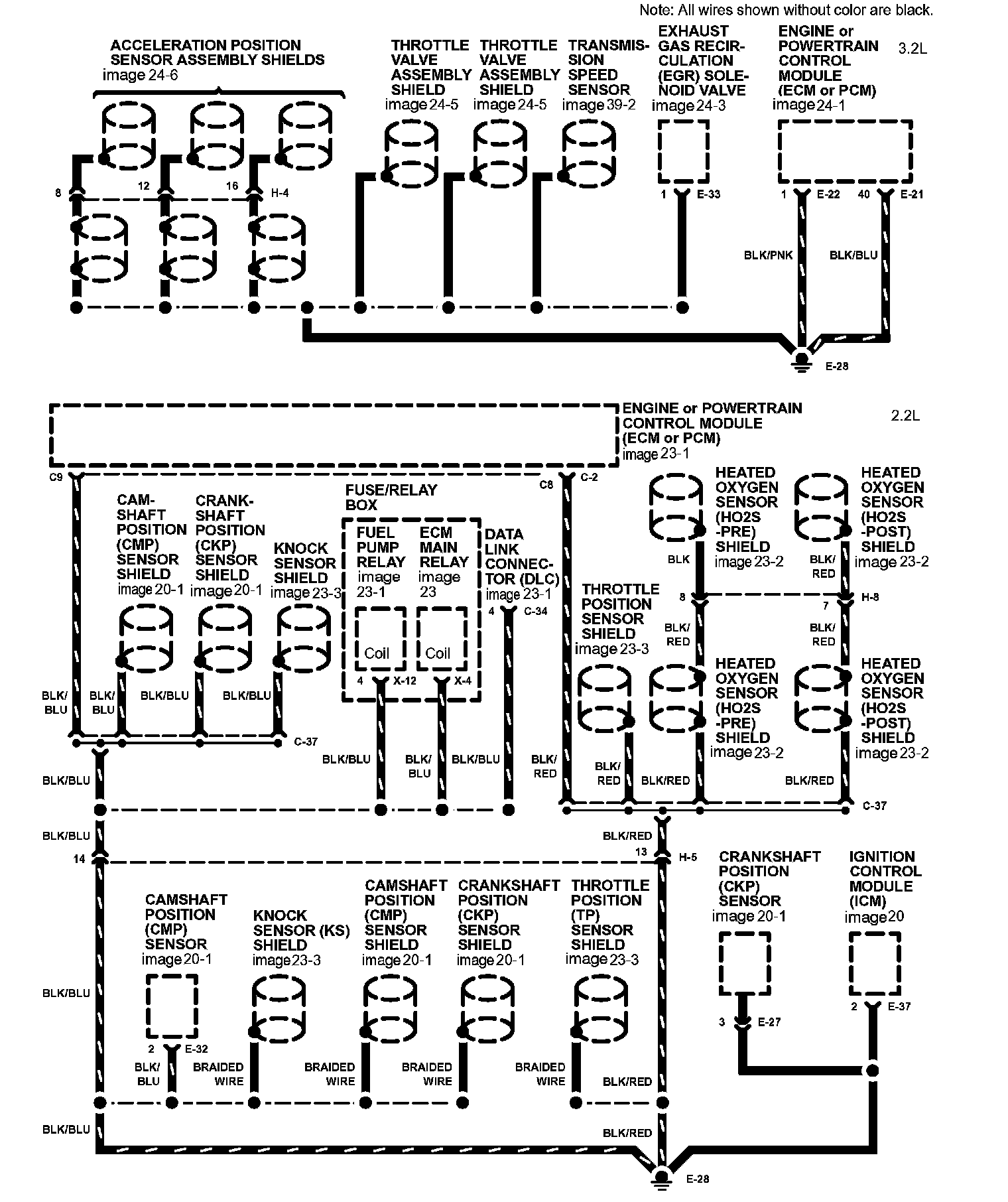

Ground Distribution Image 14-6:



Ground Distribution Image 14-7:
