Wiper and Washer Systems: Diagrams

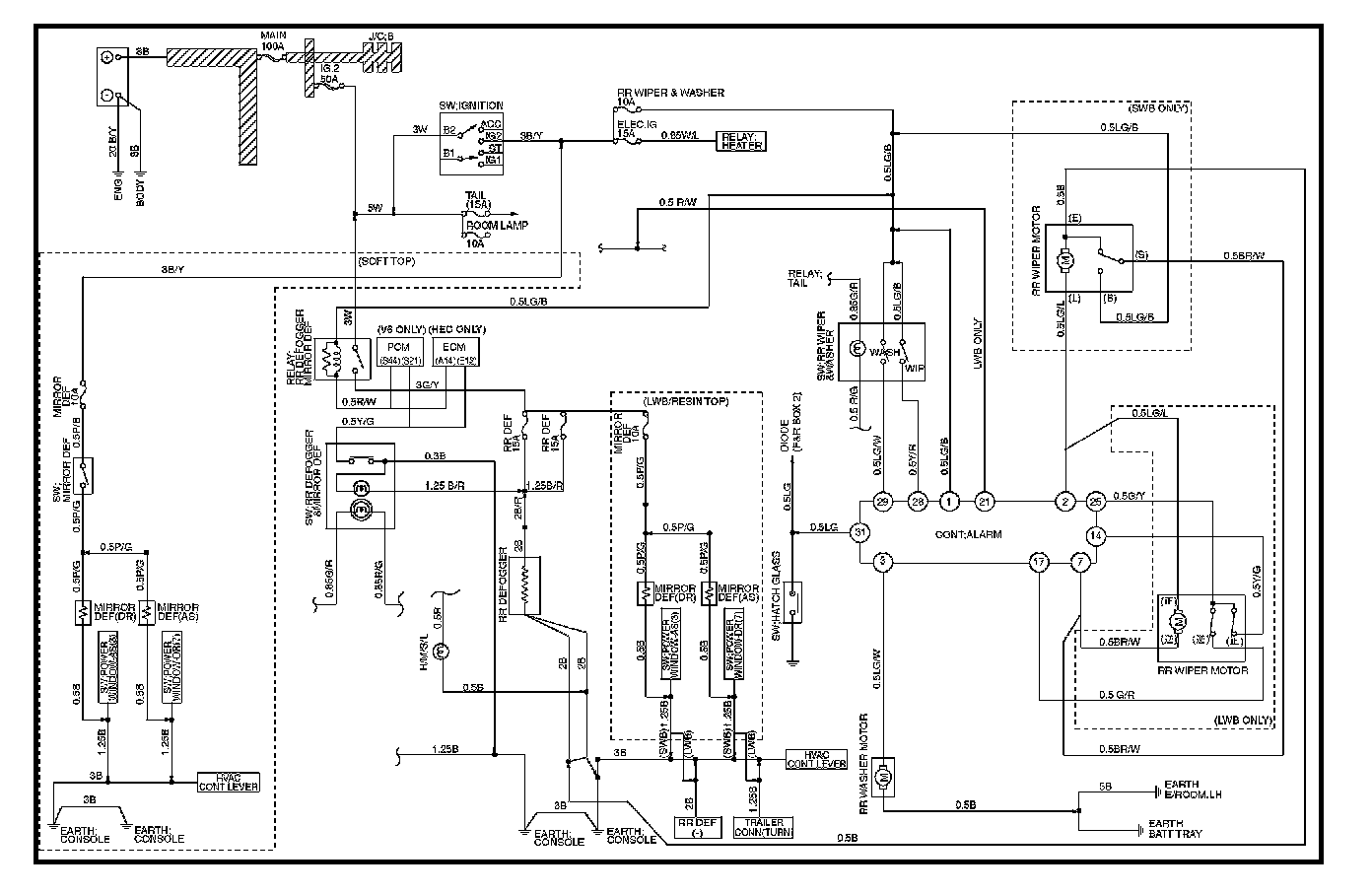

Rear Wiper Washer, Rear Defogger And Mirror Defogger:

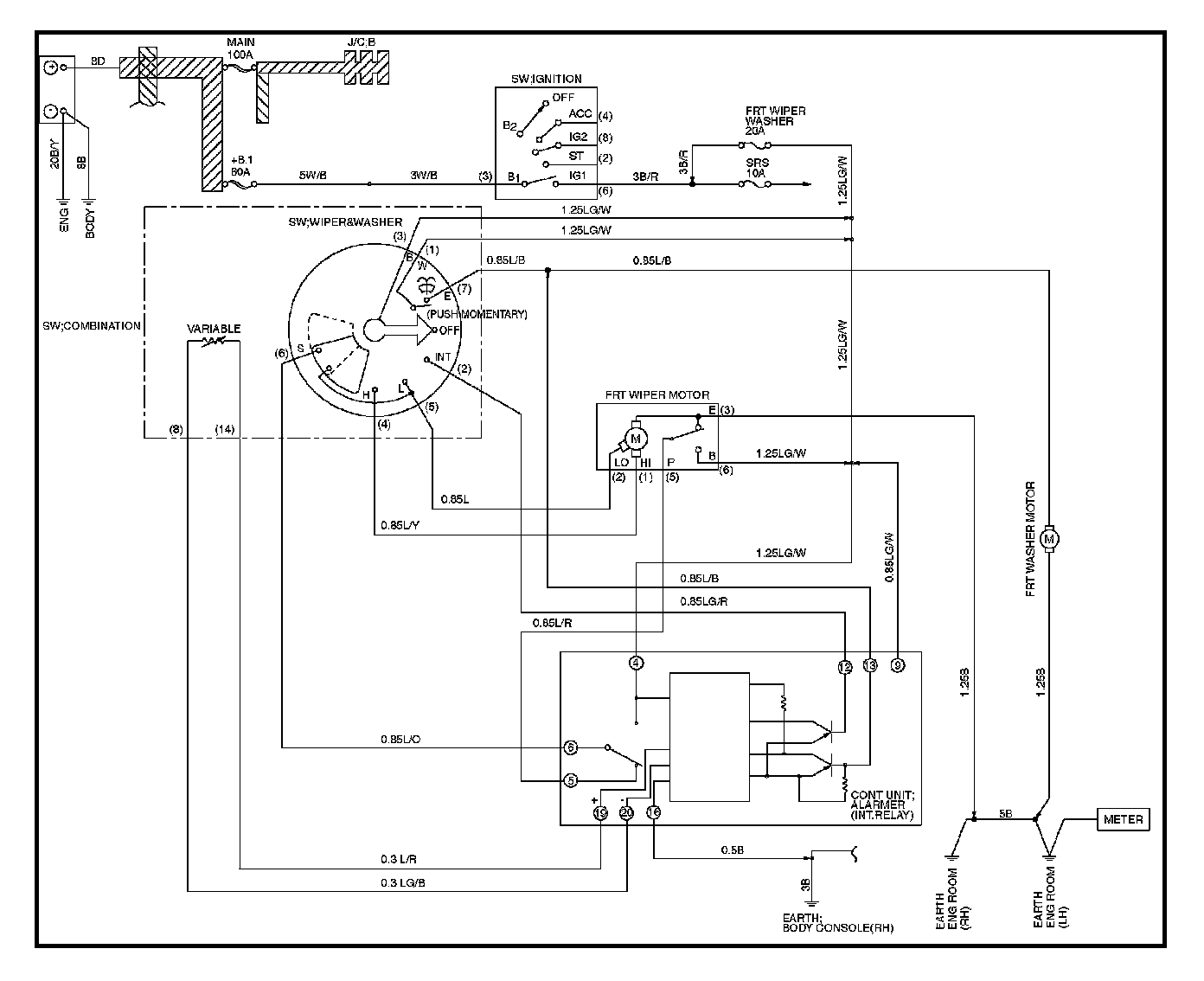

FRT Wiper:

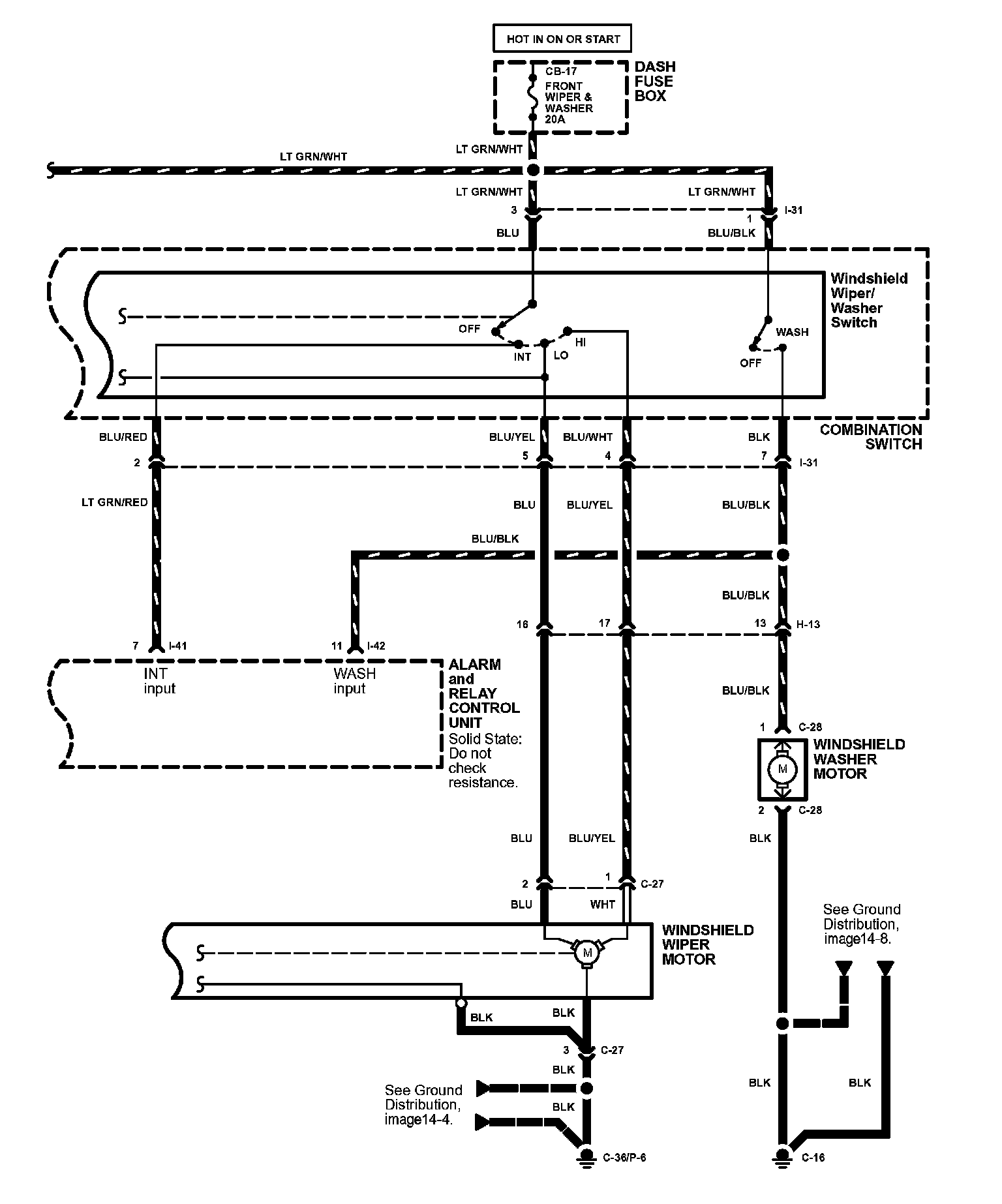

Windshield Wiper/Washer Image 90:



Windshield Wiper/Washer Image 90-1:

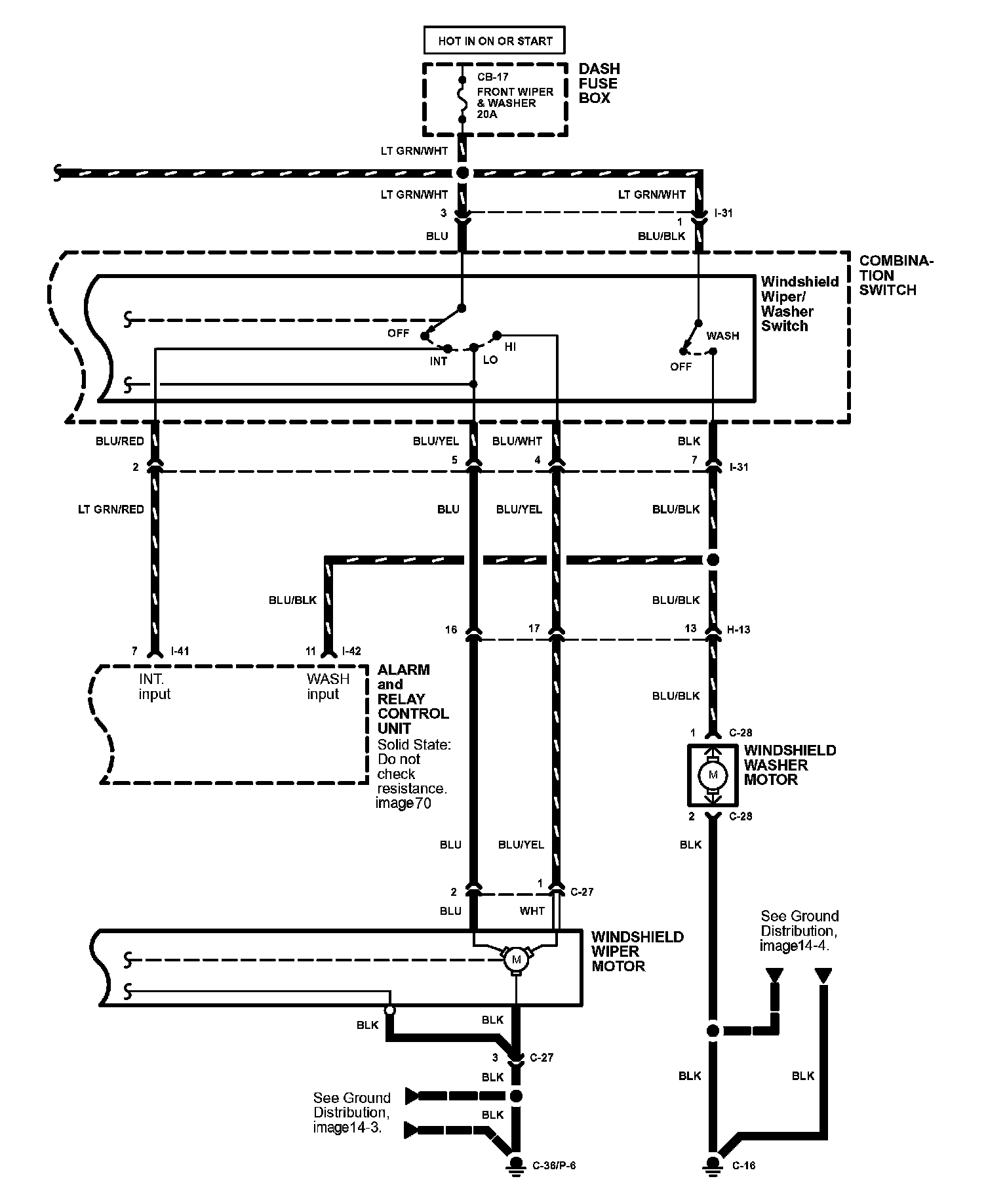

Windshield Wiper/Washer - Variable Intermittent Image 91:



Windshield Wiper/Washer - Variable Intermittent Image 91-1:



Rear Wiper/Washer - Rodeo Image 92:

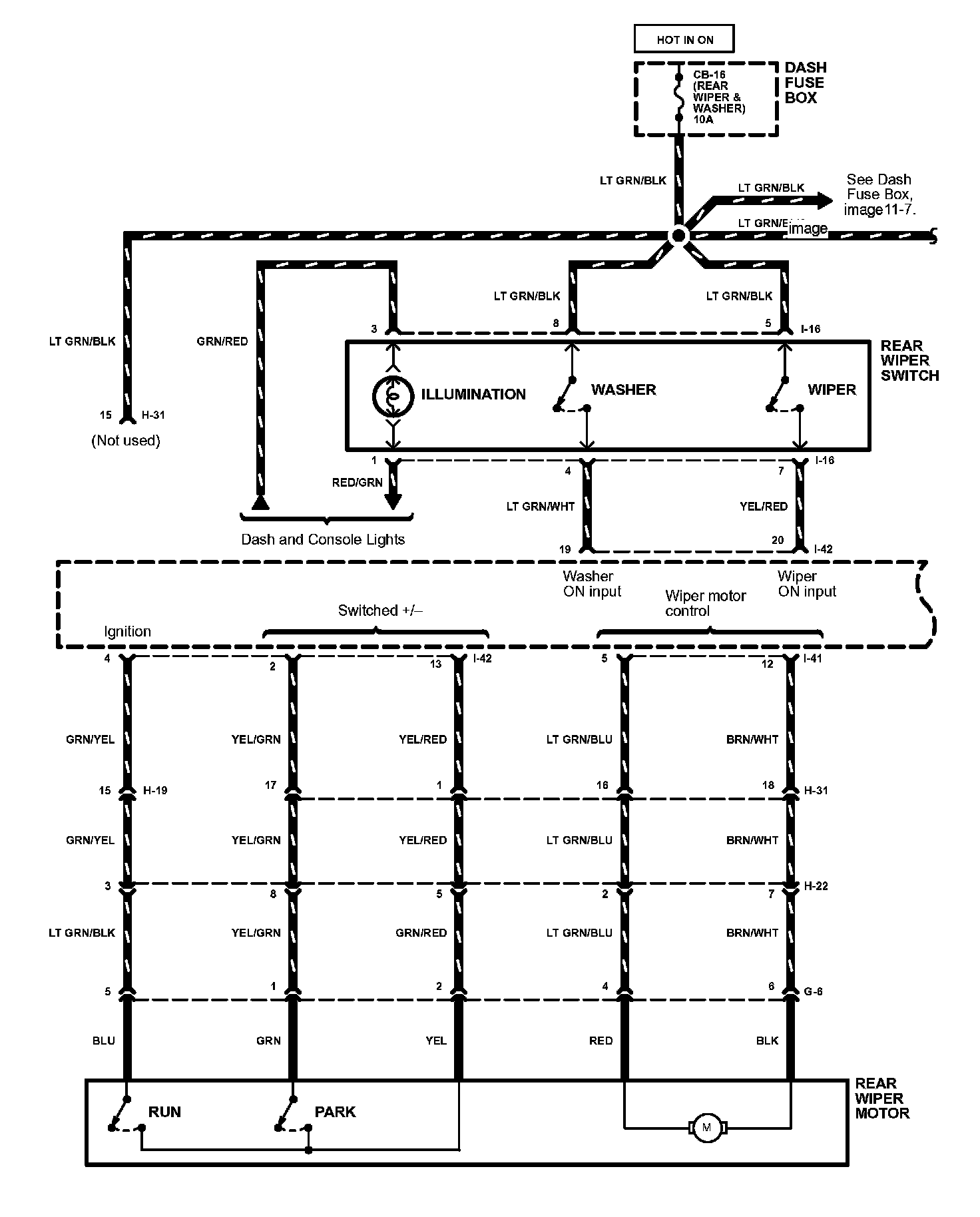

Rear Wiper/Washer - Rodeo Image 92-1:
