General Specifications

For general specifications, see Fig 1.

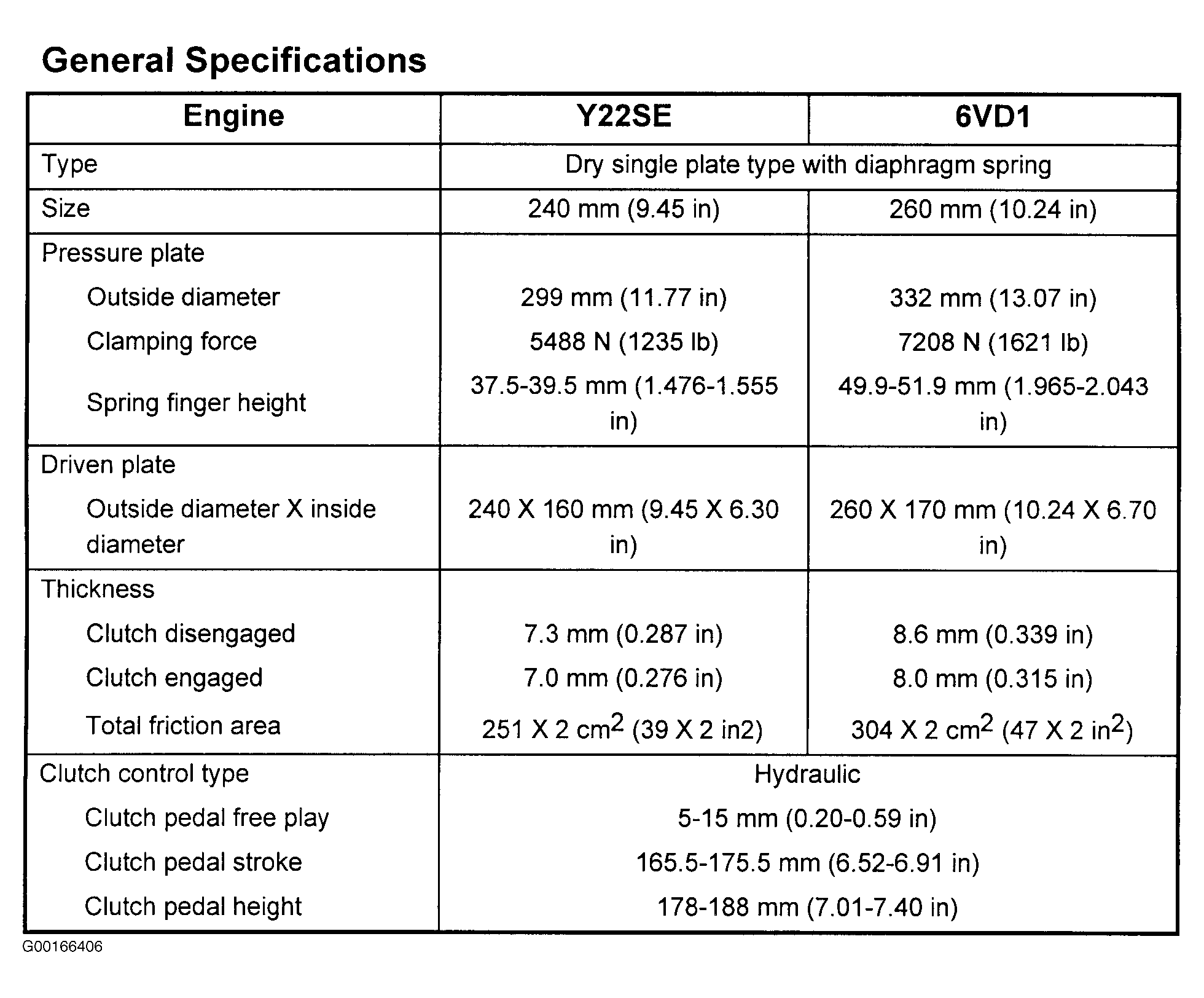

Fig 1: General Clutch System Specifications
G00166406Courtesy of ISUZU MOTOR CO.
