Clutch Control System: Notes

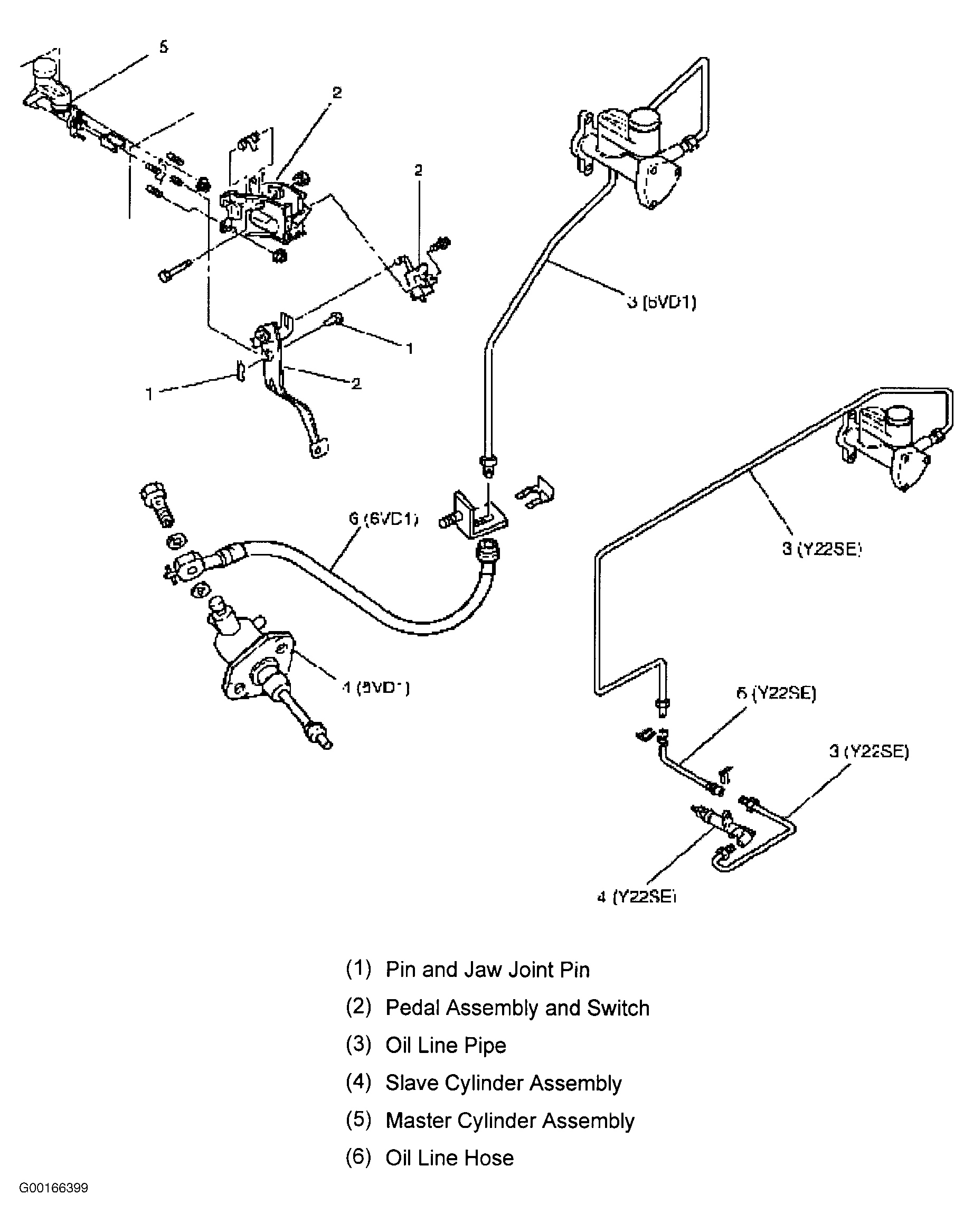

NOTE: To aid in removal and installation of clutch control system, refer to exploded view illustration. See Figure.
