Engine Control Diagrams

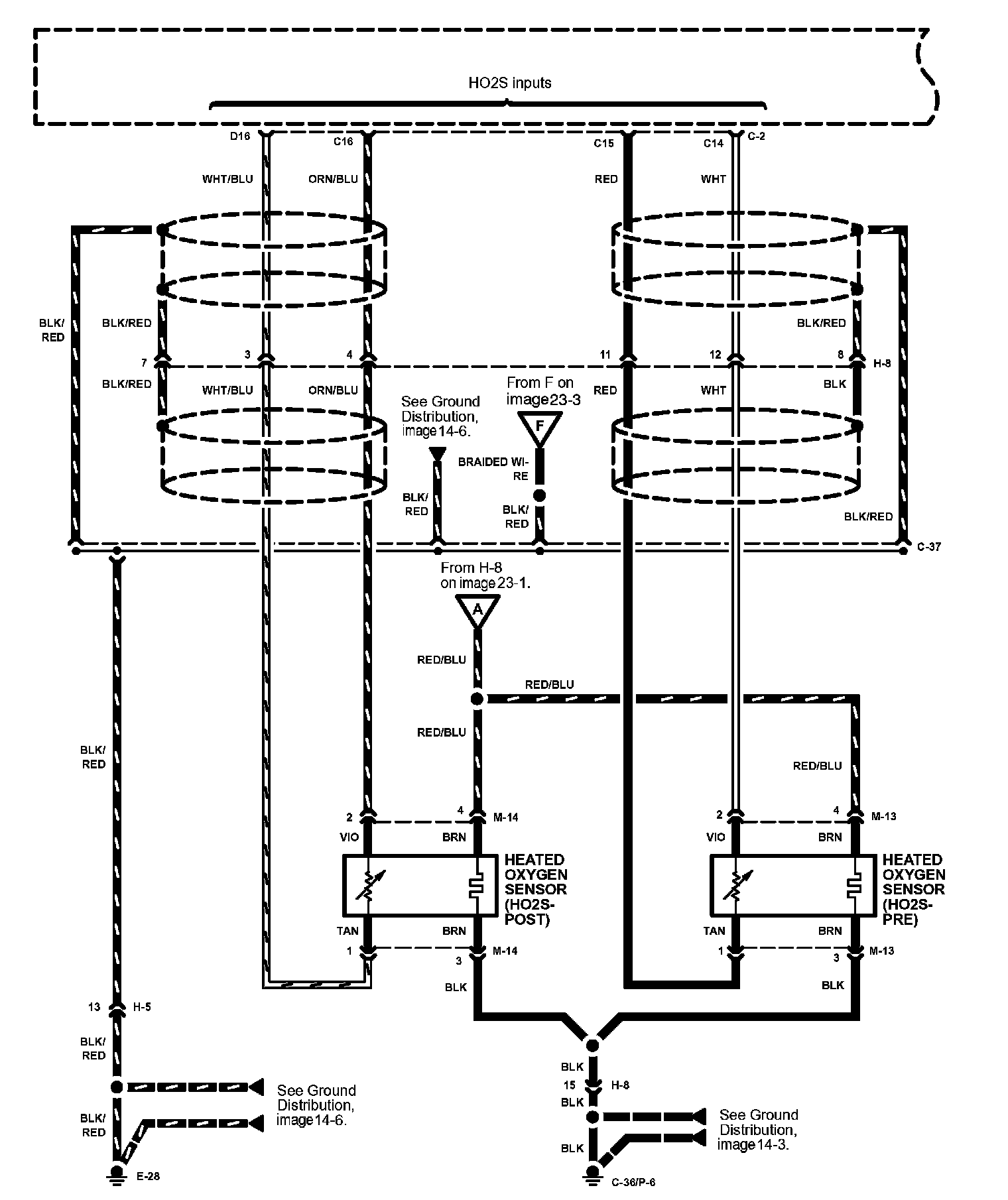

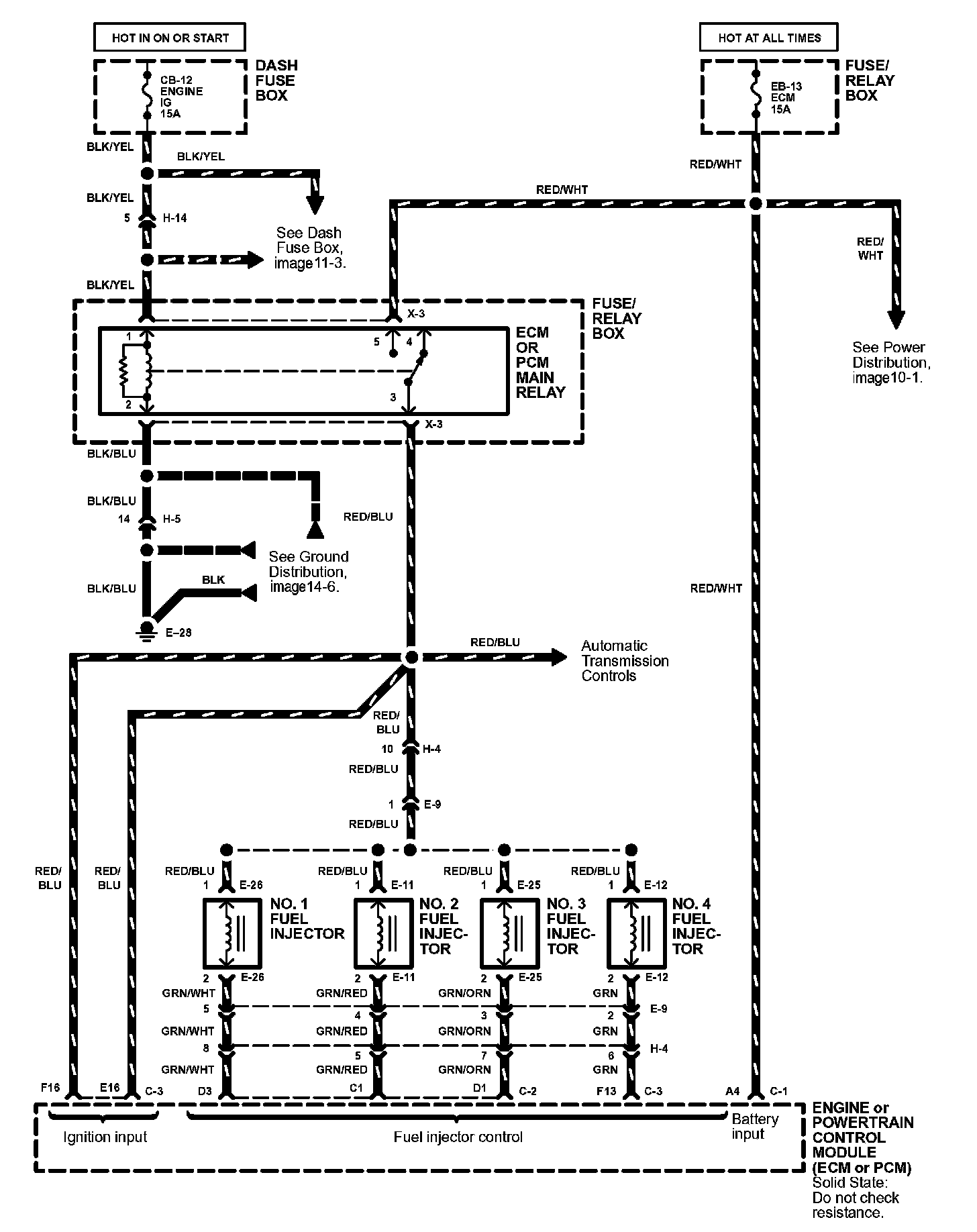

Engine Controls Image 23:



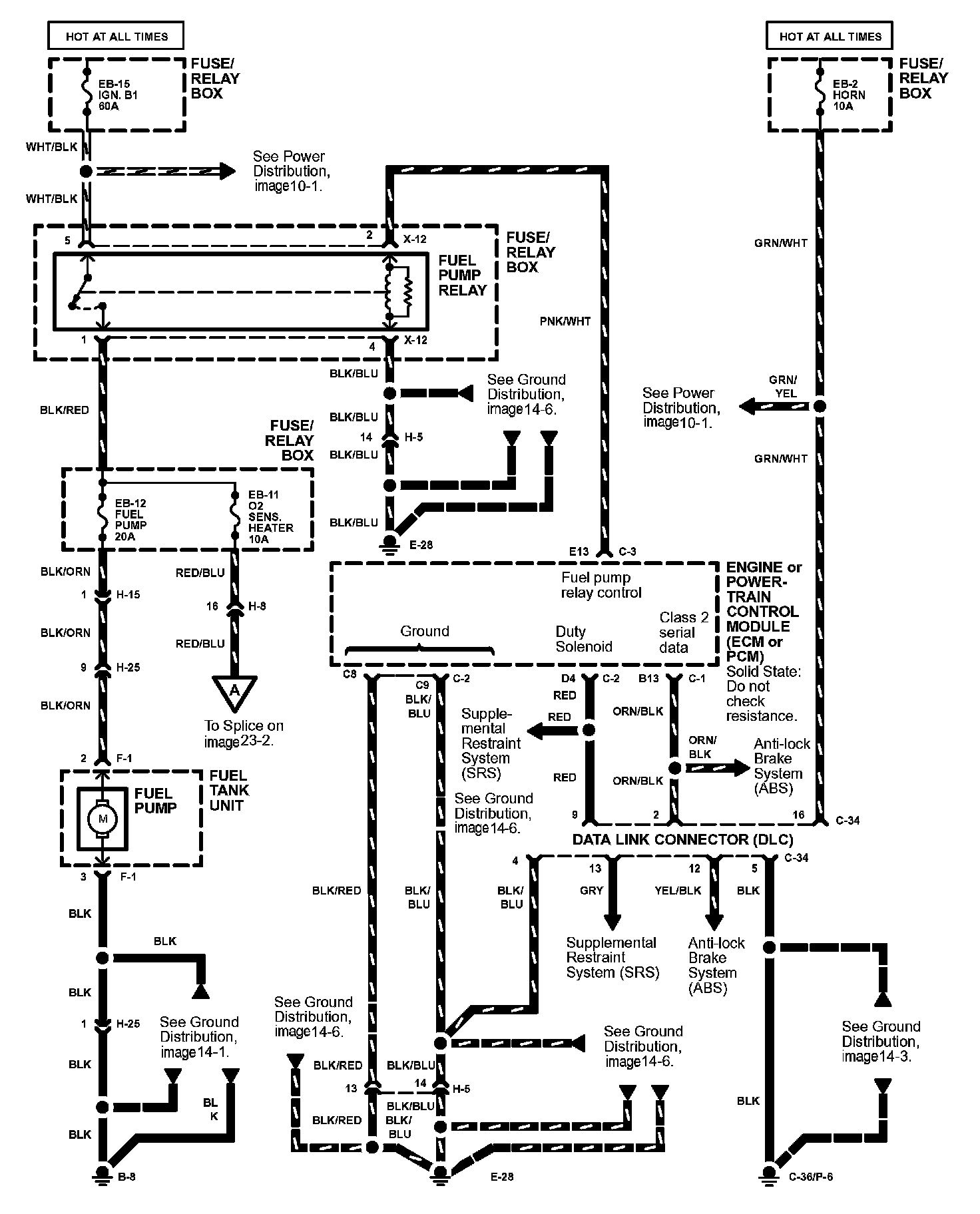

Engine Controls Image 23-1:



Engine Controls Image 23-2:



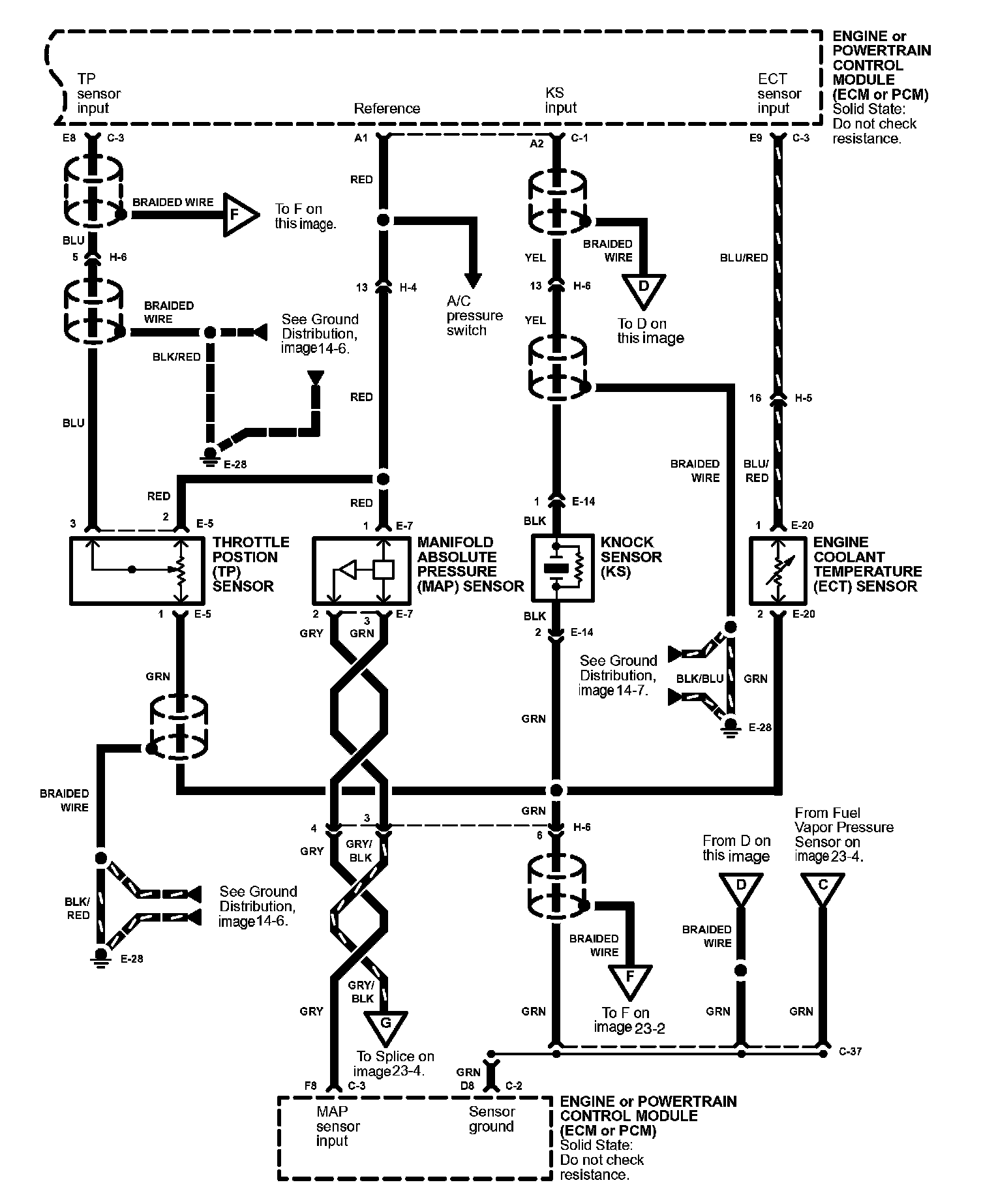

Engine Controls Image 23-3:



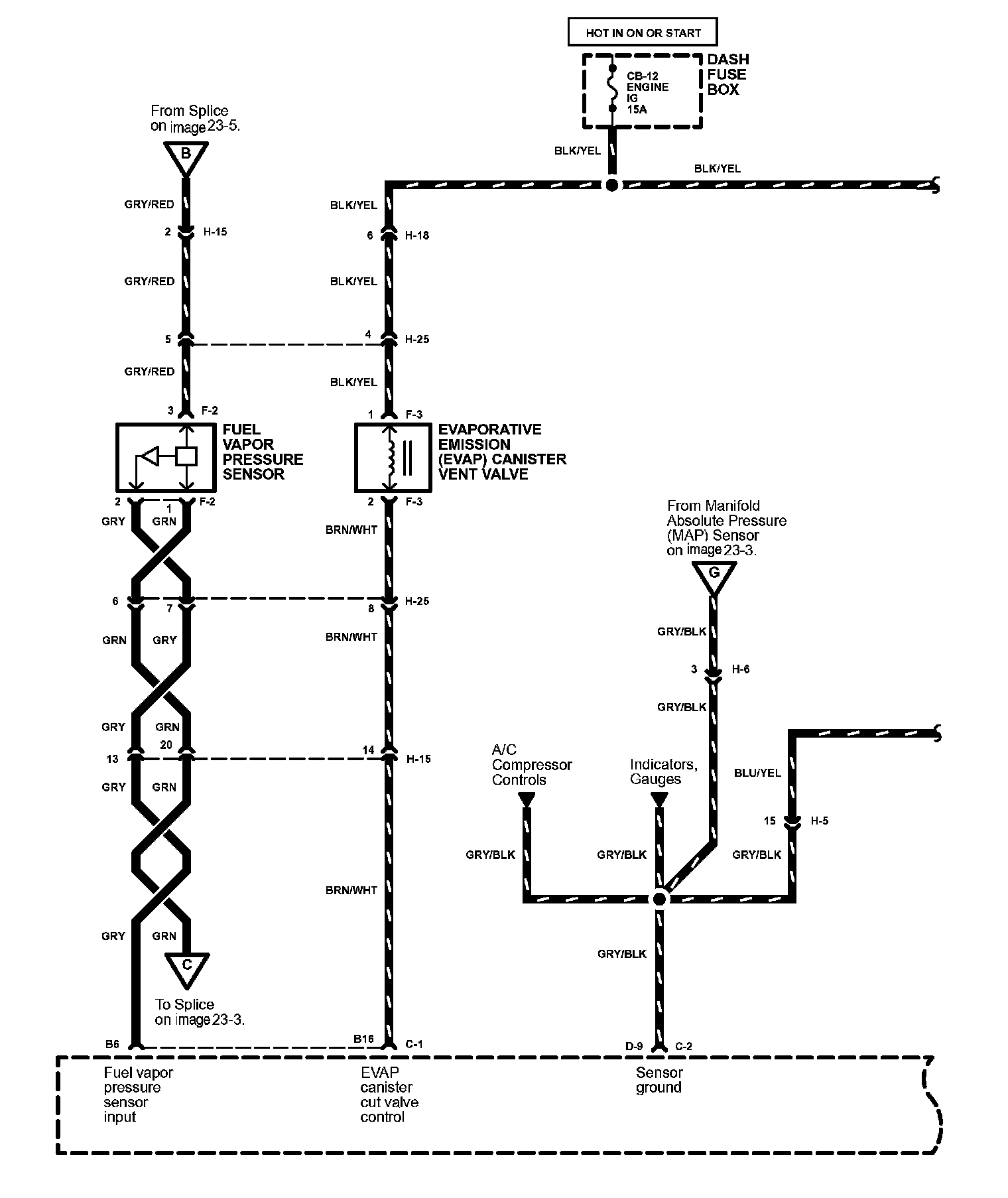

Engine Controls Image 23-4:



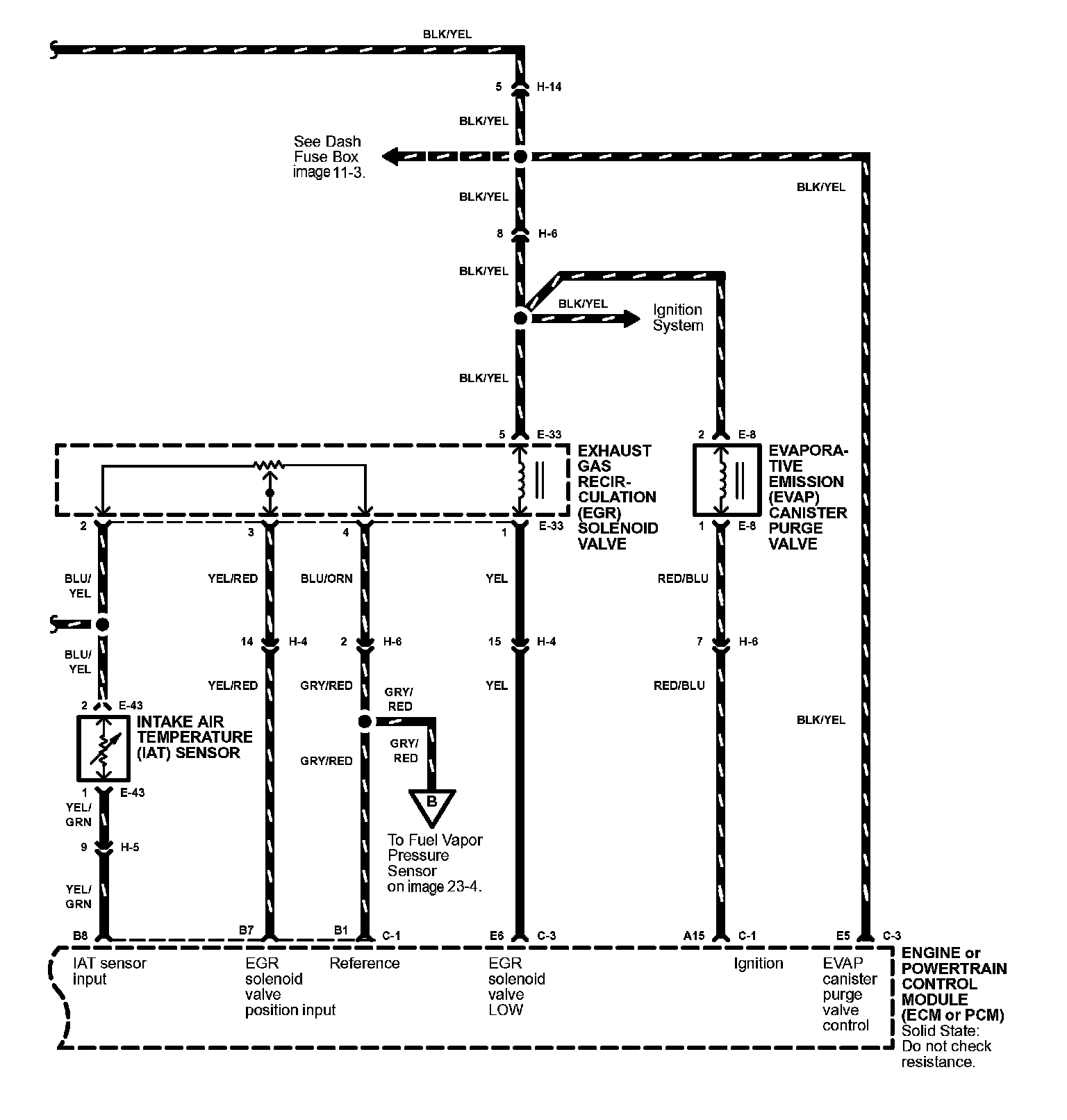

Engine Controls Image 23-5:



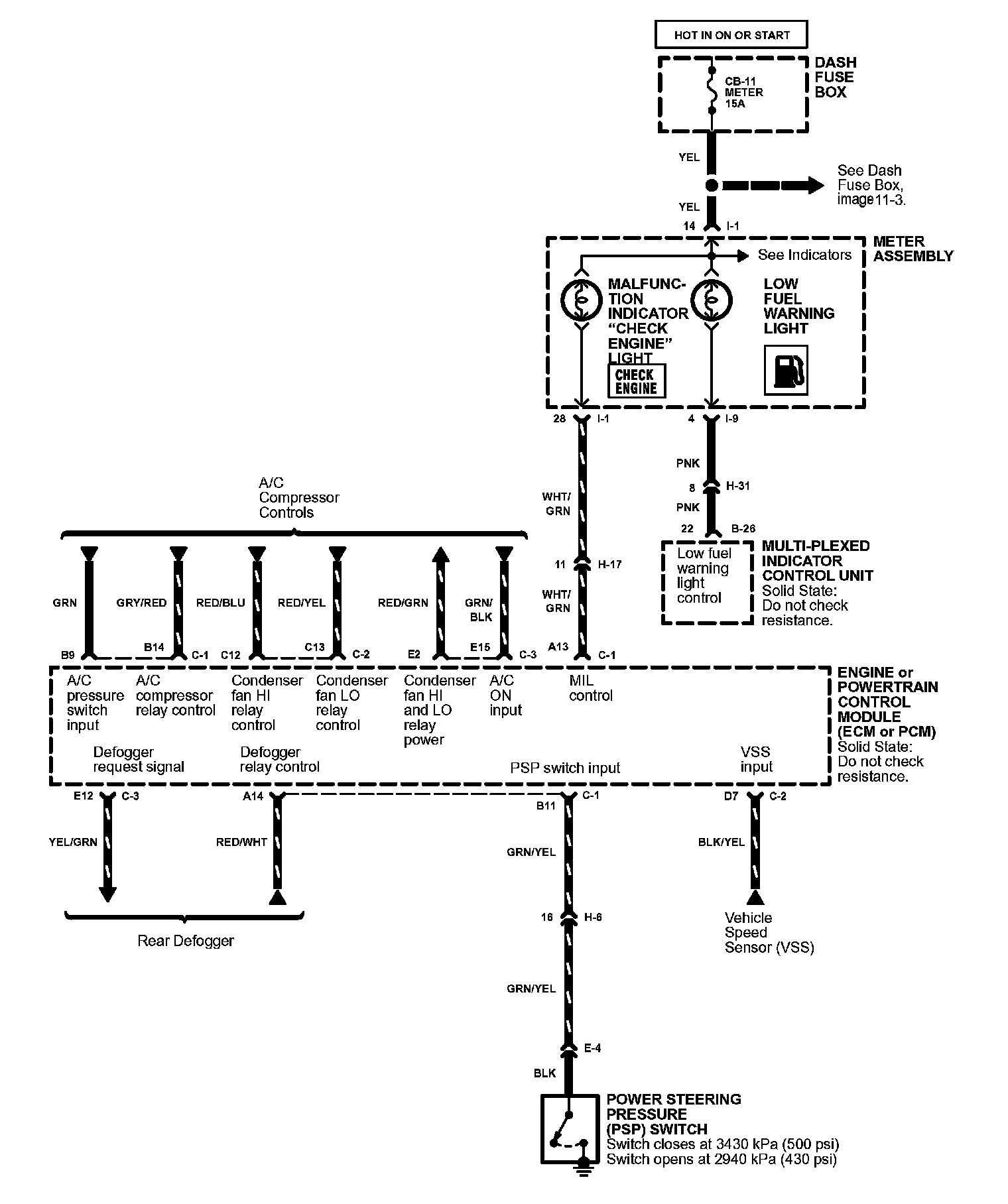

Engine Controls Image 23-6:



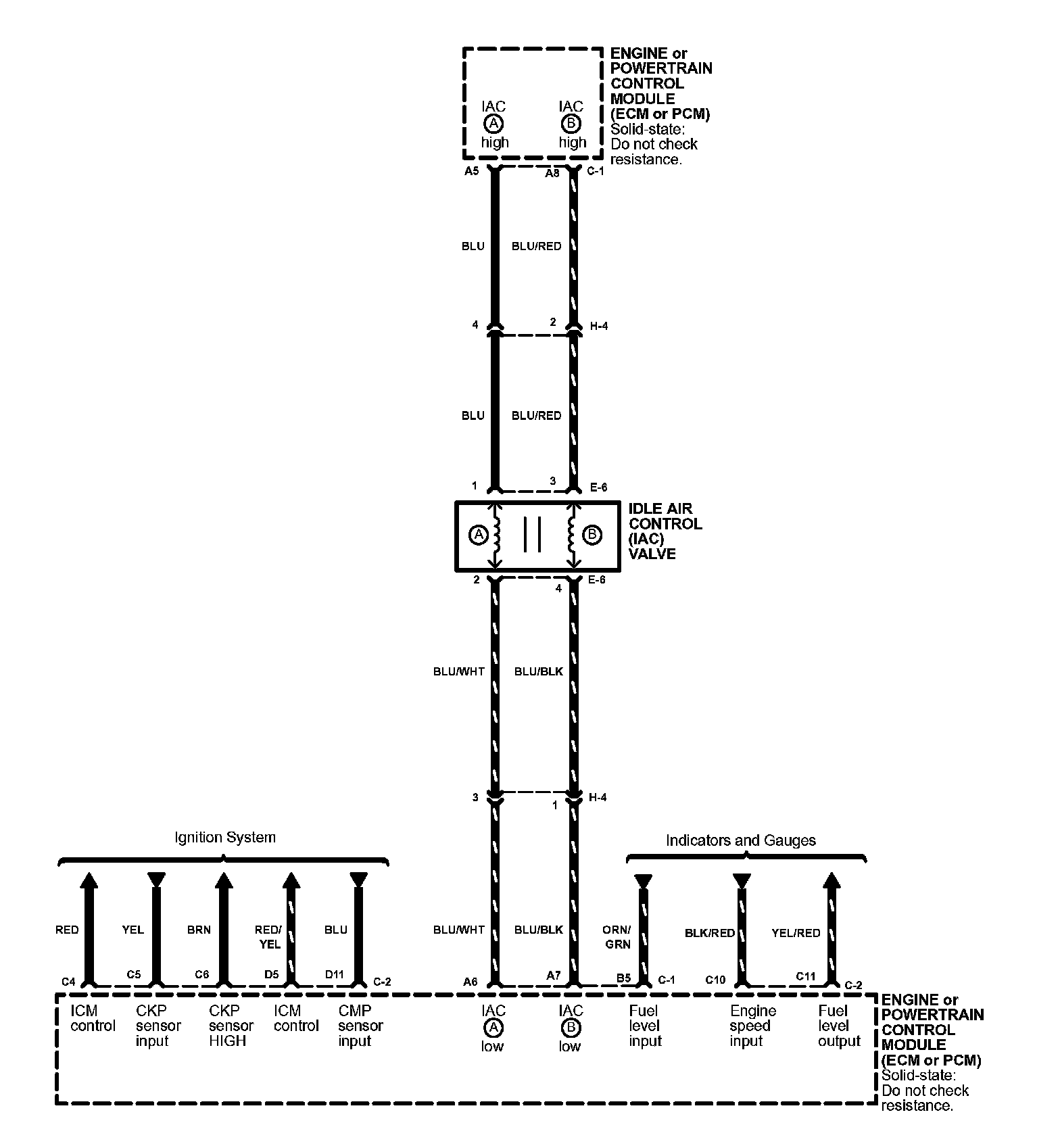

Engine Controls Image 23-7:



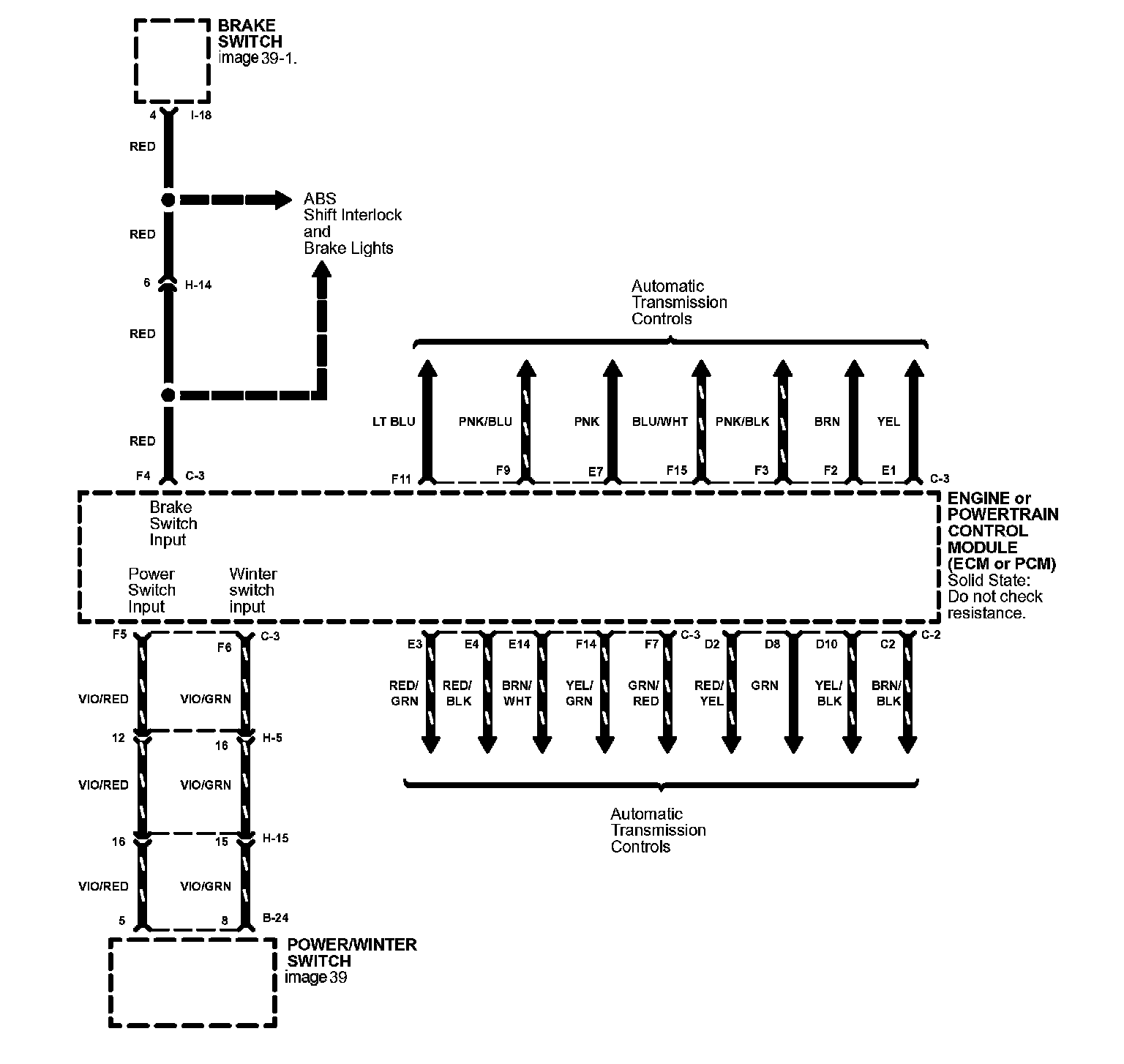

Engine Controls Image 23-8:
