Heater Core Case

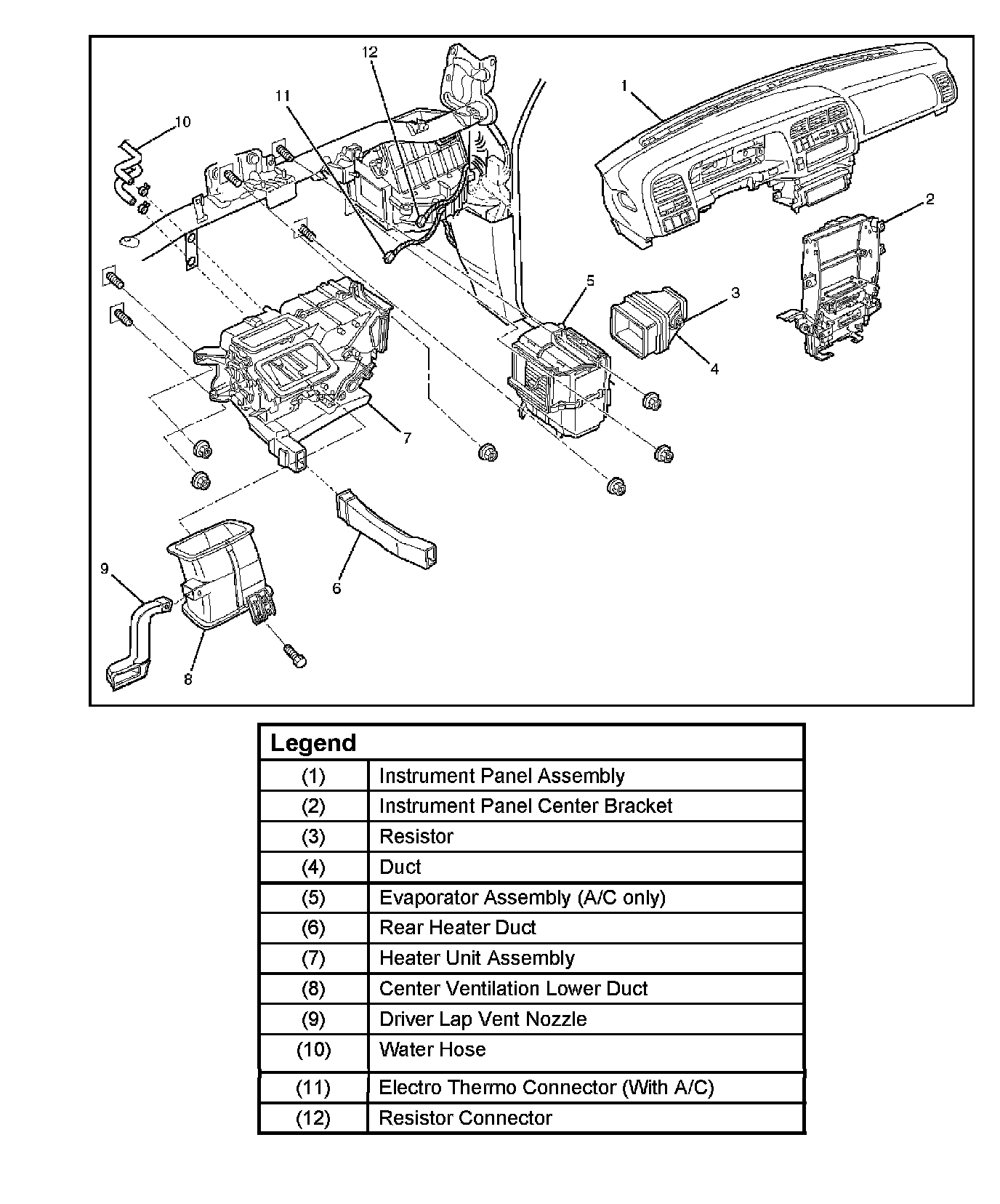

Heater Unit And Associated Parts:



Heater Core And / Or Mode Door Disassembled View:

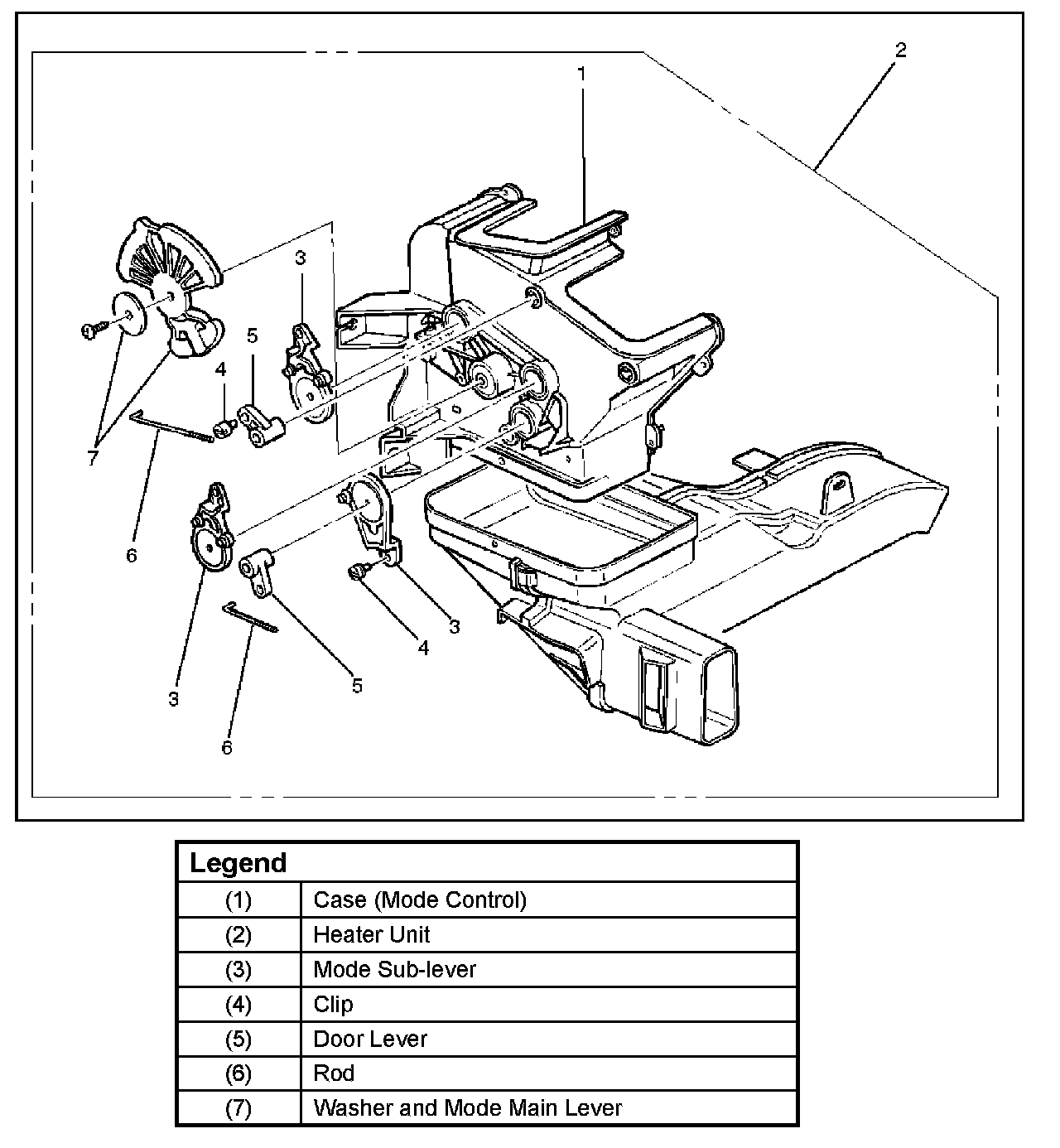

Heater Mode Control Link Unit Disassembled View:

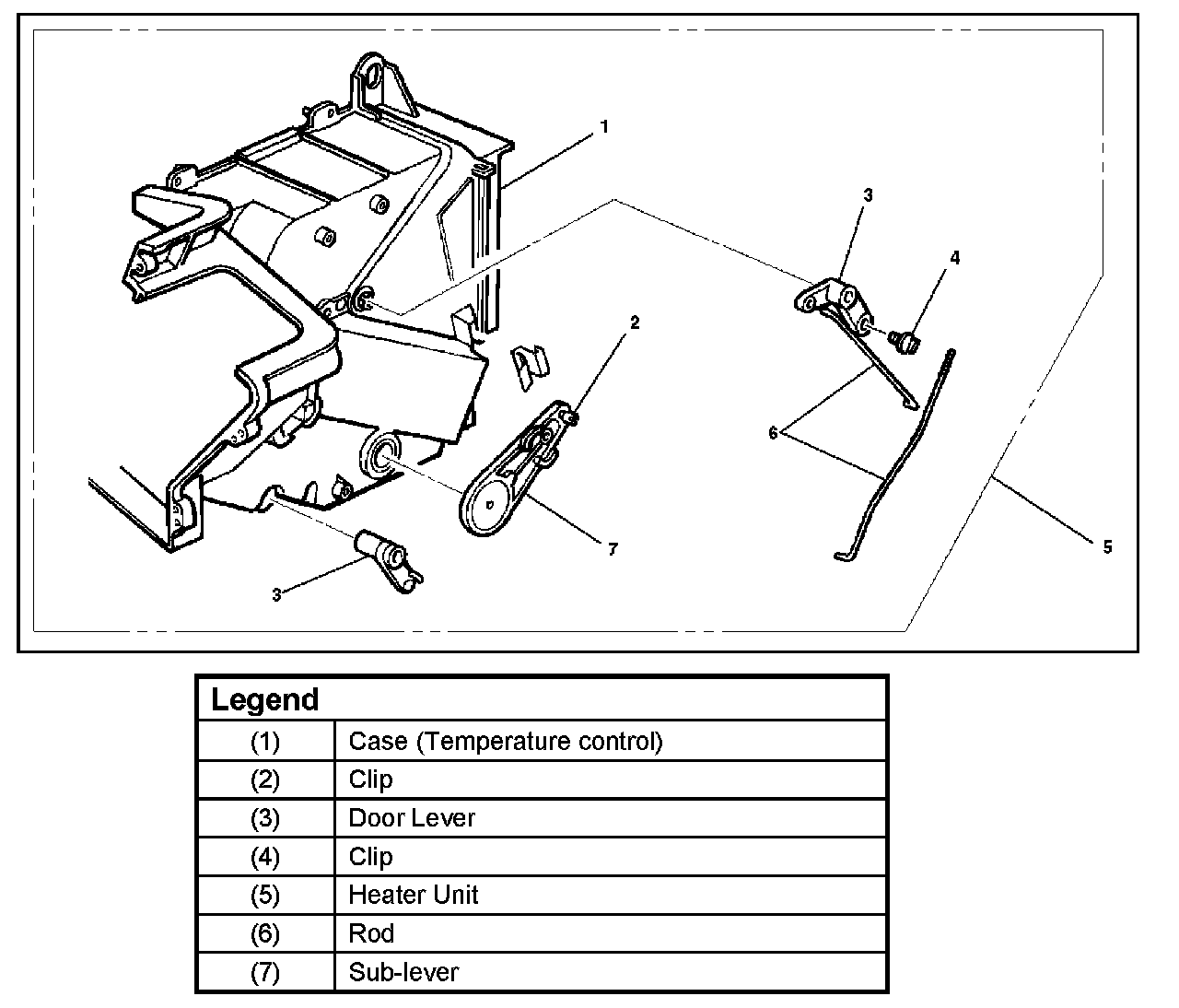

Heater Temperature Control Link Unit Disassembled View:

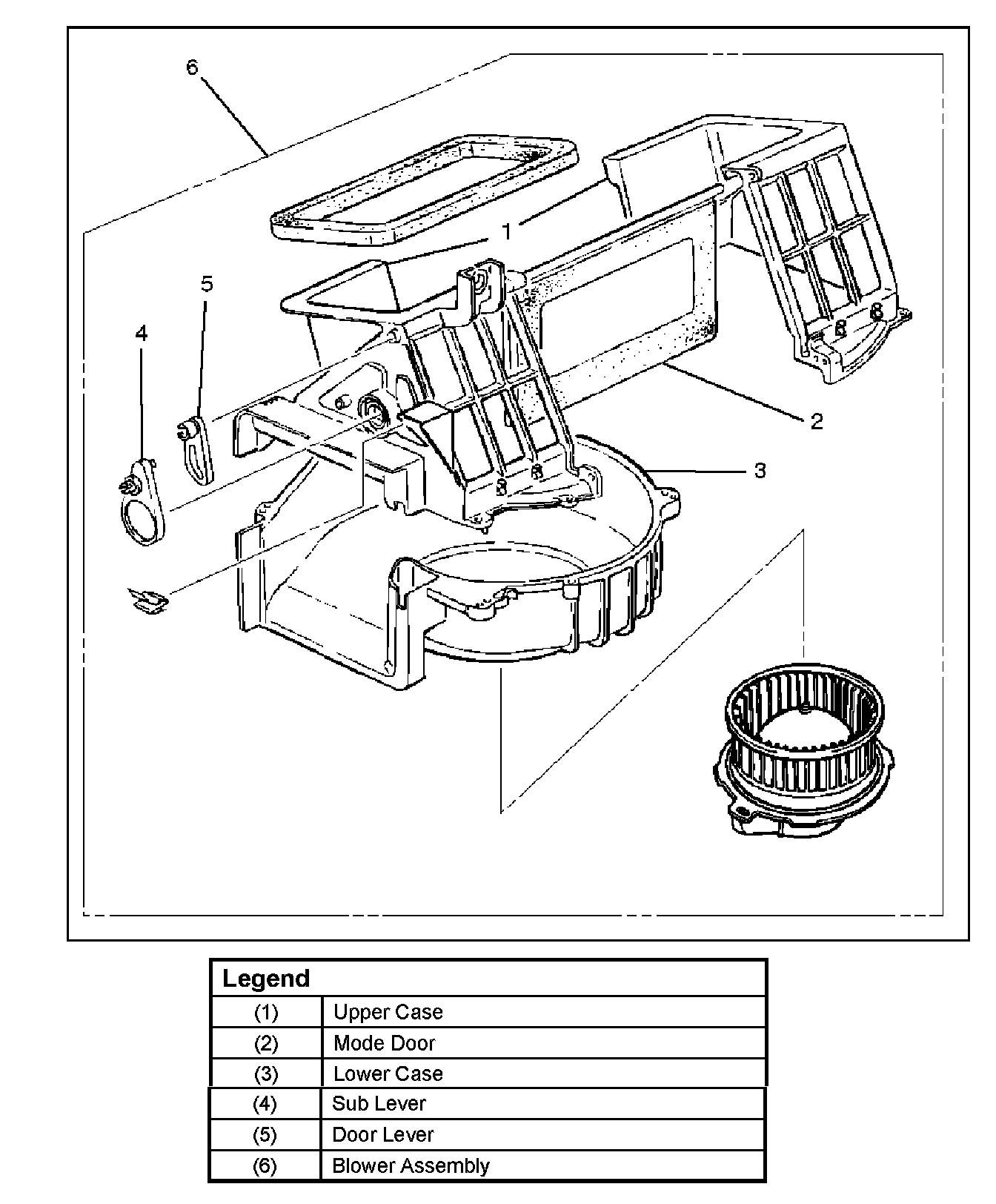

Blower Link Unit And / Or Mode Door - Disassembled View:

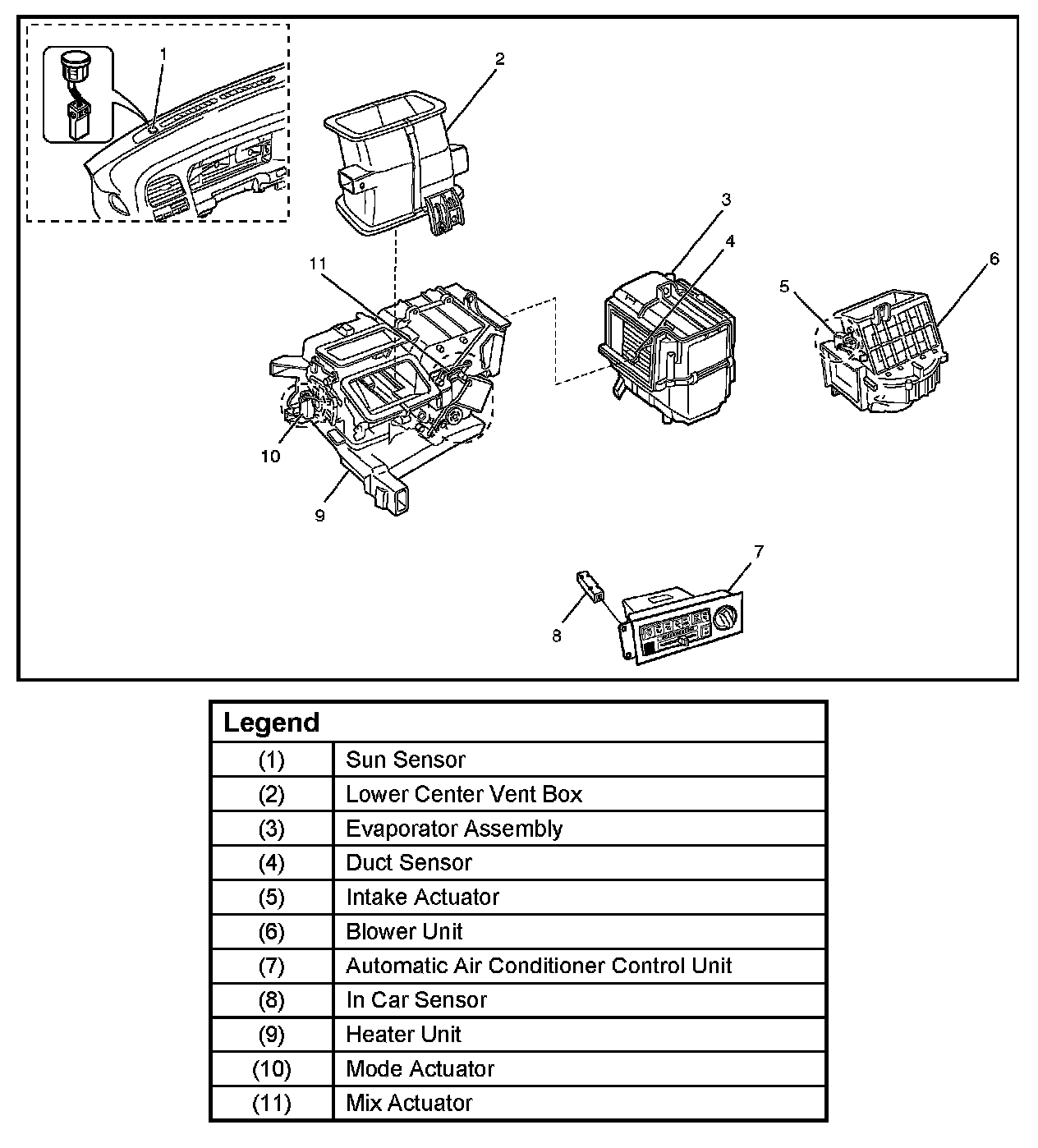

Full Automatic Air Conditioner Parts Configruation:
