Instrument Panel Bulb

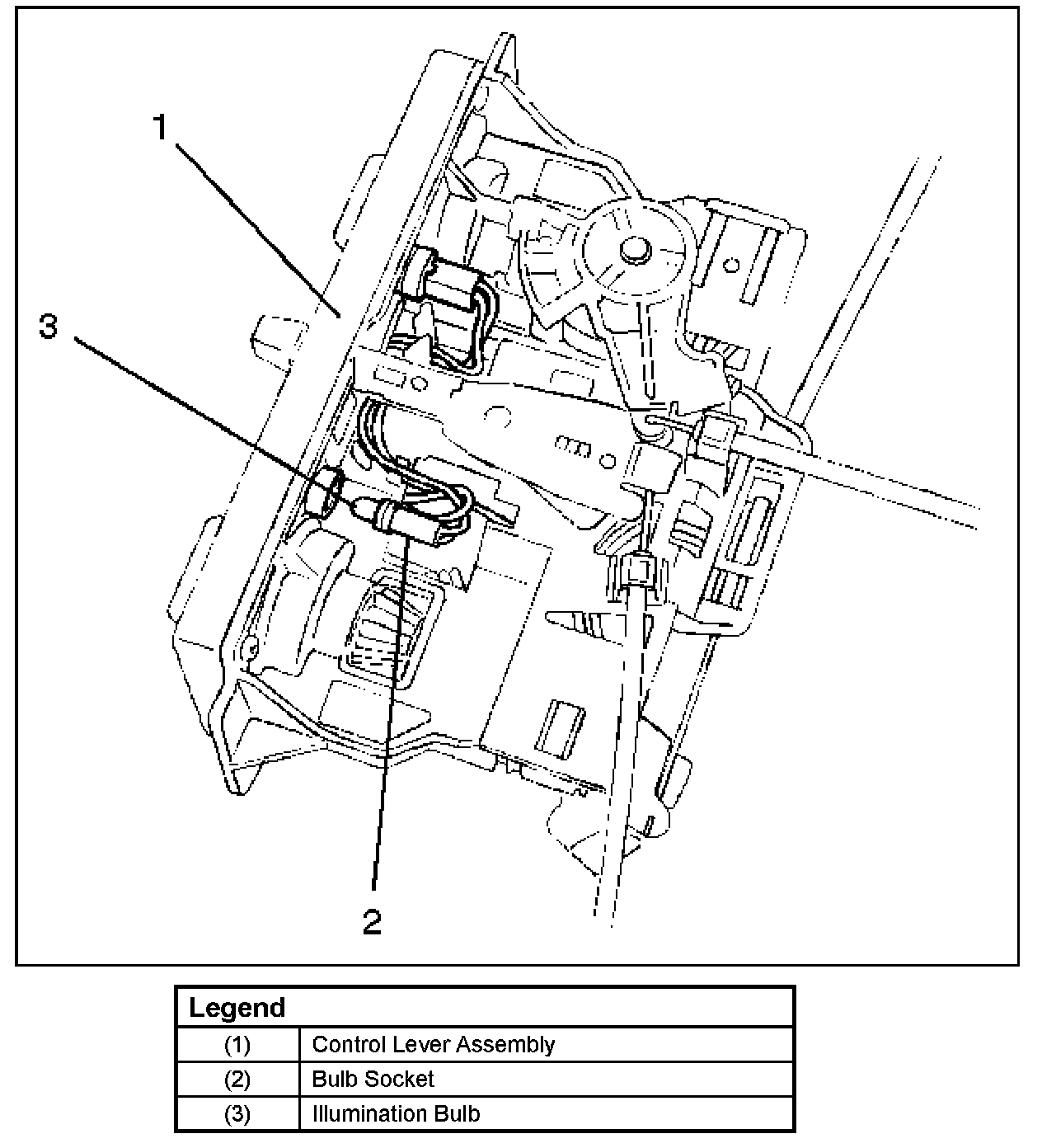

Control Panel Illumination Bulb And Associated Parts:

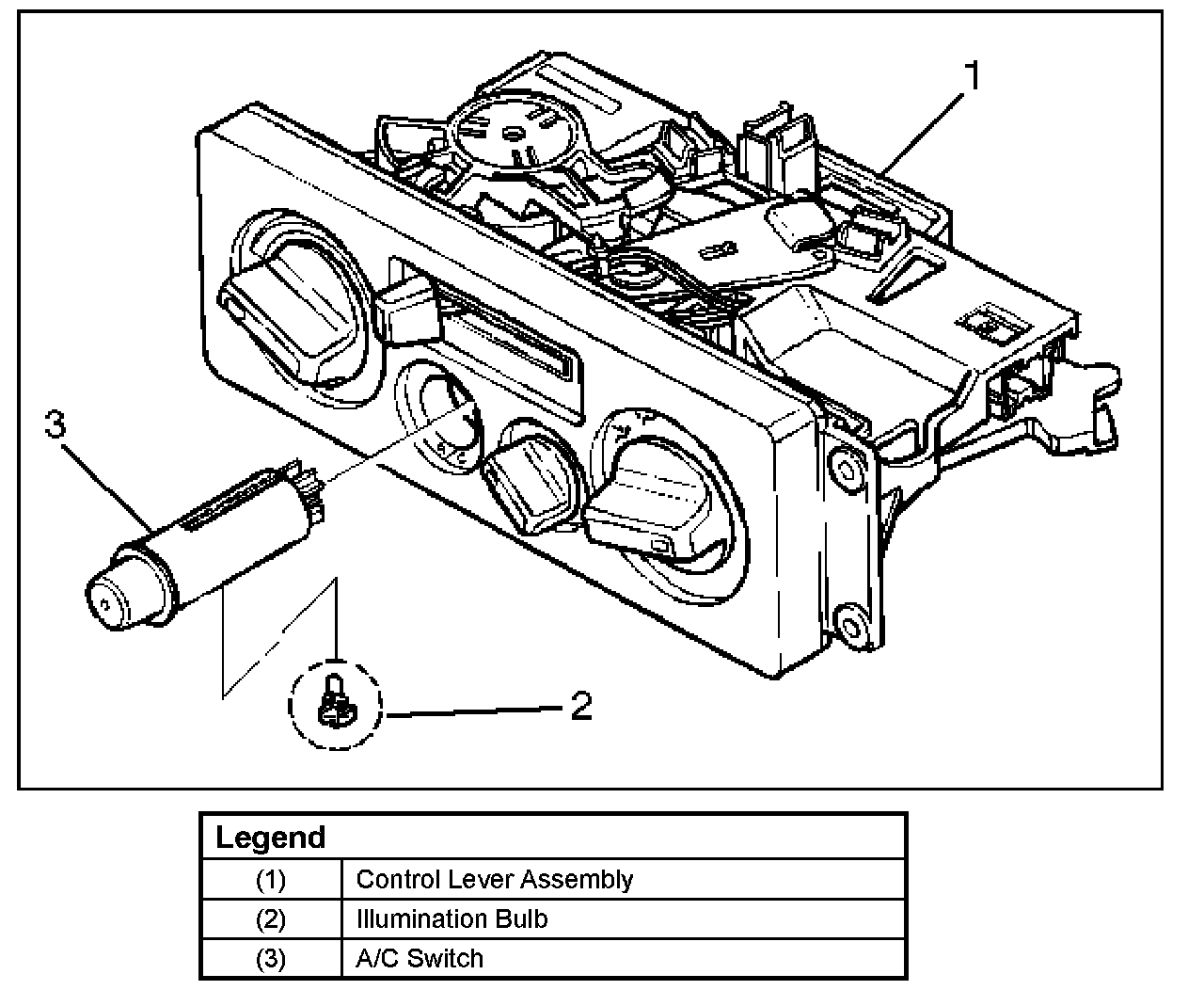

Air Conditioning Switch, Illumination Bulb And Associated Parts:
