Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Sensor:

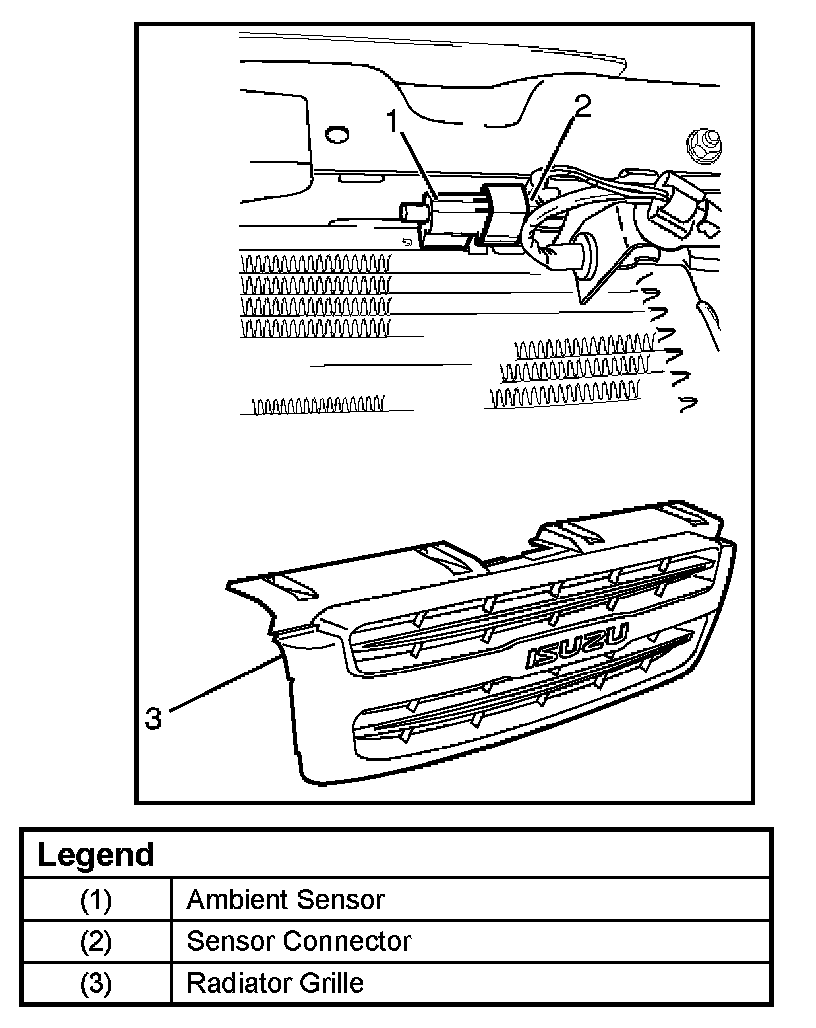

Ambient Sensor

Removal

1. Disconnect the battery ground cable.
2. Remove radiator grille.
- Refer to Radiator Grille in Body Structure.

3. Disconnect the ambient sensor connector.
4. Remove the ambient sensor.

Installation

To install, follow the removal step in the reverse order.
