Power Transistor HVAC: Service and Repair

Power Transistor:

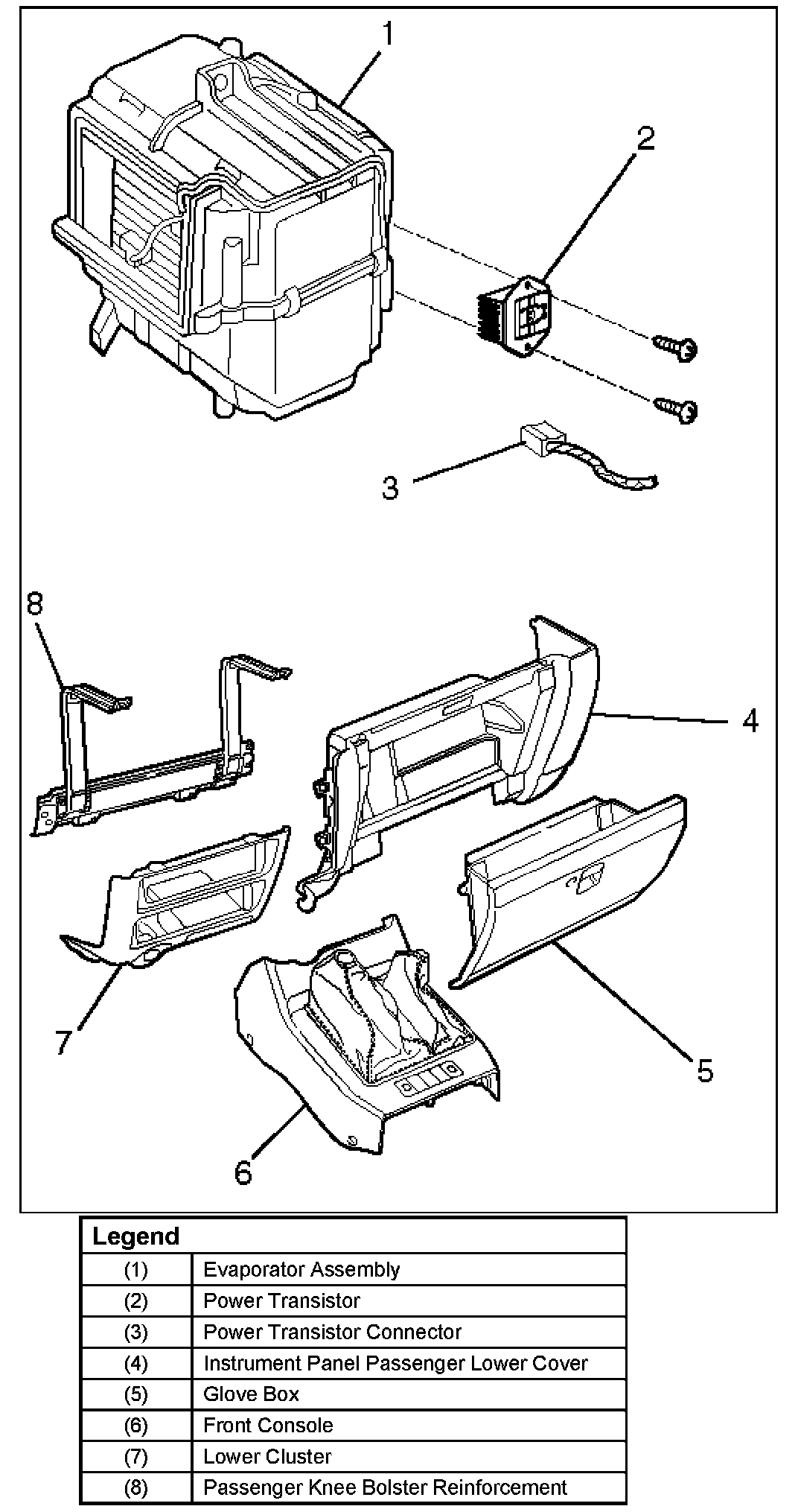

Removal

1. Remove front console.
2. Remove lower cluster
3. Remove glove box.
4. Remove instrument panel passenger lower cover.
5. Remove passenger knee bolster reinforcement.
6. Disconnect the power transistor connector.
7. Remove power transistor.

Installation

To install, follow the removal step in the reverse order.
