Connector Locations

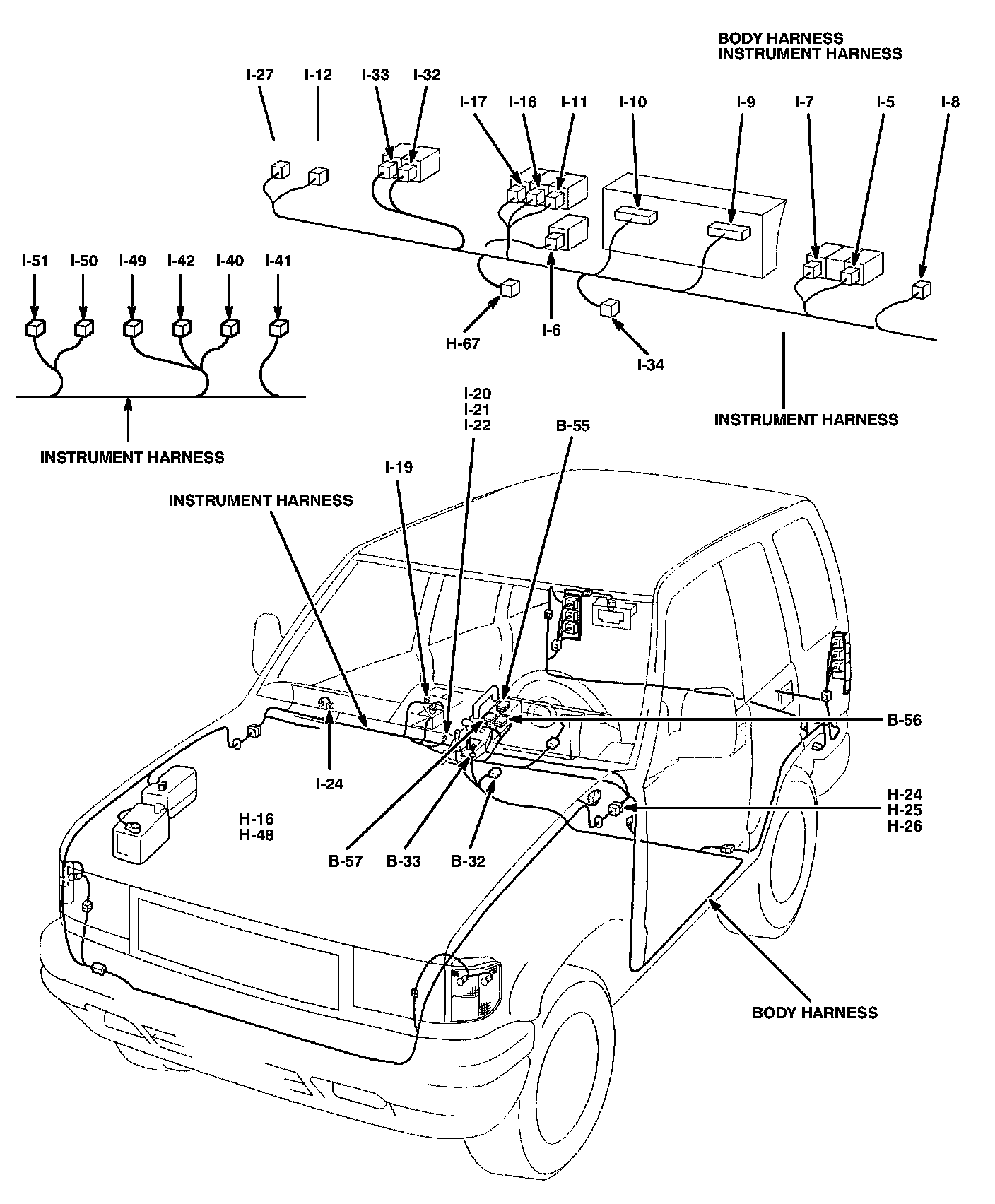

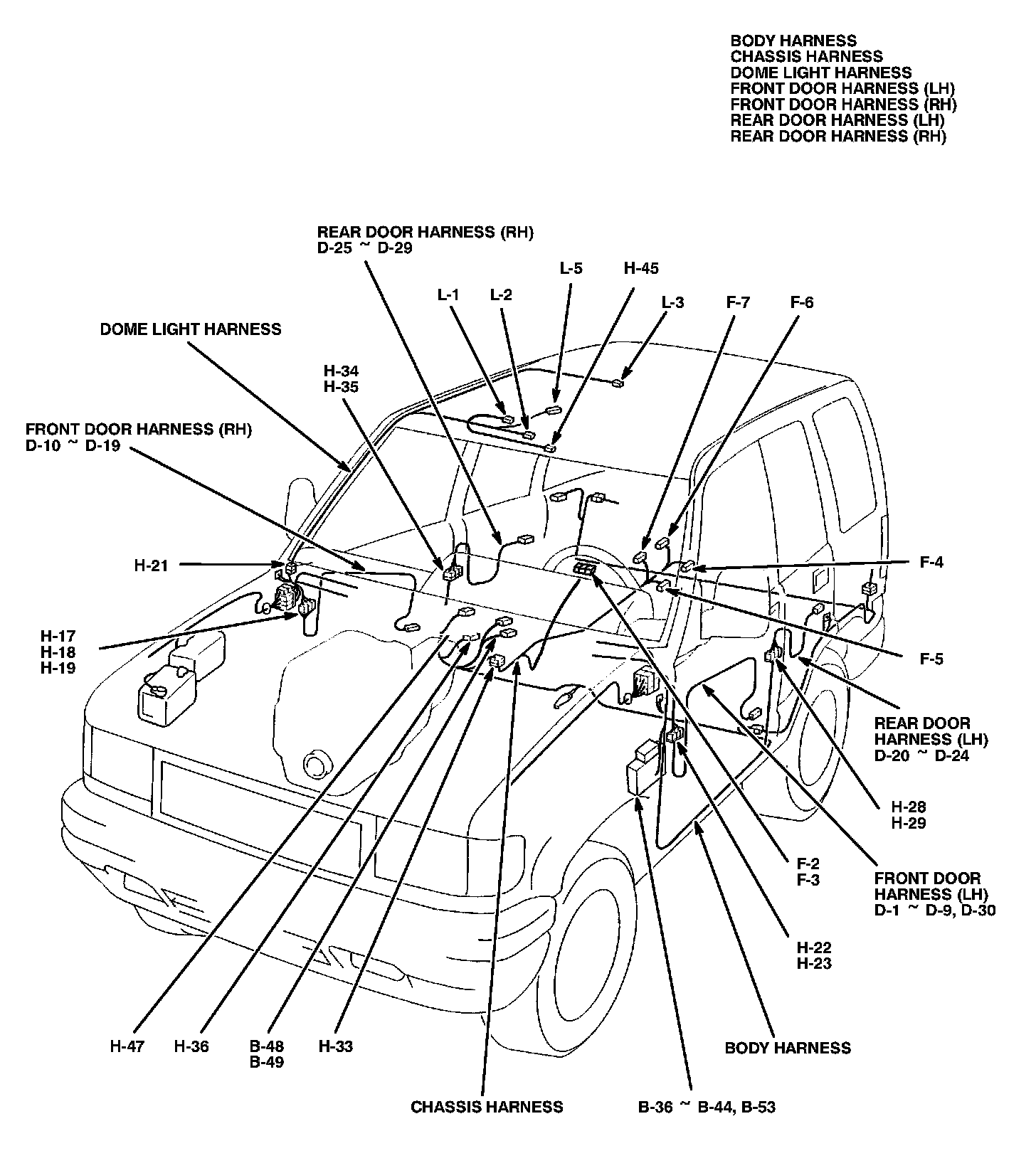

Connector And Wire Harness Routing Part 1:

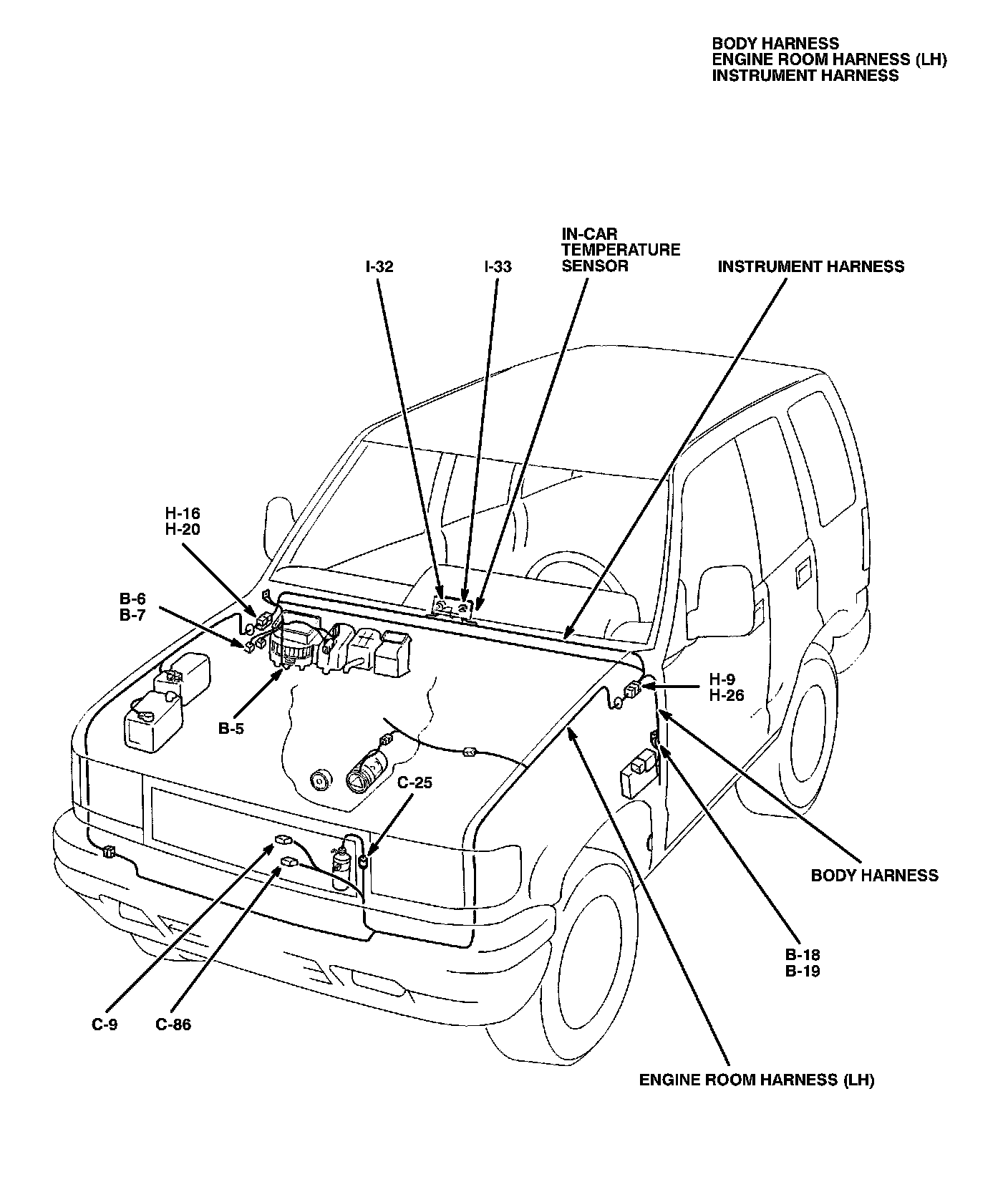

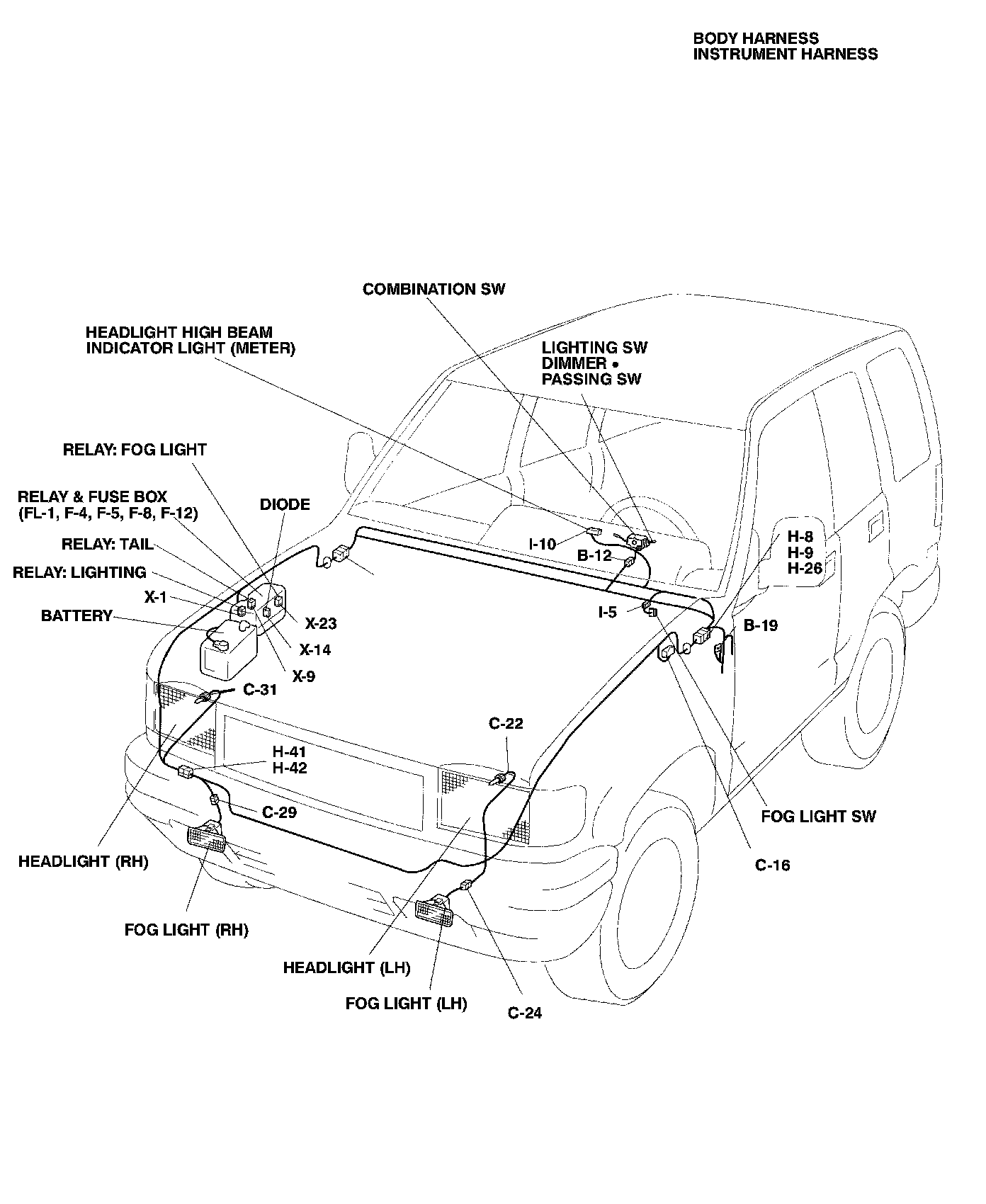

Connector And Wire Harness Routing Part 2:

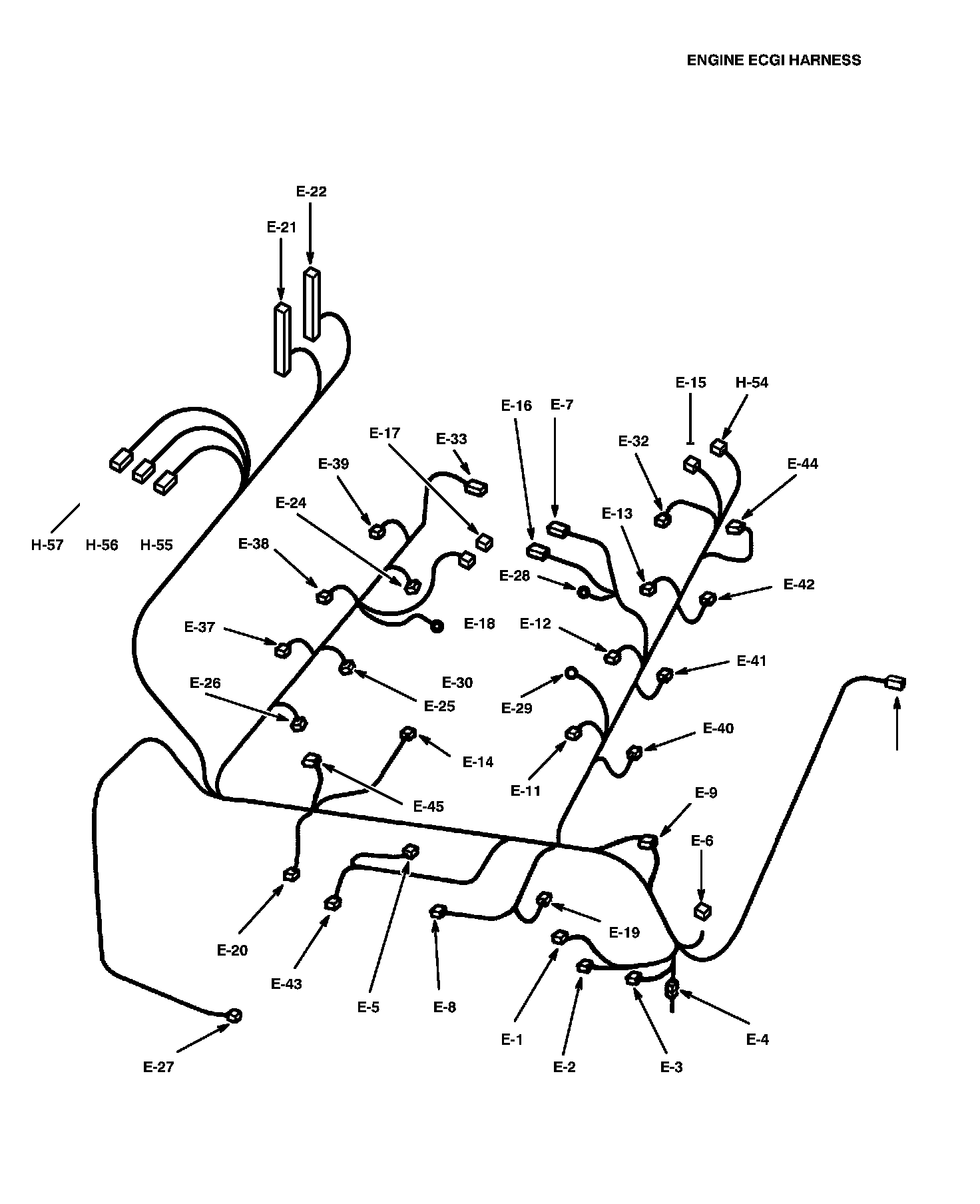

Connector And Wire Harness Routing Part 3:

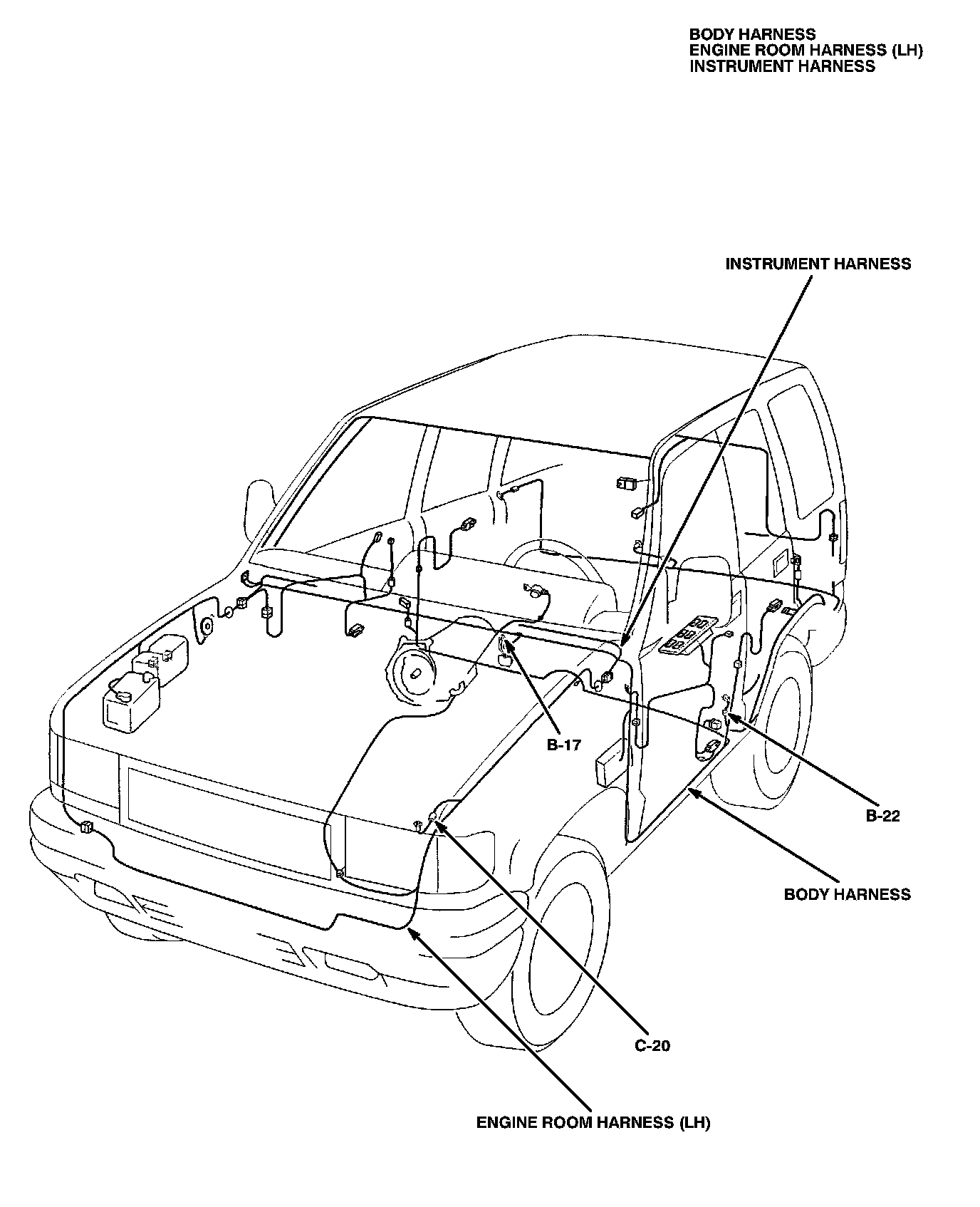

Connector And Wire Harness Routing Part 4:

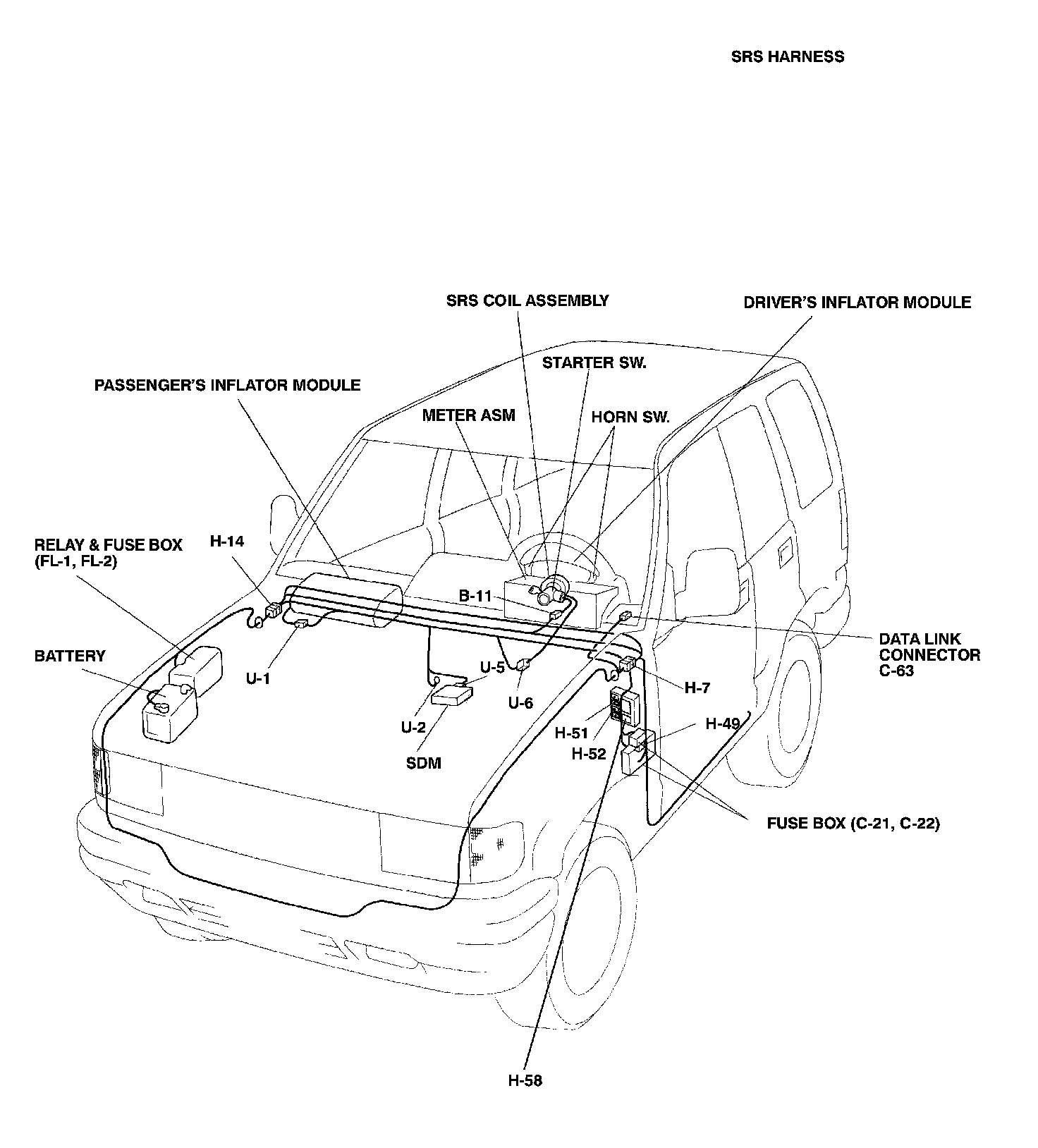

Connector And Wire Harness Routing Part 5:

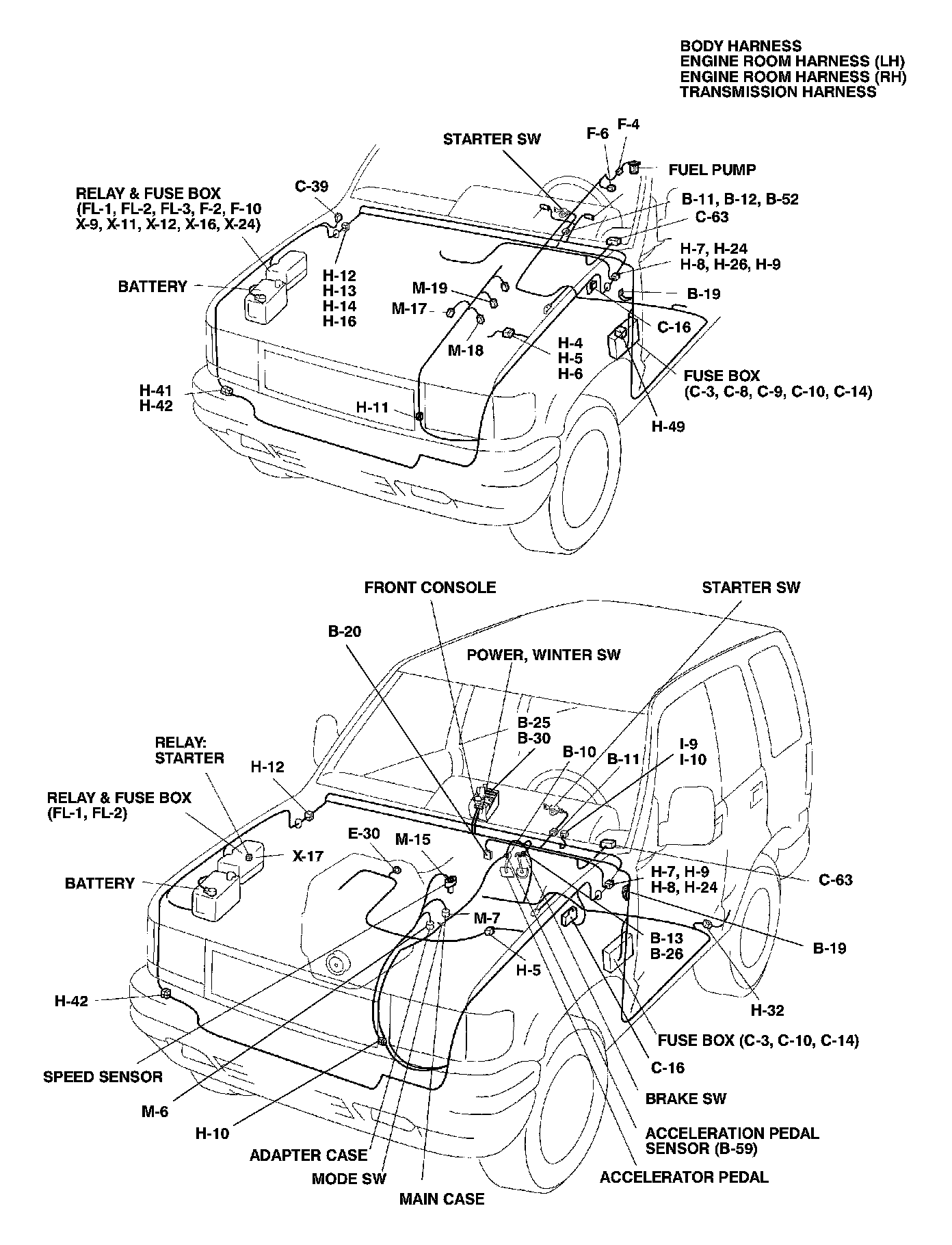

Connector And Wire Harness Routing Part 6:

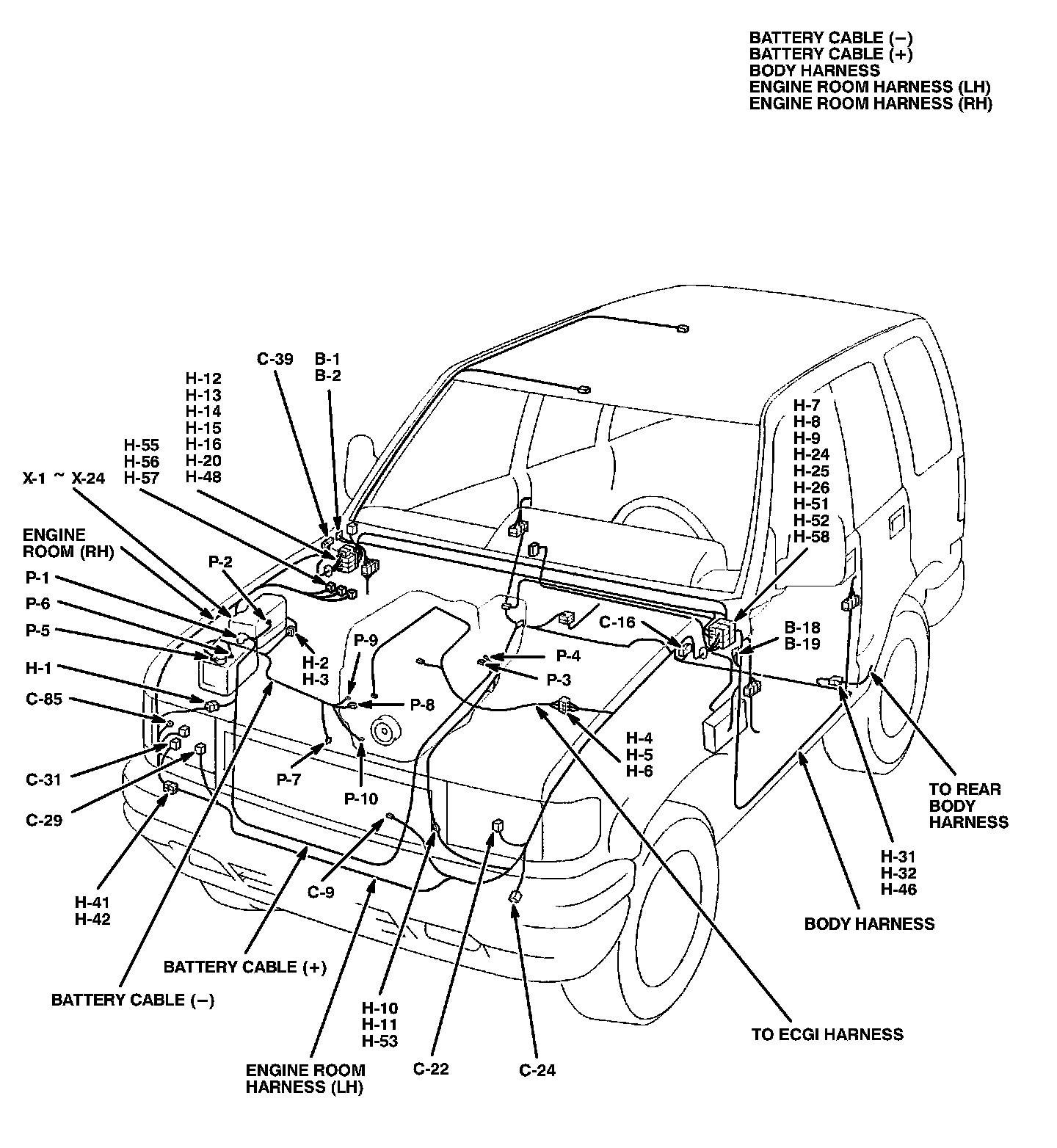

Connector And Wire Harness Routing Part 7:

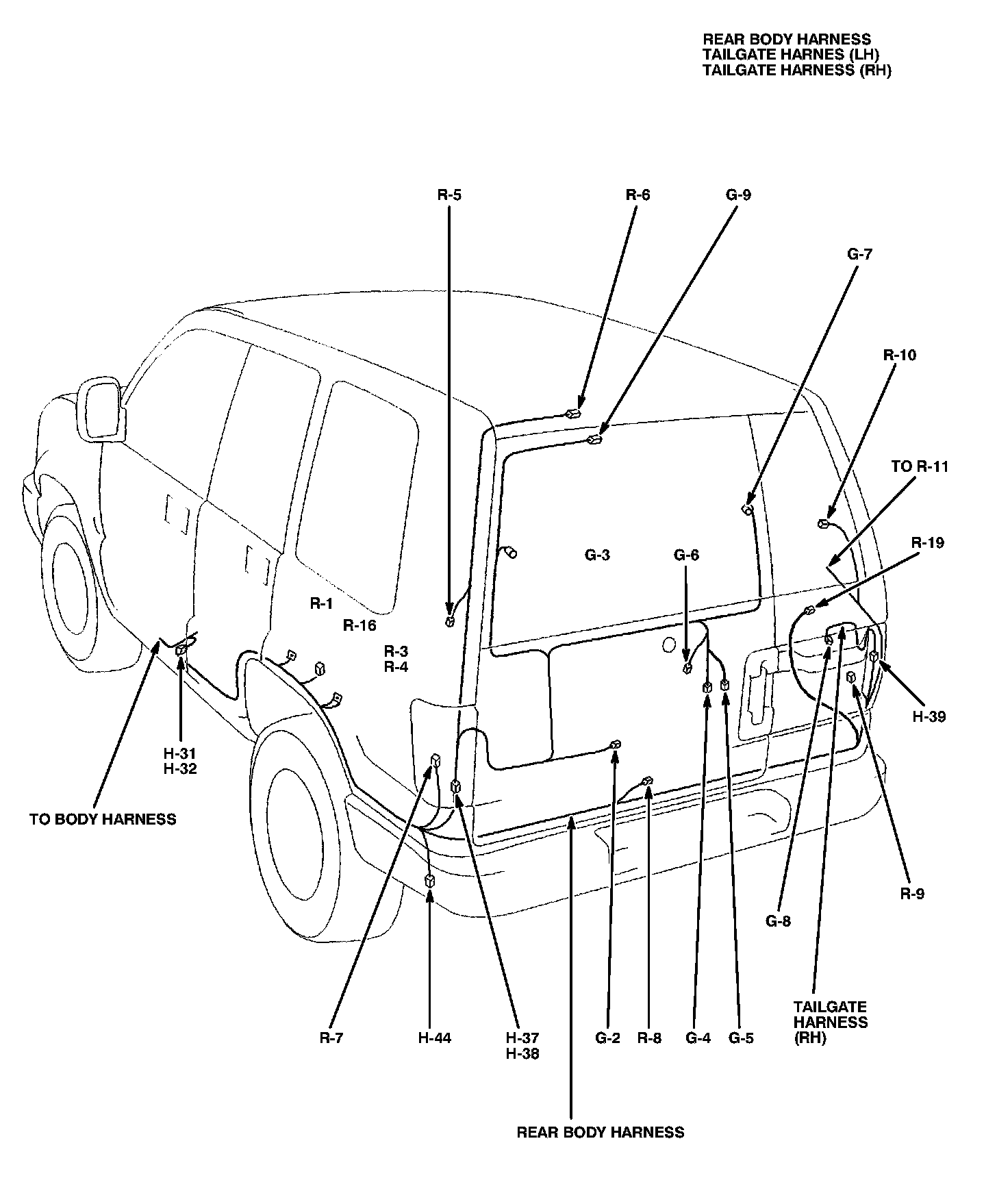

Connector And Wire Harness Routing Part 8:



Connector And Wire Harness Routing Part 9:



Connector And Wire Harness Routing Part 10:
